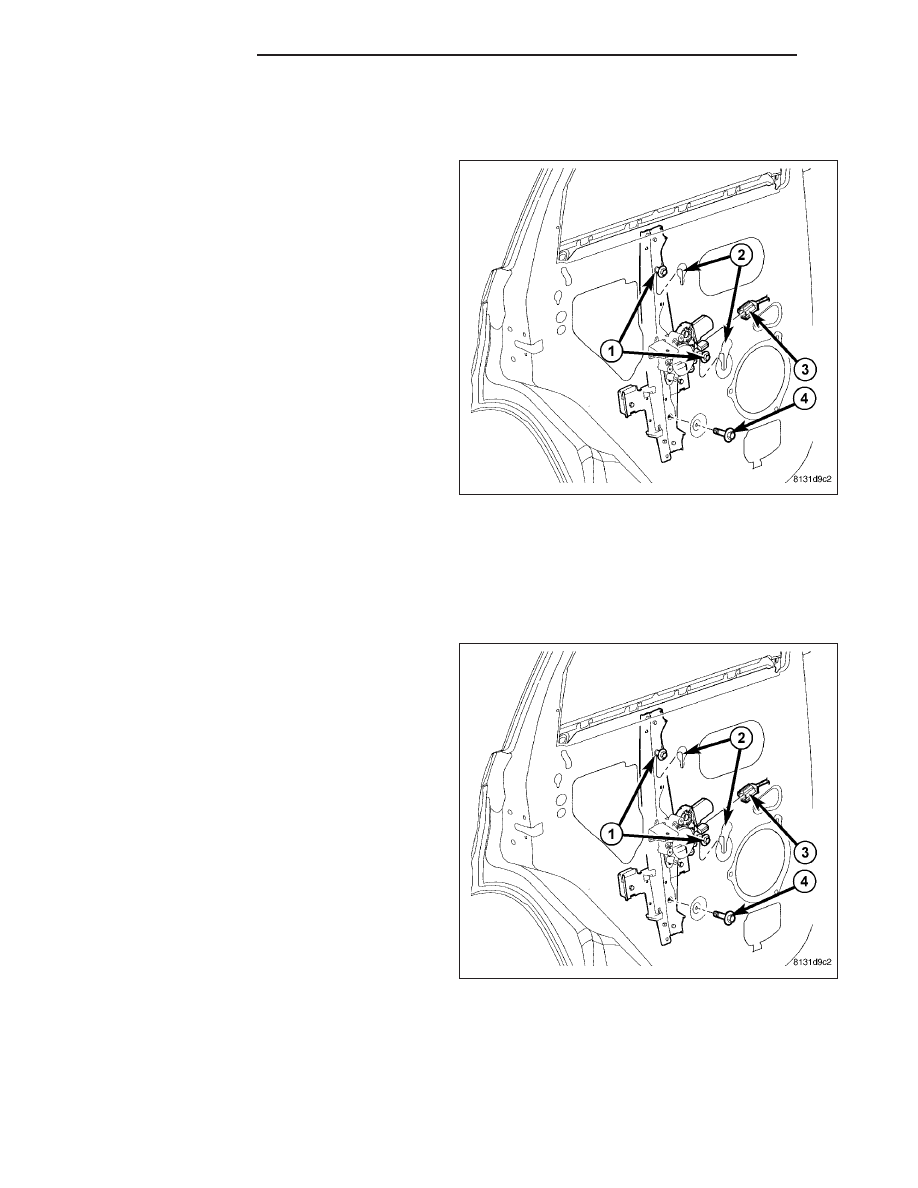

REGULATOR-WINDOW REMOVAL 1. Remove the trim panel from the inside of the rear door (Refer to 23 - BODY/DOORS - REAR/TRIM 2. Position the watershield out of the way and using the regulator, move the rear door glass up or down 3. Loosen the bolt in each of the window regulator glass clamps far enough to release the door glass 4. Disengage the door glass from the window regula- tor glass clamps and lift the glass out of the regu- 5. Remove the bolt (4) that secures the bottom of the window regulator to the inside of the door. 6. Loosen the two bolts (1) that secure the regulator to the keyed holes (2) on the inside of the door. 7. Lift the regulator upward within the door far enough to disengage the bolts from the two keyed holes in the door. 8. Lower the regulator within the door far enough to access and disconnect the wire harness connector (3) from the regulator motor through the large access hole in the door and remove the regulator. INSTALLATION 1. Load the window regulator into the rear door through the large access hole in the door and con- 2. Engage the two bolts (1) into the keyed holes (2) on the inside of the door. 3. Install the bolt (4) that secures the bottom of the regulator to the door. Tighten the bolt to 10 N·m 4. Tighten the bolts that secure the regulator to the two keyed holes on the inside of the door. Tighten 5. Carefully remove the tape securing the rear door glass in its full up position, then lower the glass 6. Using the regulator, move the rear door glass up or down as required to access to the two window reg- 7. Tighten the bolts in each of the window regulator glass clamps to 10 N·m (90 in. lbs.). 8. Install the watershield and the trim panel onto the inside of the rear door (Refer to 23 - BODY/DOORS - REAR/ TRIM PANEL - INSTALLATION). 23 - 50 DOORS - REAR WK |
