Jeep Grand Cherokee WK. Manual - part 1595





UP/DOWN

NOTE: Up/down door adjustment is done by loos-
ening either the hinge to the body fasteners or the
hinge to door fasteners and moving the door to
the correct position.

NOTE: When the up/down adjustments are done
correctly, the top of the door is positioned over
flush to the roof (Refer to 23 - BODY/BODY
STRUCTURE/GAP

AND

FLUSH

-

SPECIFICA-

TIONS).

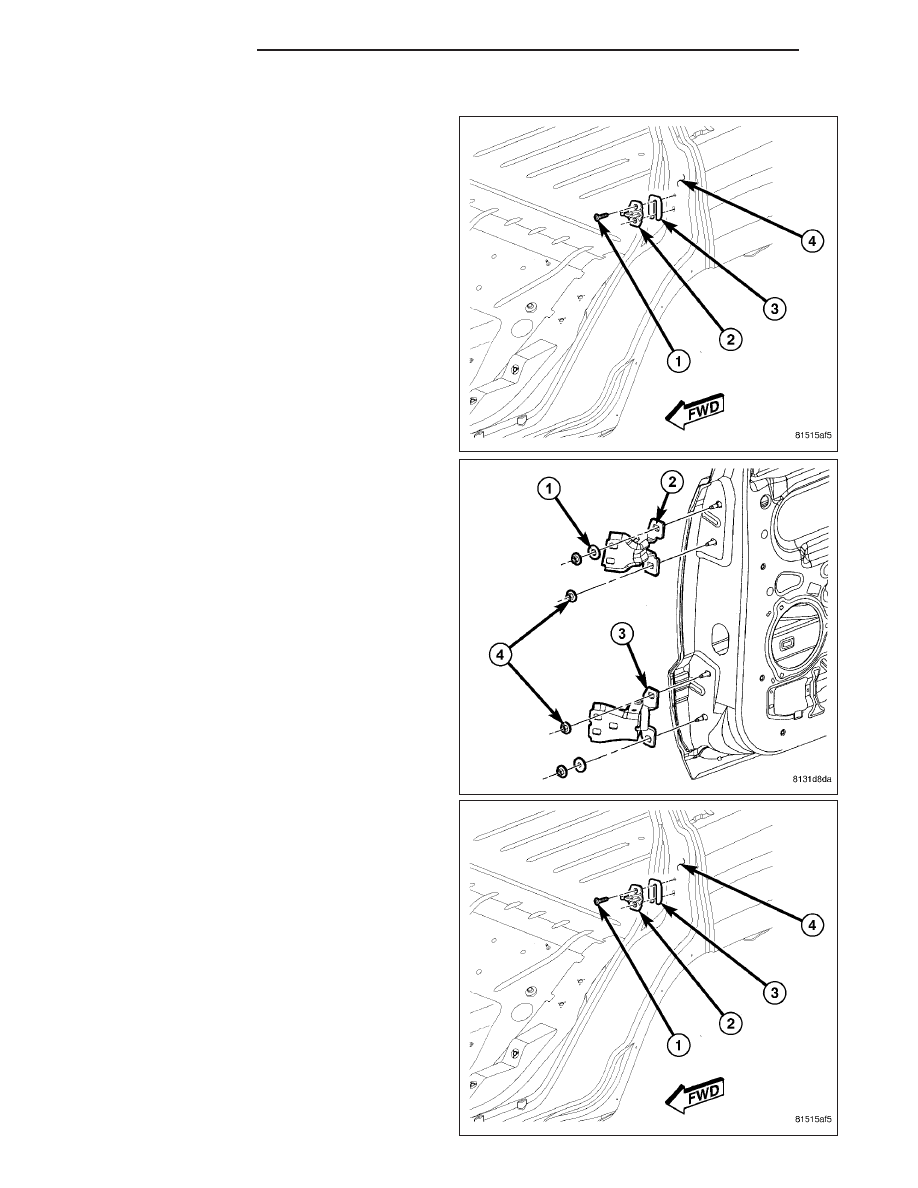

1. Support the rear door with a suitable lifting device.

2. Loosen the two bolts (1) that secure the striker (2)

and the shim (3) to the C-pillar.

NOTE: When adjustment of the rear door requires
the loosening of the door to hinge fasteners, it will
be necessary to separate the epoxy bonded wash-
ers with a chisel or other suitable tool.

3. If necessary, loosen the four nuts (4) that secure

the door hinges (2 and 3) to the rear door.

4. Separate the epoxy bonded washers (1) from the

hinges with a chisel or other suitable tool.

5. If necessary, loosen the four bolts (1 and 4) that

secure the rear door hinges (2 and 3) to the B-pil-
lar.

23 - 38

DOORS - REAR

WK

6. Adjust the rear door to the correct position (Refer

to 23 - BODY/BODY STRUCTURE/GAP AND
FLUSH - SPECIFICATIONS).

7. Tighten the four nuts (4) that secure the door

hinges (2 and 3) to the rear door to 28 N·m (21 ft.
lbs.).

8. Tighten the upper bolt (1) of the upper hinge (2) to

the B-pillar to 28 N·m (21 ft. lbs.).

9. Tighten the upper bolt (4) of the lower hinge (3) to

28 N·m (21 ft. lbs.).

10. Tighten the remaining hinge bolts to 28 N·m (21

ft. lbs.).

11. Tighten the two bolts (1) that secure the striker (2)

and the shim (3) to the C-pillar. Tighten the bolts
to 28 N·m (21 ft. lbs.).

WK

DOORS - REAR

23 - 39

IN/OUT

NOTE: In/out door adjustment is done by loosen-
ing the hinge to door fasteners one hinge at a time
and moving the door to the correct position.

1. Support the rear door with a suitable lifting device.

2. Loosen the two bolts (1) that secure the striker (2)

and the shim (3) to the C-pillar.

NOTE: When adjustment of the rear door requires
the loosening of the door to hinge fasteners, it will
be necessary to separate the epoxy bonded wash-
ers with a chisel or other suitable tool.

3. Loosen the four nuts (4) that secure the door

hinges (2 and 3) to the rear door.

4. Separate the epoxy bonded washers (1) from the

hinges with a chisel or other suitable tool.

5. Adjust the rear door to the correct position (Refer

to 23 - BODY/BODY STRUCTURE/GAP AND
FLUSH - SPECIFICATIONS).

6. Tighten the four nuts that secure the door hinges to

the rear door. Tighten the nuts to 28 N·m (21 ft.
lbs.).

7. Tighten the two bolts (1) that secure the striker (2)

and the shim (3) to the C-pillar. Tighten the bolts to
28 N·m (21 ft. lbs.).

23 - 40

DOORS - REAR

WK

GLASS

REMOVAL

1. Remove the outer belt weatherstrip from the rear

door.

2. Remove the trim panel from the inside of the rear

door (Refer to 23 - BODY/DOORS - REAR/TRIM
PANEL - REMOVAL).

3. If equipped, remove the speaker from the inside of

the rear door (Refer to 8 - ELECTRICAL/AUDIO/
SPEAKER - REMOVAL).

4. Remove the watershield from the inside of the rear

door (Refer to 23 - BODY/DOORS - REAR/WA-
TERSHIELD - REMOVAL).

5. Using the regulator (2), move the rear door glass

up or down as required to access the two window
regulator glass clamp bolts (1).

6. Loosen the bolt in each of the window regulator

glass clamps far enough to release the door glass
from the clamps.

7. Disengage the door glass from the window regula-

tor glass clamps.

8. Lower the regulator down as required for access to remove the door glass.

9. Carefully rotate the door glass within the window opening and remove the glass from the door through the win-

dow opening.

INSTALLATION

1. Carefully lower the door glass into the rear door

through the window opening.

2. Rotate the door glass into position and engage it to

the window regulator glass clamps.

3. Using the regulator (2), move the rear door glass

up or down as required to access to the two win-
dow regulator glass clamp bolts (1).

4. Tighten the bolts in each of the window regulator

glass clamps to 10 N·m (90 in. lbs.).

5. Install the watershield onto the inside of the rear

door (Refer to 23 - BODY/DOORS - REAR/WA-
TERSHIELD - INSTALLATION).

6. If equipped, install the speaker onto the inside of

the rear door (Refer to 8 - ELECTRICAL/AUDIO/
SPEAKER - INSTALLATION).

7. Install the trim panel onto the inside of the rear

door (Refer to 23 - BODY/DOORS - REAR/TRIM
PANEL - INSTALLATION).

8. Install the outer belt weatherstrip onto the rear door.

WK

DOORS - REAR

23 - 41
