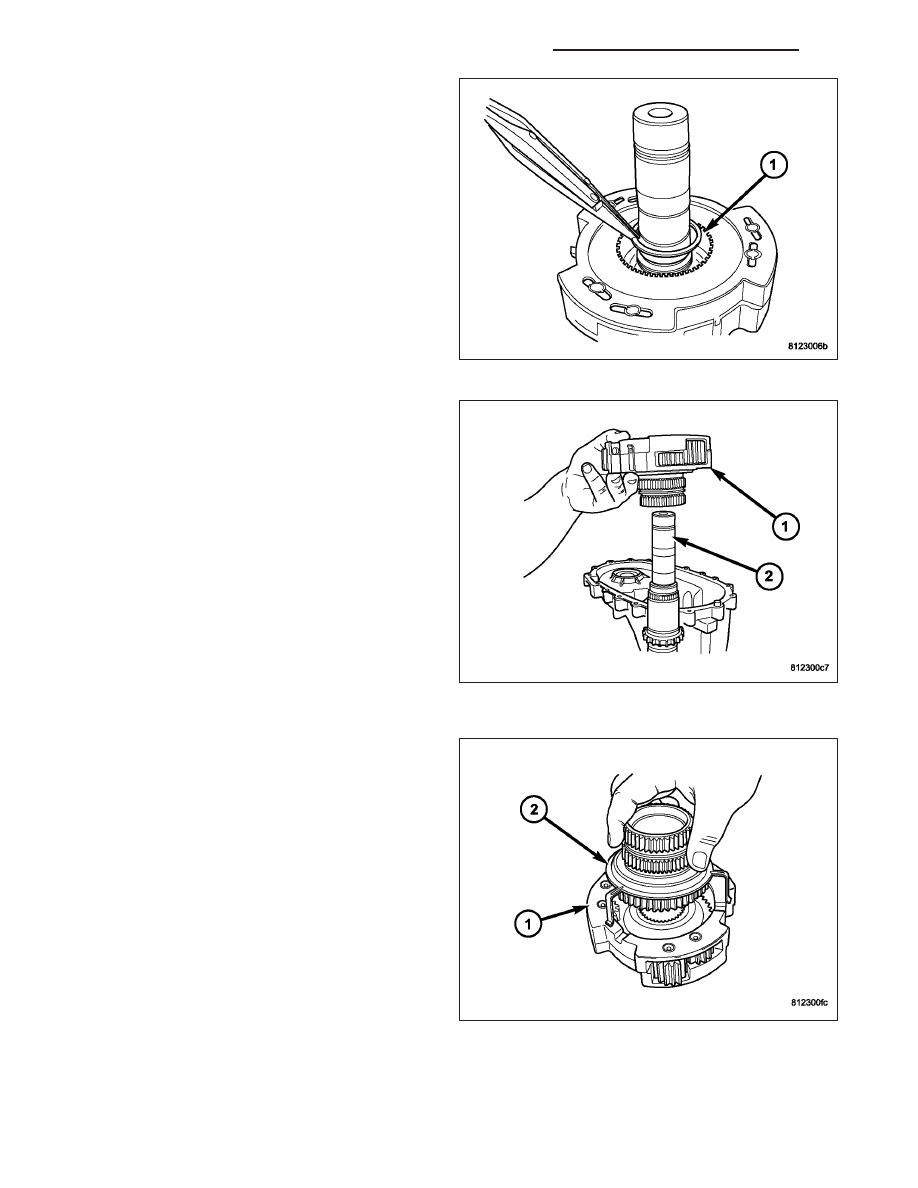

33. Remove the differential snap-ring (1).

34. Remove the differential assembly (1) from the

mainshaft (2).

35. Remove the mode hub (2) and mode hub retainer

from the differential assembly (1).

21 - 1030

TRANSFER CASE - NV245 - SERVICE INFORMATION

WK

36. Remove the mode hub retainer (1) from the mode

hub (2).

37. Remove the range fork (1) and range hub (2) as

one.

38. Remove the retaining ring (2) from the front out-

put shaft (1).

WK

TRANSFER CASE - NV245 - SERVICE INFORMATION

21 - 1031

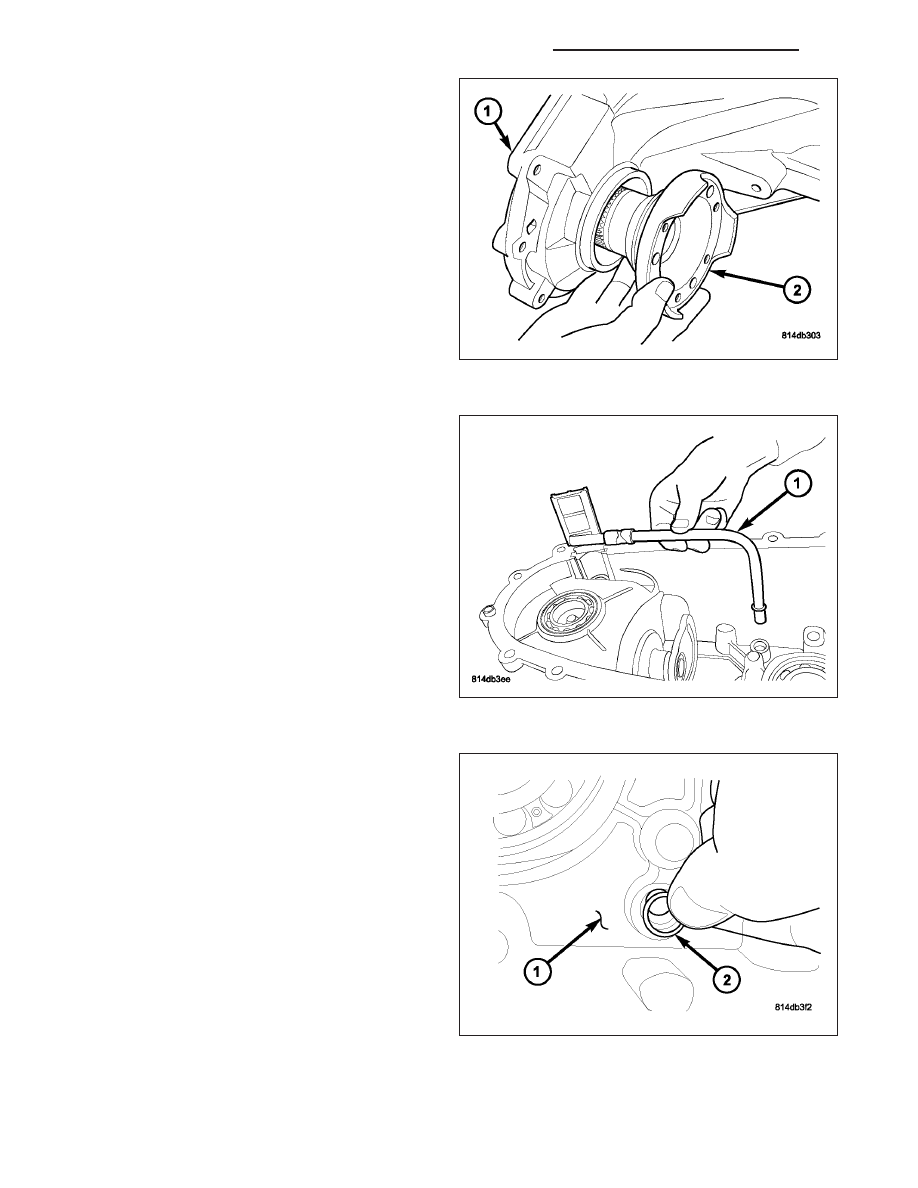

39. Remove the front output shaft (2) from the front

housing (1) and the front output shaft front
bearing.

40. Remove the oil pick-up tube and screen (1) from

the rear housing.

41. Remove the oil pick-up tube o-ring (2) from the

rear housing (1).

21 - 1032

TRANSFER CASE - NV245 - SERVICE INFORMATION

WK

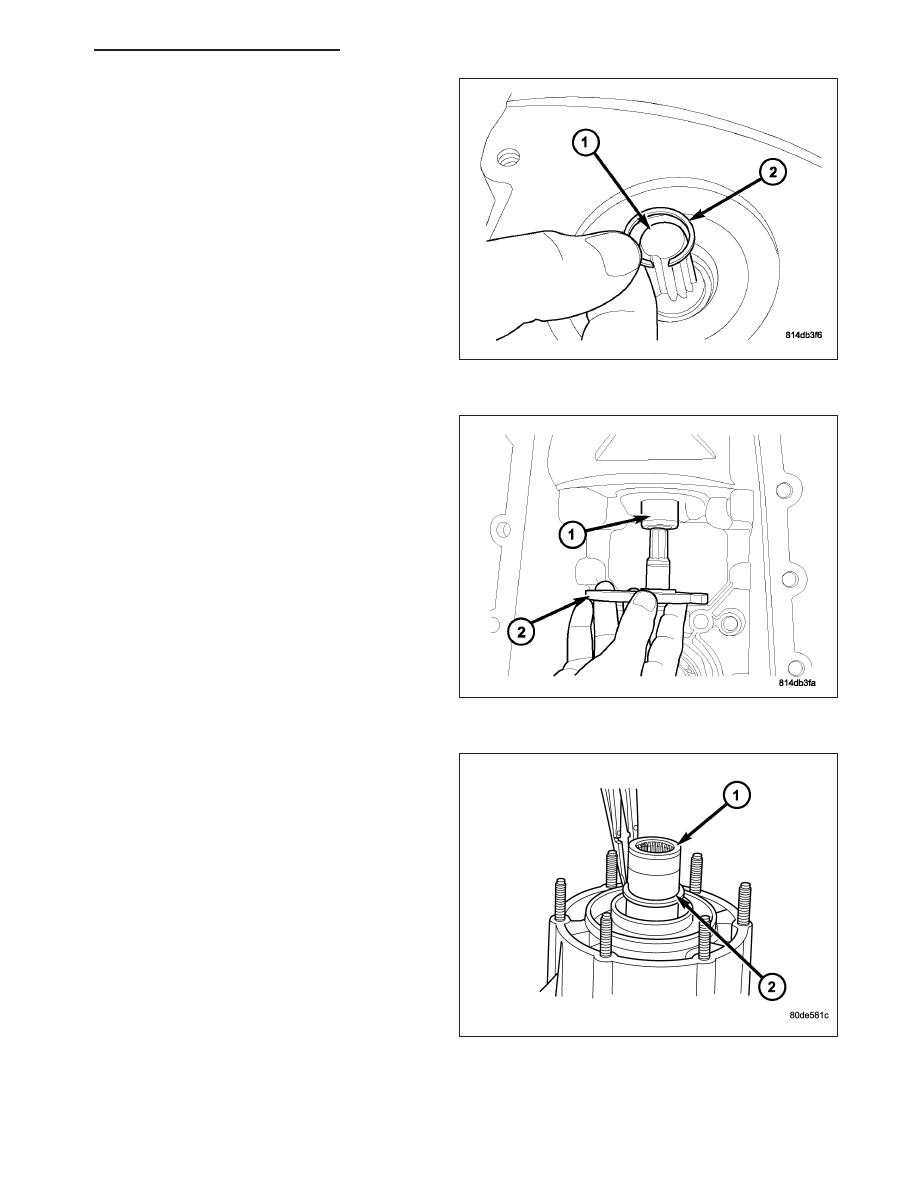

42. Remove the retaining ring (2) from the shift sector

shaft (1).

43. Remove the shift sector (2) from the front housing

(1).

44. Remove the input shaft seal with a suitable pry

tool or a screw mounted in a slide hammer.

45. Remove the retaining ring (2) holding the input

gear assembly into the front housing.

WK

TRANSFER CASE - NV245 - SERVICE INFORMATION

21 - 1033
