Jeep Grand Cherokee WK. Manual - part 1533





C140F-TRANSFER CASE RANGE POSITION SENSOR ERRATIC PERFORMANCE (CONTINUED)

4.

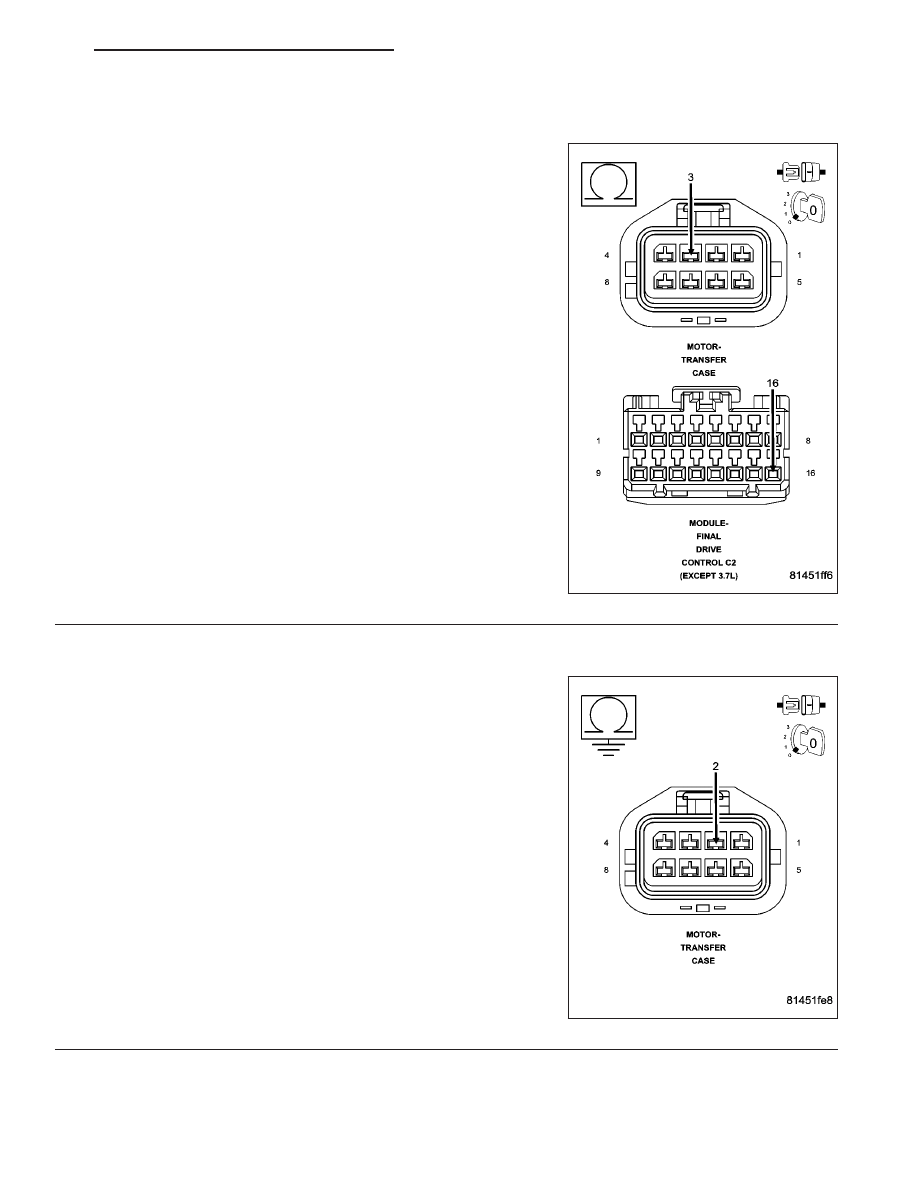

(T504) DRIVETRAIN 5 VOLT SUPPLY CIRCUIT HIGH RESISTANCE

Measure the resistance of the (T504) Drivetrain 5 Volt Supply circuit
between the Transfer Case Motor harness connector and the Final
Drive Control Module C2 harness connector.

Monitor the ohmmeter while performing a wiggle test on the wiring har-
ness and connectors.

Is the resistance ever above 5.0 ohms during the wiggle test?

Yes

>> Repair the (T504) Drivetrain 5 Volt Supply circuit for an

intermittent open circuit or high resistance.

Perform the TRANSFER CASE VERIFICATION TEST-
VER 1.

No

>> Go to 5

5.

(T504) DRIVETRAIN 5 VOLT SUPPLY CIRCUIT INTERMITTENT SHORT TO GROUND

Measure the resistance between ground and the (T504) Drivetrain 5
Volt Supply circuit.

Monitor the ohmmeter while performing a wiggle test on the wiring har-
ness and connectors.

Is the resistance ever below 5.0 ohms during the wiggle test?

Yes

>> Repair the (T504) Drivetrain 5 Volt Supply circuit for an

intermittent short to ground.

Perform the TRANSFER CASE VERIFICATION TEST-
VER 1.

No

>> Go to 13

21 - 942

TRANSFER CASE - ELECTRICAL DIAGNOSTICS

WK

C140F-TRANSFER CASE RANGE POSITION SENSOR ERRATIC PERFORMANCE (CONTINUED)

6.

T-CASE POSITION SENSOR VOLTAGE

Turn the ignition off.

Connect the Final Drive Control Module C2 harness connector.

Connect a jumper wire between the (T313) Mode Sensor Signal circuit
and the (K594) Drivetrain Sensor Return circuit in the Transfer Case
Motor harness connector.

Turn the ignition on.

With the Scan Tool select Data Display and monitor the T-Case Posi-
tion Sensor Voltage while performing a wiggle test on the wiring and
connectors between the sensor and control module.

NOTE: Voltage should be approximately 0.0 volts and steady.

Is the T-Case Position Sensor Voltage approximately 0.0 volts
and steady?

Yes

>> Go to 12

No

>> Go to 7

7.

(T313) MODE SENSOR SIGNAL CIRCUIT INTERMITTENT SHORT TO VOLTAGE

NOTE: Remove the previously installed jumper wire.
Turn the ignition off.

Disconnect the Final Drive Control Module C2 harness connector.

Turn the ignition on.

Measure the voltage of the (T313) Mode Sensor Signal circuit.

Monitor the voltmeter while performing a wiggle test on the wiring har-
ness and connectors.

Is any voltage detected on the circuit during the wiggle test?

Yes

>> Repair the (T313) Mode Sensor Signal circuit for an inter-

mittent short to voltage.

Perform the TRANSFER CASE VERIFICATION TEST-
VER 1.

No

>> Go to 8

WK

TRANSFER CASE - ELECTRICAL DIAGNOSTICS

21 - 943

C140F-TRANSFER CASE RANGE POSITION SENSOR ERRATIC PERFORMANCE (CONTINUED)

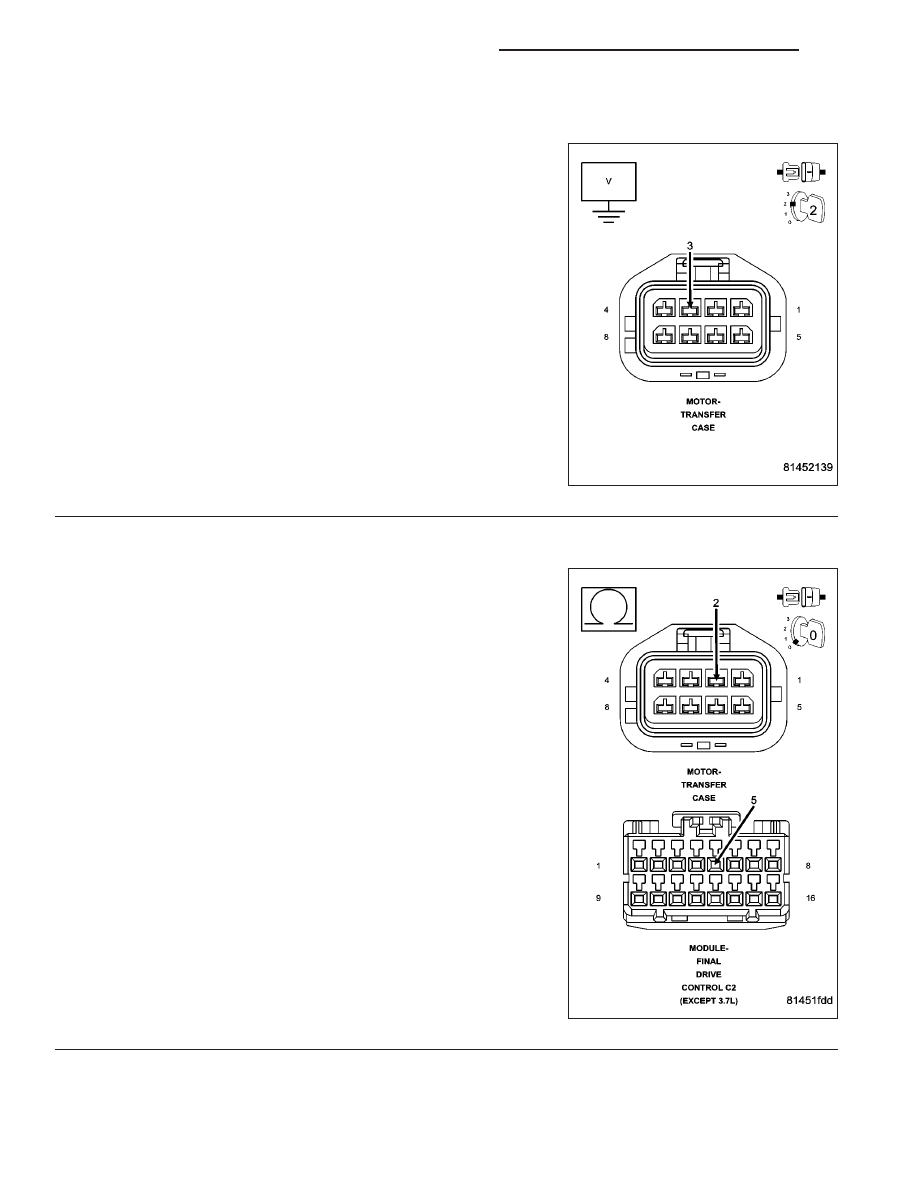

8.

(K594) DRIVETRAIN SENSOR RETURN CIRCUIT INTERMITTENT SHORT TO VOLTAGE

Measure the voltage of the (K594) Drivetrain Sensor Return circuit.

Monitor the voltmeter while performing a wiggle test on the wiring har-
ness and connectors.

Is any voltage detected on the circuit during the wiggle test?

Yes

>> Repair the (K594) Drivetrain Sensor Return circuit for an

intermittent short to voltage.

Perform the TRANSFER CASE VERIFICATION TEST-
VER 1.

No

>> Go to 9

9.

(T313) MODE SENSOR SIGNAL CIRCUIT HIGH RESISTANCE

Turn the ignition off.

Measure the resistance of the (T313) Mode Sensor Signal circuit
between the Transfer Case Motor harness connector and the Final
Drive Control Module C2 harness connector.

Monitor the ohmmeter while performing a wiggle test on the wiring har-
ness and connectors.

Is the resistance ever above 5.0 ohms during the wiggle test?

Yes

>> Repair the (T313) Mode Sensor Signal circuit for an inter-

mittent open circuit or high resistance.

Perform the TRANSFER CASE VERIFICATION TEST-
VER 1.

No

>> Go to 10

21 - 944

TRANSFER CASE - ELECTRICAL DIAGNOSTICS

WK

C140F-TRANSFER CASE RANGE POSITION SENSOR ERRATIC PERFORMANCE (CONTINUED)

10.

(K594) DRIVETRAIN SENSOR RETURN CIRCUIT HIGH RESISTANCE

Measure the resistance of the (K594) Drivetrain Sensor Return circuit
between the Transfer Case Motor harness connector and the Final
Drive Control Module C2 harness connector.

Monitor the ohmmeter while performing a wiggle test on the wiring har-
ness and connectors.

Is the resistance ever above 5.0 ohms during the wiggle test?

Yes

>> Repair the (K594) Drivetrain Sensor Return circuit for an

intermittent open circuit or high resistance.

Perform the TRANSFER CASE VERIFICATION TEST-
VER 1.

No

>> Go to 11

11.

(T313) MODE SENSOR SIGNAL CIRCUIT INTERMITTENT SHORT TO GROUND

Measure the resistance between ground and the (T313) Mode Sensor
Signal circuit.

Monitor the ohmmeter while performing a wiggle test on the wiring har-
ness and connectors.

Is the resistance ever below 5.0 ohms during the wiggle test?

Yes

>> Repair the (T313) Mode Sensor Signal circuit for an inter-

mittent short to ground.

Perform the TRANSFER CASE VERIFICATION TEST-
VER 1.

No

>> Go to 13

WK

TRANSFER CASE - ELECTRICAL DIAGNOSTICS

21 - 945
