C1403-TRANSFER CASE RANGE POSITION SENSOR PERFORMANCE

21 - 898

TRANSFER CASE - ELECTRICAL DIAGNOSTICS

WK

C1403-TRANSFER CASE RANGE POSITION SENSOR PERFORMANCE (CONTINUED)

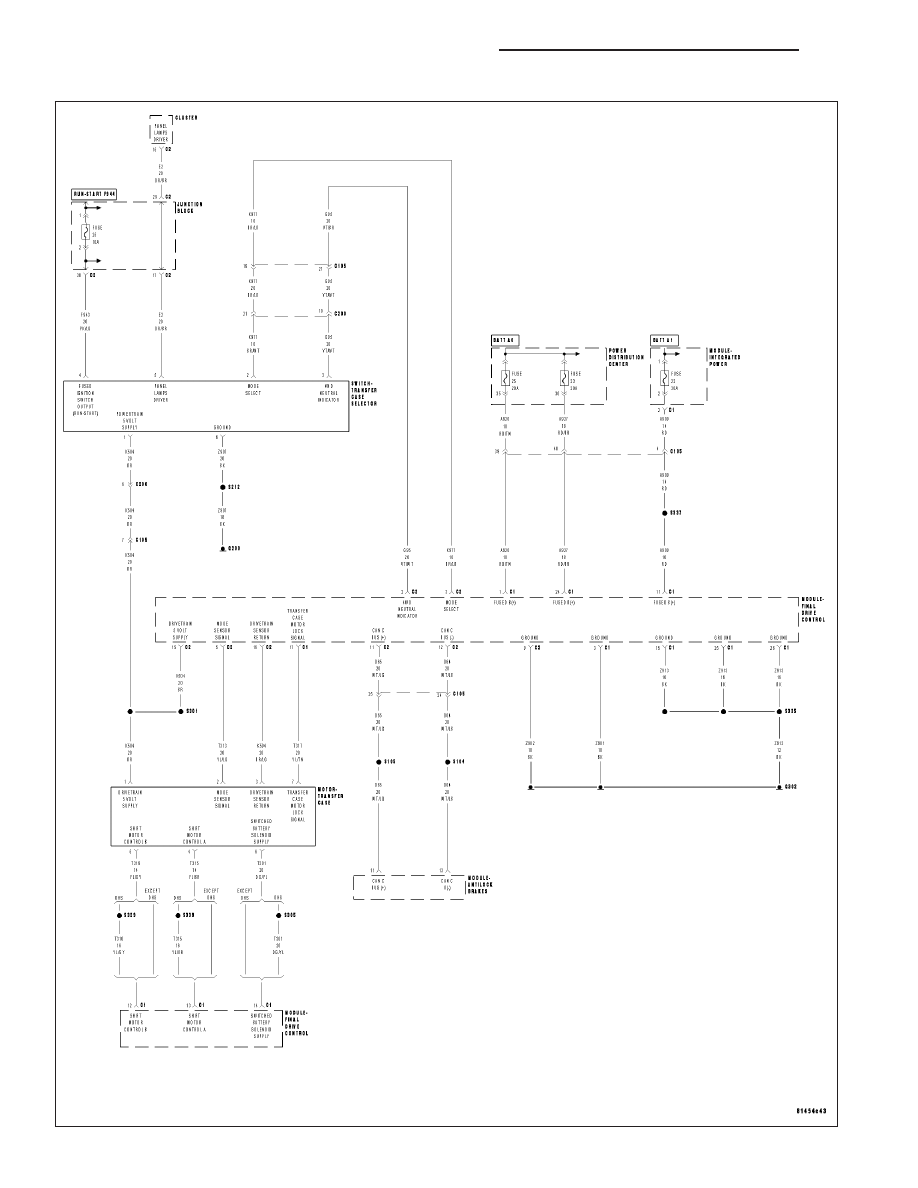

For a complete wiring diagram Refer to Section 8W

When Monitored:
Ignition on. Battery voltage between 9 and 16 volts. No Range Position Sensor low or high voltage conditions
present.

Set Condition:
During a blocked shift attempt, motor current indicates motor movement, but the sensor value change is less
than a specified value.

Possible Causes

INTERMITTENT TRANSFER CASE RANGE POSITION SENSOR PEERFORMANCE

(K504) DRIVETRAIN 5 VOLT SUPPLY CIRCUIT HIGH RESISTANCE

(K504) DRIVETRAIN 5 VOLT SUPPLY CIRCUIT SHORTED TO GROUND

(K504) DRIVETRAIN 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE

(T313) MODE SENSOR SIGNAL CIRCUIT HIGH RESISTANCE

(T313) MODE SENSOR SIGNAL CIRCUIT SHORTED TO GROUND

(T313) MODE SENSOR SIGNAL CIRCUIT SHORTED TO VOLTAGE

(K594) DRIVETRAIN SENSOR RETURN CIRCUIT HIGH RESISTANCE

TRANSFER CASE MOTOR

FINAL DRIVE CONTROL MODULE

Diagnostic Test

1.

DTC IS ACTIVE

Ignition on, engine not running.

NOTE: Repair any system undervoltage or overvoltage DTCs that are set in this module before proceeding.
With the scan tool, select View DTCs in the Final Drive Control Module.

Is the DTC status Active at this time?

Yes

>> Go to 2

No

>> Go to 11

WK

TRANSFER CASE - ELECTRICAL DIAGNOSTICS

21 - 899

C1403-TRANSFER CASE RANGE POSITION SENSOR PERFORMANCE (CONTINUED)

2.

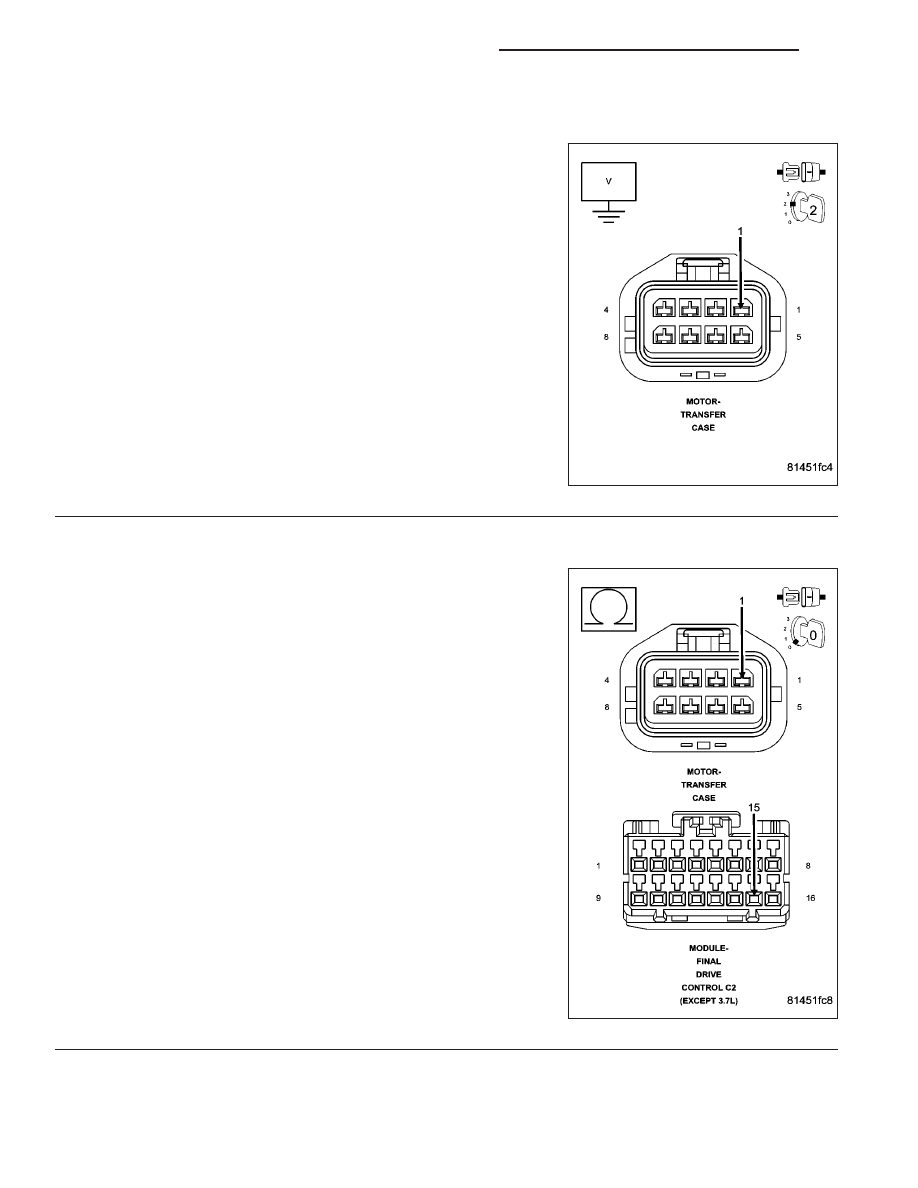

(K504) DRIVETRAIN 5 VOLT SUPPLY CIRCUIT VOLTAGE

Turn the ignition off.

Disconnect the Transfer Case Motor harness connector.

Turn the ignition on.

Measure the voltage of the (K504) Drivetrain 5 Volt Supply circuit.

Select the displayed voltage reading:

Voltage greater than 5.5 volts.

Repair the (K504) Drivetrain 5 Volt Supply circuit for a
short to voltage.

Perform the TRANSFER CASE VERIFICATION TEST-
VER 1.

Voltage between 4.5 and 5.5 volts.

Go to 5

Voltage less than 4.5 volts.

Go to 3

3.

(K504) DRIVETRAIN 5 VOLT SUPPLY CIRCUIT HIGH RESISTANCE

Turn the ignition off.

Disconnect the Final Drive Control Module C2 harness connector.

Measure the resistance of the (K504) Drivetrain 5 Volt Supply circuit.

Is the resistance above 5.0 ohms?

Yes

>> Repair the high resistance in the (K504) Drivetrain 5 Volt

Supply circuit.

Perform the TRANSFER CASE VERIFICATION TEST-
VER 1.

No

>> Go to 4

21 - 900

TRANSFER CASE - ELECTRICAL DIAGNOSTICS

WK

C1403-TRANSFER CASE RANGE POSITION SENSOR PERFORMANCE (CONTINUED)

4.

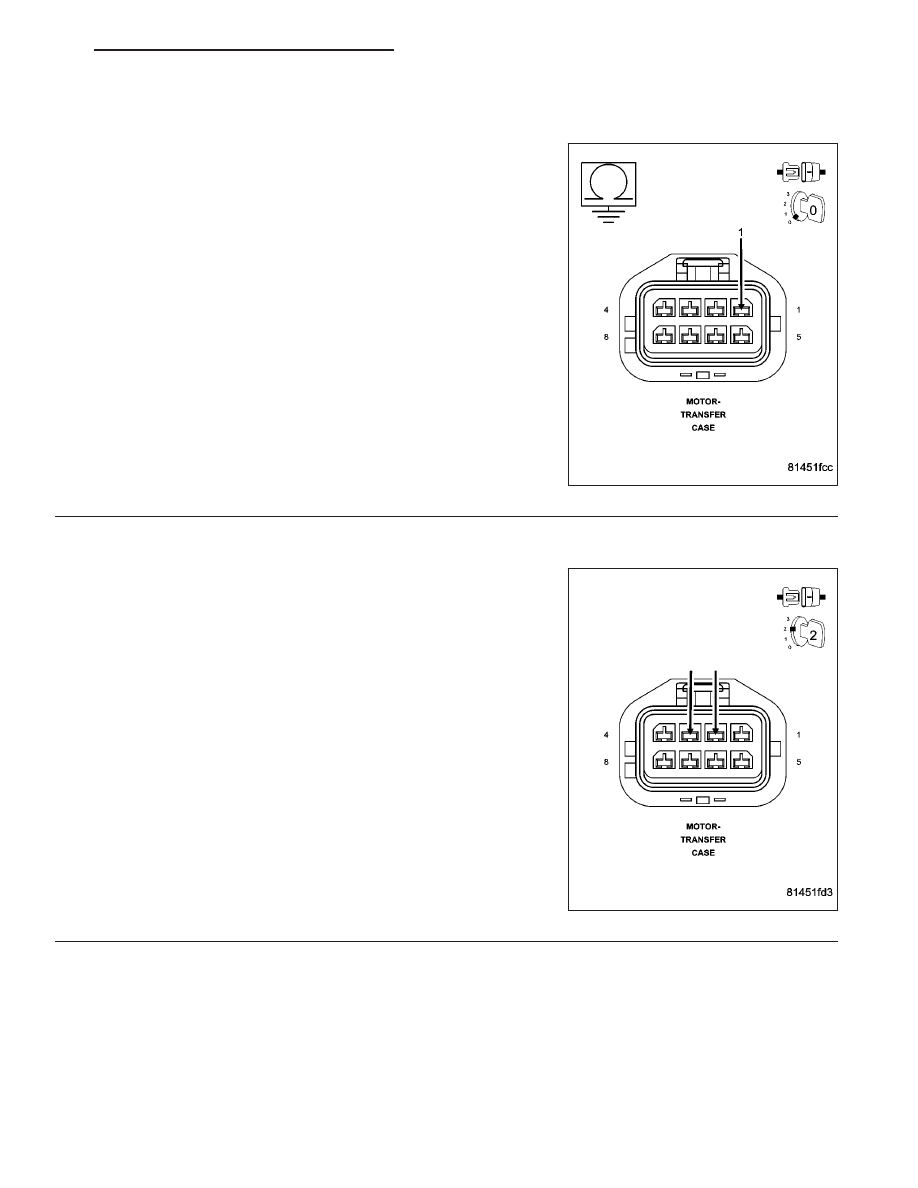

(K504) DRIVETRAIN 5 VOLT SUPPLY CIRCUIT SHORTED TO GROUND

Measure the resistance between ground and the (K504) Drivetrain 5
Volt Supply circuit.

Is the resistance below 5.0 ohms?

Yes

>> Repair the (K504) Drivetrain 5 Volt Supply circuit for a

short to ground.

Perform the TRANSFER CASE VERIFICATION TEST-
VER 1.

No

>> Go to 10

5.

TRANSFER CASE MOTOR

Turn the ignition off.

Connect a jumper wire between the (T313) Mode Sensor Signal circuit
and the (K594) Drivetrain Sensor Return circuit.

Turn the ignition on.

With the scan tool under Data Display, read the T-Case Position Sen-
sor voltage.

The displayed voltage should be approximately 0 volts with the jumper
wire in place.

Does the voltage display as described?

Yes

>> Replace the Transfer Case Motor.

Perform the TRANSFER CASE VERIFICATION TEST-
VER 1.

No

>> Go to 6

WK

TRANSFER CASE - ELECTRICAL DIAGNOSTICS

21 - 901
