Jeep Grand Cherokee WK. Manual - part 1514

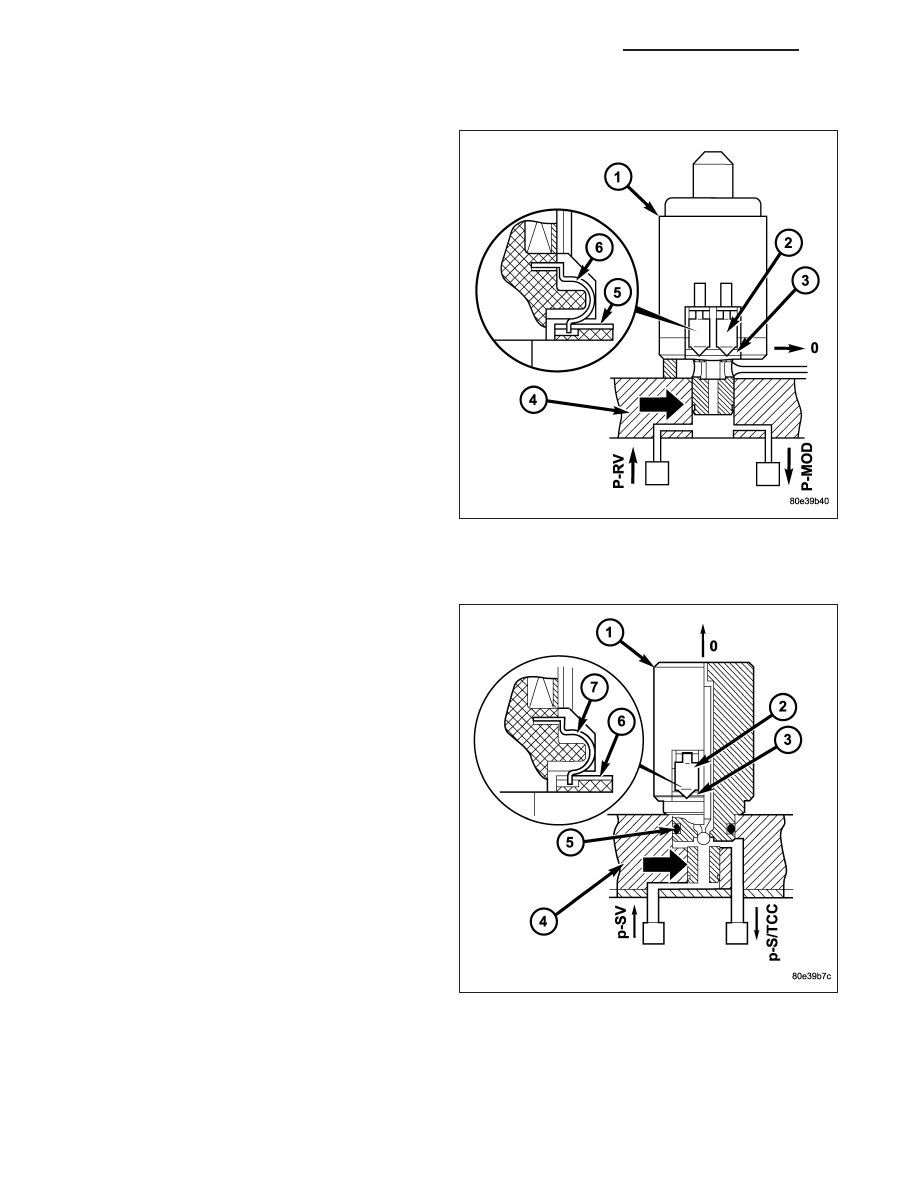

MODULATING PRESSURE CONTROL SOLENOID VALVE

The modulating pressure control solenoid valve (1) is
located in the shell of the electric valve control unit
and pressed against the shift plate by a spring.

Its purpose is control the modulating pressure depend-
ing on the continuously changing operating conditions,
such as load and gear change.

The modulating pressure regulating solenoid valve (1)
has an interference fit and is sealed off to the valve
body of the shift plate (4) by a seal (arrow). The con-
tact springs (2) at the solenoid valve engage in a slot
in the conductor tracks (3). The force of the contact
springs (2) ensures secure contacts.

TORQUE CONVERTER LOCKUP CLUTCH PWM SOLENOID VALVE

The torque converter lockup clutch PWM solenoid
valve (1) is located in the shell of the electric valve
control unit and pressed against the shift plate by a
spring.

The PWM solenoid valve (1) for the torque converter
lockup controls the pressure for the torque converter
lockup clutch.

The torque converter lockup PWM solenoid valve (1)
is sealed off to the valve body of the shift plate (4) by
an O-ring (5) and a seal (arrow). The contact springs
(2) at the solenoid valve engage in a slot in the con-
ductor tracks (3). The force of the contact springs (2)
ensures secure contacts.

21 - 866

AUTOMATIC TRANSMISSION - NAG1 - SERVICE INFORMATION

WK

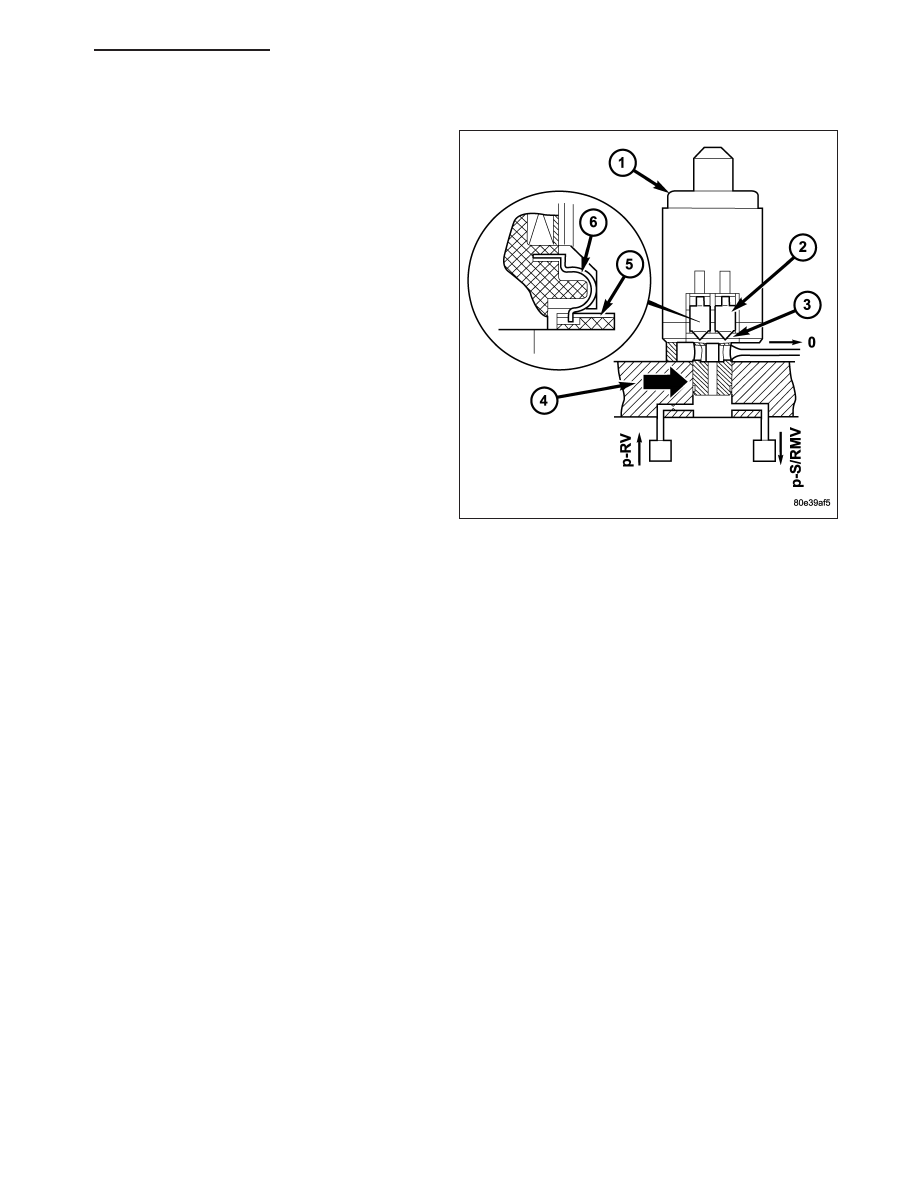

SHIFT PRESSURE CONTROL SOLENOID VALVE

The shift pressure control solenoid valve (1) is located
in the shell of the electric valve control unit and
pressed against the shift plate by a spring.

Its purpose is to control the shift pressure depending
on the continuously changing operating conditions,
such as load and gear change.

The shift pressure regulating solenoid valve (1) has an
interference fit and is sealed off to the valve body of
the shift plate (4) by a seal (arrow). The contact
springs (2) at the solenoid valve engage in a slot in
the conductor tracks (3). The force of the contact
springs (2) ensures secure contacts.

OPERATION

When an electrical current is applied to the solenoid coil, a magnetic field is created which produces an attraction
to the plunger, causing the plunger to move and work against the spring pressure and the load applied by the fluid
the valve is controlling. The plunger is normally directly attached to the valve which it is to operate. When the cur-
rent is removed from the coil, the attraction is removed and the plunger will return to its original position due to
spring pressure.

The plunger is made of a conductive material and accomplishes this movement by providing a path for the magnetic
field to flow. By keeping the air gap between the plunger and the coil to the minimum necessary to allow free move-
ment of the plunger, the magnetic field is maximized.

WK

AUTOMATIC TRANSMISSION - NAG1 - SERVICE INFORMATION

21 - 867

UPSHIFT/DOWNSHIFT SOLENOID VALVES

If a solenoid valve (1) is actuated by the TCM, it
opens and guides the control pressure (p-SV) to the
assigned command valve. The solenoid valve remains
actuated and therefore open until the shifting process
is complete. The shift pressure (p-SV) to the com-
mand valve is reduced to zero as soon as the power
supply to the solenoid valve is interrupted.

MODULATING PRESSURE CONTROL SOLENOID VALVE

The modulating pressure regulating solenoid valve (1)
assigns a proportional pressure to the current which is
controlled by the TCM according to the load.

21 - 868

AUTOMATIC TRANSMISSION - NAG1 - SERVICE INFORMATION

WK

TORQUE CONVERTER LOCKUP CLUTCH PWM SOLENOID VALVE

The torque converter lockup PWM solenoid (1) valve
converts pulse-wave-modulated current controlled by
the TCM into the appropriate hydraulic control pres-
sure (p-S/TCC).

SHIFT PRESSURE CONTROL SOLENOID VALVE

The shift pressure regulating solenoid valve (1)
assigns a proportional pressure to the current which is
controlled by the TCM according to the load.

WK

AUTOMATIC TRANSMISSION - NAG1 - SERVICE INFORMATION

21 - 869
