Jeep Grand Cherokee WK. Manual - part 1498





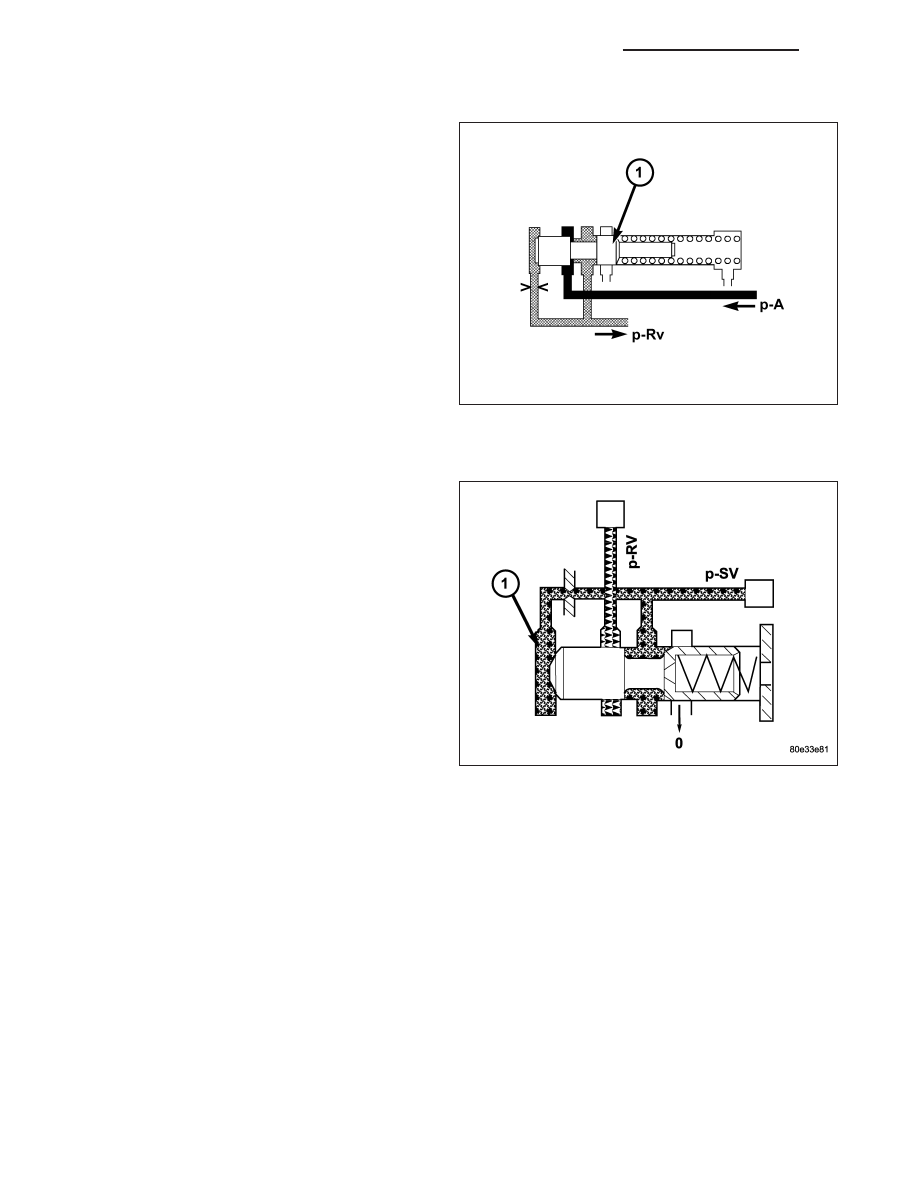

Regulating Valve Pressure Regulating Valve

The regulating valve pressure regulating valve (1) is
located in the valve housing of the electrohydraulic
control module. It regulates the regulating valve/con-
trol valve pressure (p-RV).

Shift Valve Pressure Regulating Valve

The shift valve pressure regulating valve (1) is located
in the valve housing of the electrohydraulic control
module. It regulates the shift valve pressure (p-SV).

21 - 802

AUTOMATIC TRANSMISSION - NAG1 - SERVICE INFORMATION

WK

OPERATION

ELECTRICAL CONTROL UNIT

Signals from the transmission control module (TCM)
are converted into hydraulic functions in the electric
valve control unit (7). The RPM sensors (1, 12), starter
interlock contact (9), and transmission oil temperature
sensor (8) of the electric valve control unit (7) supply
the TCM with input signals. The solenoid valves are
controlled by the TCM and trigger the hydraulic
functions.

1 - N3 SPEED SENSOR
2 - PLUG CONNECTOR
3 - MODULATING PRESSURE REGULATING SOLENOID
4 - SHIFT PRESSURE REGULATING SOLENOID
5 - 1-2/4-5 SHIFT SOLENOID
6 - 3-4 SHIFT SOLENOID
7 - ELECTRICAL CONTROL UNIT
8 - TRANSMISSION TEMPERATURE SENSOR
9 - STARTER INTERLOCK CONTACT
10 - 2-3 SHIFT SOLENOID
11 - TORQUE CONVERTER LOCK-UP SOLENOID
12 - N2 SPEED SENSOR

WK

AUTOMATIC TRANSMISSION - NAG1 - SERVICE INFORMATION

21 - 803

HYDRAULIC CONTROL UNIT

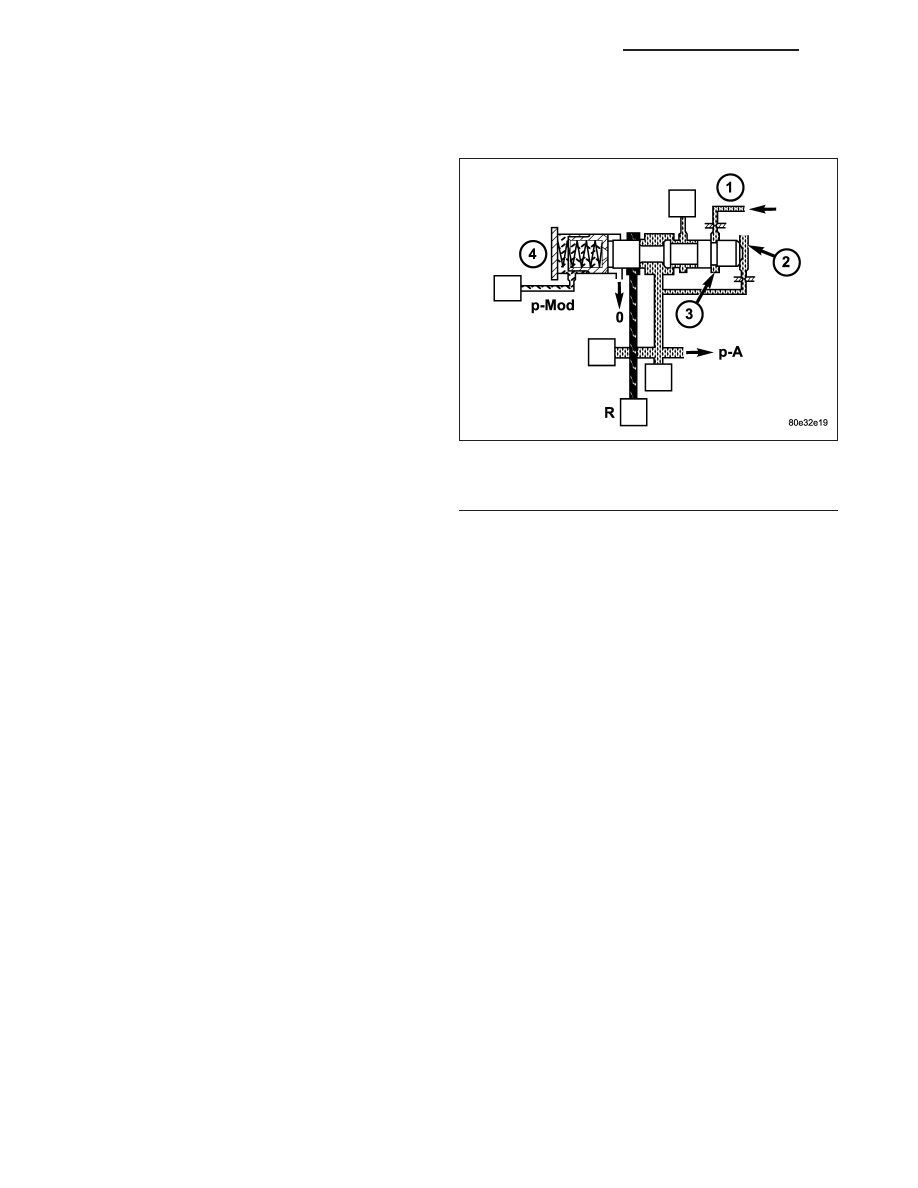

Working Pressure Regulating Valve (Line Pressure or Operating Pressure)

The working pressure (p-A) is regulated at the working
pressure regulating valve (4) in relation to load (mod-
ulating pressure, p-Mod) and gear (K1 or K2 pressure)
(1). The spring in the working pressure regulating
valve sets a minimum pressure level (basic pressure).

1 - PRESSURE FROM K1/K2
2 - END FACE
3 - ANNULAR SURFACE
4 - WORKING PRESSURE REGULATING VALVE

21 - 804

AUTOMATIC TRANSMISSION - NAG1 - SERVICE INFORMATION

WK

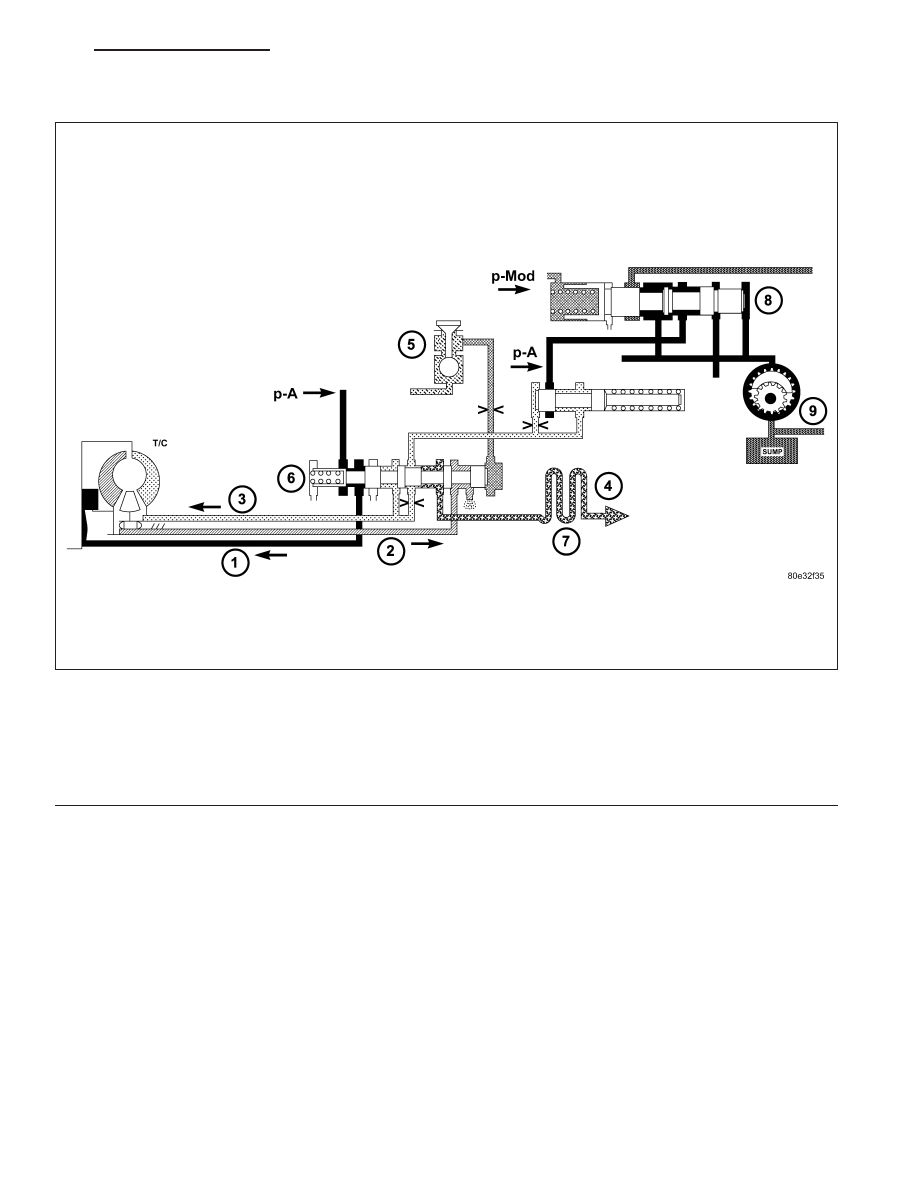

Torque Converter Lockup Clutch Regulating Valve

The torque converter lockup clutch regulating valve (6) regulates the torque converter lock-up clutch working pres-
sure (p-TCC) in relation to the torque converter clutch control pressure (p-S/TCC). According to the size of the work-
ing pressure (p-A), the torque converter lockup clutch is either Engaged, Disengaged, or Slipping. When the
regulating valve (6) is in the lower position, lubricating oil flows through the torque converter and oil cooler (8) into
the transmission (torque converter lockup clutch unpressurized). In its regulating position (slipping, torque converter
lockup clutch pressurized), a reduced volume of lubricating oil flows through the annular passage (7) bypassing the
torque converter and passing direct through the oil cooler into the transmission. The rest of the lubricating oil is
directed via the throttle

9

a

9

into the torque converter in order to cool the torque converter lockup clutch.

1 - TORQUE CONVERTER LOCK-UP CLUTCH
2 - TORQUE CONVERTER OUTPUT
3 - TORQUE CONVERTER INPUT
4 - LUBRICATION
5 - TORQUE CONVERTER LOCK-UP SOLENOID
6 - TORQUE CONVERTER LOCK-UP CLUTCH REGULATING VALVE
7 - OIL COOLER
8 - LINE PRESSURE REGULATING VALVE
9 - OIL PUMP

WK

AUTOMATIC TRANSMISSION - NAG1 - SERVICE INFORMATION

21 - 805
