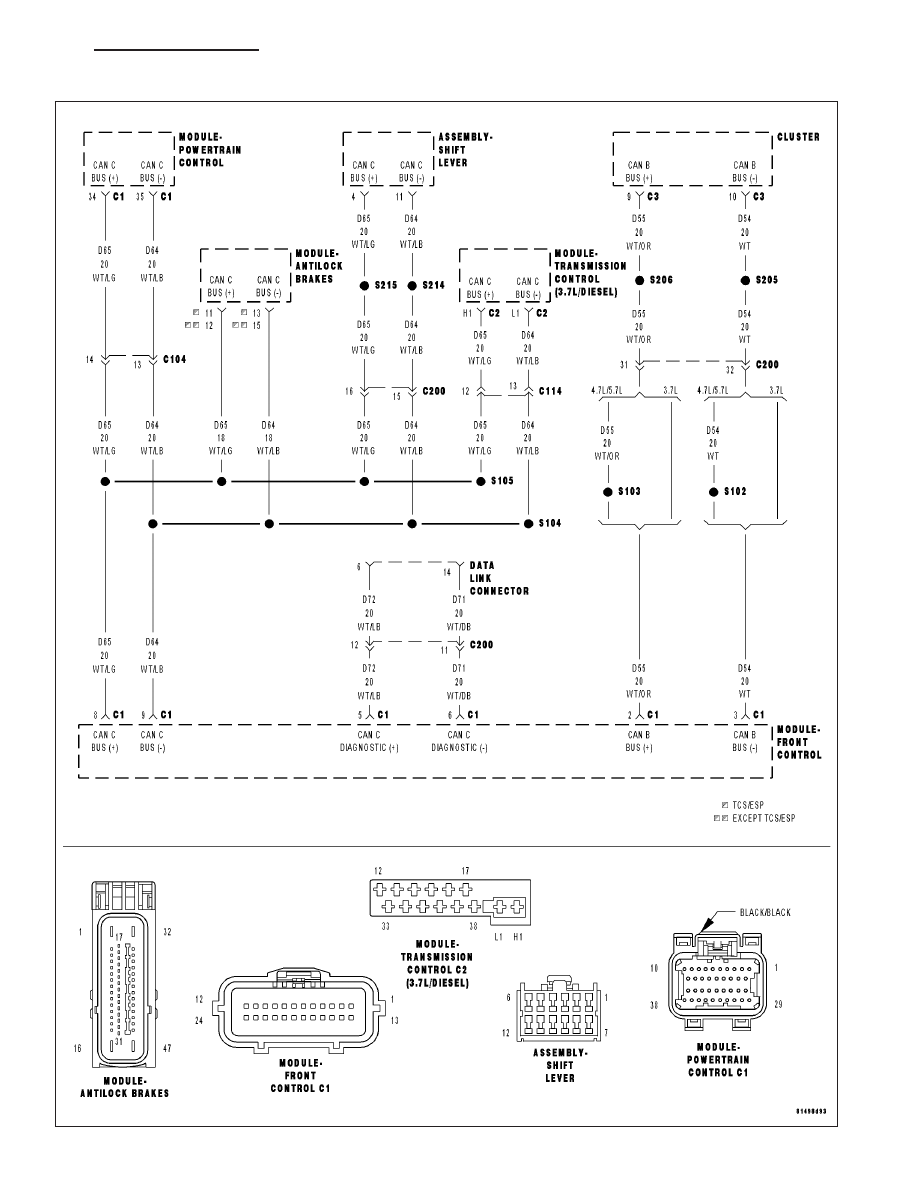

U1408-IMPLAUSIBLE BRAKE SIGNAL RECEIVED (CONTINUED) For the Transmission circuit diagram (Refer to 21 - TRANSMISSION/TRANSAXLE/AUTOMATIC - NAG1 - SCHE- For a complete wiring diagram Refer to Section 8W Theory of Operation The messages sent on the CAN bus are distinguished by an identifier (ID). Each CAN ID is defined to contain a • When Monitored: • Set Condition: Possible Causes FCM CAN BUS DTC’S PRESENT ABS DTC’S PRESENT TRANSMISSION CONTROL MODULE Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 21 - TRANSMIS- Diagnostic Test 1. CHECK FOR FCM CAN BUS DTCS With the scan tool, read FCM DTCs. Are there any FCM CAN BUS DTC’s present? Yes >> Refer to 8-ELECTRICAL - ELECTRONIC CONTROL MODULES - ELECTRICAL DIAGNOSTICS cate- gory and perform the appropriate symptom. No >> Go To 2 2. CHECK IF ABS DTC’S ARE PRESENT With the scan tool, read ABS DTCs. Are there any ABS DTC’s present? Yes >> Refer to 5 - BRAKES - ABS ELECTRICAL DIAGNOSTICS category and perform the appropriate symp- tom. Perform NAG1 TRANSMISSION VERIFICATION TEST - VER 1. No >> Using the schematics as a guide, check the Transmission Control Module (TCM) pins, terminals, and connectors for corrosion, damage, or terminal push out. Pay particular attention to all power and ground Perform NAG1 TRANSMISSION VERIFICATION TEST - VER 1. 21 - 666 AUTOMATIC TRANSMISSION NAG1 - ELECTRICAL DIAGNOSTICS WK |
