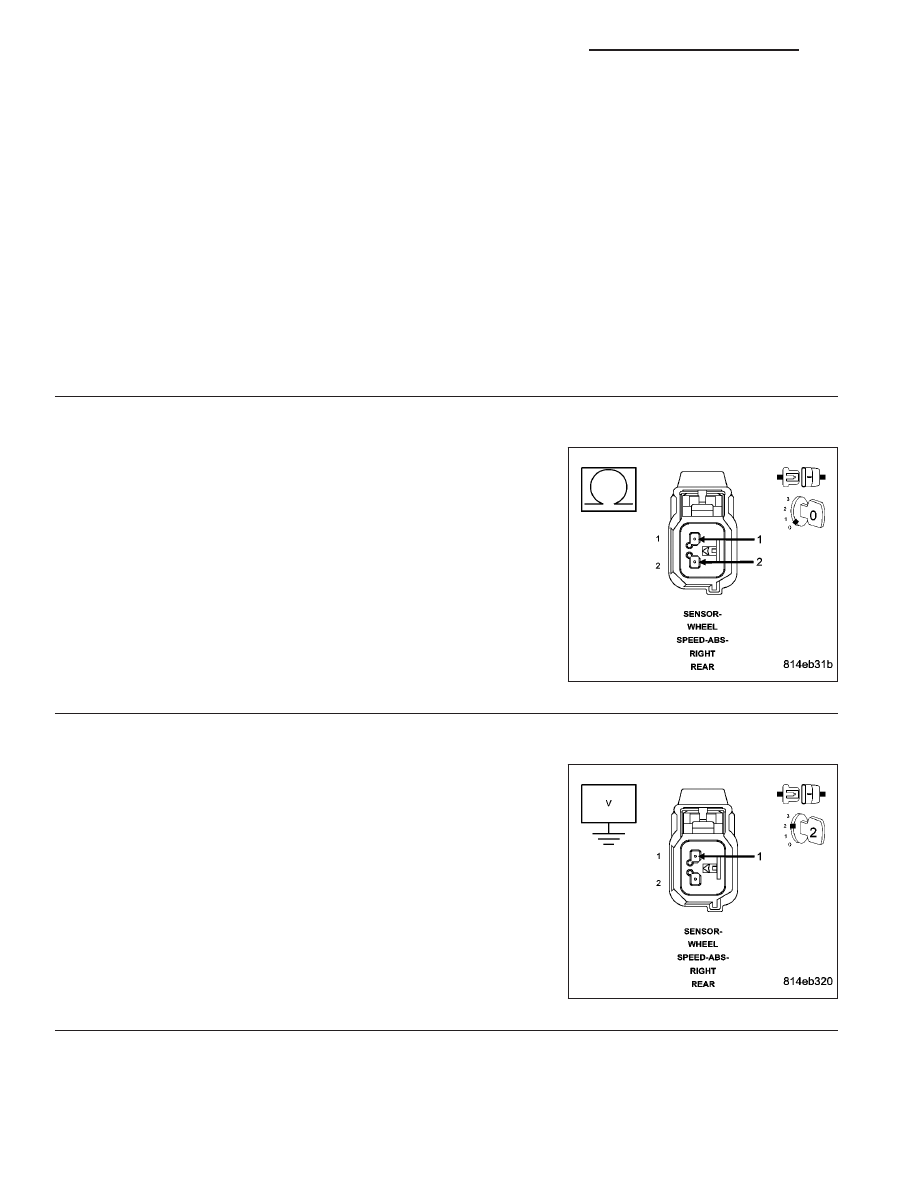

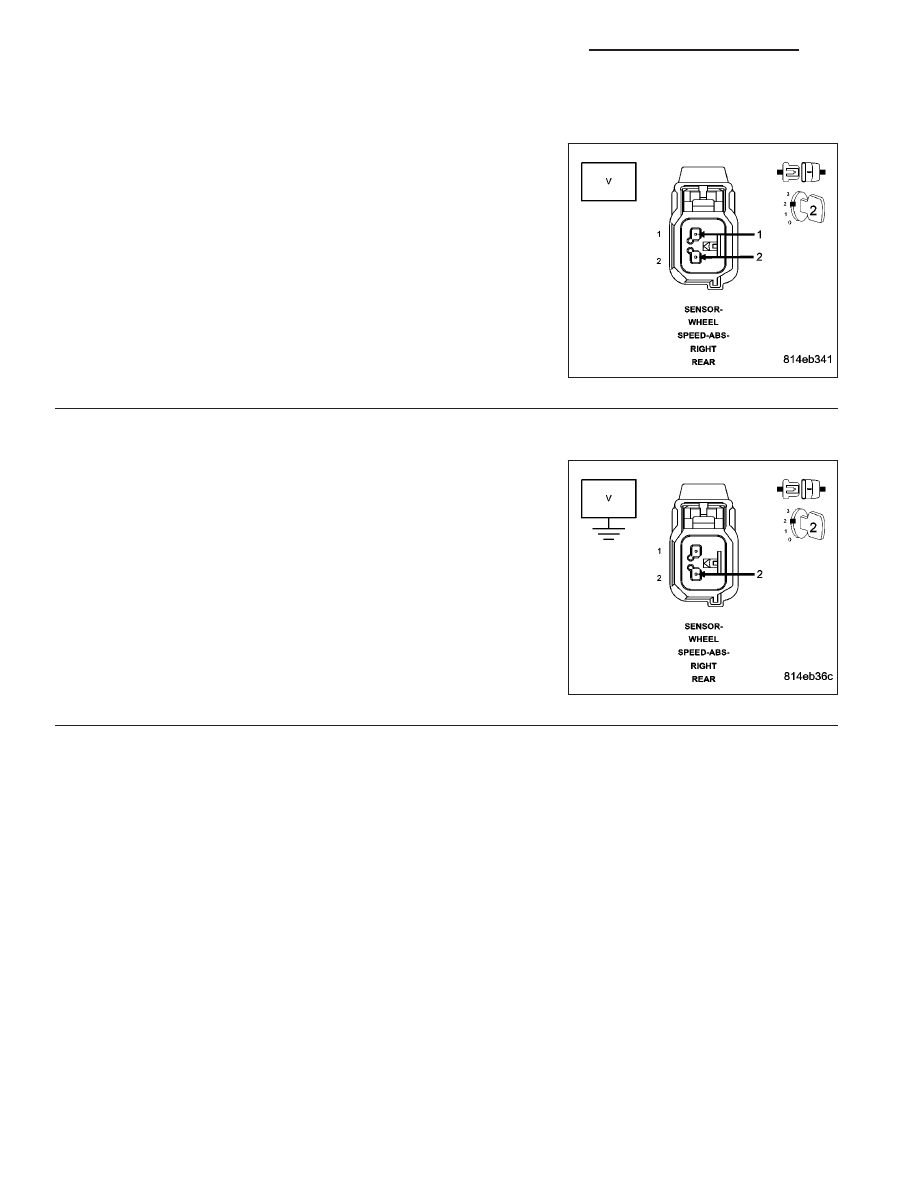

C1032-RIGHT REAR WHEEL SPEED SENSOR SIGNAL ERRATIC PERFORMANCE (CONTINUED) 2. CHECK THE TERMINALS/CONNECTORS/TONE WHEEL FOR DAMAGE NOTE: Check all related wiring for bruised, chafed, pierced, or partially broken wires. NOTE: Check all related connectors for broken, bent, pushed out, or corroded terminals. NOTE: Check the tone wheel teeth for missing teeth, cracks, or looseness. Teeth should be perfectly Inspect the Anti-Lock Brake Module harness connector, Right Rear WSS, Right Rear WSS harness connector, and Were any problems found? Yes >> Repair as necessary. Perform ABS VERIFICATION TEST - VER 1. No >> Go To 3 3. (B1) RIGHT REAR WSS SIGNAL CIRCUIT SHORTED TO THE (B2) RIGHT REAR WSS SUPPLY CIRCUIT Turn the ignition off. Disconnect the Anti-Lock Brake Module harness connector. Disconnect the Right Rear WSS harness connector. Measure the resistance between the (B1) Right Rear WSS Signal and Is the resistance above 5.0 ohms? Yes >> Go To 4 No >> Repair the (B1) Right Rear WSS Signal circuit for a short to the (B2) Right Rear WSS Supply circuit. Perform ABS VERIFICATION TEST - VER 1. 4. CHECK THE VOLTAGE ON THE (B2) RIGHT REAR WSS SUPPLY CIRCUIT Turn the ignition off. Connect the Anti-Lock Brake Module harness connector. Turn the ignition on. Measure the voltage of the (B2) Right Rear WSS Supply circuit in the Is the voltage above 10 volts? Yes >> Go To 8 No >> Go To 5 5 - 198 BRAKES - BRAKE CONTROLLER ELECTRICAL DIAGNOSTICS WK |
