P0562-BATTERY VOLTAGE LOW (CONTINUED)

For the Transmission circuit diagram (Refer to 21 - TRANSMISSION/TRANSAXLE/AUTOMATIC - NAG1 - SCHE-
MATICS AND DIAGRAMS)

For a complete wiring diagram Refer to Section 8W

Theory of Operation

The Transmission Control Module (TCM) monitors ignition voltage. The DTC will set if the monitored battery voltage
drops below 8.5 volts and a temporary limp in will be activated. If the voltage rises above 9.0 volts, normal oper-
ations is resumed and the TCM will record the DTC as a one trip fault. The DTC will only mature to a full DTC if the
voltage is less than 8.5 volts with a engine speed greater than 2000 RPM for a least 60 seconds.

When Monitored:
Continuously with the ignition on.

Set Condition:
When monitored battery voltage drops below 8.5 volts.

Possible Causes

ENGINE CHARGING SYSTEM DTCS

LOW BATTERY VOLTAGE

(F942) FUSED IGNITION SWITCH OUTPUT (RUN-START) CIRCUIT HIGH RESISTANCE

(Z904) GROUND CIRCUIT HIGH RESISTANCE

(F946) TRANSMISSION RELAY OUTPUT CIRCUIT HIGH RESISTANCE

TRANSMISSION RELAY

TRANSMISSION CONTROL MODULE

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 21 - TRANSMIS-
SION/TRANSAXLE/AUTOMATIC - NAG1 - STANDARD PROCEDURE)

Diagnostic Test

1.

CHECK FOR ENGINE CHARGING SYSTEM DTCS

With the scan tool, read Engine DTCs.

Are there any Engine Charging System DTCs present?

Yes

>> Refer to the 9 - ENGINE ELECTRICAL DIAGNOSTICS and perform the appropriate symptom.

No

>> Go To 2

2.

CHECK SYSTEM VOLTAGE

Start the engine.

With the scan tool, under transmission, check system voltage.

Is the transmission system voltage above 9.0 volts?

Yes

>> Go To 4

No

>> Go To 2

21 - 462

AUTOMATIC TRANSMISSION NAG1 - ELECTRICAL DIAGNOSTICS

WK

P0562-BATTERY VOLTAGE LOW (CONTINUED)

3.

CHECK (F942) FUSED IGNITION SWITCH OUTPUT (RUN-START) CIRCUIT

Turn the ignition off to the lock position.

Remove the Transmission Control relay.

Ignition on, engine not running.

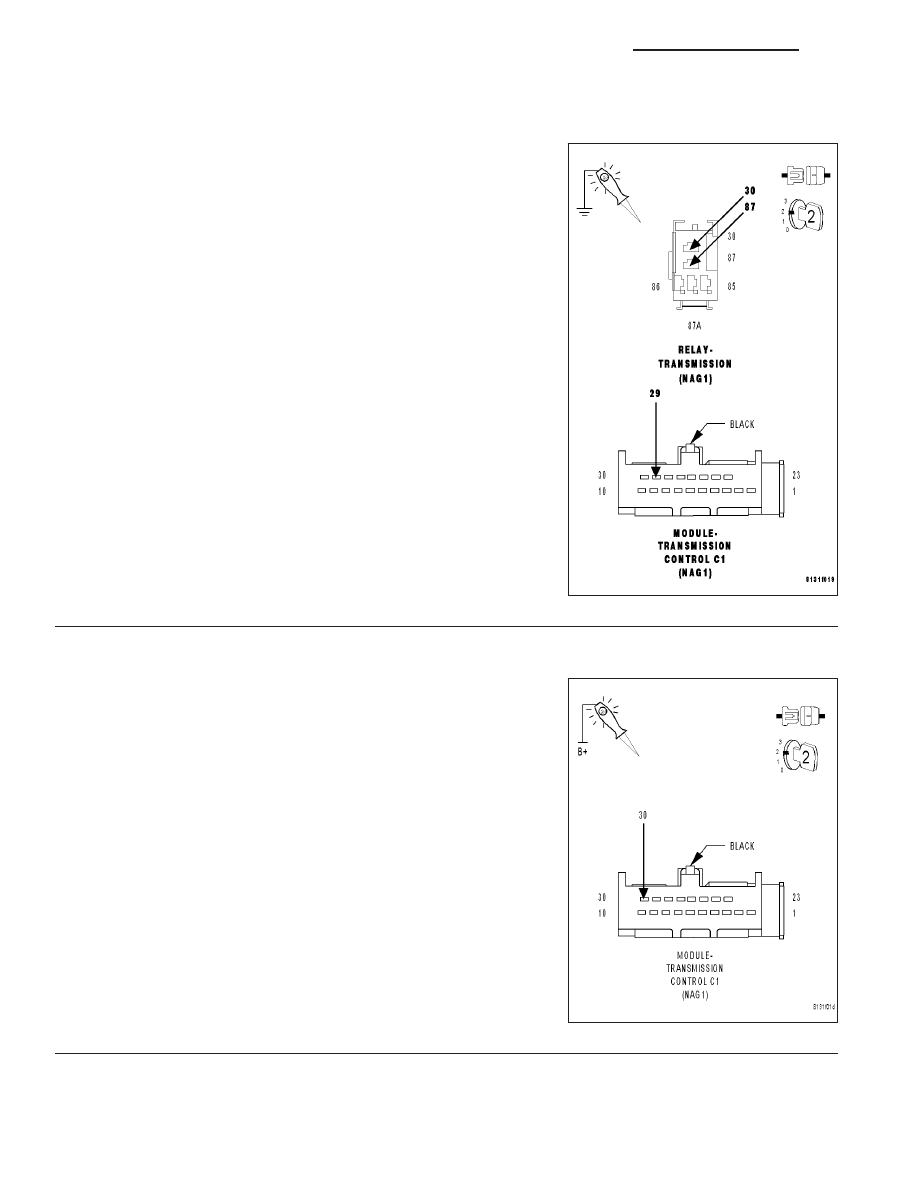

Using a 12-volt test light connected to ground, check the (F942) Fused
Ignition Switch Output (Run-Start) circuit in the Transmission Relay
connector.

NOTE: The test light must illuminate brightly. Compare the bright-
ness to that of a direct connection to the battery.

Does the test light illuminate brightly?

Yes

>> Go To 4

No

>> Repair the (F942) Fused Ignition Switch Output (Run-

Start) circuit for high resistance.

Perform NAG1 TRANSMISSION VERIFICATION TEST -
VER 1.

4.

CHECK THE (F946) TRANSMISSION RELAY OUTPUT CIRCUIT

Turn the ignition off to the lock position.

Remove the Transmission Relay.

Connect a jumper wire between the (F942) Fused Ignition Switch Out-
put (Run-Start) circuit and the (F946) Transmission Relay Output cir-
cuit in the Transmission Relay connector.

Start the engine.

With the scan tool, under transmission, check system voltage.

Is the transmission system voltage above 9.0 volts?

Yes

>> Replace the Transmission Relay.

Perform NAG1 TRANSMISSION VERIFICATION TEST -
VER 1.

No

>> Go To 5

WK

AUTOMATIC TRANSMISSION NAG1 - ELECTRICAL DIAGNOSTICS

21 - 463

P0562-BATTERY VOLTAGE LOW (CONTINUED)

5.

CHECK THE (F946) TRANSMISSION RELAY OUTPUT CIRCUIT

Turn the ignition off to the lock position.

Disconnect the TCM C1 harness connector.

Ignition on, engine not running.

Using a 12-volt test light connected to ground, check the (F946) Trans-
mission Relay Output circuit in the TCM C1 harness connector.

NOTE: The test light must illuminate brightly. Compare the bright-
ness to that of a direct connection to the battery.

Does the test light illuminate brightly?

Yes

>> Go To 3

No

>> Repair the (F946) Transmission Relay Output circuit for

high resistance.

Perform NAG1 TRANSMISSION VERIFICATION TEST -
VER 1.

6.

CHECK (Z904) GROUND CIRCUIT

Turn the ignition off to the lock position.

Using a 12-volt test light connected to 12-volts, check the (Z904)
Ground circuit in the TCM C1 harness connector.

Does the test light illuminate brightly?

Yes

>> Using the schematics as a guide, check the Transmission

Control Module (TCM) terminals for corrosion, damage, or
terminal push out. Pay particular attention to all power and
ground circuits. If no problems are found, replace the TCM
per the Service Information. Refer to 8 - ELECTRICAL/
ELECTRONIC

CONTROL

MODULES/TRANSMISSION

CONTROL MODULE for the appropriate service proce-
dures.

Perform NAG1 TRANSMISSION VERIFICATION TEST -
VER 1.

No

>> Repair the (Z912) Ground circuit for high resistance.

21 - 464

AUTOMATIC TRANSMISSION NAG1 - ELECTRICAL DIAGNOSTICS

WK

P0562-BATTERY VOLTAGE LOW (CONTINUED)

7.

INTERMITTENT WIRING AND CONNECTORS

The conditions necessary to set this DTC are not present at this time.

Using the schematics as a guide, inspect the wiring and connectors specific to this circuit.

Wiggle the wires while checking for shorted and open circuits.

Where there any problems found?

Yes

>> Repair as necessary.

Perform NAG1 TRANSMISSION VERIFICATION TEST - VER 1.

No

>> Test Complete.
