Jeep Grand Cherokee WK. Manual - part 141





C102B–RIGHT REAR WHEEL SPEED SENSOR CIRCUIT

5 - 190

BRAKES - BRAKE CONTROLLER ELECTRICAL DIAGNOSTICS

WK

C102B–RIGHT REAR WHEEL SPEED SENSOR CIRCUIT (CONTINUED)

For the Anti-Lock Brake System circuit diagram. (Refer to 5 - BRAKES - SCHEMATICS AND DIAGRAMS)

For a complete wiring diagram Refer to Section 8W.

When Monitored:
With the ignition on.

Set Condition:
When the Right Rear Wheel Speed Sensor circuit fails the diagnostic test.

Possible Causes

TERMINAL/CONNECTOR/TONE WHEEL DAMAGE

(B1) RIGHT REAR WSS SIGNAL CIRCUIT SHORTED TO THE (B2) RIGHT REAR WSS SUPPLY CIRCUIT

(B2) RIGHT REAR WSS SUPPLY CIRCUIT SHORTED TO VOLTAGE, GROUND, OR OPEN

(B1) RIGHT REAR WSS SIGNAL CIRCUIT SHORTED TO VOLTAGE, GROUND, OR OPEN

RIGHT REAR WHEEL SPEED SENSOR

ANTI-LOCK BRAKE MODULE

Diagnostic Test

1.

CHECK FOR A DTC C102B–RIGHT REAR WHEEL SPEED SENSOR CIRCUIT

NOTE: This DTC must be active for the results of this test to be valid.
Turn the ignition on.

With the scan tool, read DTCs.

Record DTC and Freeze Frame information.

With the scan tool, erase DTCs.

Cycle the ignition switch off then on.

With the scan tool, read DTCs.

Does the scan tool display: C102B–RIGHT REAR WHEEL SPEED SENSOR CIRCUIT?

Yes

>> Go To 2

No

>> Refer to the INTERMITTENT CONDITION diagnostic procedure.

Perform ABS VERIFICATION TEST - VER 1.

2.

CHECK THE TERMINALS/CONNECTORS/TONE WHEEL FOR DAMAGE

NOTE: Check all related wiring for bruised, chafed, pierced, or partially broken wires.

NOTE: Check all related connectors for broken, bent, pushed out, or corroded terminals.

NOTE: Check the tone wheel teeth for missing teeth, cracks, or looseness. Teeth should be perfectly
square, not bent, or nicked.
Turn the ignition off.

Inspect the Anti-Lock Brake Module harness connector, Right Rear WSS, Right Rear WSS harness connector, and
Right Rear WSS tone wheel (if applicable).

Were any problems found?

Yes

>> Repair as necessary.

Perform ABS VERIFICATION TEST - VER 1.

No

>> Go To 3

WK

BRAKES - BRAKE CONTROLLER ELECTRICAL DIAGNOSTICS

5 - 191

C102B–RIGHT REAR WHEEL SPEED SENSOR CIRCUIT (CONTINUED)

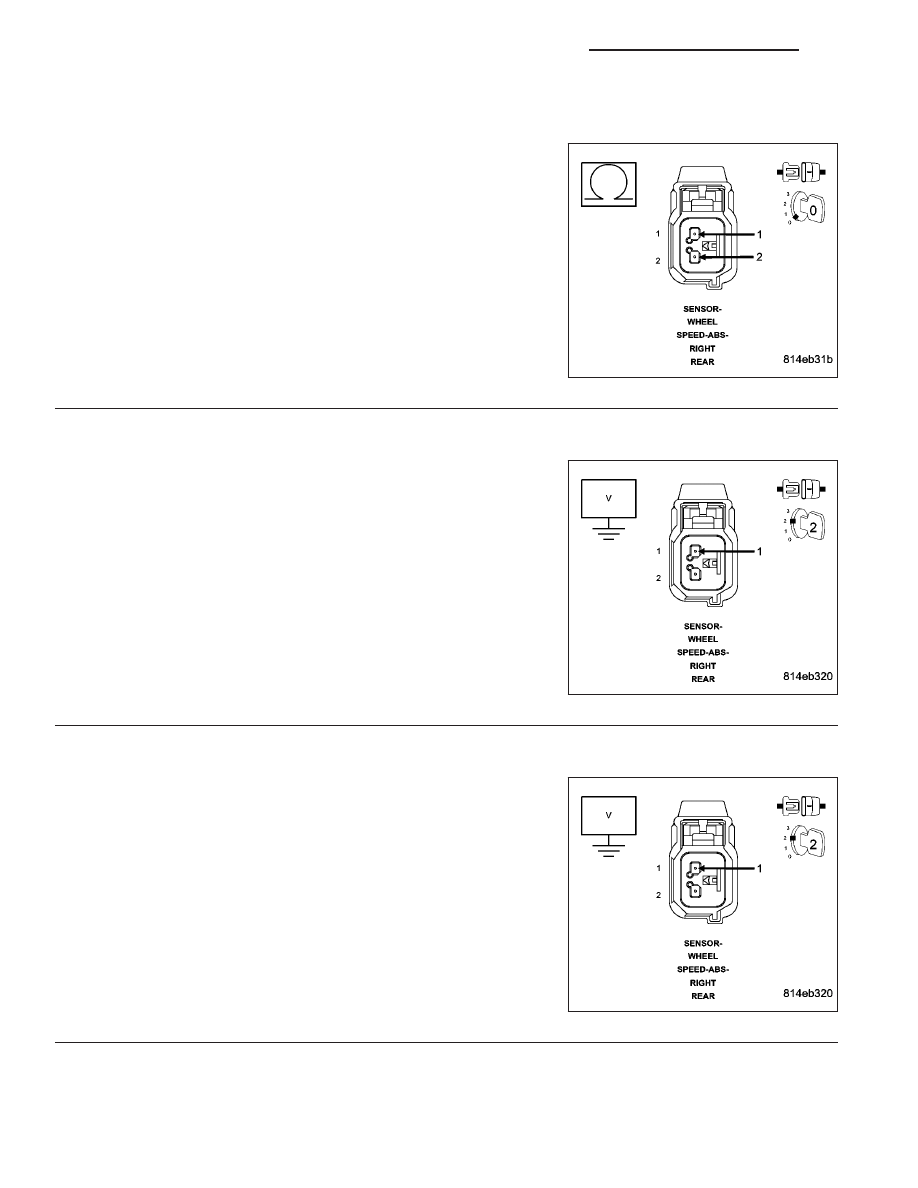

3.

(B1) RIGHT REAR WSS SIGNAL CIRCUIT SHORTED TO THE (B2) RIGHT REAR WSS SUPPLY CIRCUIT

Turn the ignition off.

Disconnect the Anti-Lock Brake Module harness connector.

Disconnect the Right Rear WSS harness connector.

Measure the resistance between the (B1) Right Rear WSS Signal and
the (B2) Right Rear WSS Supply circuits at the Right Rear WSS har-
ness connector.

Is the resistance above 5.0 ohms?

Yes

>> Go To 4

No

>> Repair the (B1) Right Rear WSS Signal circuit for a short

to the (B2) Right Rear WSS Supply circuit.

Perform ABS VERIFICATION TEST - VER 1.

4.

CHECK THE VOLTAGE ON THE (B2) RIGHT REAR WSS SUPPLY CIRCUIT

Turn the ignition off.

Connect the Anti-Lock Brake Module harness connector.

Turn the ignition on.

Measure the voltage of the (B2) Right Rear WSS Supply circuit in the
Right Rear WSS harness connector.

Is the voltage above 10 volts?

Yes

>> Go To 8

No

>> Go To 5

5.

(B2) RIGHT REAR WSS SUPPLY CIRCUIT SHORT TO VOLTAGE

Turn the ignition off.

Disconnect the Anti-Lock Brake Module harness connector.

Turn the ignition on.

Measure the voltage of the (B2) Right Rear WSS Supply circuit.

Is there any voltage present?

Yes

>> Repair the (B2) Right Rear WSS Supply circuit for a short

to voltage.

Perform ABS VERIFICATION TEST - VER 1.

No

>> Go To 6

5 - 192

BRAKES - BRAKE CONTROLLER ELECTRICAL DIAGNOSTICS

WK

C102B–RIGHT REAR WHEEL SPEED SENSOR CIRCUIT (CONTINUED)

6.

(B2) RIGHT REAR WSS SUPPLY CIRCUIT SHORT TO GROUND

Turn the ignition off.

Measure the resistance between ground and the (B2) Right Rear WSS
Supply circuit.

Is the resistance below 5.0 ohms?

Yes

>> Repair the (B2) Right Rear WSS Supply circuit for a short

to ground.

Perform ABS VERIFICATION TEST - VER 1.

No

>> Go To 7

7.

(B2) RIGHT REAR WSS SUPPLY CIRCUIT OPEN

Measure the resistance of the (B2) Right Rear WSS Supply circuit.

Is the resistance below 5.0 ohms?

Yes

>> Replace the Anti-Lock Brake Module in accordance with

the Service Information.

Perform ABS VERIFICATION TEST - VER 1.

No

>> Repair the (B2) Right Rear WSS Supply circuit for an

open.

Perform ABS VERIFICATION TEST - VER 1.

8.

CHECK THE (B2) RIGHT REAR WSS SUPPLY AND THE (B1)
RIGHT REAR WSS SIGNAL VOLTAGE

Measure the voltage between the (B2) Right Rear WSS Supply and
(B1) Right Rear WSS Signal circuits at the Right Rear WSS harness
connector.

Is the voltage above 10 volts?

Yes

>> Go To 11

No

>> Go To 9

WK

BRAKES - BRAKE CONTROLLER ELECTRICAL DIAGNOSTICS

5 - 193
