Jeep Grand Cherokee WK. Manual - part 1402

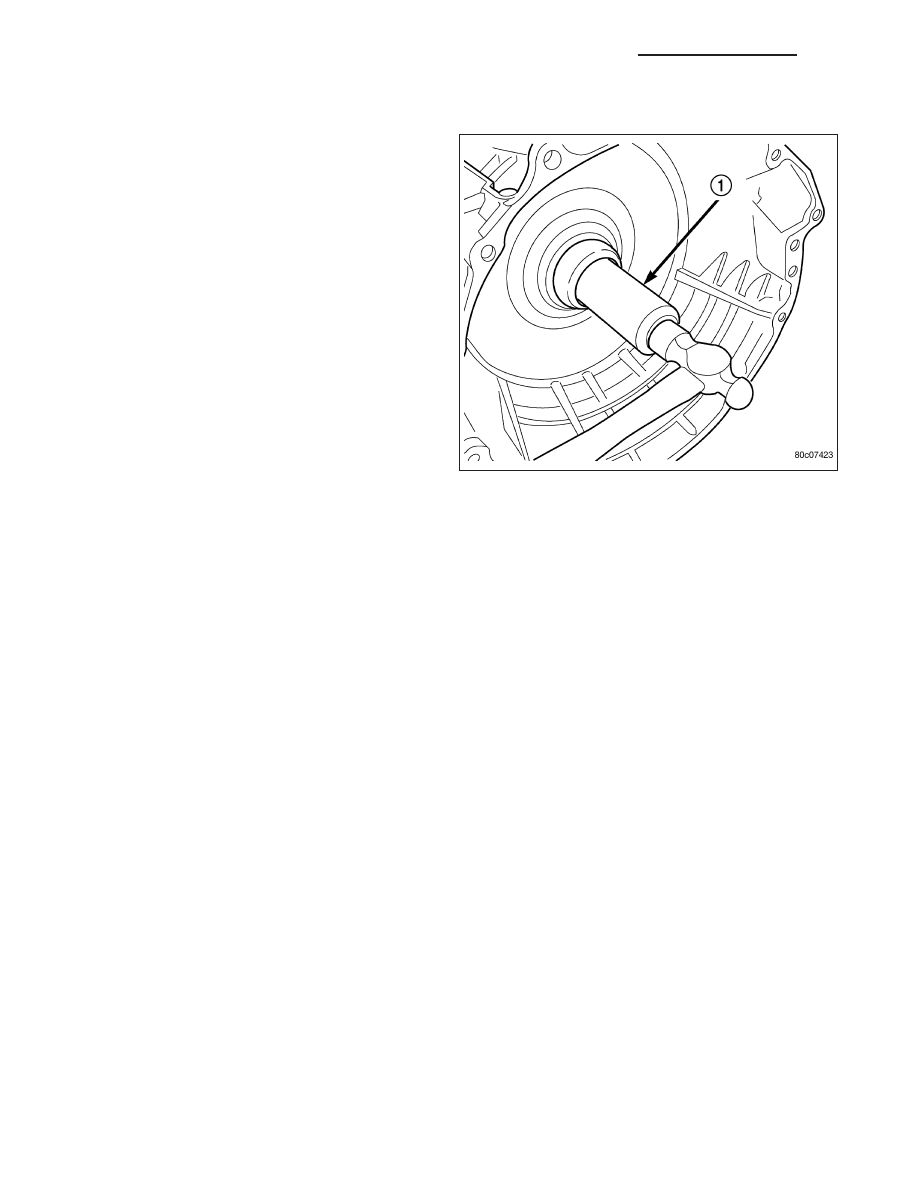

INSTALLATION

1. Clean seal bore of the oil pump of any residue or

particles from the original seal.

2. Install new oil seal in the oil pump housing using

Seal Installer C-3860-A (1).

SENSOR-OUTPUT SPEED

DESCRIPTION

The Input and Output Speed Sensors are two-wire magnetic pickup devices that generate AC signals as rotation
occurs. They are mounted in the left side of the transmission case and are considered primary inputs to the Trans-
mission Control Module (TCM).

OPERATION

The Input Speed Sensor provides information on how fast the input shaft is rotating. As the teeth of the input clutch
hub pass by the sensor coil, an AC voltage is generated and sent to the TCM. The TCM interprets this information
as input shaft rpm.

The Output Speed Sensor generates an AC signal in a similar fashion, though its coil is excited by rotation of the
rear planetary carrier lugs. The TCM interprets this information as output shaft rpm.

The TCM compares the input and output speed signals to determine the following:

Transmission gear ratio

Speed ratio error detection

CVI calculation

The TCM also compares the input speed signal and the engine speed signal to determine the following:

Torque converter clutch slippage

Torque converter element speed ratio

21 - 418

AUTOMATIC TRANSMISSION - 545RFE - SERVICE INFORMATION

WK

REMOVAL

1. Raise vehicle.

2. Place a suitable fluid catch pan under the transmis-

sion.

3. Remove the wiring connector from the output

speed sensor (1).

4. Remove the bolt holding the output speed sensor

(1) to the transmission case.

5. Remove the output speed sensor (1) from the

transmission case.

INSTALLATION

1. Install the output speed sensor (1) into the trans-

mission case.

2. Install the bolt to hold the output speed sensor (1)

into the transmission case. Tighten the bolt to 11.9
N·m (105 in.lbs.).

3. Install the wiring connector onto the output speed

sensor (1).

4. Verify the transmission fluid level. Add fluid as nec-

essary.

5. Lower vehicle.

WK

AUTOMATIC TRANSMISSION - 545RFE - SERVICE INFORMATION

21 - 419

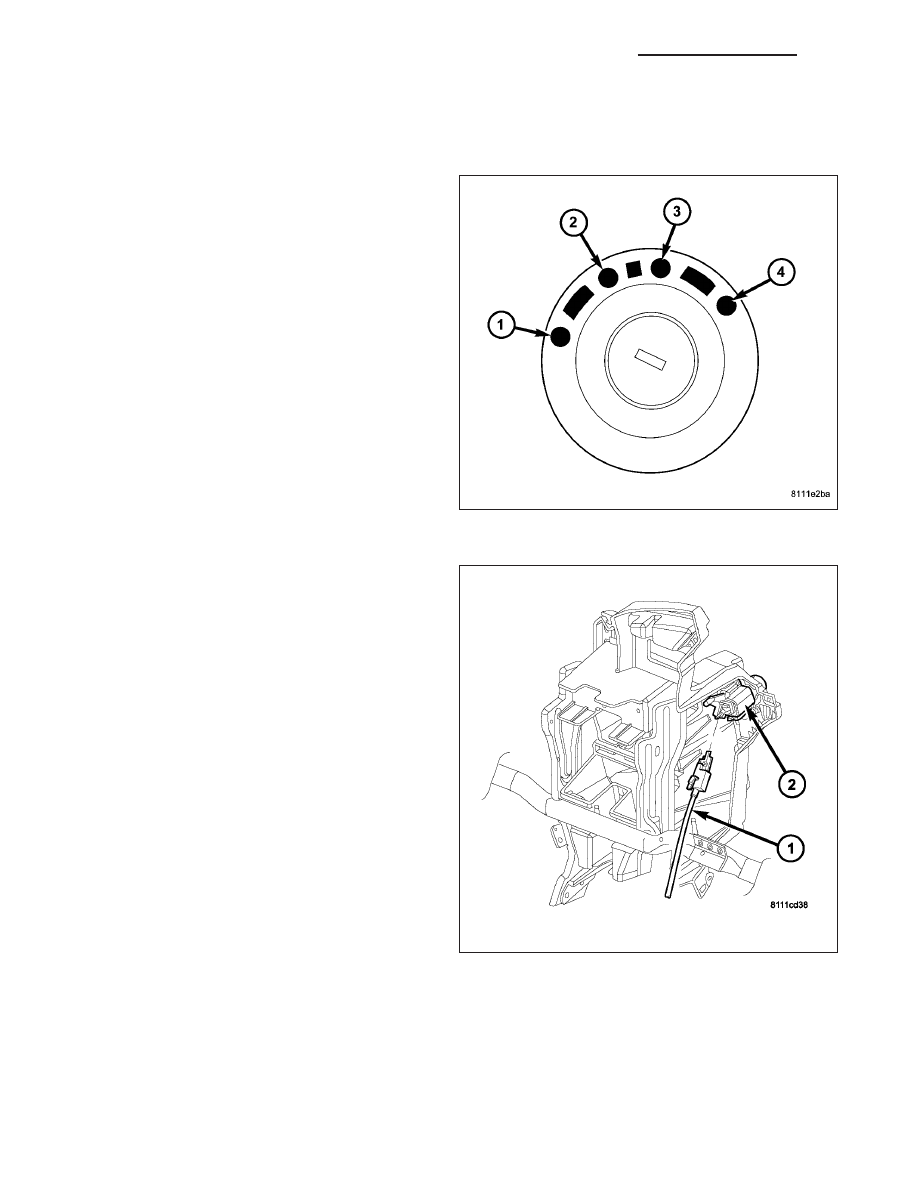

CABLE-PARK LOCK

REMOVAL

1. Place ignition key in the ACC (2) position.

2. Remove the lower instrument panel trim as neces-

sary to access the park lock cable.

3. Disconnect park lock cable (4) from ignition cylin-

der (3).

21 - 420

AUTOMATIC TRANSMISSION - 545RFE - SERVICE INFORMATION

WK

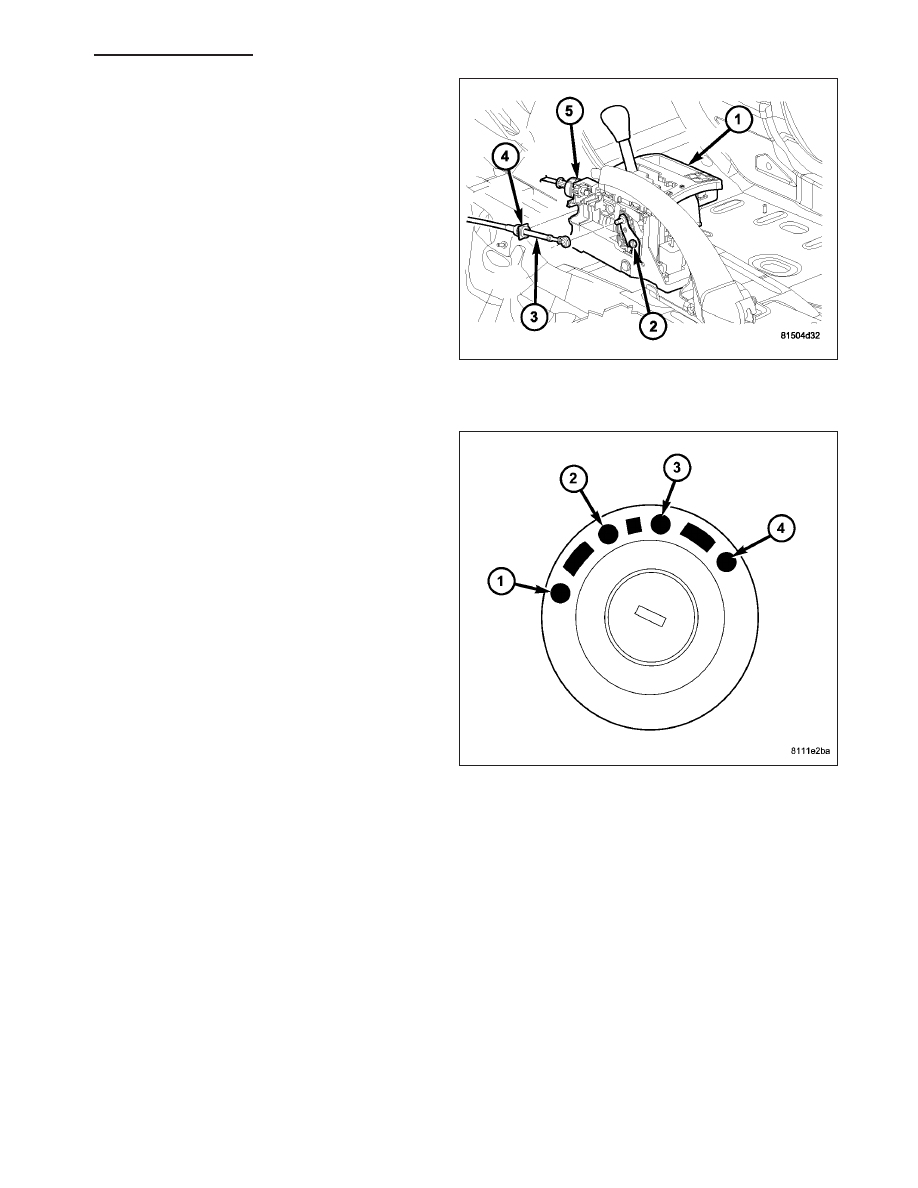

4. Remove the floor console as necessary for access

to the park lock cable. (Refer to 23 - BODY/INTE-
RIOR/FLOOR CONSOLE - REMOVAL)

5. If necessary, remove the bolts holding the shield,

covering the gearshift and park lock cables, to the
shifter assembly and remove the shield.

6. Disconnect the park lock cable (5) from the shift

mechanism. Release retention tab using suitable
screwdriver.

INSTALLATION

1. Verify that ignition key is in ACC (2) position.

WK

AUTOMATIC TRANSMISSION - 545RFE - SERVICE INFORMATION

21 - 421
