LOW/REVERSE CLUTCH

The Low/Reverse clutch is hydraulically applied in park, reverse, neutral, and first gear, only at low speeds, by pres-
surized fluid against the Low/Reverse clutch piston. When the Low/Reverse clutch is applied, the input annulus
assembly is held or grounded to the transmission case.

ASSEMBLY-INPUT CLUTCH

DESCRIPTION

Input Clutch Assembly - Part 1

1 - INPUT CLUTCH HUB

11 - UD CLUTCH

2 - O-RING SEALS

12 - PLATE

3 - SEAL

13 - CLUTCH RETAINER

4 - SNAP-RING

14 - SEAL

5 - SNAP-RING

15 - OD/REV PISTON

6 - UD BALANCE PISTON

16 - BELLEVILLE SPRING

7 - SNAP-RING

17 - SNAP-RING

8 - UD PISTON

18 - SEAL RINGS

9 - SPRING

19 - INPUT SHAFT

10 - DISC

20 - LUBRICATION CHECK VALVE AND SNAP-RING

21 - 386

AUTOMATIC TRANSMISSION - 545RFE - SERVICE INFORMATION

WK

Three hydraulically applied input clutches are used to drive planetary components. The underdrive, overdrive, and
reverse clutches are considered input clutches and are contained within the input clutch assembly.

The input clutch assembly also contains:

Input shaft

Input hub

Clutch retainer

Underdrive piston

Overdrive/reverse piston

Overdrive hub

Underdrive hub

OPERATION

The three input clutches are responsible for driving different components of the planetary geartrain.

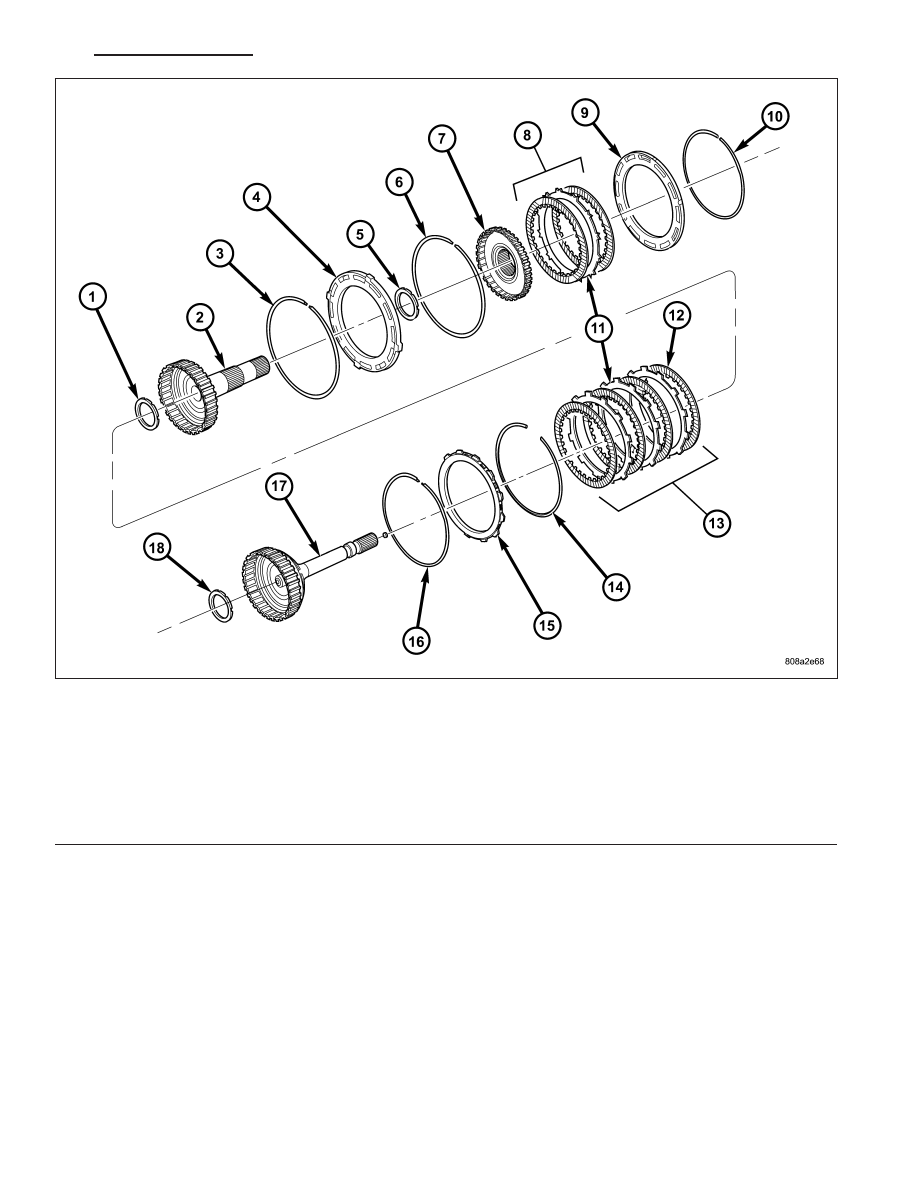

Input Clutch Assembly - Part 2

1 - THRUST BEARING NUMBER 3

10 - SNAP-RING (SELECT)

2 - OD HUB/SHAFT

11 - PLATE

3 - SNAP-RING (WAVE)

12 - DISC

4 - REV/OD REACTION PLATE

13 - OD CLUTCH

5 - THRUST BEARING NUMBER 4

14 - SNAP-RING (TAPERED)

6 - SNAP-RING (FLAT)

15 - UD/OD REACTION PLATE

7 - REVERSE HUB/SHAFT

16 - SNAP-RING (FLAT)

8 - REVERSE CLUTCH

17 - UD HUB/SHAFT

9 - REVERSE REACTION PLATE

18 - THRUST BEARING NUMBER 2

WK

AUTOMATIC TRANSMISSION - 545RFE - SERVICE INFORMATION

21 - 387

UNDERDRIVE CLUTCH

The underdrive clutch is hydraulically applied in first, second, second prime, and third (direct) gears by pressurized
fluid against the underdrive piston. When the underdrive clutch is applied, the underdrive hub drives the input sun
gear.

OVERDRIVE CLUTCH

The overdrive clutch is hydraulically applied in third (direct), fourth, and fifth gears by pressurized fluid against the
overdrive/reverse piston. When the overdrive clutch is applied, the overdrive hub drives the reverse carrier/input
annulus assembly.

REVERSE CLUTCH

The reverse clutch is hydraulically applied in reverse gear by pressurized fluid against the overdrive/reverse piston.
When the reverse clutch is applied, the reaction annulus gear is driven.

21 - 388

AUTOMATIC TRANSMISSION - 545RFE - SERVICE INFORMATION

WK

DISASSEMBLY

1. Remove the reverse reaction plate selective snap-ring (10) from the input clutch retainer (13).

2. Remove the reverse reaction plate (9) from the input clutch retainer (13).

3. Remove the reverse hub (7) and reverse clutch pack (8) from the input clutch retainer (13).

4. Remove the number 4 thrust bearing (5) from the overdrive hub (2).

5. Remove the overdrive hub (2) from the input clutch retainer (13).

6. Remove the number 3 thrust bearing (1) from the underdrive hub (17).

7. Remove the OD/reverse reaction plate snap-ring (6) from the input clutch retainer (13).

8. Remove the underdrive hub (17), overdrive clutch (13), and overdrive reaction plate (15) from the input clutch

retainer (13).

Input Clutch Assembly - Part 2

1 - THRUST BEARING NUMBER 3

10 - SNAP-RING (SELECT)

2 - OD HUB/SHAFT

11 - PLATE

3 - SNAP-RING (WAVE)

12 - DISC

4 - REV/OD REACTION PLATE

13 - OD CLUTCH

5 - THRUST BEARING NUMBER 4

14 - SNAP-RING (TAPERED)

6 - SNAP-RING (FLAT)

15 - UD/OD REACTION PLATE

7 - REVERSE HUB/SHAFT

16 - SNAP-RING (FLAT)

8 - REVERSE CLUTCH

17 - UD HUB/SHAFT

9 - REVERSE REACTION PLATE

18 - THRUST BEARING NUMBER 2

WK

AUTOMATIC TRANSMISSION - 545RFE - SERVICE INFORMATION

21 - 389
