C101F-RIGHT FRONT WHEEL SPEED COMPARATIVE PERFORMANCE (CONTINUED)

3.

CHECK THE VOLTAGE BETWEEN (B7) RIGHT FRONT WSS SUPPLY CIRCUIT AND THE (B6) RIGHT
FRONT WSS SIGNAL CIRCUIT

Turn the ignition off.

Disconnect the Right Front WSS harness connector.

Turn the ignition on.

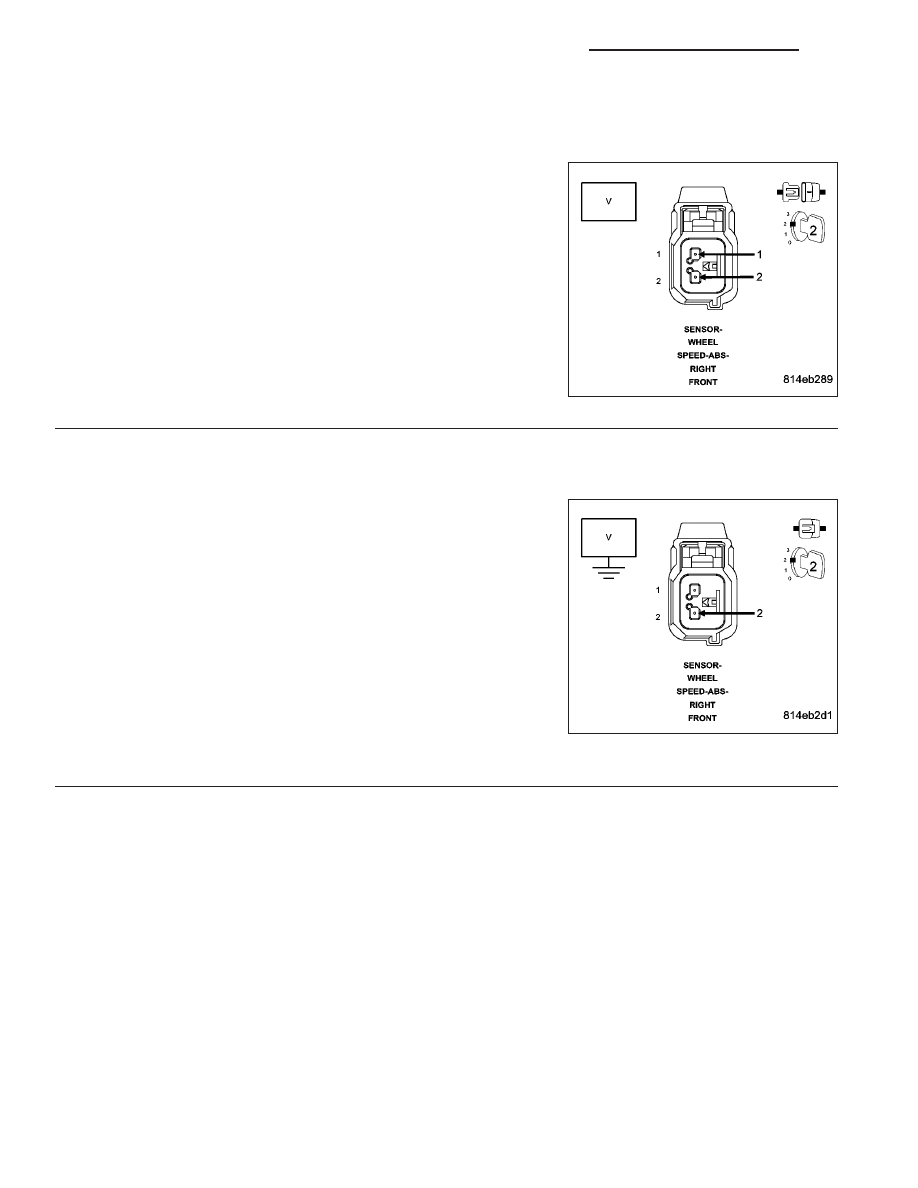

Measure the voltage between the (B7) Right Front WSS Supply and
(B6) Right Front WSS Signal circuits at the Right Front WSS harness
connector.

Is the voltage above 10 volts?

Yes

>> Go To 4

No

>> Refer to DTC-C1015 RIGHT FRONT WHEEL SPEED

SENSOR CIRCUIT for the diagnostic repair procedure.

Perform ABS VERIFICATION TEST - VER 1.

4.

CHECK THE (B6) RIGHT FRONT WSS SIGNAL VOLTAGE AT THE RIGHT FRONT WSS HARNESS
CONNECTOR

Turn the ignition off.

Reconnect all connectors.

Turn the ignition on.

While back probing, measure the voltage between the (B6) Right Front
WSS Signal circuit at the Right Front WSS harness connector and
chassis ground.

Slowly rotate the wheel by hand.

Did the (B6) Right Front WSS Signal circuit voltage toggle
between approximately 1.6 to .8 volts?

Yes

>> Go To 5

No

>> Replace the Right Front WSS in accordance with the Ser-

vice Information.

Perform ABS VERIFICATION TEST - VER 1.

5 - 170

BRAKES - BRAKE CONTROLLER ELECTRICAL DIAGNOSTICS

WK

C101F-RIGHT FRONT WHEEL SPEED COMPARATIVE PERFORMANCE (CONTINUED)

5.

CHECK THE (B6) RIGHT FRONT WSS SIGNAL VOLTAGE AT THE ANTI-LOCK BRAKE MODULE
HARNESS CONNECTOR

Turn the ignition off.

Turn the ignition on.

While back probing, measure the voltage between the (B6) Right Front
WSS Signal circuit at the Anti-Lock Brake Module harness connector
and chassis ground.

Slowly rotate the wheel by hand.

Did the (B6) Right Front WSS Signal circuit voltage toggle
between approximately 1.6 to .8 volts?

Yes

>> Replace the Anti-Lock Brake Module in accordance with

the Service Information.

Perform ABS VERIFICATION TEST - VER 1.

No

>> Repair the (B6) Right Front WSS Signal circuit for an

open.

Perform ABS VERIFICATION TEST - VER 1.

WK

BRAKES - BRAKE CONTROLLER ELECTRICAL DIAGNOSTICS

5 - 171

C1020–LEFT REAR WHEEL SPEED SENSOR CIRCUIT

5 - 172

BRAKES - BRAKE CONTROLLER ELECTRICAL DIAGNOSTICS

WK

C1020–LEFT REAR WHEEL SPEED SENSOR CIRCUIT (CONTINUED)

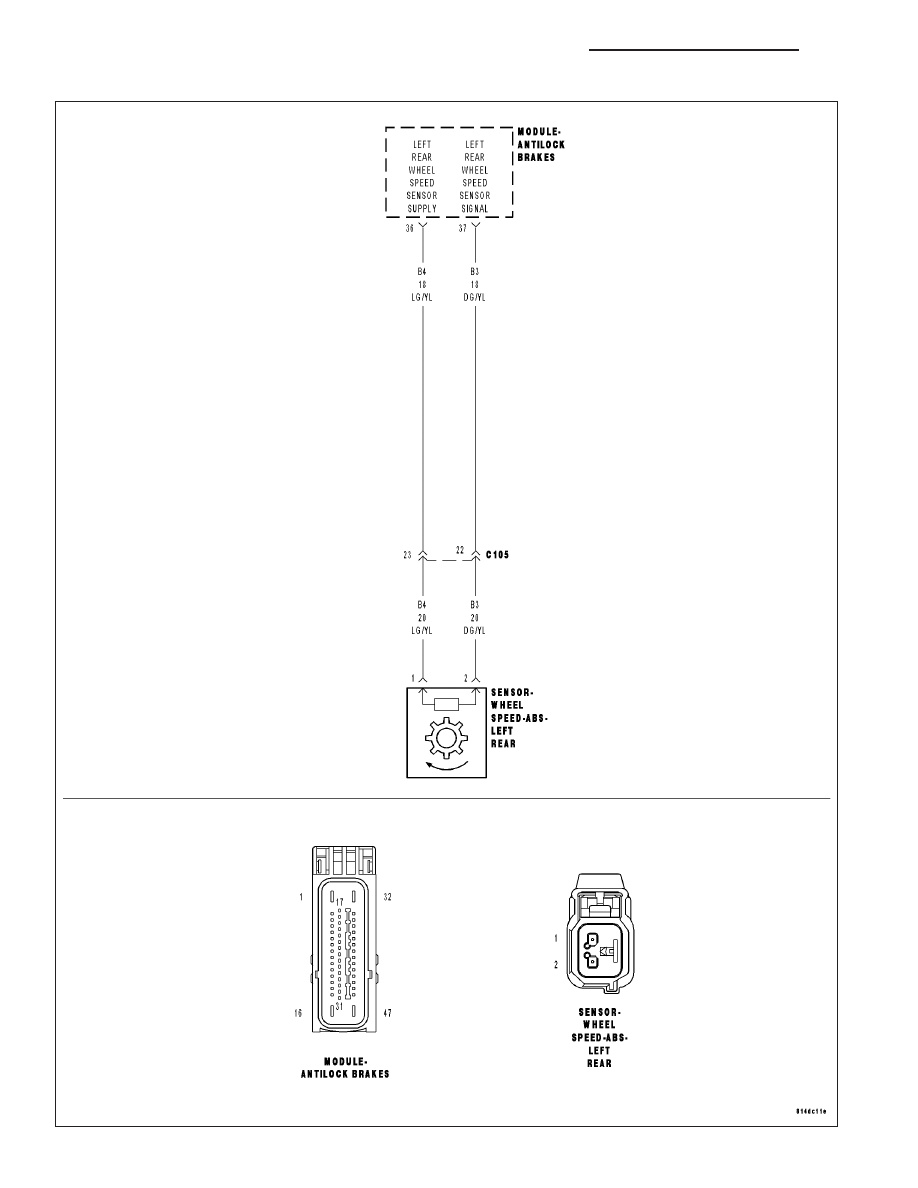

For the Anti-Lock Brake System circuit diagram. (Refer to 5 - BRAKES - SCHEMATICS AND DIAGRAMS)

For a complete wiring diagram Refer to Section 8W.

When Monitored:
With the ignition on.

Set Condition:
When the Left Rear Wheel Speed Sensor circuit fails the diagnostic test.

Possible Causes

TERMINAL/CONNECTOR/TONE WHEEL DAMAGE

(B3) LEFT REAR WSS SIGNAL CIRCUIT SHORTED TO THE (B4) LEFT REAR WSS SUPPLY CIRCUIT

(B4) LEFT REAR WSS SUPPLY CIRCUIT SHORTED TO VOLTAGE, GROUND, OR OPEN

(B3) LEFT REAR WSS SIGNAL CIRCUIT SHORTED TO VOLTAGE, GROUND, OR OPEN

LEFT REAR WHEEL SPEED SENSOR

ANTI-LOCK BRAKE MODULE

Diagnostic Test

1.

CHECK FOR A DTC C1020–LEFT REAR WHEEL SPEED SENSOR CIRCUIT

NOTE: This DTC must be active for the results of this test to be valid.
Turn the ignition on.

With the scan tool, read DTCs.

Record DTC and Freeze Frame information.

With the scan tool, erase DTCs.

Cycle the ignition switch off then on.

With the scan tool, read DTCs.

Does the scan tool display: C1020–LEFT REAR WHEEL SPEED SENSOR CIRCUIT?

Yes

>> Go To 2

No

>> Refer to the INTERMITTENT CONDITION diagnostic procedure.

Perform ABS VERIFICATION TEST - VER 1.

2.

CHECK THE TERMINALS/CONNECTORS/TONE WHEEL FOR DAMAGE

NOTE: Check all related wiring for bruised, chafed, pierced, or partially broken wires.

NOTE: Check all related connectors for broken, bent, pushed out, or corroded terminals.

NOTE: Check the tone wheel teeth for missing teeth, cracks, or looseness. Teeth should be perfectly
square, not bent, or nicked.
Turn the ignition off.

Inspect the Anti-Lock Brake Module harness connector, Left Rear WSS, Left Rear WSS harness connector, and Left
Rear WSS tone wheel (if applicable).

Were any problems found?

Yes

>> Repair as necessary.

Perform ABS VERIFICATION TEST - VER 1.

No

>> Go To 3

WK

BRAKES - BRAKE CONTROLLER ELECTRICAL DIAGNOSTICS

5 - 173
