Jeep Grand Cherokee WK. Manual - part 1355





P0957-AUTOSTICK CIRCUIT LOW (CONTINUED)

5.

CHECK THE AUTOSTICK VOLTAGE WHILE SHIFTING

Start the engine in park.

With the brakes firmly applied, shift into AutoStick.

With the scan tool, monitor the AutoStick voltage while shifting both Up and Down.

Did the scan tool AutoStick voltage drop below 0.35 volts at any given time?

Yes

>> Replace the Shift Lever Assembly per the Service Information.

Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1.

No

>> Go To 6

6.

INTERMITTENT WIRING AND CONNECTORS

The conditions necessary to set this DTC are not present at this time.

Using the schematics as a guide, inspect the wiring and connectors specific to this circuit.

Wiggle the wiring and connectors while checking for any possible open or shorted circuits.

Check for any Service Information Tune-ups or Technical Service Bulletins that may apply.

Were there any problems found?

Yes

>> Repair as necessary.

Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1.

No

>> Test Complete.

21 - 230

AUTOMATIC TRANSMISSION 545RFE - ELECTRICAL DIAGNOSTICS

WK

P0958-AUTOSTICK CIRCUIT HIGH

WK

AUTOMATIC TRANSMISSION 545RFE - ELECTRICAL DIAGNOSTICS

21 - 231

P0958-AUTOSTICK CIRCUIT HIGH (CONTINUED)

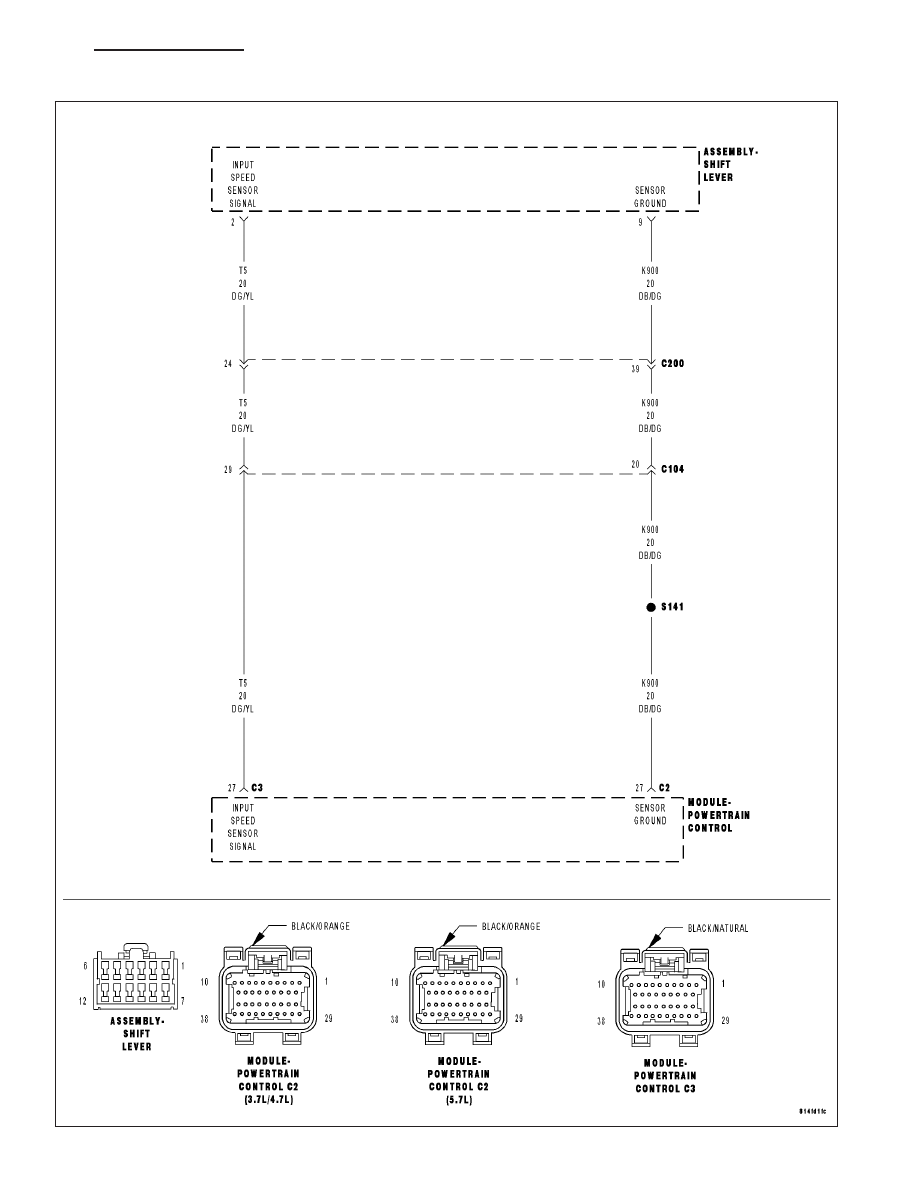

For the Transmission circuit diagram (Refer to 21 - TRANSMISSION/TRANSAXLE/AUTOMATIC - 45RFE/545RFE -
SCHEMATICS AND DIAGRAMS).

For a complete wiring diagram Refer to Section 8W

Theory of Operation

The AutoStick Switch is located in the Shift Lever Assembly (SLA). The gear requested by the AutoStick selection
is then sent over the AutoStick Up/Down sense circuit to the PCM to engage the requested gear. Normal AutoStick

T

voltages are: Down = 0.71 to 1.11 volts, Up = 2.02 to 2.41 volts.

When Monitored:
Ignition on and engine running and after 0.5 seconds.

Set Condition:
When the monitored AutoStick Up/Down Sense circuit voltage rises above 4.75 volts.

Possible Causes

(T5) AUTOSTICK UP/DOWN SENSE CIRCUIT OPEN

(K900) SENSOR GROUND CIRCUIT OPEN

(T5) AUTOSTICK UP/DOWN SENSE CIRCUIT SHORT TO VOLTAGE

(T5) AUTOSTICK UP/DOWN SENSE CIRCUIT SHORT TO ANOTHER CIRCUIT

SHIFT LEVER ASSEMBLY

TRANSMISSION CONTROL MODULE

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 21 - TRANSMIS-
SION/TRANSAXLE/AUTOMATIC - 45RFE/545RFE - DIAGNOSIS AND TESTING)

Diagnostic Test

1.

CHECK IF THE DTC IS CURRENT

Start the engine in park.

With the scan tool, read the AutoStick

T

voltage.

Does the scan tool AutoStick voltage read above 4.75 volts?

Yes

>> Go To 2

No

>> Go To 7

21 - 232

AUTOMATIC TRANSMISSION 545RFE - ELECTRICAL DIAGNOSTICS

WK

P0958-AUTOSTICK CIRCUIT HIGH (CONTINUED)

2.

CHECK THE (T5) AUTOSHIFT UP/DOWN SENSE CIRCUIT FOR A OPEN

Turn the ignition off to the lock position.

Disconnect the PCM C3 harness connector and connect Miller tool
#8815.

CAUTION: Do not probe the PCM harness connectors. Probing
the PCM harness connectors will damage the PCM terminals
resulting in poor terminal to pin connection. Install Miller tool
#8815 to perform diagnosis.
Disconnect the Shift Lever Assembly harness connector.

Measure the resistance of the (T5) AutoStick Up/Down Sense circuit
between the Shift Lever Assembly harness connector and the appro-
priate terminal of Miller tool #8815.

Is the resistance below 5.0 ohms?

Yes

>> Go To 3

No

>> Repair the (T5) AutoStick Up/Down Sense circuit for an

open.

Perform 45RFE/545RFE TRANSMISSION VERIFICATION
TEST - VER 1.

3.

CHECK THE (K900) SENSOR GROUND CIRCUIT FOR AN OPEN

Disconnect the PCM C2 harness connector and connect Miller tool
#8815.

Measure the resistance of the (K900) Sensor Ground circuit between
the Shift Lever Assembly harness connector and the appropriate ter-
minal of Miller tool #8815.

Is the resistance below 5.0 ohms?

Yes

>> Go To 4

No

>> Repair the (K900) Sensor Ground circuit for an open.

Perform 45RFE/545RFE TRANSMISSION VERIFICATION
TEST - VER 1.

WK

AUTOMATIC TRANSMISSION 545RFE - ELECTRICAL DIAGNOSTICS

21 - 233
