P0868-LINE PRESSURE LOW (CONTINUED)

5.

LINE PRESSURE SENSOR

Turn the ignition off to the lock position.

Disconnect the Transmission Simulator, Miller tool #8333 and reconnect all previously disconnected connectors.

Install the Line Pressure Adaptor, Miller tool #8259, and the Pressure Gauge, Miller tool #C-3293, 0 to 2000 kPa or
0 to 300 PSI.

Start the engine in park.

Monitor the line pressure readings of both the scan tool and the pressure gauge and compare the two readings.

Is the line pressure gauge reading within 34 kPa or 5 PSI of the scan tool reading?

Yes

>> Go To 6

No

>> Replace the Line Pressure Sensor per the Service Information.

Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1.

6.

PLUGGED TRANSMISSION OIL FILTER

Turn the ignition off to the lock position.

Remove and inspect the Transmission Oil Pan for excessive debris per the Service Information.

Remove and inspect the Primary Oil Filter per the Service Information.

NOTE: Make sure the Primary Transmission Oil Filter and/or O-ring is not cracked or split.

Does the Oil Pan contain excessive debris and/or is the Primary Oil Filter cracked or plugged?

Yes

>> Repair the plugged, cracked, or split Primary Transmission Oil Filter and/or O-ring. If the Primary Trans-

mission Oil Filter is plugged refer to the Service Information for the proper Hydraulic repair procedure.

Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1.

No

>> Repair internal transmission and inspect the Transmission Oil Pump per the Service Information and

replace if necessary. If no problem is found, replace the Solenoid/TRS Assembly.

Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1.

7.

(F856) 5-VOLT SUPPLY CIRCUIT SHORT TO VOLTAGE

Disconnect the Transmission Simulator, Miller tool #8333.

Reconnect all previously disconnected connectors except the Line
Pressure Sensor harness connector.

Ignition on, engine not running.

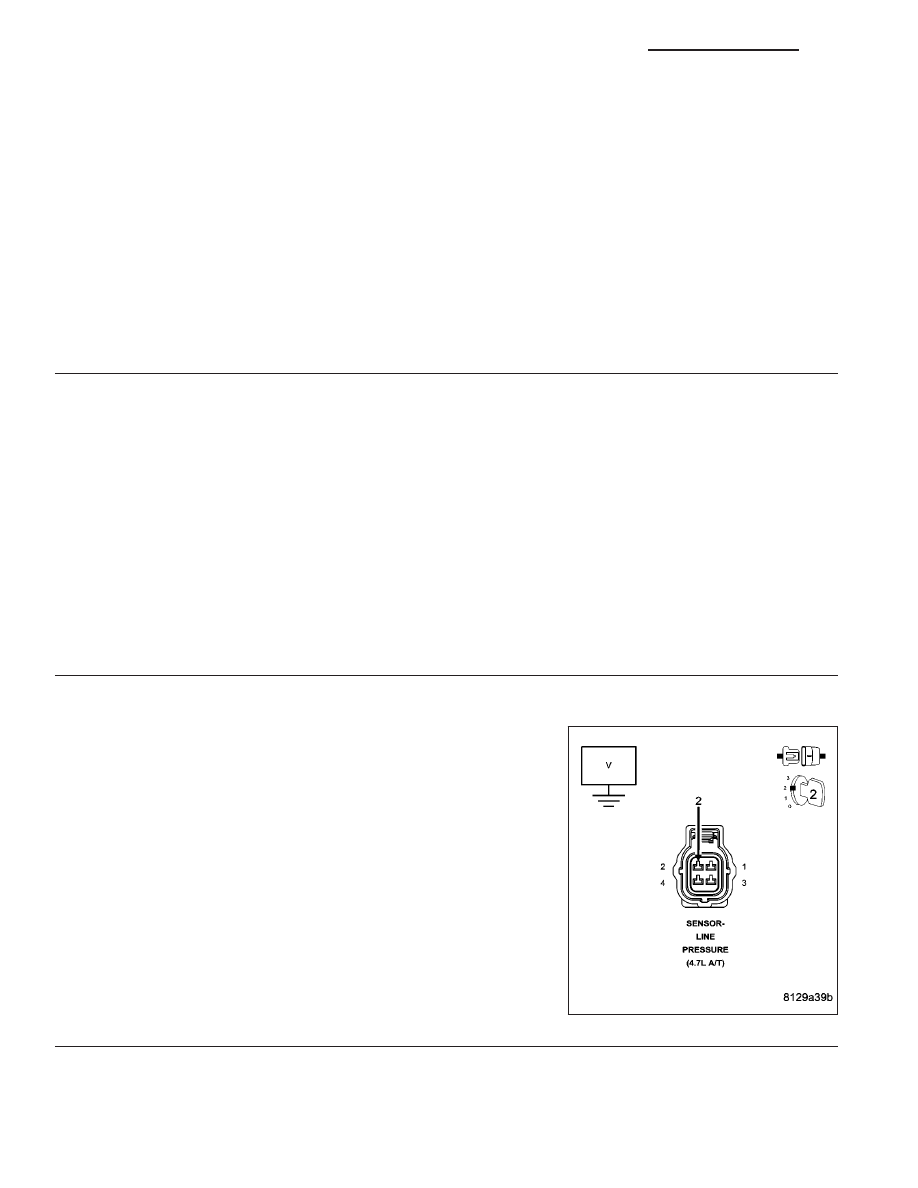

Measure the voltage of the (F856) 5-volt Supply circuit in the Line
Pressure Sensor harness connector.

Is the voltage above 5.5 volts?

Yes

>> Repair the (F856) 5-volt Supply circuit for a short to volt-

age.

Perform 45RFE/545RFE TRANSMISSION VERIFICATION
TEST - VER 1.

No

>> Go To 8

21 - 150

AUTOMATIC TRANSMISSION 545RFE - ELECTRICAL DIAGNOSTICS

WK

P0868-LINE PRESSURE LOW (CONTINUED)

8.

(F856) 5-VOLT SUPPLY CIRCUIT OPEN

Turn the ignition off to the lock position.

Disconnect the PCM C1 harness connector and connect Miller tool
#8815.

CAUTION: Do not probe the PCM harness connectors. Probing
the PCM harness connectors will damage the PCM terminals
resulting in poor terminal to pin connection. Install Miller tool
#8815 to perform diagnosis.

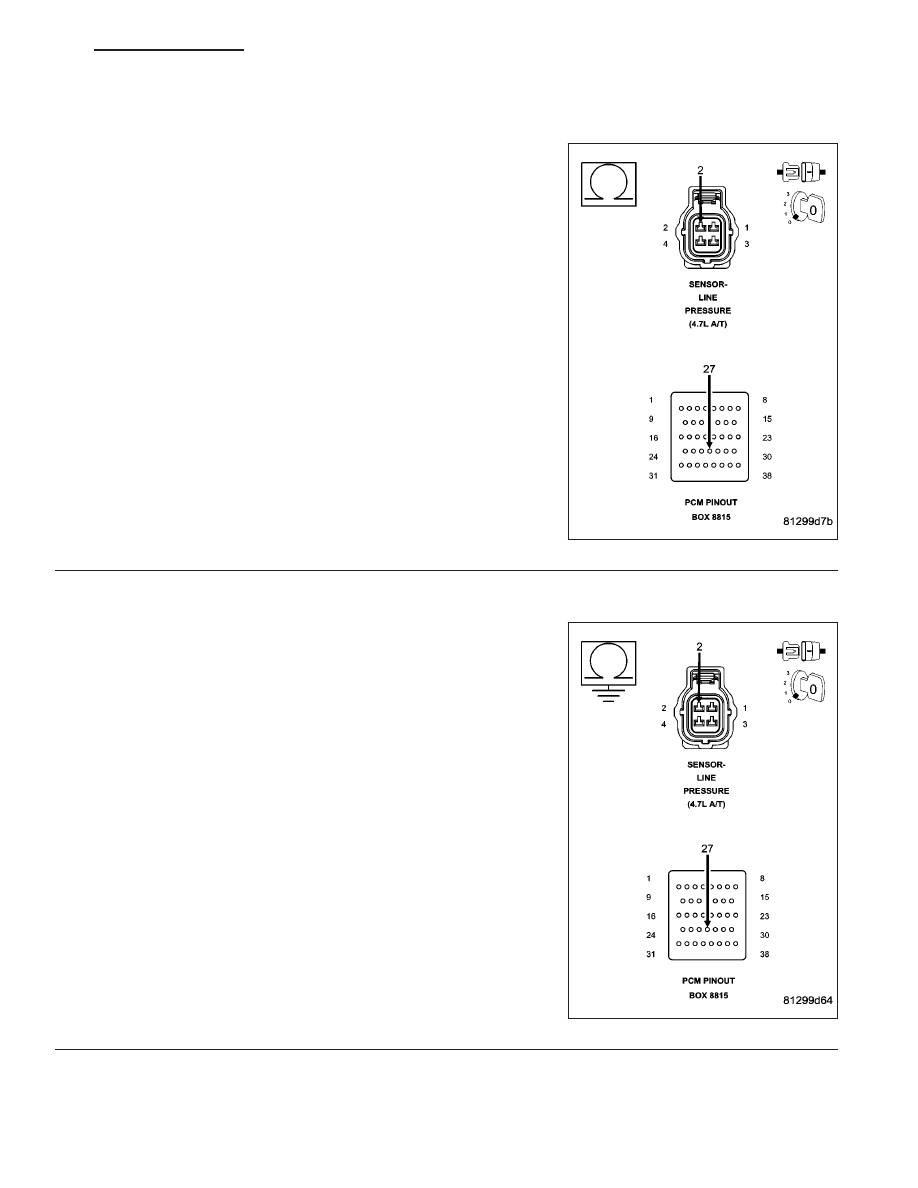

Measure the resistance of the (F856) 5-volt Supply circuit from the
Line Pressure Sensor harness connector to the appropriate terminal of
Miller tool #8815.

Is the resistance above 5.0 ohms?

Yes

>> Repair the (F856) 5-volt Supply circuit for an open.

Perform 45RFE/545RFE TRANSMISSION VERIFICATION
TEST - VER 1.

No

>> Go To 9

9.

(F856) 5-VOLT SUPPLY CIRCUIT SHORT TO GROUND

Measure the resistance between ground and the (F856) 5-volt Supply
circuit.

Is the resistance below 5.0 ohms?

Yes

>> Repair the (F856) 5-volt Supply circuit for a short to

ground.

Perform 45RFE/545RFE TRANSMISSION VERIFICATION
TEST - VER 1.

No

>> Go To 10

WK

AUTOMATIC TRANSMISSION 545RFE - ELECTRICAL DIAGNOSTICS

21 - 151

P0868-LINE PRESSURE LOW (CONTINUED)

10.

(T140) PRESSURE CONTROL SOLENOID CONTROL CIRCUIT SHORT TO ANOTHER CIRCUIT

Turn the ignition off to the lock position.

Disconnect the Transmission Solenoid/TRS Assembly harness connec-
tor.

Disconnect all PCM harness connectors.

Measure the resistance between the (T140) Pressure Control Solenoid
Control circuit and all other circuits in the Transmission Solenoid/TRS
Assembly harness connector.

Is the resistance below 5.0 ohms between the (T140) Pressure
Control Solenoid Control circuit and any other circuit(s) in the
Transmission Solenoid/TRS Assembly harness connector?

Yes

>> Repair the (T140) Pressure Control Solenoid Control cir-

cuit for a short to another circuit(s).

Perform 45RFE/545RFE TRANSMISSION VERIFICATION
TEST - VER 1.

No

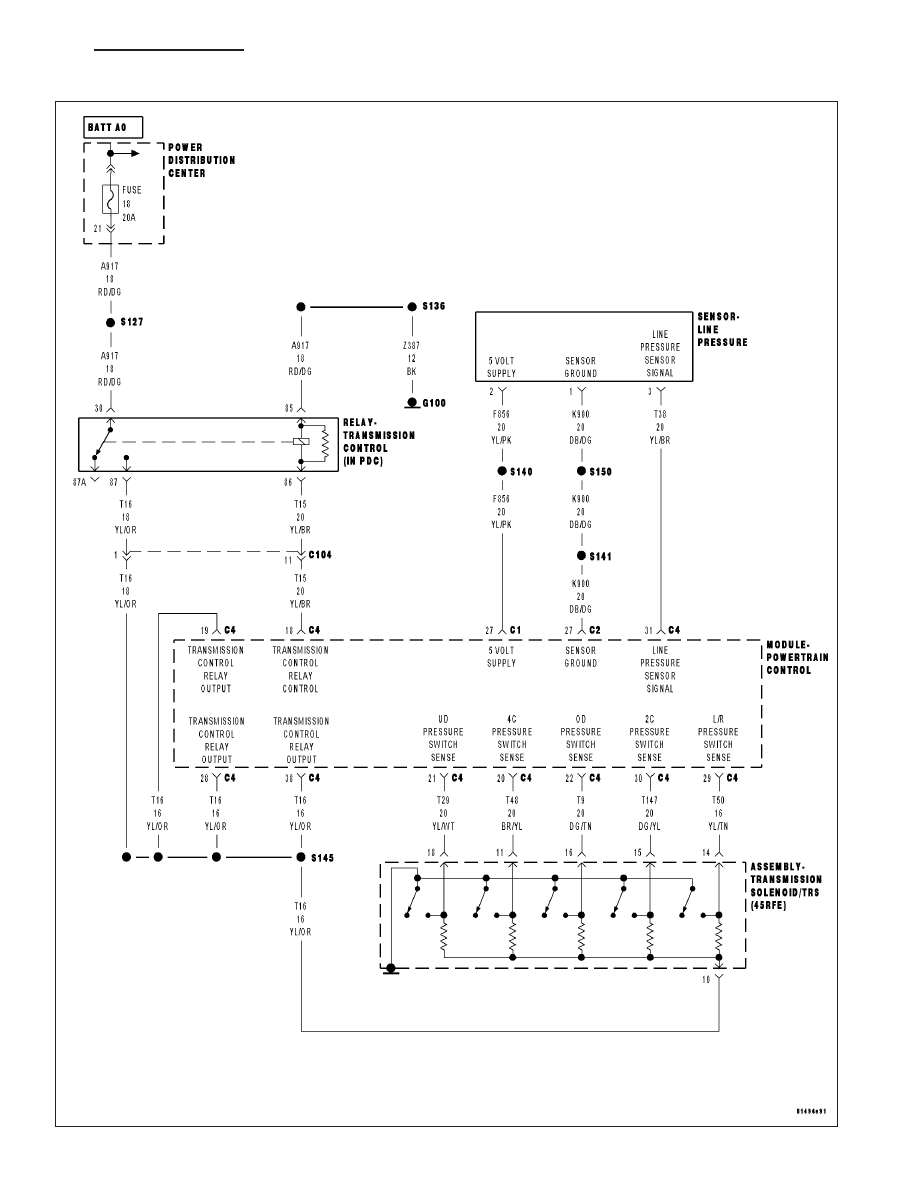

>> Using the schematics as a guide, check the Powertrain

Control Module (PCM) terminals for corrosion, damage, or terminal push out. Pay particular attention to
all power and ground circuits. If no problems are found, replace the PCM per the Service Information.
With the scan tool, perform QUICK LEARN.

Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1.

11.

INTERMITTENT WIRING AND CONNECTORS

The conditions necessary to set this DTC are not present at this time.

Using the schematics as a guide, inspect the wiring and connectors specific to this circuit.

Wiggle the wires while checking for shorted and open circuits.

With the scan tool, check the EATX DTC EVENT DATA to help identify the conditions in which the DTC was set.

Where there any problems found?

Yes

>> Repair as necessary.

Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1.

No

>> Test Complete.
