Jeep Grand Cherokee WK. Manual - part 1280





1. Install the column (2) into the vehicle and lift the

column up into place. Install the mounting bolts (1)
and tighten to 12 N·m (105 in. lbs.).

2. Slide the coupler onto the column shaft and install

new coupler bolt. Tighten the coupler bolt to 49
N·m (36 ft. lbs.).

3. Install the column cross bolt (1) and tighten to 12

N·m (105 in. lbs.).

19 - 34

COLUMN - SERVICE INFORMATION

WK

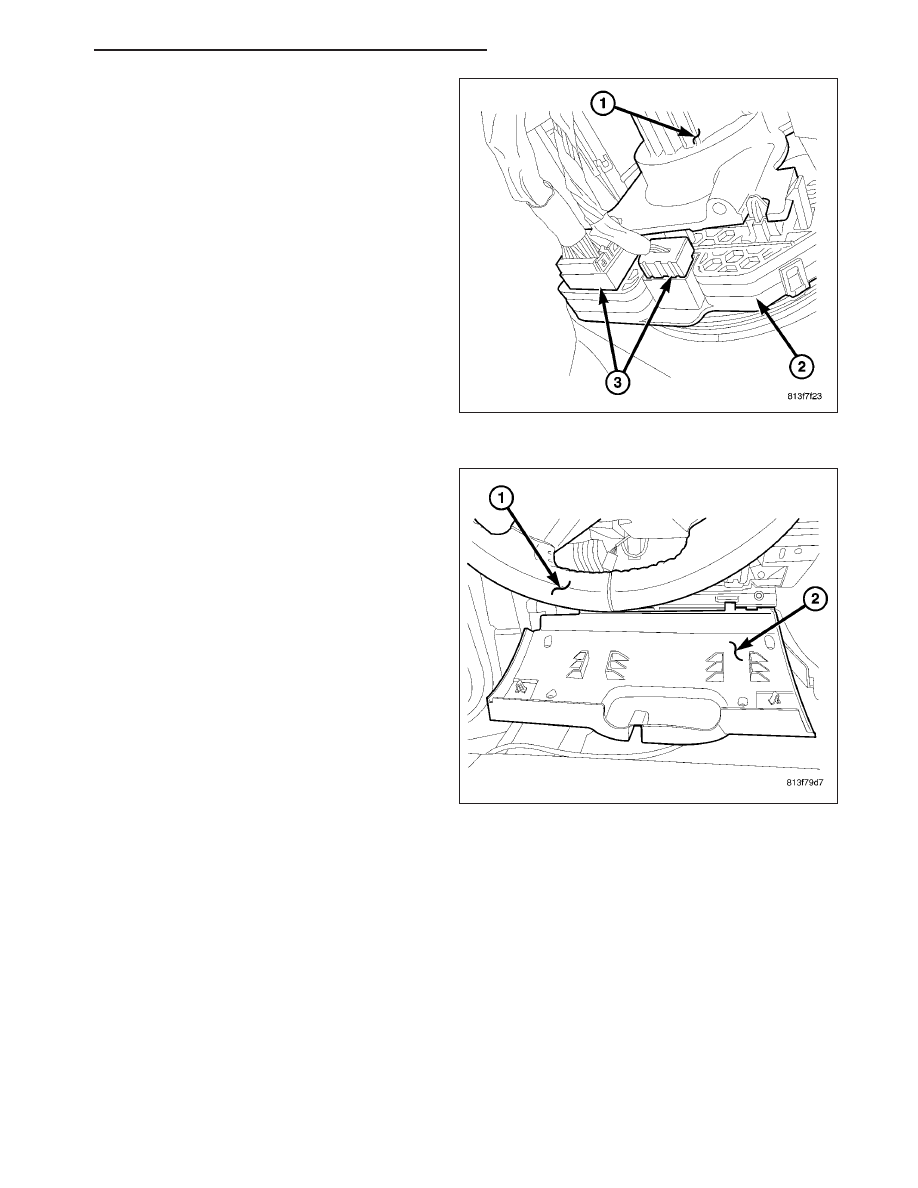

4. Slide the multifunction switch and clock spring onto

the column as an assembly.

5. Connect the electrical connector (3) for the multi-

function switch (2).

6. Install the shrouds.

7. Install the column access cover (2) (Refer to 23 -

BODY/INSTRUMENT PANEL - INSTALLATION).

WK

COLUMN - SERVICE INFORMATION

19 - 35

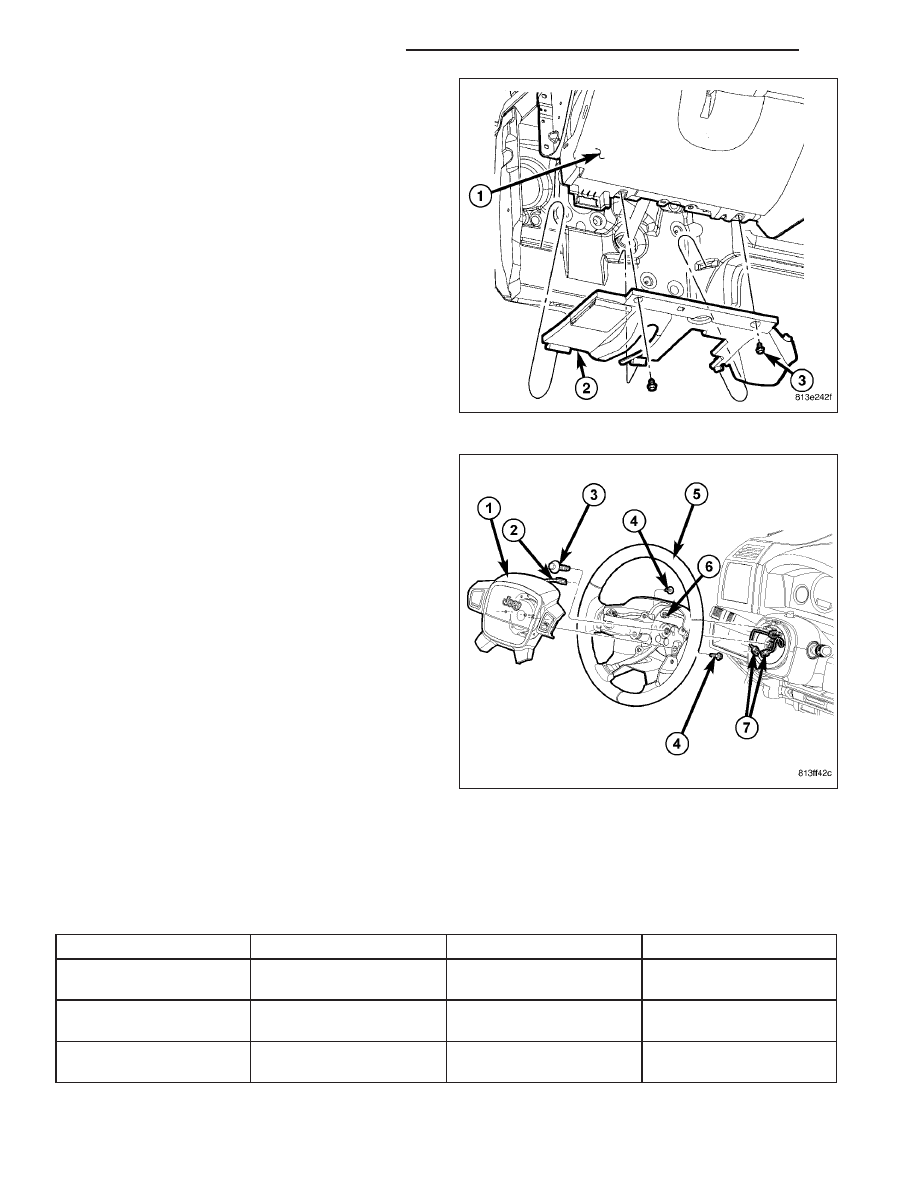

8. Install the hush panel (2).

9. Align the steering wheel (5) with the column index

spline and install the wheel on the column shaft.
Pull the clockspring wire harness (7) through the
steering wheel armature spokes.

10. Install and tighten the steering wheel mounting

bolt (3) to 61 N·m (45 ft. lbs.).

11. Connect the steering wheel wire harness connec-

tor (2 &6) to the clock spring connector.

12. Install the airbag (1), (Refer to 8 - ELECTRICAL/

RESTRAINTS/DRIVER

AIRBAG

-

INSTALLA-

TION).

13. Connect the negative (ground) cable to the

battery.

SPECIFICATIONS

TORQUE CHART

TORQUE SPECIFICATIONS

DESCRIPTION

N·m

Ft. Lbs.

In. Lbs.

Steering Column

Steering Wheel Nut

61

45

Steering Column

Column Bracket Nuts

12

105

Steering Column

Shaft Coupler Bolts

49

36

19 - 36

COLUMN - SERVICE INFORMATION

WK

SPECIAL TOOLS

STEERING COLUMN

WK

COLUMN - SERVICE INFORMATION

19 - 37
