U0154-LOST COMMUNICATION WITH OCCUPANT CLASSIFICATION MODULE

For a complete wiring diagram Refer to Section 8W.

(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING) for the diagnostic
test procedure.

U0155-LOST COMMUNICATION WITH CLUSTER/CCN

For a complete wiring diagram Refer to Section 8W.

(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING) for the diagnostic
test procedure.

U0156-LOST COMMUNICATION WITH EOM

For a complete wiring diagram Refer to Section 8W.

(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING) for the diagnostic
test procedure.

U0159-LOST COMMUNICATION WITH PARKING ASSIST CONTROL MODULE

For a complete wiring diagram Refer to Section 8W.

(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING) for the diagnostic
test procedure.

U0164-LOST COMMUNICATION WITH HVAC CONTROL MODULE

For a complete wiring diagram Refer to Section 8W.

(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING) for the diagnostic
test procedure.

U0167-LOST COMMUNICATION WITH INTRUSION TRANSCEIVER CONTROL
MODULE

For a complete wiring diagram Refer to Section 8W.

(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING) for the diagnostic
test procedure.

U0168-LOST COMMUNICATION WITH VEHICLE SECURITY CONTROL MODULE
(SKREEM/WCM)

For a complete wiring diagram Refer to Section 8W.

(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING) for the diagnostic
test procedure.

U0169-LOST COMMUNICATION WITH SUNROOF CONTROL MODULE

For a complete wiring diagram Refer to Section 8W.

(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING) for the diagnostic
test procedure.

U0184-LOST COMMUNICATION WITH RADIO

For a complete wiring diagram Refer to Section 8W.

(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING) for the diagnostic
test procedure.

19 - 26

COLUMN - ELECTRICAL DIAGNOSTICS

WK

U0186-LOST COMMUNICATION WITH AUDIO AMPLIFIER

For a complete wiring diagram Refer to Section 8W.

(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING) for the diagnostic
test procedure.

U0195-LOST COMMUNICATION WITH SDARS

For a complete wiring diagram Refer to Section 8W.

(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING) for the diagnostic
test procedure.

U0196-LOST COMMUNICATION WITH VEHICLE ENTERTAINMENT CONTROL
MODULE

For a complete wiring diagram Refer to Section 8W.

(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING) for the diagnostic
test procedure.

U0197-LOST COMMUNICATION WITH HANDS FREE MODULE

For a complete wiring diagram Refer to Section 8W.

(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING) for the diagnostic
test procedure.

U0199-LOST COMMUNICATION WITH DRIVER DOOR MODULE

For a complete wiring diagram Refer to Section 8W.

(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING) for the diagnostic
test procedure.

U0200-LOST COMMUNICATION WITH PASSENGER DOOR MODULE

For a complete wiring diagram Refer to Section 8W.

(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING) for the diagnostic
test procedure.

U0208-LOST COMMUNICATION WITH HEATED SEAT CONTROL MODULE

For a complete wiring diagram Refer to Section 8W.

(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING) for the diagnostic
test procedure.

U0209-LOST COMMUNICATION WITH MEMORY SEAT CONTROL MODULE

For a complete wiring diagram Refer to Section 8W.

(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING) for the diagnostic
test procedure.

U0231-LOST COMMUNICATION WITH RAIN SENSING MODULE

For a complete wiring diagram Refer to Section 8W.

(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING) for the diagnostic
test procedure.

WK

COLUMN - ELECTRICAL DIAGNOSTICS

19 - 27

U0241-LOST COMMUNICATION WITH AUTO HIGHBEAM HEADLAMP CONTROL
MODULE

For a complete wiring diagram Refer to Section 8W.

(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING) for the diagnostic
test procedure.

19 - 28

COLUMN - ELECTRICAL DIAGNOSTICS

WK

COLUMN - SERVICE INFORMATION

TABLE OF CONTENTS

page

page

COLUMN - SERVICE INFORMATION

WARNING

WARNINGS AND CAUTIONS

. . . . . . . . . . . . . 29

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 33

SPECIFICATIONS

TORQUE CHART

. . . . . . . . . . . . . . . . . . . . . . 36

SPECIAL TOOLS

STEERING COLUMN

. . . . . . . . . . . . . . . . . . . 37

STEERING WHEEL

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 39

SHROUD

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 40

INTERMEDIATE SHAFT

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 44

MODULE-STEERING CONTROL

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 48

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . 50

DIAGNOSIS AND TESTING

STEERING CONTROL MODULE SWITCHES

. 51

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

DISASSEMBLY

. . . . . . . . . . . . . . . . . . . . . . . . . 55

ASSEMBLY

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 57

COLUMN - SERVICE INFORMATION

WARNING

WARNINGS AND CAUTIONS

The steering column on vehicles with an auto-
matic transmission may not be equipped with an
internal locking shaft that allows the ignition key
cylinder to be locked with the key. Alternative
methods of locking the steering wheel for service
will have to be used.

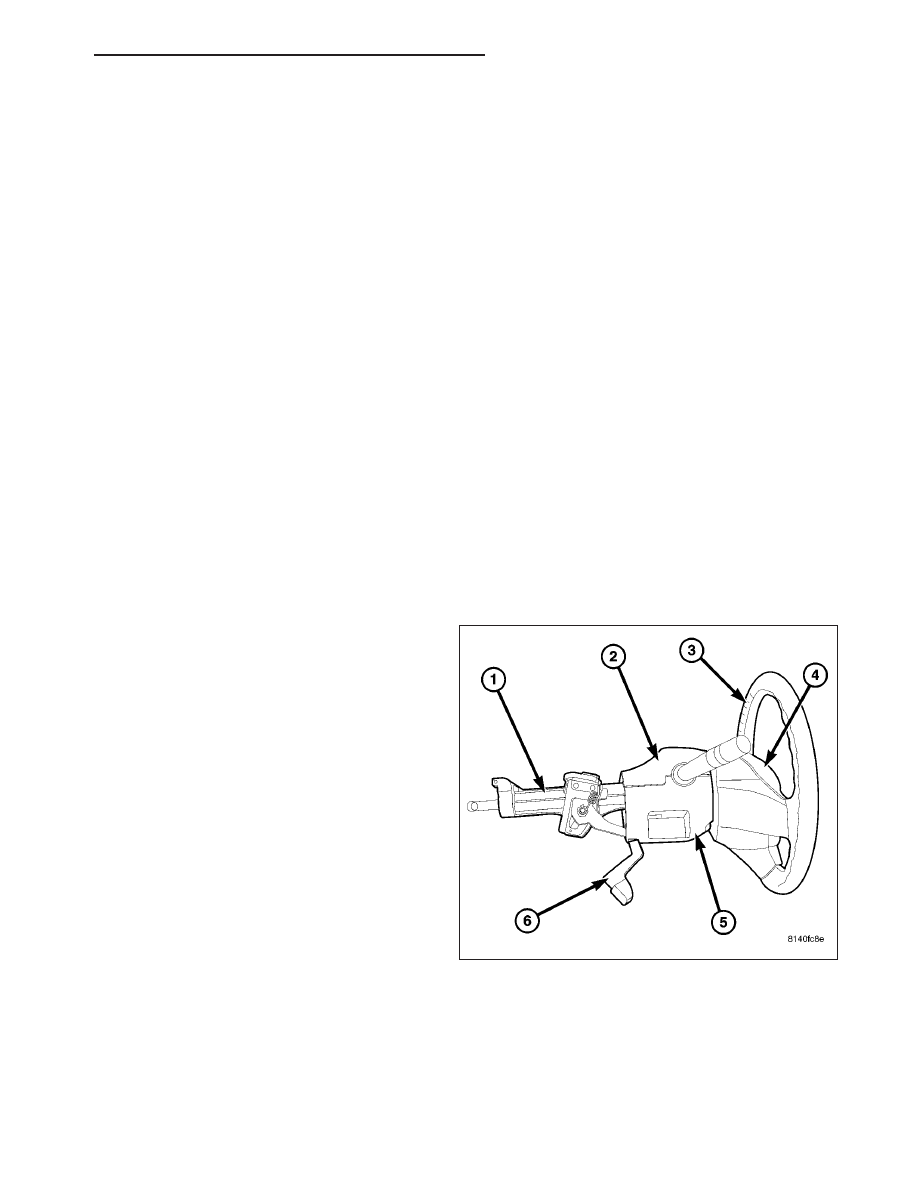

The tilt column has been designed to be serviced
as an assembly, less the wiring, switches, shrouds
(2 & 5), steering wheel (3), airbag (4) etc. Most
steering column components can be serviced
without removing the steering column (1) from the
vehicle.

The airbag system is a sensitive, complex electro-
mechanical unit. Before attempting to diagnose,
remove or install the airbag system components
you must first disconnect and isolate the battery
negative (ground) cable. Then wait two minutes for
the system capacitor to discharge. Failure to do
so could result in accidental deployment of the
airbag and possible personal injury. The fasteners, screws, and bolts, originally used for the airbag com-
ponents, have special coatings and are specifically designed for the airbag system. They must never be
replaced with any substitutes. Anytime a new fastener is needed, replace with the correct fasteners pro-
vided in the service package or fasteners listed in the parts books.

Safety goggles should be worn at all times when working on steering columns.

WK

COLUMN - SERVICE INFORMATION

19 - 29
