U0001–CAN C BUS

19 - 22

COLUMN - ELECTRICAL DIAGNOSTICS

WK

U0001–CAN C BUS (CONTINUED)

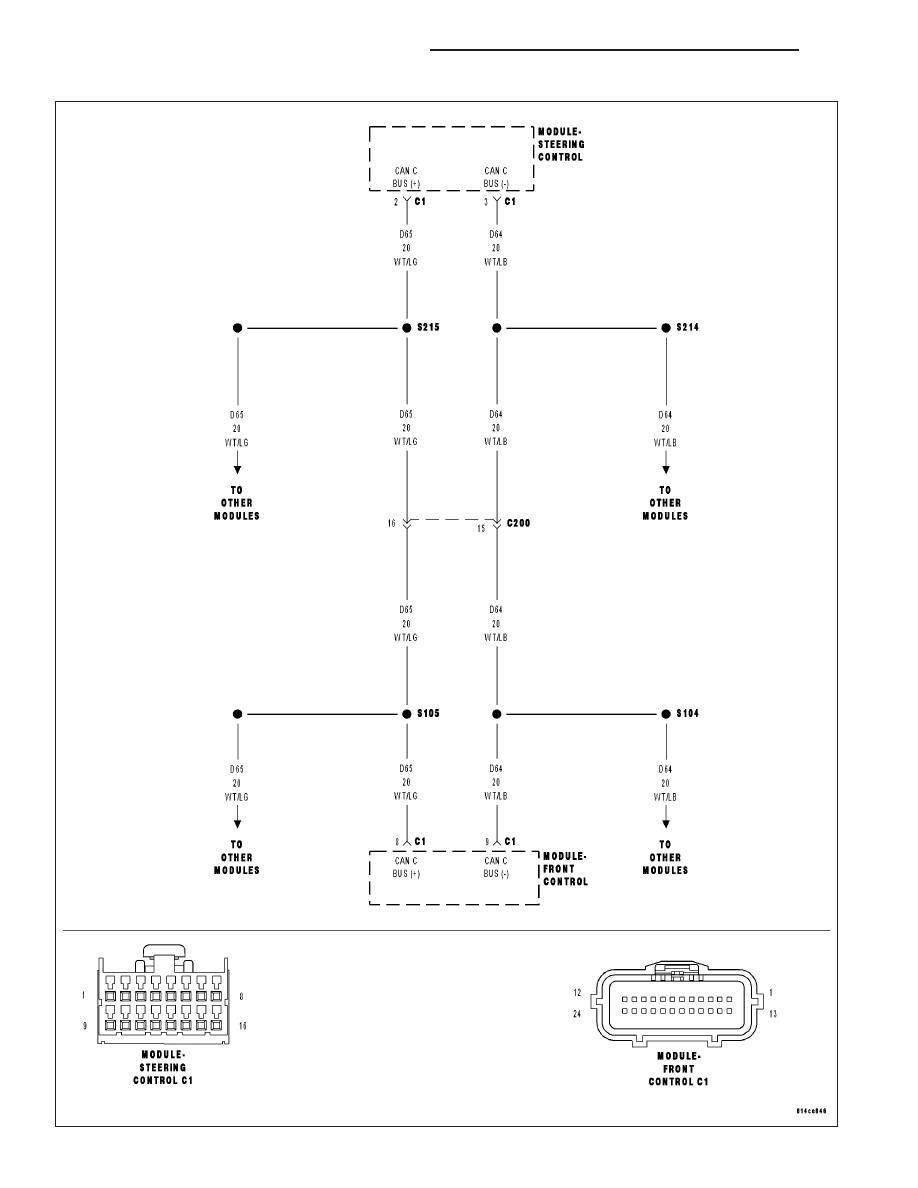

For a complete wiring diagram Refer to Section 8W.

When Monitored:
With the ignition on.

Set Condition:
Whenever the CAN C Bus (+) or CAN C Bus (-) circuit is open, shorted to voltage or shorted to ground.

Possible Causes

CAN C BUS DTC’s IN FRONT CONTROL MODULE

(D65) CAN C BUS (+) CIRCUIT OPEN

(D64) CAN C BUS (-) CIRCUIT OPEN

STEERING COLUMN MODULE

Diagnostic Test

1.

CHECK FOR ACTIVE DTCS

With the scan tool, read the active SCM DTC’s.

Cycle the ignition switch from off to on at least 5 times, leaving the ignition on for a minimum of 90 seconds per
cycle.

With the scan tool, read the active SCM DTC’s.

Does the scan tool display this DTC as active?

Yes

>> Go To 2

No

>> If the DTC is stored, check for an intermittent condition. Visually inspect the related wiring harness con-

nectors. Look for broken, bent, pushed out, or corroded terminals.

2.

CHECK FRONT CONTROL MODULE DTC’s

With the scan tool, read Front Control Module active DTC’s

Does the scan tool display any CAN C BUS DTC’s – ACTIVE?

Yes

>> (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING)

No

>> Go To 3

WK

COLUMN - ELECTRICAL DIAGNOSTICS

19 - 23

U0001–CAN C BUS (CONTINUED)

3.

(D65) CAN C BUS (+) CIRCUIT OPEN

Turn the ignition off.

Disconnect the negative battery cable.

Disconnect the Steering Column Module C1 harness connector.

Disconnect the Front Control Module C1 connector.

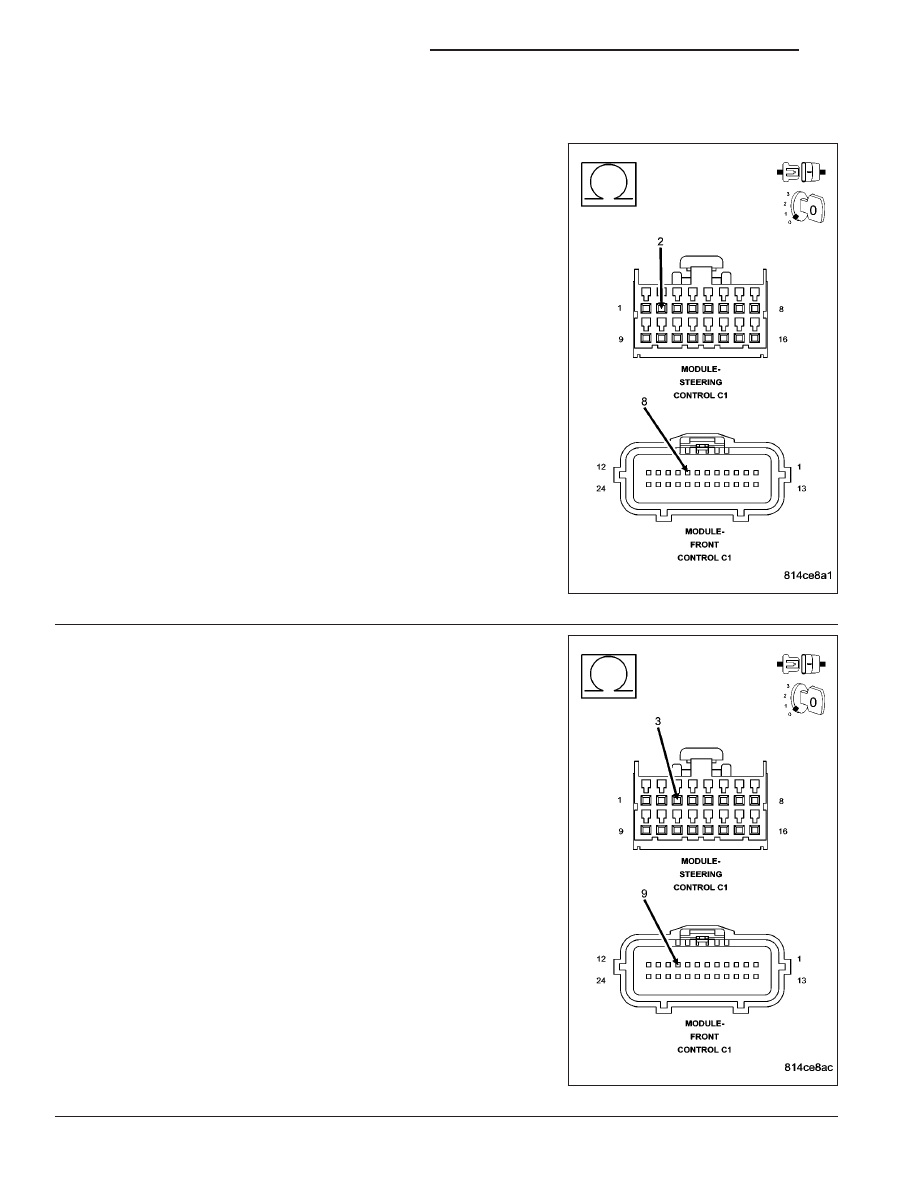

Measure the resistance of the (D65) CAN C Bus (+) circuit between
the Front Control Module connector and the Steering Column Module
connector.

Is the resistance below 2.0 ohms?

Yes

>> Go To 4

No

>> Repair the (D65) CAN C Bus (+) circuit for an open.

4.

(D64) CAN C BUS (–) CIRCUIT OPEN

Measure the resistance of the (D64) CAN C Bus (–) circuit between
the Front Control Module connector and the Steering Column Module
connector.

Is the resistance below 2.0 ohms?

Yes

>> Replace the Steering Column Module in accordance with

the service information.

No

>> Repair the (D64) CAN C Bus (–) circuit for an open.

19 - 24

COLUMN - ELECTRICAL DIAGNOSTICS

WK

U0021-CAN B BUS (+) CIRCUIT OPEN

For a complete wiring diagram Refer to Section 8W.

(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING) for the diagnostic
test procedure.

U0022-CAN B BUS (+) CIRCUIT LOW

For a complete wiring diagram Refer to Section 8W.

(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING) for the diagnostic
test procedure.

U0023-CAN B BUS (+) CIRCUIT HIGH

For a complete wiring diagram Refer to Section 8W.

(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING) for the diagnostic
test procedure.

U0024-CAN B BUS (-) CIRCUIT OPEN

For a complete wiring diagram Refer to Section 8W.

(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING) for the diagnostic
test procedure.

U0025-CAN B BUS (-) CIRCUIT LOW

For a complete wiring diagram Refer to Section 8W.

(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING) for the diagnostic
test procedure.

U0026-CAN B BUS (-) CIRCUIT HIGH

For a complete wiring diagram Refer to Section 8W.

(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING) for the diagnostic
test procedure.

U0027-CAN B BUS (-) SHORTED TO BUS (+)

For a complete wiring diagram Refer to Section 8W.

(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING) for the diagnostic
test procedure.

U0141–LOST COMMUNICATION WITH FRONT CONTROL MODULE

For a complete wiring diagram Refer to Section 8W.

(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING) for the diagnostic
test procedure.

U0151-LOST COMMUNICATION WITH OCCUPANT RESTRAINT CONTROLLER

For a complete wiring diagram Refer to Section 8W.

(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING) for the diagnostic
test procedure.

WK

COLUMN - ELECTRICAL DIAGNOSTICS

19 - 25
