Jeep Grand Cherokee WK. Manual - part 1227

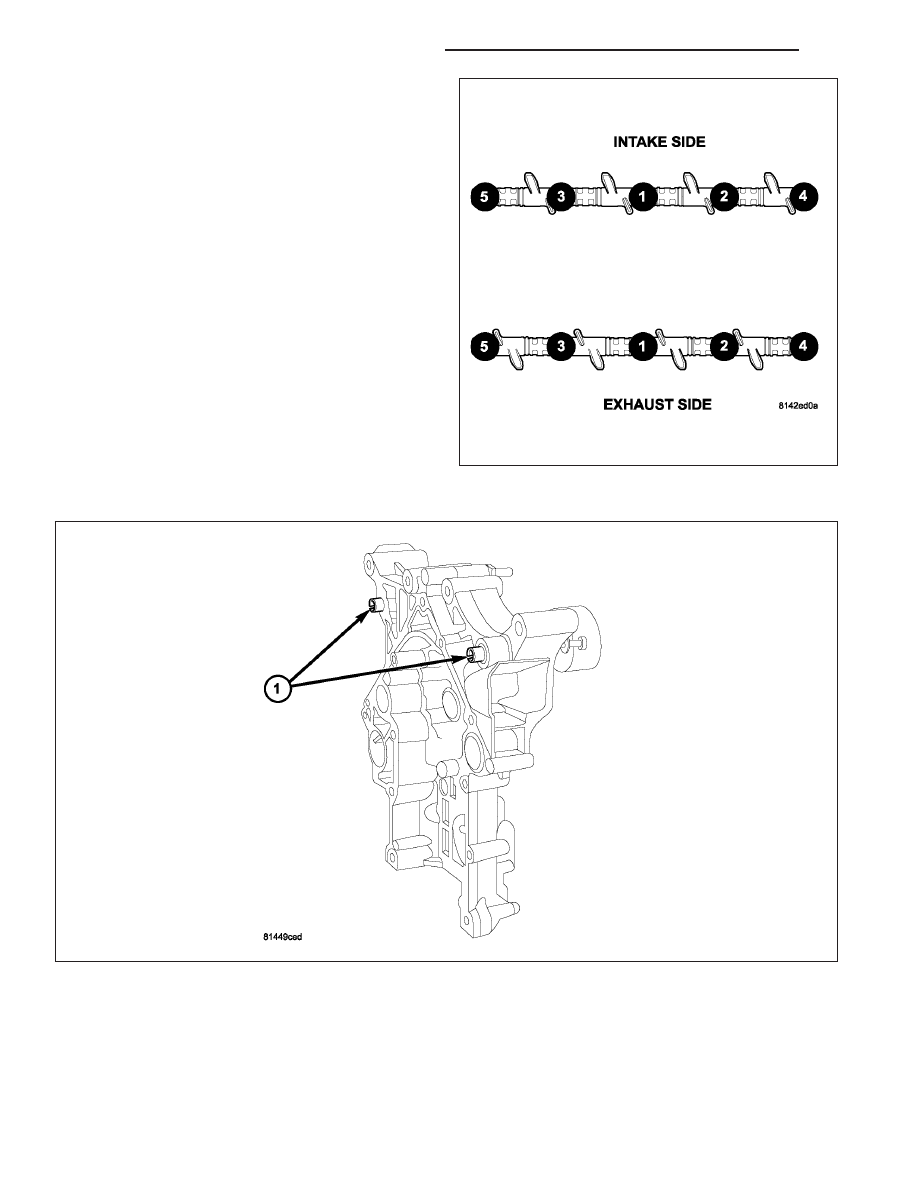

11. Install rocker arms (Refer to 9 - ENGINE/CYLIN-

DER HEAD/ROCKER ARM / ADJUSTER ASSY -
INSTALLATION).

12. Install timing case cover (figure4) (Refer to 9 - ENGINE/VALVE TIMING/TIMING BELT / CHAIN COVER(S) -

INSTALLATION).

13. Install the oil pan (Refer to 9 - ENGINE/LUBRICATION/OIL PAN - INSTALLATION).

9 - 1504

ENGINE - 5.7L SERVICE INFORMATION

WK

14. Install cylinder head covers (Refer to 9 - ENGINE/

CYLINDER HEAD/CYLINDER HEAD COVER(S) -
INSTALLATION).

15. Install intake manifold (Refer to 9 - ENGINE/MAN-

IFOLDS/INTAKE MANIFOLD - INSTALLATION).

16. Install the A/C compressor.

17. Install the generator.

18. Install the accessory drive belt. (Refer to 7 -

COOLING/ACCESSORY DRIVE/DRIVE BELTS -
INSTALLATION)

19. Install the radiator (Refer to 7 - COOLING/EN-

GINE/RADIATOR - INSTALLATION).

20. Install the air cleaner assembly. (Refer to 9 -

ENGINE/AIR INTAKE SYSTEM - INSTALLATION)

21. Install the battery negative cable.

22. Refill coolant. (Refer to 7 - COOLING - STAN-

DARD PROCEDURE)

23. Refill engine oil.

24. Start engine and check for leaks.

CRANKSHAFT

REMOVAL

1. Remove the vibration damper (1) (Refer to 9 -

ENGINE/ENGINE BLOCK/VIBRATION DAMPER -
REMOVAL).

WK

ENGINE - 5.7L SERVICE INFORMATION

9 - 1505

2. Remove the rear oil seal retainer (Refer to 9 -

ENGINE/ENGINE

BLOCK/CRANKSHAFT

REAR

OIL SEAL RETAINE - REMOVAL).

3. Remove the oil pan (Refer to 9 - ENGINE/LUBRI-

CATION/OIL PAN - REMOVAL).

4. Remove the oil pump pickup.

5. Remove the windage tray/oil pan gasket.

6. Remove the timing chain cover (Refer to 9 - ENGINE/VALVE TIMING/TIMING BELT / CHAIN COVER(S) -

REMOVAL).

9 - 1506

ENGINE - 5.7L SERVICE INFORMATION

WK

7. Remove the oil pump (Refer to 9 - ENGINE/LUBRICATION/OIL PUMP - REMOVAL).

8. Remove the timing drive (2) (Refer to 9 - ENGINE/

VALVE

TIMING/TIMING

BELT/CHAIN

AND

SPROCKETS - REMOVAL).

WK

ENGINE - 5.7L SERVICE INFORMATION

9 - 1507
