2. Position primary chain tensioner over oil pump and

insert bolts into lower two holes on tensioner
bracket. Tighten bolts to 28 N·m (250 in. lbs.).

CAUTION: Overtightening the tensioner arm torx

T

bolt can cause severe damage to the cylinder
head. Tighten torx

T

bolt to specified torque only.

3. Install right side chain tensioner arm. Apply Mopar

T

Lock N, Seal to torx

T

bolt, tighten bolt to 17 N·m

(150 in. lbs.).

NOTE: The silver bolts retain the guides to the cyl-
inder heads and the black bolts retain the guides
to the engine block.

4. Install the left side chain guide. Tighten the bolts to

28 N·m (250 in. lbs.).

CAUTION: Overtightening the tensioner arm torx

T

bolt can cause severe damage to the cylinder
head. Tighten torx

T

bolt to specified torque only.

5. Install left side chain tensioner arm. Apply Mopar

T

Lock N, Seal to torx

T

bolt, tighten bolt to 17 N·m (150 in. lbs.).

6. Install the right side chain guide. Tighten the bolts to 28 N·m (250 in. lbs.).

7. Install both secondary chains onto the idler sprocket. Align two plated links on the secondary chains to be visible

through the two lower openings on the idler sprocket (4 o’clock and 8 o’clock). Once the secondary timing chains
are installed, position special tool 8515 to hold chains in place for installation.

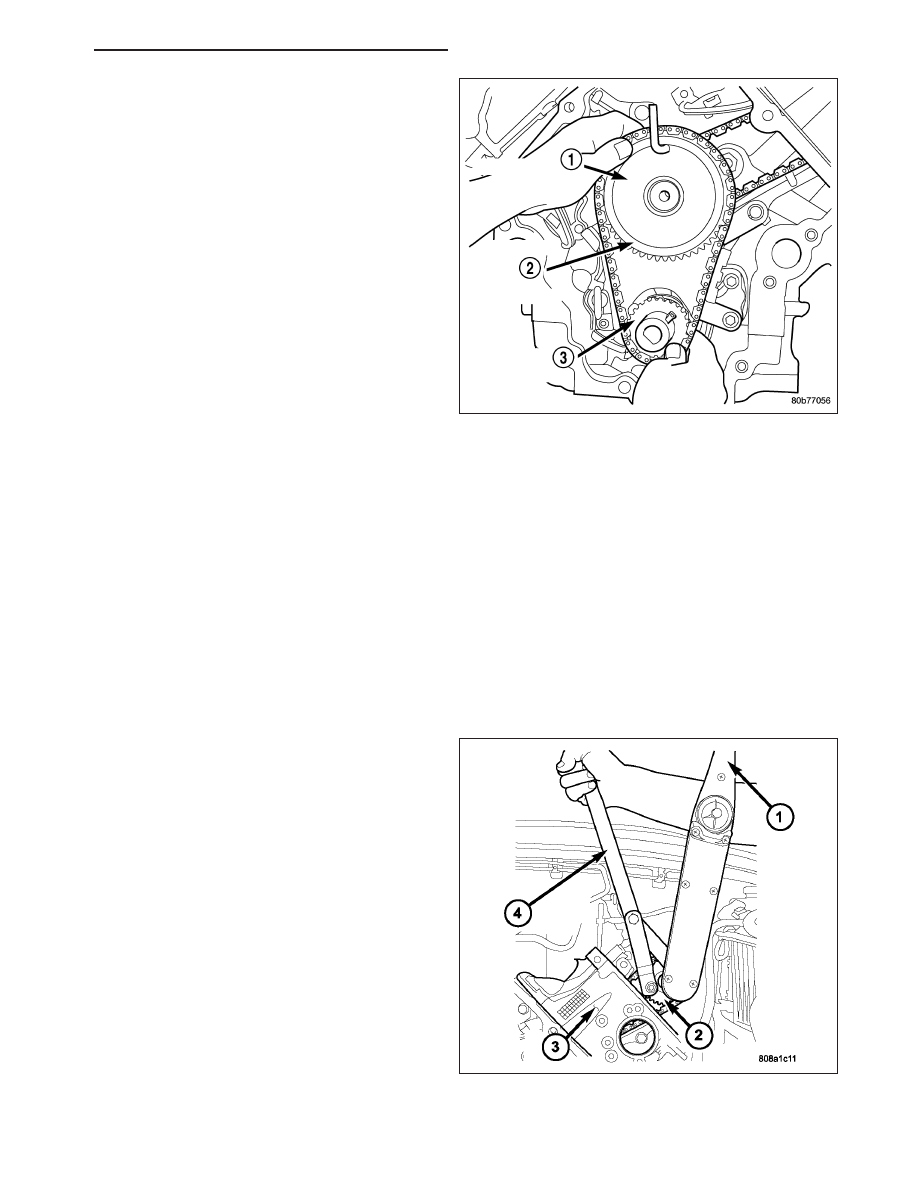

8. Align primary chain double plated links with the timing mark at 12 o’clock on the idler sprocket. Align the primary

chain single plated link with the timing mark at 6 o’clock on the crankshaft sprocket.

9. Lubricate idler shaft and bushings with clean

engine oil.

10. Install all chains, crankshaft sprocket, and idler

sprocket as an assembly. After guiding both sec-
ondary chains through the block and cylinder
head openings, affix chains with a elastic strap or
the equivalent, This will maintain tension on
chains to aid in installation.

9 - 1424

ENGINE - 4.7L SERVICE INFORMATION

WK

NOTE: It will be necessary to slightly rotate cam-
shafts for sprocket installation.

11. Align left camshaft sprocket “L” dot to plated link

on chain.

12. Align right camshaft sprocket “R” dot to plated link

on chain.

CAUTION: Remove excess oil from the camshaft
sprocket bolt. Failure to do so can result in over-
torque of bolt resulting in bolt failure.

13. Remove Special Tool 8515, then attach both

sprockets to camshafts. Remove excess oil from
bolts, then Install sprocket bolts, but do not
tighten at this time.

14. Verify that all plated links are aligned with the

marks on all sprockets and the “V8” marks on
camshaft sprockets are at the 12 o’clock position.

CAUTION: Ensure the plate between the left secondary chain tensioner and block is correctly installed.

15. Install both secondary chain tensioners. Tighten bolts to 28 N·m (250 in. lbs.).

NOTE: Left and right secondary chain tensioners are not common.

16. Before installing idler sprocket bolt, lubricate washer with oil, and tighten idler sprocket assembly retaining bolt

to 34 N·m (25 ft. lbs.).

17. Remove all locking pins (3) from tensioners.

CAUTION: After pulling locking pins out of each tensioner, DO NOT manually extend the tensioner(s)
ratchet. Doing so will over tension the chains, resulting in noise and/or high timing chain loads.

18. Using Special Tool 6958, Spanner with Adaptor Pins 8346, tighten left and right. camshaft sprocket bolts to 122

N·m (90 ft. lbs.).

WK

ENGINE - 4.7L SERVICE INFORMATION

9 - 1425

19. Rotate engine two full revolutions. Verify timing

marks are at the following locations:

primary chain idler sprocket dot is at 12 o’clock

primary chain crankshaft sprocket dot is at 6
o’clock

secondary chain camshaft sprockets “V8” marks
are at 12 o’clock

20. Lubricate all three chains with engine oil.

21. After installing all chains, it is recommended that

the idler gear end play be checked. The end play
must be within 0.10–0.25 mm (0.004–0.010 in.). If
not within specification, the idler gear and idler
shaft must be replaced.

22. Install timing chain cover (Refer to 9 - ENGINE/

VALVE TIMING/TIMING BELT / CHAIN COV-
ER(S) - INSTALLATION) and crankshaft damper
(Refer to 9 - ENGINE/ENGINE BLOCK/VIBRA-
TION DAMPER - INSTALLATION).

23. Install cylinder head covers (Refer to 9 - ENGINE/

CYLINDER HEAD/CYLINDER HEAD COVER(S) -
INSTALLATION).

NOTE: Before installing threaded plug in right cyl-
inder head, the plug must be coated with sealant
to prevent leaks.

24. Coat the large threaded access plug with Mopar

T

Thread Sealant with Teflon, then install into the
right cylinder head and tighten to 81 N·m (60 ft.
lbs.).

25. Install the oil fill housing.

26. Install access plug in left cylinder head.

27. Install power steering pump.

28. Install radiator fan (Refer to 7 - COOLING/EN-

GINE/RADIATOR FAN - INSTALLATION).

29. Fill cooling system (Refer to 7 - COOLING -

STANDARD PROCEDURE).

30. Connect negative cable to battery.

SHAFT - IDLER

REMOVAL

1. Remove the primary and secondary timing chains and sprockets (Refer to 9 - ENGINE/VALVE TIMING/TIMING

BELT/CHAIN AND SPROCKETS - REMOVAL) .

NOTE: To remove the idler shaft, it is necessary to tap threads into the shaft, to install the removal tool.

2. Using a 12 mm X 1.75 tap, cut threads in the idler shaft center bore.

3. Cover the radiator core with a suitable cover.

CAUTION: Use care when removing the idler shaft, Do not strike the radiator cooling fins with the slide
hammer.

4. Using Special Tool 8517 Slide Hammer, remove the idler shaft.

9 - 1426

ENGINE - 4.7L SERVICE INFORMATION

WK

INSTALLATION

1. Thoroughly clean the idler shaft bore.

2. Position the idler shaft in the bore.

NOTE: The two lubrication holes in the idler shaft do not require any special alignment.

NOTE: Before using the retaining bolt to install the idler shaft, coat the threads and the pilot on the idler
shaft, with clean engine oil.

3. Using the primary idler sprocket retaining bolt and washer, carefully draw the idler shaft into the bore until fully

seated.

4. Coat the idler shaft with clean engine oil.

5. Install the timing chains and sprockets (Refer to 9 - ENGINE/VALVE TIMING/TIMING BELT/CHAIN AND

SPROCKETS - INSTALLATION) .

WK

ENGINE - 4.7L SERVICE INFORMATION

9 - 1427
