Jeep Grand Cherokee WK. Manual - part 1191





STANDARD PROCEDURE - REFACING

NOTE: Valve seats that are worn or burned can be
reworked, provided that correct angle and seat
width are maintained. Otherwise the cylinder head
must be replaced.

NOTE: When refacing valves (4) and valve seats, it
is important that the correct size valve guide pilot
be used for reseating stones. A true and complete
surface must be obtained.

1. Using a suitable dial indicator measure the center

of the valve seat Total run out must not exceed
0.051 mm (0.002 in).

2. Apply a small amount of Prussian blue to the valve

seat, insert the valve into the cylinder head, while
applying light pressure on the valve rotate the
valve. Remove the valve and examine the valve
face. If the blue is transferred below the top edge
of the valve face, lower the valve seat using a 15
degree stone. If the blue is transferred to the bot-
tom edge of the valve face, raise the valve seat
using a 65 degree stone.

3. When the seat is properly positioned the width of the intake seat must be 1.75 - 2.36 mm (0.0689 - 0.0928 in.)

and the exhaust seat must be 1.71 - 2.32 mm (0.0673 - 0.0911 in.).

4. Check the valve spring (6) installed height after refacing the valve and seat. The installed height for both intake

and exhaust valve springs must not exceed 40.74 mm (1.6039 in.).

5. The valve seat and valve face must maintain a face angle of 44.5 - 45 ° angle .

REMOVAL

NOTE: The cylinder heads must be removed in order to preform this procedure.

1. Remove rocker arms and lash adjusters. Refer to procedures in this section.

9 - 1360

ENGINE - 4.7L SERVICE INFORMATION

WK

2. Remove the camshaft bearing caps and the cam-

shaft.

NOTE: All eight valve springs and valves are
removed in the same manner; this procedure only
covers one valve and valve spring.

3. Using Special Tool C-3422–B or C-3422–C Valve

Spring Compressor and Special tool 8519 Adapter,
compress the valve spring.

NOTE: It may be necessary to tap the top of the
valve spring to loosen the spring retainers locks
enough to be removed.

4. Remove the two spring retainer lock halves.

NOTE: the valve spring is under tension use care
when releasing the valve spring compressor.

5. Remove the valve spring compressor.

6. Remove the spring retainer, and the spring.

NOTE: Check for sharp edges on the keeper grooves. Remove any burrs from the valve stem before remov-
ing the valve from the cylinder head.

7. Remove the valve from the cylinder head.

NOTE: The valve stem seals are common between intake and exhaust.

8. Remove the valve stem seal. Mark the valve for proper installation.

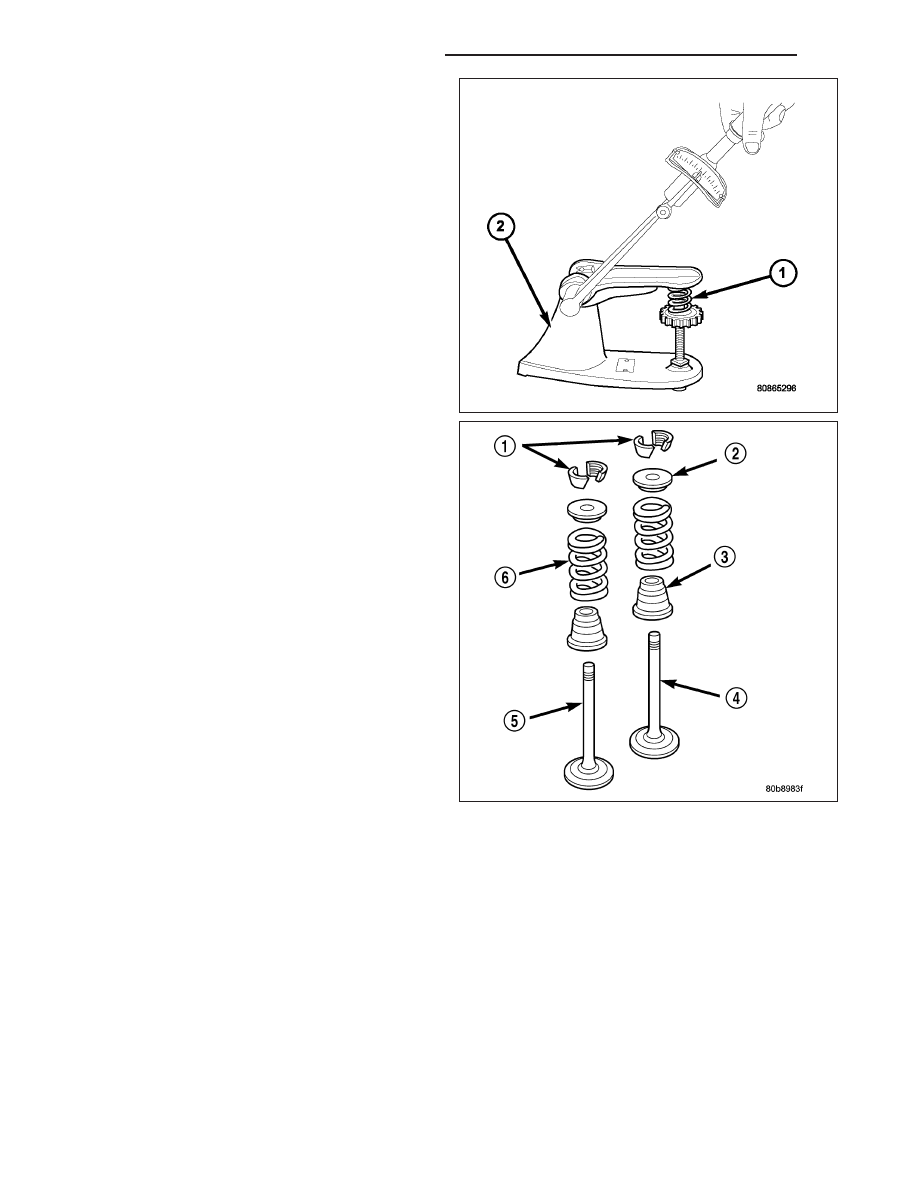

TESTING VALVE SPRINGS

NOTE: Whenever the valves are removed from the cylinder head it is recommended that the valve springs
be inspected and tested for reuse.

Inspect the valve springs for physical signs of wear or damage. Turn table of tool C-647 until surface is in line with
the 40.12 mm (1.579 in.) mark on the threaded stud and the zero mark on the front. Place spring over the stud on
the table and lift compressing lever to set tone device. Pull on torque wrench until Ping is heard. Take reading on
torque wrench at this instant. Multiply this reading by two. This will give the spring load at test length. Fractional
measurements are indicated on the table for finer adjustments. Refer to Specifications Section to obtain specified
height and allowable tensions. Replace any springs that do not meet specifications.

WK

ENGINE - 4.7L SERVICE INFORMATION

9 - 1361

INSTALLATION

1. coat the valve stem with clean engine oil and insert

it into the cylinder head.

2. Install the valve stem seal. make sure the seal is

fully seated and that the garter spring at the top of
the seal is intact.

3. Install the spring and the spring retainer.

4. Using the valve spring compressor, compress the

spring and install the two valve spring retainer
halves.

5. Release the valve spring compressor and make

sure the two spring retainer halves and the spring
retainer are fully seated.

6. lubricate the camshaft journal with clean engine oil

then Position the camshaft (with the sprocket dowel
on the left camshaft at 11 o’clock and the right
camshaft at 12 o’clock), then position the camshaft
bearing caps.

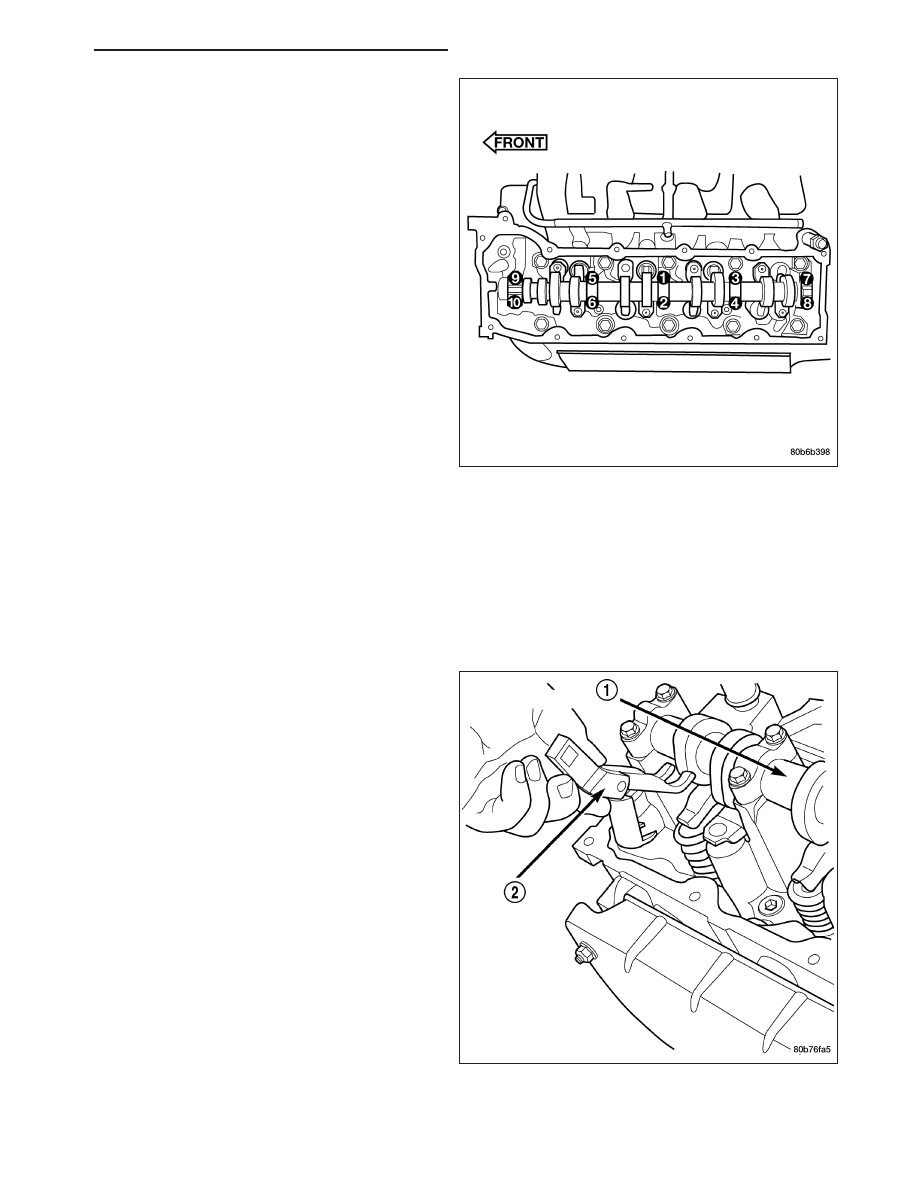

7. Install the camshaft bearing cap retaining bolts.

Tighten the bolts 9–13 N·m (100 in. lbs.) in

1

2

turn

increments in the sequence shown.

9 - 1362

ENGINE - 4.7L SERVICE INFORMATION

WK

8. Position the hydraulic lash adjusters and rocker

arms.

ROCKER ARM - VALVE

DESCRIPTION

The rocker arms are steel stampings with an integral roller bearing. The rocker arms incorporate a 2.8 mm (0.11
inch) oil hole in the lash adjuster socket for roller and camshaft lubrication.

REMOVAL

NOTE: Disconnect the battery negative cable to
prevent accidental starter engagement.

1. Remove the cylinder head cover (Refer to 9 -

ENGINE/CYLINDER

HEAD/CYLINDER

HEAD

COVER(S) - REMOVAL).

2. For rocker arm removal on cylinders 3 and 5

Rotate the crankshaft until cylinder #1 is at TDC
exhaust stroke.

3. For rocker arm removal on cylinders 2 and 8

Rotate the crankshaft until cylinder #1 is at TDC
compression stroke.

4. For rocker arm removal on cylinders 4 and 6

Rotate the crankshaft until cylinder #3 is at TDC
compression stroke.

5. For rocker arm removal on cylinders 1 and 7

Rotate the crankshaft until cylinder #2 is at TDC
compression stroke.

6. Using special tool 8516 Rocker Arm Remover (2),

press downward on the valve spring, remove
rocker arm.

WK

ENGINE - 4.7L SERVICE INFORMATION

9 - 1363
