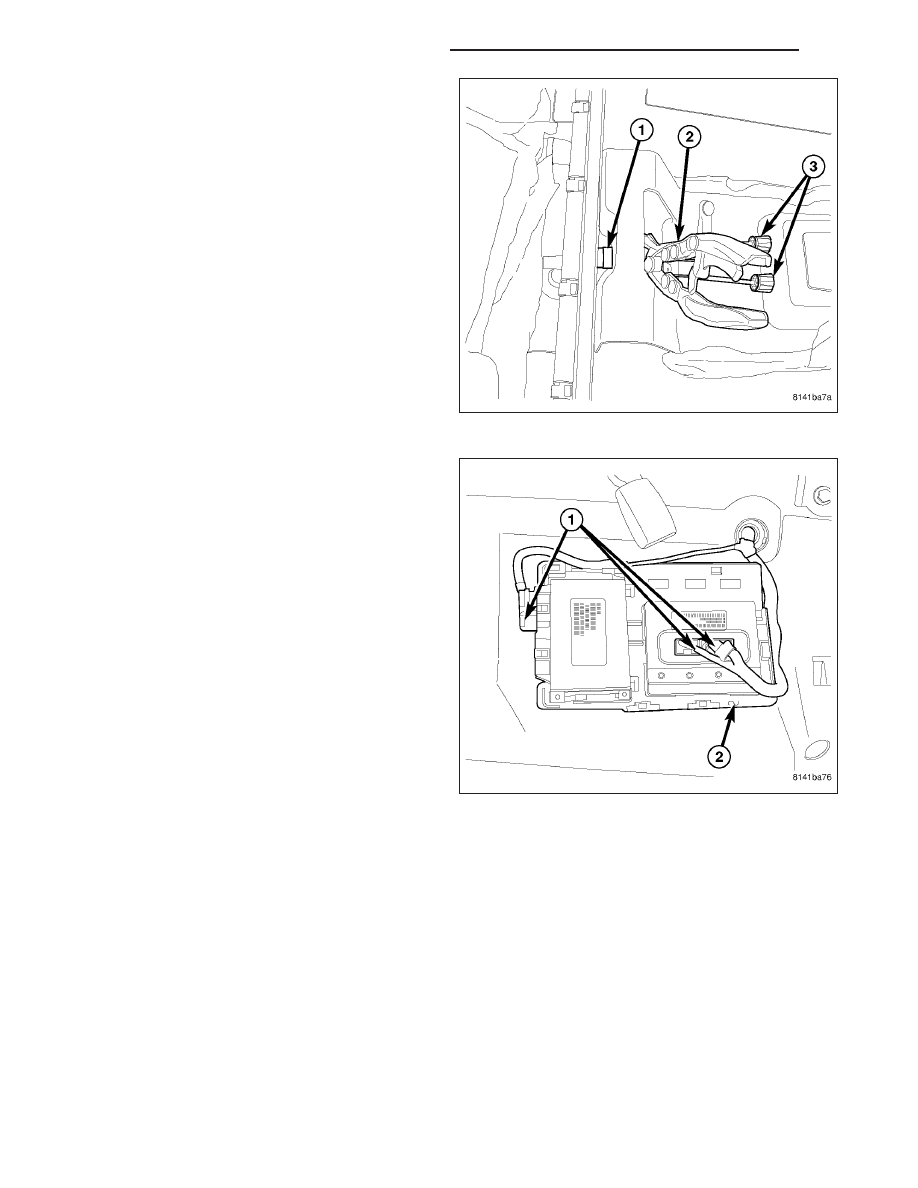

6. Unlock the front park brake cable (1).

7. Install the rear carpet back in place.

8. Install the module bracket (2) mounting nuts.

9. Reconnect the module electrical connectors (1).

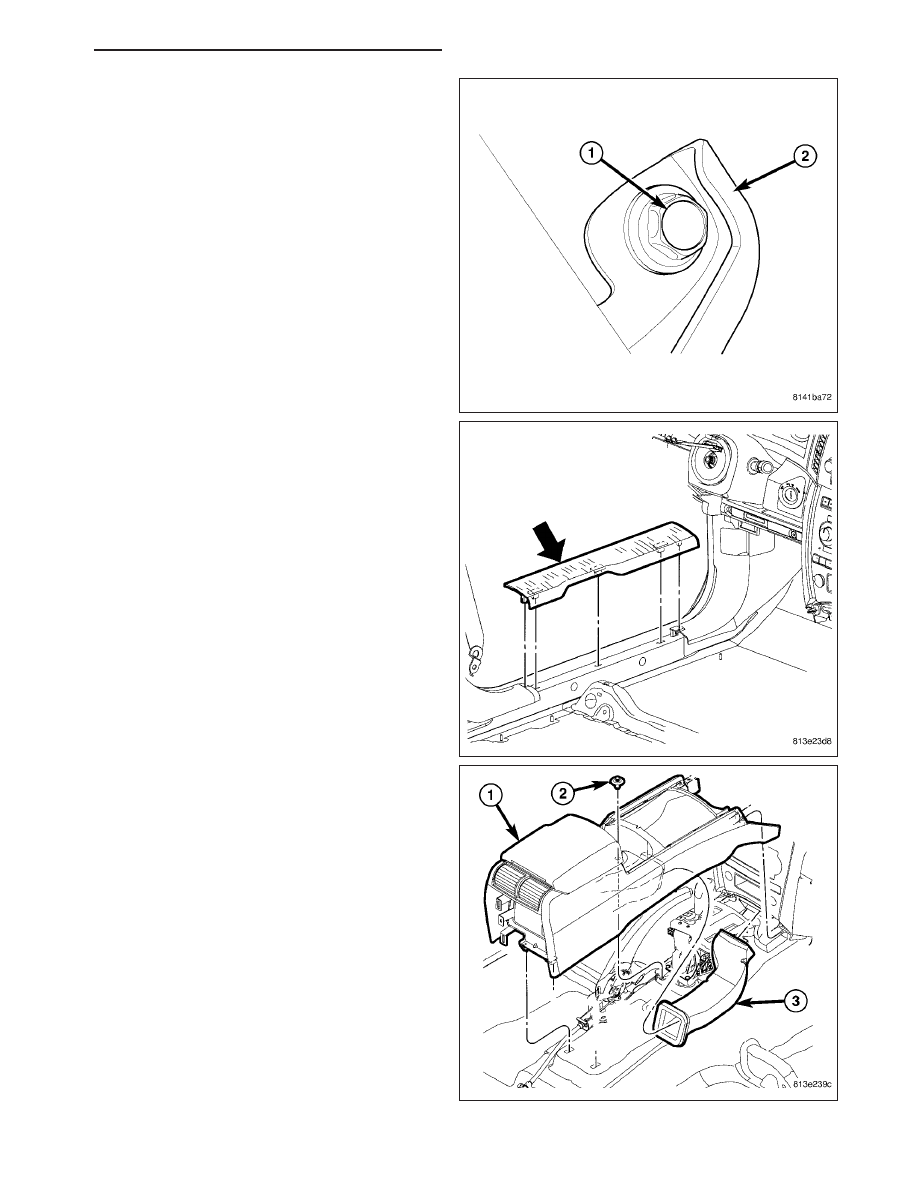

10. Install the rear sill plates.

5 - 70

BRAKES - BASE - SERVICE INFORMATION

WK

11. Install the drivers seat (Refer to 23 - BODY/

SEATS/SEAT - INSTALLATION).

12. Install the left B-pillar trim panel (Refer to 23 -

BODY/INTERIOR/B-PILLAR

UPPER

TRIM

-

INSTALLATION).

13. Install the left sill plate.

14. Install the center console (1) (Refer to 23 - BODY/

INTERIOR/FLOOR CONSOLE - INSTALLATION).

WK

BRAKES - BASE - SERVICE INFORMATION

5 - 71

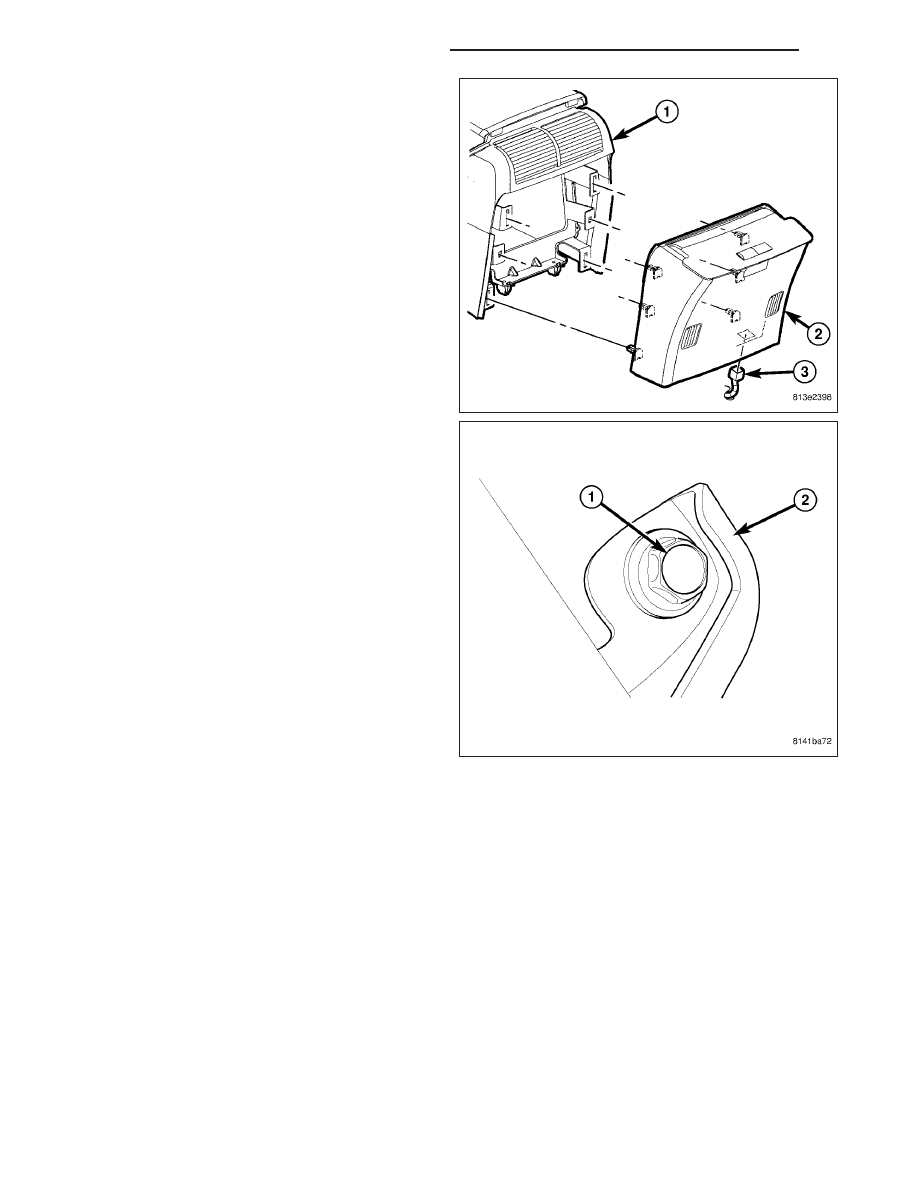

15. Install the console rear cover (2) or the DVD

player (if equipped).

16. Install the rear seat bottom (Refer to 23 - BODY/

SEATS/SEAT CUSHION - INSTALLATION).

17. Reconnect the negative battery cable.

5 - 72

BRAKES - BASE - SERVICE INFORMATION

WK

REAR PARKING BRAKE CABLES

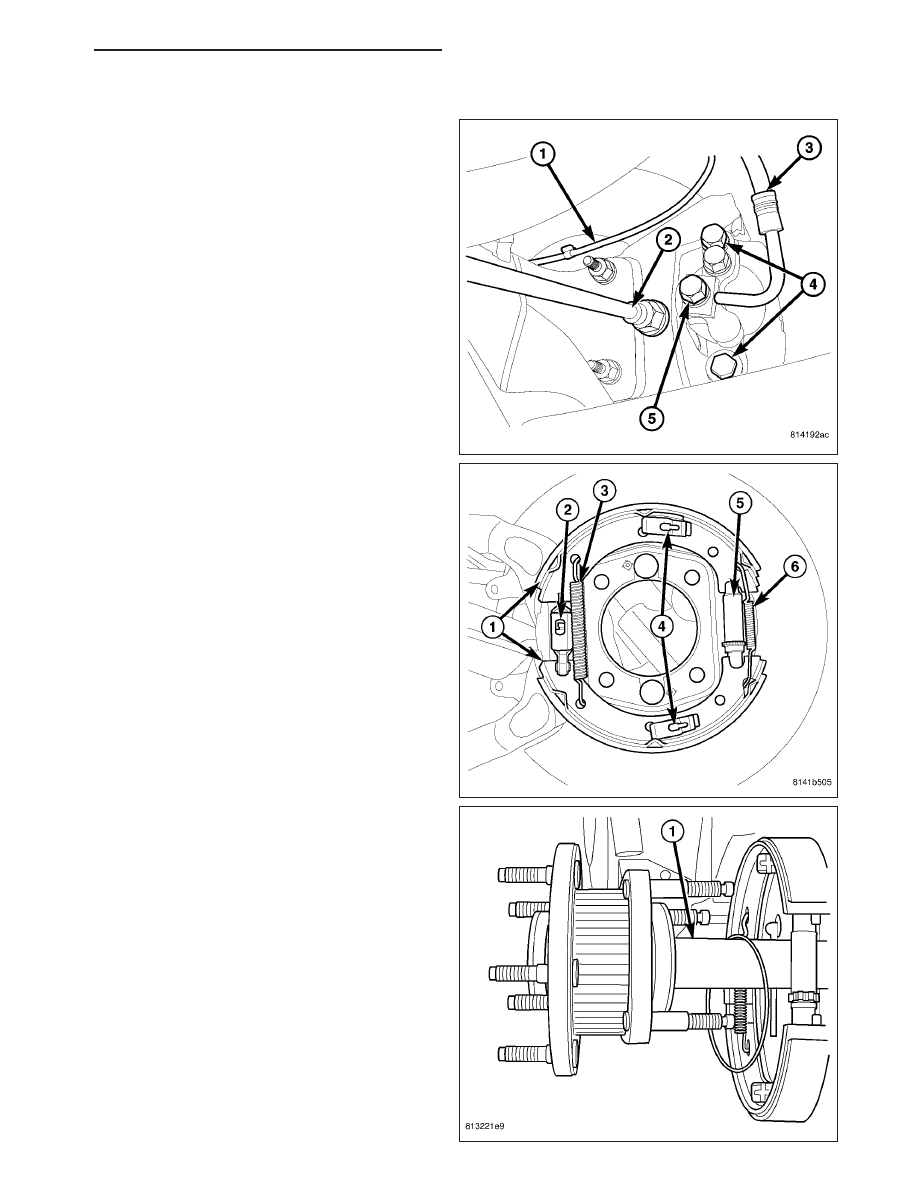

1. Install the cable (2) to the vehicle.

2. Install the 2 push pins for the park brake cable to

the stabilizer bar bracket.

3. Install the stabilizer bar bushing clamp bolts.

4. Install the park brake cable (2) into the support

plate.

5. Reconnect the park brake cable at the brake actua-

tor lever (2).

6. Reconnect the rear park brake shoes (1) (Refer to

5

-

BRAKES/PARKING

BRAKE/SHOES

-

INSTALLATION).

7. Install the axle shaft (1).

WK

BRAKES - BASE - SERVICE INFORMATION

5 - 73
