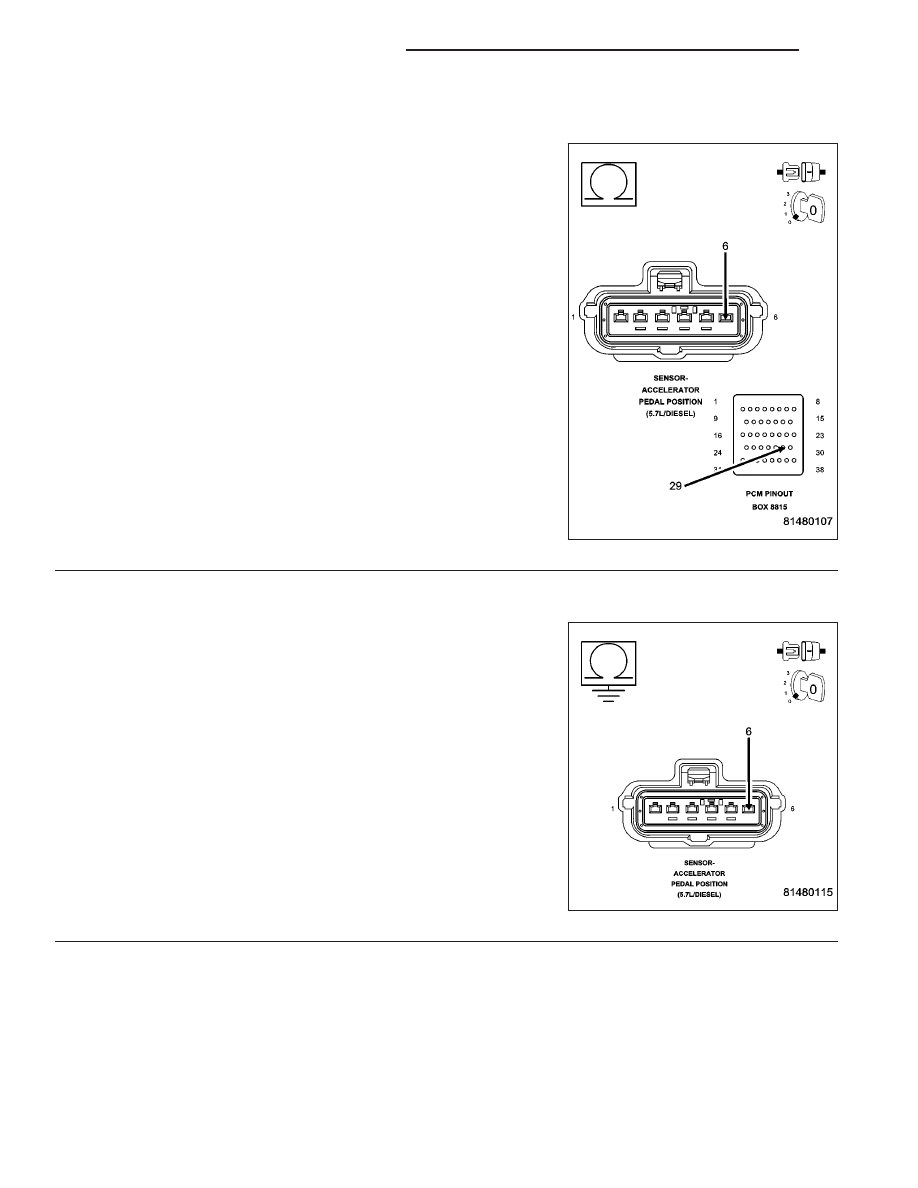

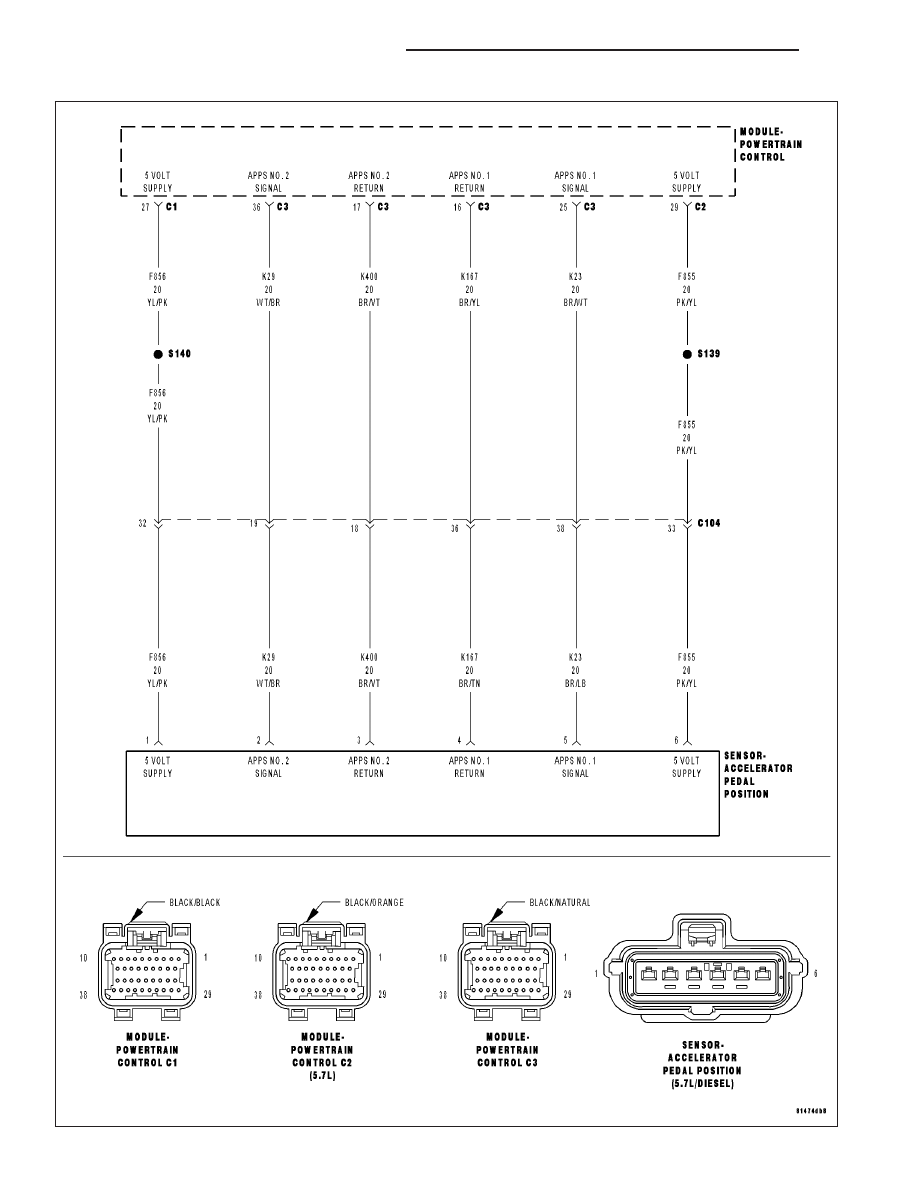

P2122-ACCELERATOR PEDAL POSITION SENSOR 1 CIRCUIT LOW (CONTINUED) 8. (F855) 5-VOLT SUPPLY CIRCUIT OPEN Turn the ignition off. Disconnect the C2 PCM harness connector. CAUTION: Do not probe the PCM harness connectors. Probing Is the resistance below 5.0 ohms? Yes >> Go To 9 No >> Repair the open in the (F855) 5-volt Supply circuit. Perform the POWERTRAIN VERIFICATION TEST. (Refer 9. (F855) 5-VOLT SUPPLY CIRCUIT SHORTED TO GROUND Measure the resistance between ground and the (F855) 5-volt Supply Is the resistance below 100 ohms? Yes >> Repair the short to ground in the (F855) 5-volt Supply cir- cuit. Perform the POWERTRAIN VERIFICATION TEST. (Refer No >> Go To 10 9 - 924 ENGINE ELECTRICAL DIAGNOSTICS WK |
