P2106-ELECTRONIC THROTTLE CONTROL SYSTEM - FORCED LIMITED POWER

For the Engine circuit diagram (Refer to 9 - ENGINE - SCHEMATICS AND DIAGRAMS).

For a complete wiring diagram Refer to Section 8W.

When Monitored:
Ignition on.

Set Condition:
This DTC sets for OBDII MIL illumination purposes. This DTC will always have associated DTCs indicating a
system failure. Engine speed is being limited and/or throttle motor is power free.

Possible Causes

OTHER DTCS RELATED TO ETC HAVE SET

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).

Diagnostic Test

1.

ACTIVE DTC

Ignition on, engine not running.

With a scan tool, read DTCs.

NOTE: This is only an informational DTC. This code should set along with other DTCs. The other DTC(s)
may be in history or active at the same the P2106 sets. All other DTCs must be properly diagnosed before
continuing.
The RPM or power are limited when P2106 sets for safety reasons because other ETC related DTCs have set.

After repairing the DTC(s), did the P2106 return?

Yes

>> Check the PCM power and ground circuits if they are OK, replace and program the Powertrain Control

Module per Service Information.

No

>> Test Complete.

9 - 892

ENGINE ELECTRICAL DIAGNOSTICS

WK

P2107-ELECTRONIC THROTTLE CONTROL MODULE PROCESSOR

For the Engine circuit diagram (Refer to 9 - ENGINE - SCHEMATICS AND DIAGRAMS).

For a complete wiring diagram Refer to Section 8W.

When Monitored:
Ignition on.

Set Condition:
Internal PCM failure. Module will attempt to reset, so you will be able to hear the throttle relearning. If the
condition is continuous, the vehicle may not be driveable. One trip fault. ETC light is flashing.

Possible Causes

POWERTRAIN CONTROL MODULE NEEDS TO BE REPROGRAMMED

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING) .

Diagnostic Test

1.

REPROGRAM THE POWERTRAIN CONTROL MODULE

Check for any related TSBs.

Verify the PCM is at the latest calibration (flash level).

NOTE: An intermittent loss of power to the PCM without performing an ETC Relearn procedure may cause
this DTC to set.
Flash the Powertrain Control Module per Service Information if any updates are available.

Start the engine.

Allow the engine to reach normal operating temperature.

Operate the accelerator pedal. (do not exceed 3500 rpm)

Test drive the vehicle for 10 miles on a flat road surface.

Does this DTC reset?

Yes

>> Replace and reprogram the Powertrain Control Module per Service Information.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

No

>> Test Complete.

WK

ENGINE ELECTRICAL DIAGNOSTICS

9 - 893

P2108-ELECTRONIC THROTTLE CONTROL MODULE PERFORMANCE

For the Engine circuit diagram (Refer to 9 - ENGINE - SCHEMATICS AND DIAGRAMS).

For a complete wiring diagram Refer to Section 8W.

When Monitored:
Ignition on.

Set Condition:
Internal PCM failure. Customer may experience an extended cranking condition with limited driving and a
rough idle. One trip fault and the code will set within 5 seconds. ETC light is flashing.

Possible Causes

POWERTRAIN CONTROL MODULE NEEDS TO BE REPROGRAMMED

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).

Diagnostic Test

1.

REPROGRAM THE POWERTRAIN CONTROL MODULE

Check for any related TSBs.

Verify the PCM is at the latest calibration (flash level).

NOTE: Inspect the Intake Manifold components for vacuum leaks, repair as necessary

NOTE: An intermittent loss of power to the PCM without performing an ETC Relearn procedure may cause
this DTC to set.

NOTE: Diagnose any other DTCs that may have set with the P2108.
Flash the Powertrain Control Module per Service Information if any updates are available.

Start the engine.

Allow the engine to reach normal operating temperature.

Operate the accelerator pedal. (do not exceed 3500 rpm)

Test drive the vehicle for 10 miles on a flat road surface.

Does this DTC reset by itself?

Yes

>> Replace and reprogram the Powertrain Control Module per Service Information.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

No

>> Test Complete.

9 - 894

ENGINE ELECTRICAL DIAGNOSTICS

WK

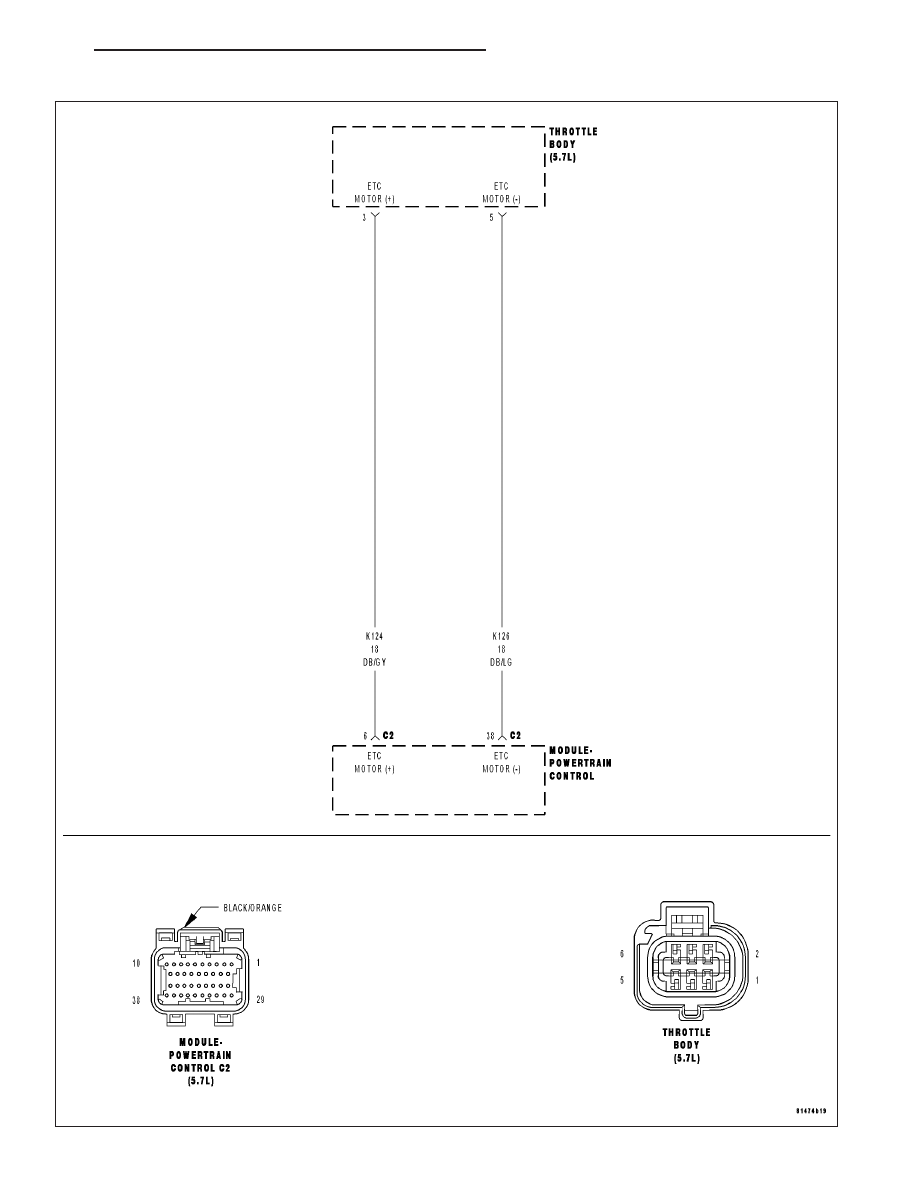

P2110-ELECTRONIC THROTTLE CONTROL - FORCED LIMITED RPM

WK

ENGINE ELECTRICAL DIAGNOSTICS

9 - 895
