Jeep Grand Cherokee WK. Manual - part 1052





P1593-SPEED CONTROL SWITCH 1 STUCK (5.7L) (CONTINUED)

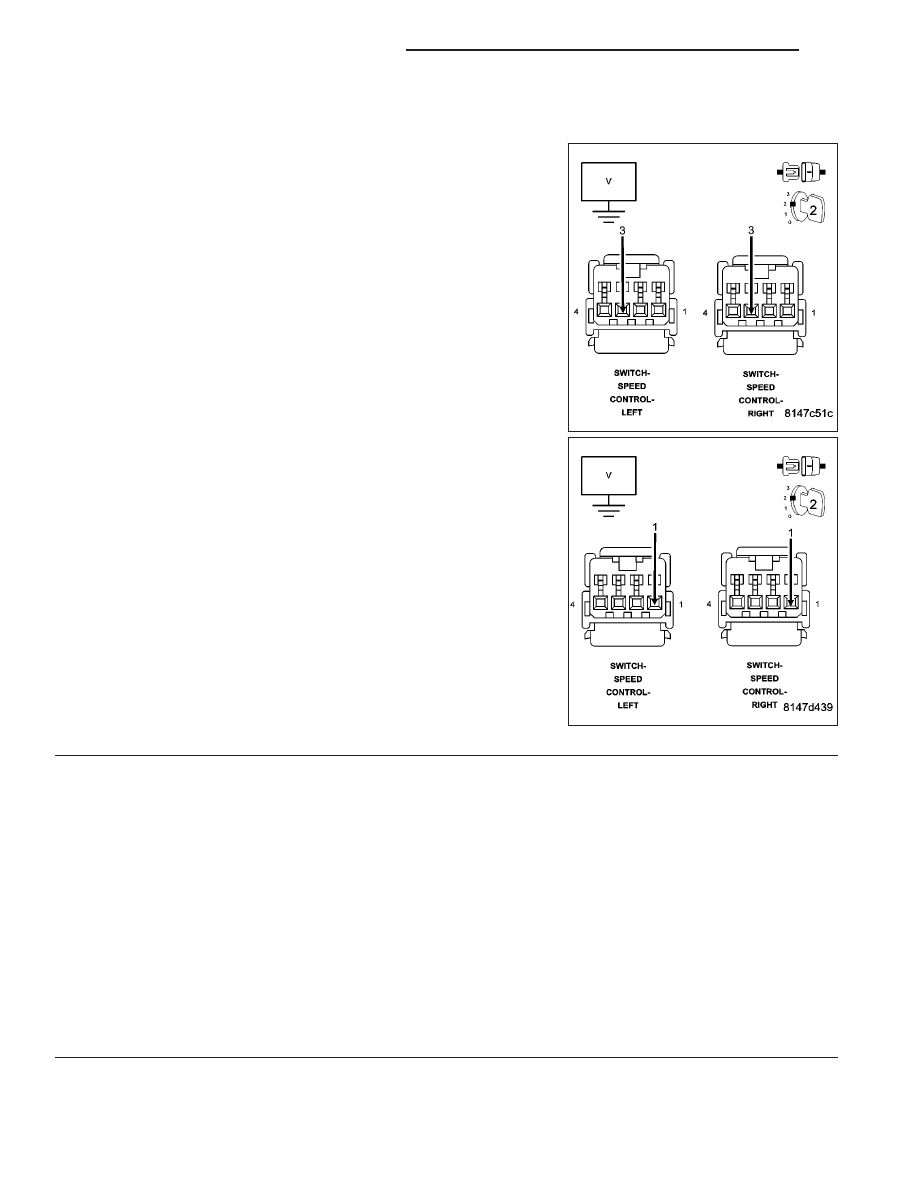

5.

S/C SWITCH SIGNAL CIRCUIT SHORTED TO BATTERY VOLTAGE

Disconnect the C3 PCM harness connector.

Measure the voltage on the (V371) and (V372) S/C Switch Signal cir-
cuits at both Speed Control harness connectors.

Is the voltage above 5.0 volts?

Yes

>> Repair the short to battery voltage in the (V371) or (V372)

S/C Switch Signal circuit.

Perform the POWERTRAIN VERIFICATION TEST. (Refer
to 9 - ENGINE - STANDARD PROCEDURE)

No

>> Go To 6

6.

STEERING COLUMN CONTROL MODULE

Turn the ignition off.

Disconnect the C1 and C3 SCCM harness connectors per Service Information.

Measure the resistance of the (V371/V71) and (V372/V72) S/C Switch Signal circuits between the C1 and C3
SCCM connectors.

Measure the resistance of the (V397/V937) Switch Return circuit between the C1 and C3 SCCM connectors.

Is the resistance above 5.0 ohms?

Yes

>> Replace the SCCM per Service Information.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

No

>> Go To 7

NOTE: Connect the Steering Column Control Module harness connectors per Service Information before
continuing.

9 - 804

ENGINE ELECTRICAL DIAGNOSTICS

WK

P1593-SPEED CONTROL SWITCH 1 STUCK (5.7L) (CONTINUED)

7.

S/C SWITCH SIGNAL CIRCUIT OPEN

CAUTION: Do not probe the PCM harness connectors. Probing
the PCM harness connectors will damage the PCM terminals
resulting in poor terminal to pin connection. Install Miller Special
Tool #8815 to perform diagnosis.
Measure the resistance of the (V371/V71) and (V372/V72) S/C Switch
Signal circuits from both Speed Control harness connectors to the
appropriate terminals of special tool #8815.

Is the resistance below 5.0 ohms for each measurement?

Yes

>> Go To 8

No

>> Repair the excessive resistance in the (V371/V71) or

(V372/V72) S/C Switch Signal circuit.

Perform the POWERTRAIN VERIFICATION TEST. (Refer
to 9 - ENGINE - STANDARD PROCEDURE)

WK

ENGINE ELECTRICAL DIAGNOSTICS

9 - 805

P1593-SPEED CONTROL SWITCH 1 STUCK (5.7L) (CONTINUED)

8.

(V397/V937) SWITCH RETURN CIRCUIT OPEN

NOTE: The measurement must be taken from both Speed Control
Switch harness connectors.
Measure the resistance of the (V397/V937) Switch Return circuit from
both Speed Control harness connector to the appropriate terminal of
special tool #8815.

Is the resistance below 5.0 ohms for both measurements?

Yes

>> Go To 9

No

>> Repair the excessive resistance in the (V397/V937) Switch

Return circuit.

Perform the POWERTRAIN VERIFICATION TEST. (Refer
to 9 - ENGINE - STANDARD PROCEDURE)

9 - 806

ENGINE ELECTRICAL DIAGNOSTICS

WK

P1593-SPEED CONTROL SWITCH 1 STUCK (5.7L) (CONTINUED)

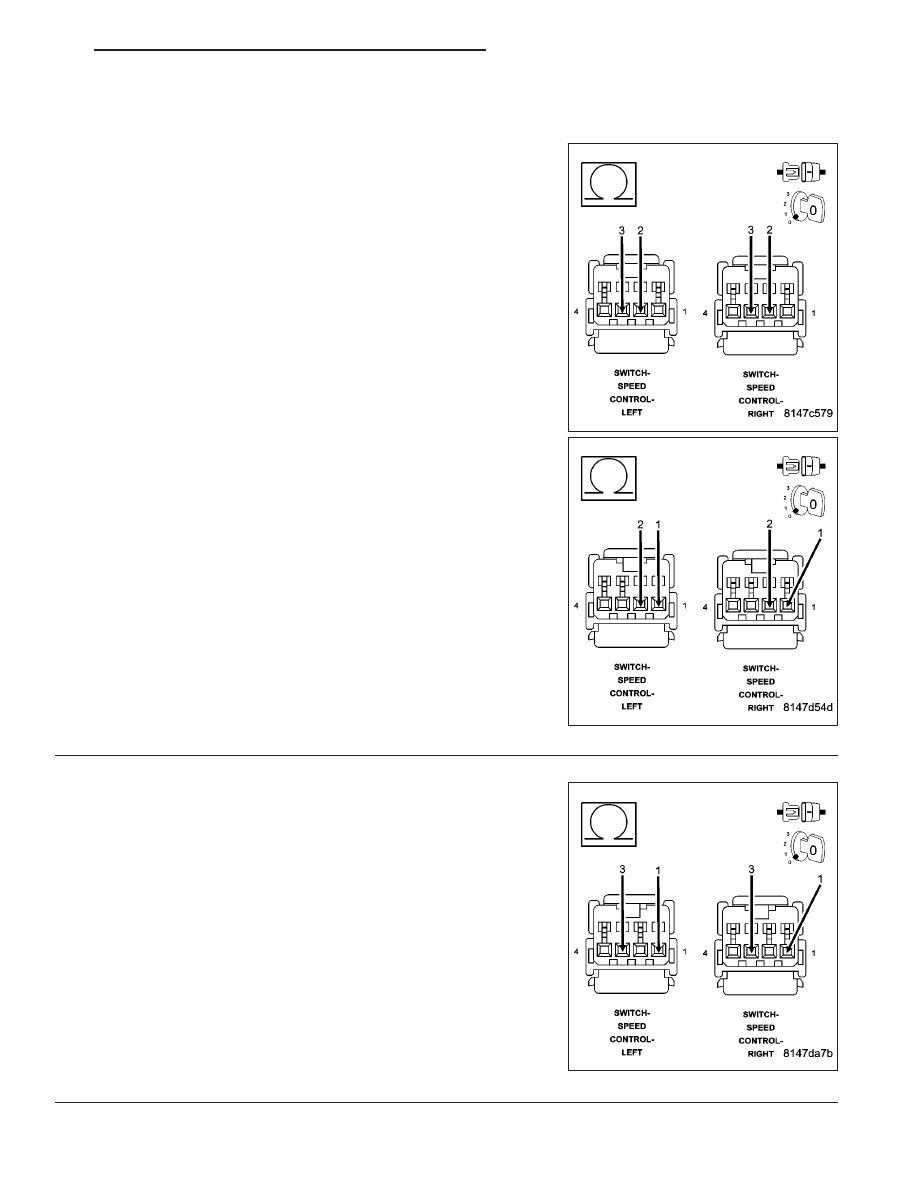

9.

S/C SWITCH SIGNAL CIRCUITS SHORTED TO THE (V397/V937) SWITCH RETURN CIRCUIT

Measure the resistance between the (V397) Switch Return circuit and
both of the (V371) and (V372) S/C Switch Signal circuits in the Speed
Control harness connector.

Is the resistance below 5.0 ohms?

Yes

>> Repair the short between the (V397/V937) Switch Return

circuit and the (V371/V71) or (V372/V72) S/C Switch Sig-
nal circuit.

Perform the POWERTRAIN VERIFICATION TEST. (Refer
to 9 - ENGINE - STANDARD PROCEDURE)

No

>> Go To 10

10.

(V371/V71) S/C SWITCH NO.1 SIGNAL CIRCUIT SHORTED
TO THE (V372/V72) S/C SWITCH NO.2 SIGNAL CIRCUIT

Measure the resistance between the (V371/V71) S/C Switch No.1 Sig-
nal circuit and the (V372/72) S/C Switch No.2 Signal circuit at both
Speed Control harness connectors.

Is the resistance below 100 ohms for each circuit?

Yes

>> Repair the short between the (V372/V72) S/C Switch No.2

Signal circuit and the (V371) S/C Switch No.1 Signal cir-
cuit.

Perform the POWERTRAIN VERIFICATION TEST. (Refer
to 9 - ENGINE - STANDARD PROCEDURE)

No

>> Go To 11

WK

ENGINE ELECTRICAL DIAGNOSTICS

9 - 807
