using the door-mounted switches. A stored pedal position can be recalled (but not stored) using the
Remote Keyless Entry (RKE).

Adjustable Pedal Feedback Message: The Electronic Vehicle Information Center (EVIC) will display a

message when the APS is disabled. ie:

9

Adjustable Pedal Disabled - Cruise Control Engaged

9

or

9

Adjustable Pedal Disabled - Vehicle in Reverse

9

.

Damage Prevention: Foot pressure or debris can stall pedal adjustment. In order to avoid damage to

system components during pedal adjustment, the APM will monitor pedal position sensor voltage. If
the APM does not detect expected voltage change within 1.5 seconds, it will cut power to the adjust-
able pedal motor.

OPERATION

The brake pedal is attached to the booster push rod. When the pedal is depressed, the primary booster push rod
is depressed which moves the booster secondary rod. The booster secondary rod depresses the master cylinder
piston.

REMOVAL

NON-ADJUSTABLE PEDAL

1. Disconnect the negative battery cable.

2. Remove retainer clip (1) that holds booster to pedal

pin (3).

3. Remove the power brake booster (Refer to 5 -

BRAKES/HYDRAULIC/MECHANICAL/POWER
BRAKE BOOSTER - REMOVAL).

5 - 34

BRAKES - BASE - SERVICE INFORMATION

WK

4. Lock the steering wheel into place.

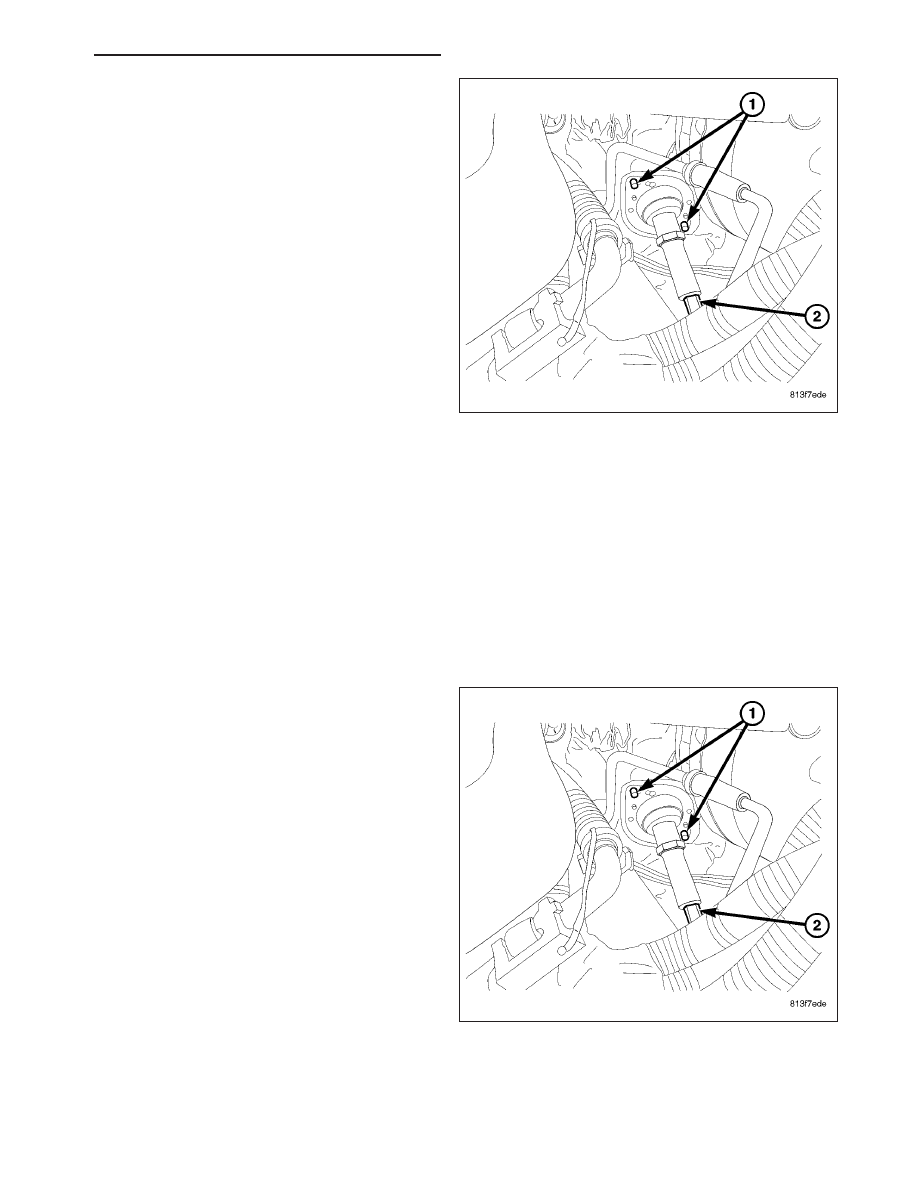

5. Remove the 2 intermediate shaft bearing nuts (1).

6. Remove the lower steering shaft pinch bolt.

7. Remove the lower steering shaft off the column.

8. Loosen the brake pedal sled upper nuts

9. Remove the brake pedal assembly from the vehicle.

ADJUSTABLE PEDALS

NOTE: If possible put the pedals in the full forward position.

1. Disconnect the negative battery cable.

2. Remove the power brake booster (Refer to 5 - BRAKES/HYDRAULIC/MECHANICAL/POWER BRAKE

BOOSTER - REMOVAL).

3. Remove the 2 intermediate shaft bearing nuts (1).

4. Remove the lower steering shaft pinch bolt.

5. Remove the lower steering shaft off the column.

6. Lock the steering wheel into place.

7. Disconnect the pedal motor electrical connector.

WK

BRAKES - BASE - SERVICE INFORMATION

5 - 35

8. Disconnect the accelerator pedal cable.

9. Disconnect the 2 accelerator pedal mounting nuts

(4).

10. Loosen the brake pedal sled (1) upper nuts

11. Remove the brake pedal/accelerator pedal assem-

bly (2&3) from the vehicle.

INSTALLATION

NON-ADJUSTABLE PEDAL

1. Install the pedal assembly to the vehicle.

2. Tighten the upper brake pedal sled nuts.

5 - 36

BRAKES - BASE - SERVICE INFORMATION

WK

3. Install the lower steering shaft to the column.

4. Install the lower steering shaft pinch bolt at the col-

umn.

5. Unlock the steering wheel.

6. Install the 2 intermediate shaft bearing nuts (1).

7. Install the power brake booster (Refer to 5 -

BRAKES/HYDRAULIC/MECHANICAL/POWER
BRAKE BOOSTER - INSTALLATION).

8. Install booster push rod (2) on pedal pin (3) and

install retainer clip (1) on pedal pin.

9. Reconnect the negative battery cable.

10. Fill and bleed brake system.

11. Check and adjust stop lamp switch if necessary.

ADJUSTABLE PEDAL

1. Install the pedal assembly (2) to the vehicle.

2. Tighten the upper brake pedal sled nuts (4).

WK

BRAKES - BASE - SERVICE INFORMATION

5 - 37
