Jeep Grand Cherokee WK. Manual - part 1018





P0586-SPEED CONTROL VENT CONTROL CIRCUIT (CONTINUED)

10.

PCM

NOTE: Before continuing, check the PCM harness connector terminals for corrosion, damage, or terminal
push out. Repair as necessary.

Were there any problems found?

Yes

>> Repair as necessary.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

No

>> Replace and program the Powertrain Control Module per Service Information.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

9 - 668

ENGINE ELECTRICAL DIAGNOSTICS

WK

P0591-SPEED CONTROL SWITCH 2 PERFORMANCE

WK

ENGINE ELECTRICAL DIAGNOSTICS

9 - 669

P0591-SPEED CONTROL SWITCH 2 PERFORMANCE (CONTINUED)

For the Engine circuit diagram (Refer to 9 - ENGINE - SCHEMATICS AND DIAGRAMS).

For a complete wiring diagram Refer to Section 8W.

When Monitored:
With the ignition key on.

Set Condition:
Cruise switch voltage output is not out of range but it does not equal any of the values for any of the button
positions.

Possible Causes

(V372) S/C SWITCH NO.2 SIGNAL CIRCUIT OPEN

(V72) S/C SWITCH NO.2 SIGNAL CIRCUIT OPEN

(V372) S/C SWITCH NO.2 SIGNAL CIRCUIT SHORTED TO BATTERY VOLTAGE

(V72) S/C SWITCH NO.2 SIGNAL CIRCUIT SHORTED TO BATTERY VOLTAGE

(V397) SWITCH RETURN CIRCUIT OPEN

(V937) SWITCH RETURN CIRCUIT OPEN

(V372) S/C SWITCH NO.2 SIGNAL CIRCUIT SHORTED TO GROUND

(V72) S/C SWITCH NO.2 SIGNAL CIRCUIT SHORTED TO GROUND

(V372) S/C SWITCH NO.2 SIGNAL CIRCUIT SHORTED TO THE (V397) SWITCH RETURN CIRCUIT

(V72) S/C SWITCH NO.2 SIGNAL CIRCUIT SHORTED TO THE (V937) SWITCH RETURN CIRCUIT

SPEED CONTROL SWITCH

SCCM

PCM

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).

Diagnostic Test

1.

SPEED CONTROL SWITCH STATUS

Start the engine.

With a scan tool, monitor each which function for the Speed Control Switches.

Press and release each Speed Control Button.

- Resume/Accel

- Cancel

- Decel (Coast)

- On/Off

- Set

Does each switch function change status when pressing and then depressing each switch?

Yes

>> Refer to the INTERMITTENT CONDITION Diagnostic Procedure.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

No

>> Go To 2

9 - 670

ENGINE ELECTRICAL DIAGNOSTICS

WK

P0591-SPEED CONTROL SWITCH 2 PERFORMANCE (CONTINUED)

2.

SPEED CONTROL SWITCHES

Turn the ignition off.

Remove the Speed Control Switches from the steering wheel.

Measure the resistance across each Speed Control Switch.

Monitor the ohmmeter while pressing each function button on each switch.

The following resistance specs are taken between terminals (V372) S/C Switch No.2 Signal and (V397) S/C Switch
Return circuits of the Switch when holding the switch button in the following position.

Not pressing any switch - 20.5 kohms

On/Off - 8.87 kohms

Set - 0.825 kohms

Coast - 0.47 kohms

Cancel - 3.92 kohms

Resume/Accel - 1.87 kohms

The following resistance specs are taken between terminals (V371) S/C Switch No.1 Signal and (V397) S/C Switch
Return circuits of the Switch when holding the switch button in the following position

Not pressing any switch - 20.5 kohms

On/Off - 0.47 kohms

Set - 5.49 kohms

Coast - 2.94 kohms

Cancel - 1.24 kohms

Resume/Accel - 15.4 kohms

Does the function on the Speed Control Switches have the correct resistance value?

Yes

>> Go To 3

No

>> Replace the Speed Control Switch that had the incorrect resistance value.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

3.

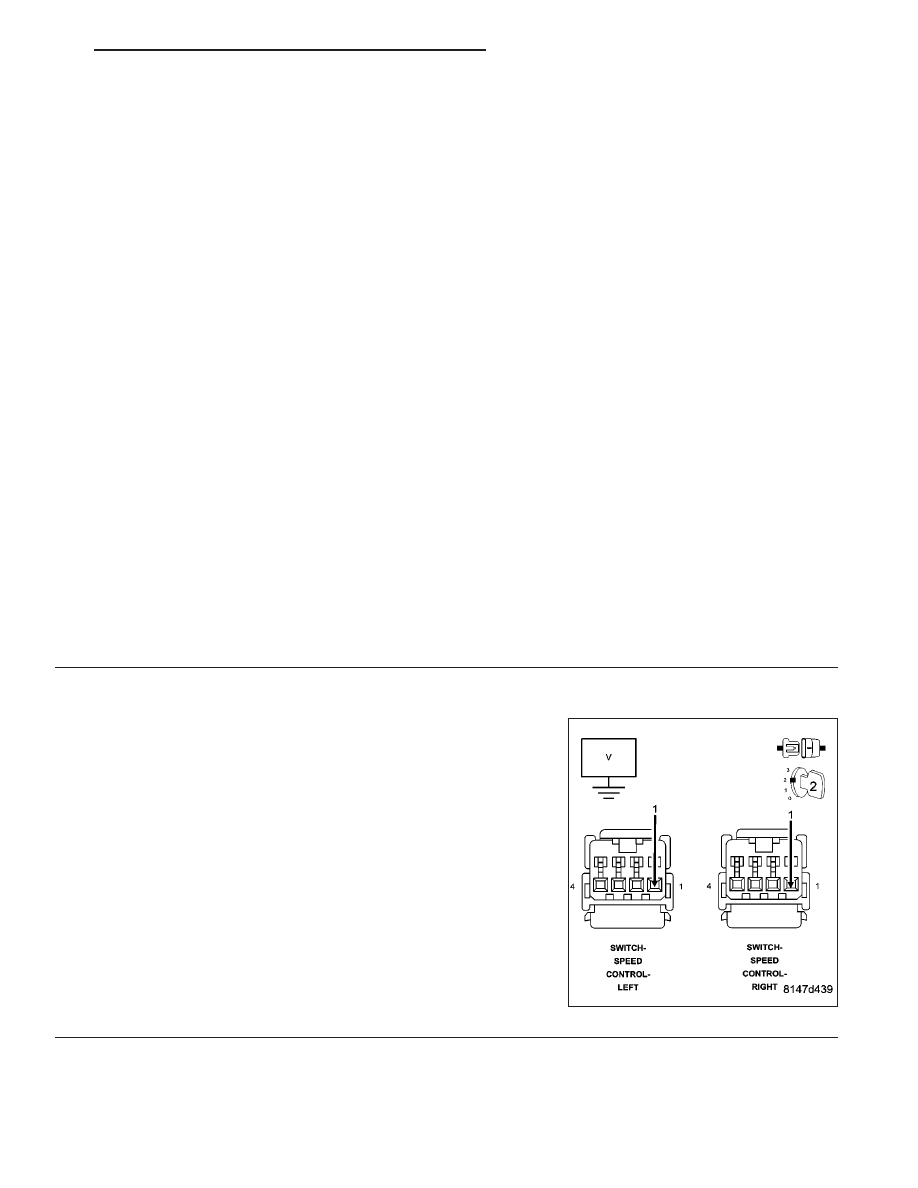

(V372) S/C SWITCH NO.2 SIGNAL CIRCUIT SHORTED TO BATTERY VOLTAGE

Disconnect the C3 PCM harness connector.

Disconnect the C3 Steering Column Control Module harness connec-
tor.

Ignition on, engine not running.

Measure the voltage of the (V372) S/C Switch No.2 Signal circuit in
the S/C Switch harness connectors.

Is the voltage above 0 volts?

Yes

>> Repair the short to battery voltage in the (V372) S/C

Switch No.2 Signal circuit.

Perform the POWERTRAIN VERIFICATION TEST. (Refer
to 9 - ENGINE - STANDARD PROCEDURE)

No

>> Go To 4

WK

ENGINE ELECTRICAL DIAGNOSTICS

9 - 671
