Jeep Grand Cherokee WK. Manual - part 1007





P0573-BRAKE SWITCH 1 STUCK OFF (CONTINUED)

3.

(B15) BRAKE SWITCH NO.1 SIGNAL CIRCUIT OPEN

Turn the ignition off.

Disconnect the C3 PCM harness connector.

CAUTION: Do not probe the PCM harness connectors. Probing
the PCM harness connectors will damage the PCM terminals
resulting in poor terminal to pin connection. Install Miller Special
Tool #8815 to perform diagnosis.
Measure the resistance of the (B15 Brake Switch No.1 Signal circuit
from the Stop Lamp Switch harness connector to the appropriate ter-
minal of special tool #8815.

Is the resistance below 5.0 ohms?

Yes

>> Go To 4

No

>> Repair the open in the (B15) Brake Switch No.1 Signal cir-

cuit.

Perform the POWERTRAIN VERIFICATION TEST. (Refer
to 9 - ENGINE - STANDARD PROCEDURE)

4.

(B16) BRAKE SWITCH NO.2 CIRCUIT SHORTED TO GROUND

Measure the resistance between ground and the (B16) Brake Switch
No.2 Signal circuit in the Stop Lamp Switch harness connector.

Is the resistance below 100 ohms?

Yes

>> Repair the short to ground in the (B16) Brake Switch No.2

Signal circuit.

Perform the POWERTRAIN VERIFICATION TEST. (Refer
to 9 - ENGINE - STANDARD PROCEDURE)

No

>> Go To 5

9 - 624

ENGINE ELECTRICAL DIAGNOSTICS

WK

P0573-BRAKE SWITCH 1 STUCK OFF (CONTINUED)

5.

(Z904) GROUND CIRCUIT OPEN

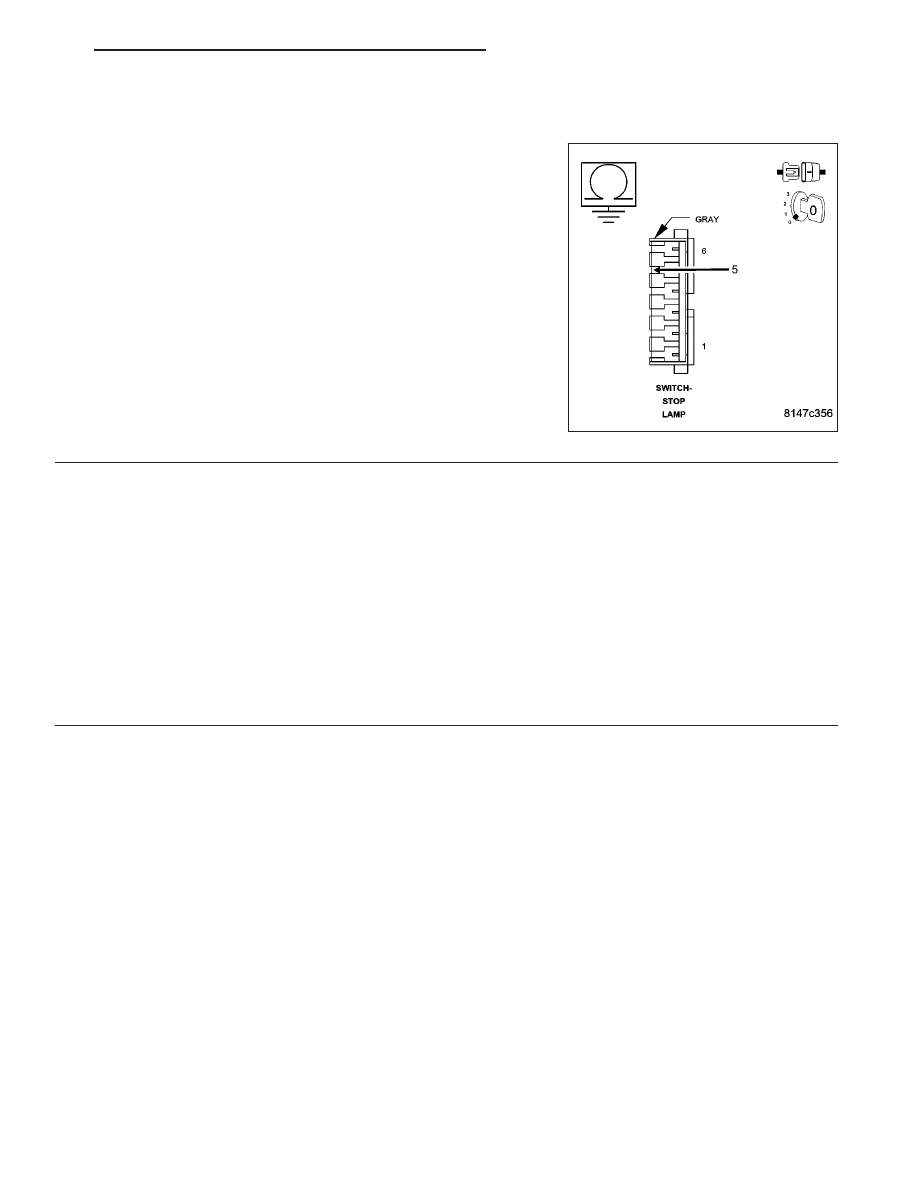

Measure the resistance between the (Z904) Ground circuit and ground
in the Stop Lamp Switch harness connector.

Is the resistance below 5.0 ohms?

Yes

>> Go To 6

No

>> Repair the open in the (Z904) Ground circuit.

Perform the POWERTRAIN VERIFICATION TEST. (Refer
to 9 - ENGINE - STANDARD PROCEDURE)

6.

PCM

NOTE: Before continuing, check the PCM harness connector terminals for corrosion, damage, or terminal
push out. Repair as necessary.
Using the schematics as a guide, inspect the wire harness and connectors. Pay particular attention to all Power and
Ground circuits.

Were there any problems found?

Yes

>> Repair as necessary.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

No

>> Replace and program the Powertrain Control Module per Service Information.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

WK

ENGINE ELECTRICAL DIAGNOSTICS

9 - 625

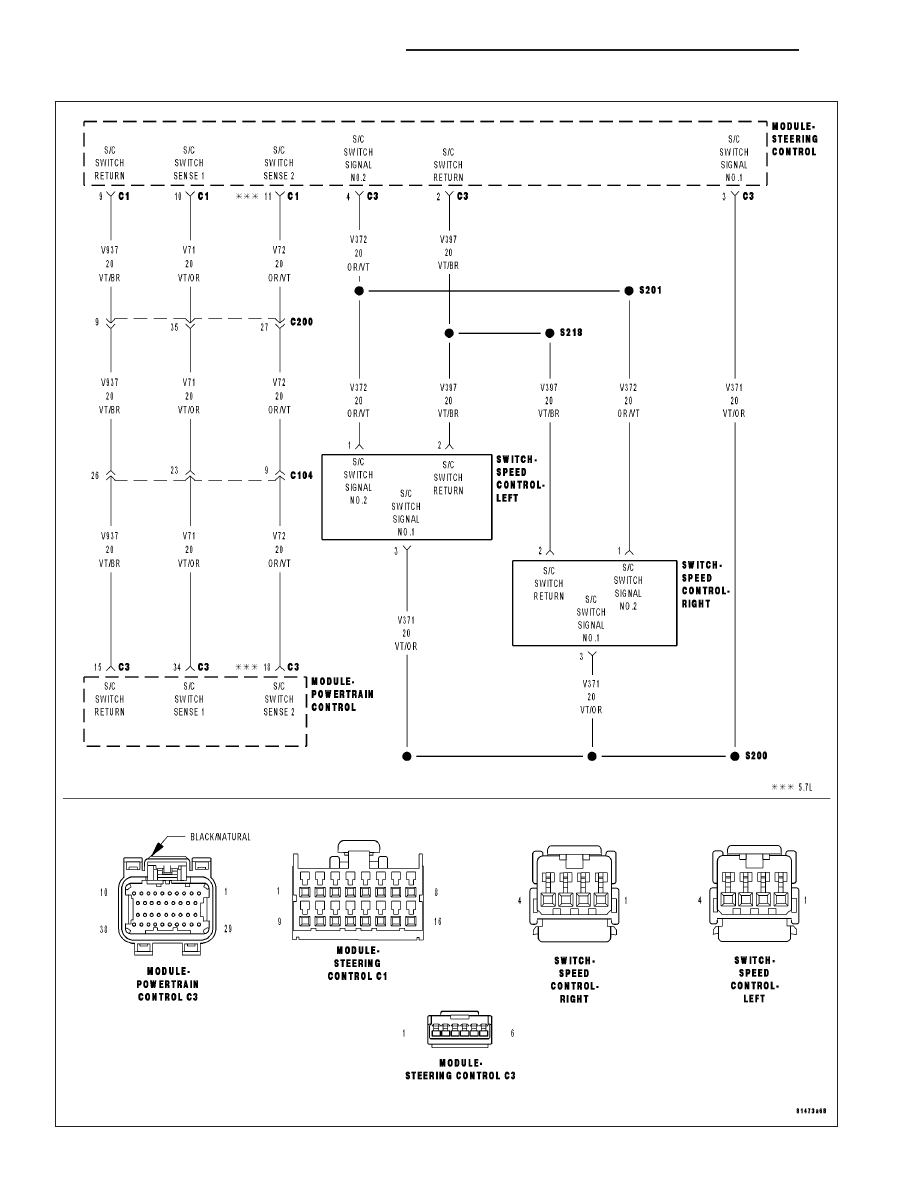

P0579-SPEED CONTROL SWITCH 1 PERFORMANCE

9 - 626

ENGINE ELECTRICAL DIAGNOSTICS

WK

P0579-SPEED CONTROL SWITCH 1 PERFORMANCE (CONTINUED)

For the Engine circuit diagram (Refer to 9 - ENGINE - SCHEMATICS AND DIAGRAMS).

For a complete wiring diagram Refer to Section 8W.

When Monitored:
With the ignition key on.

Set Condition:
Cruise switch voltage output is not out of range but it does not equal any of the values for any of the button
positions.

Possible Causes

(V371) S/C SWITCH NO.1 SIGNAL CIRCUIT SHORTED TO BATTERY VOLTAGE

(V71) S/C SWITCH NO.1 SIGNAL CIRCUIT SHORTED TO BATTERY VOLTAGE

(V371) S/C SWITCH NO.1 SIGNAL CIRCUIT OPEN

(V71) S/C SWITCH NO.1 SIGNAL CIRCUIT OPEN

(V397) SWITCH RETURN CIRCUIT OPEN

(V937) SWITCH RETURN CIRCUIT OPEN

(V371) S/C SWITCH NO.1 SIGNAL CIRCUIT SHORTED TO GROUND

(V71) S/C SWITCH NO.1 SIGNAL CIRCUIT SHORTED TO GROUND

(V371) S/C SWITCH NO.1 SIGNAL CIRCUIT SHORTED TO THE (V397) SWITCH RETURN CIRCUIT

(V71) S/C SWITCH NO.1 SIGNAL CIRCUIT SHORTED TO THE (V937) SWITCH RETURN CIRCUIT

STEERING COLUMN CONTROL MODULE

SPEED CONTROL SWITCH

PCM

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).

Diagnostic Test

1.

SPEED CONTROL SWITCH STATUS

Start the engine.

With a scan tool, monitor each which function for the Speed Control Switches.

Notice the voltage reading when no buttons are pressed.

Press and release each Speed Control Button.

- Resume/Accel

- Cancel

- Decel (Coast)

- On/Off

- Set

Does each switch function change status when pressing and then depressing each switch?

Yes

>> Refer to the INTERMITTENT CONDITION Diagnostic Procedure.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

No

>> Go To 2

WK

ENGINE ELECTRICAL DIAGNOSTICS

9 - 627
