SPECIFICATIONS
AXLE SPECIFICATIONS
DESCRIPTION
SPECIFICATION
Axle Ratio
3.07, 3.55, 3.73
Differential Case Flange Runout
0.076 mm (0.003 in.)
Differential Case Clearance
0.12 mm (0.005 in.)
Ring Gear Diameter
209.5 mm (8.25 in.)
Ring Gear Backlash
0.12-0.20 mm (0.005-0.008 in.)
Ring Gear Runout
0.12 mm (0.005 in.)
Pinion Bearing Preload - Original Bearings
1-2 N·m (10-20 in. lbs.)
Pinion Bearing Preload - New Bearings
1.7-4 N·m (15-35 in. lbs.)
TORQUE SPECIFICATIONS
DESCRIPTION
N·m
Ft. Lbs.
In. Lbs.
Differential Cover Bolts
41
30
-
Bearing Cap Bolts
136
100
-
Ring Gear Bolts
102
75
-
Pinion Nut Minimum
285
210
-
Adjuster Lock Screw
11
8
-
Pinion Shaft Lock Screw
26
19
-
Axle Flange Nuts
119
88
-

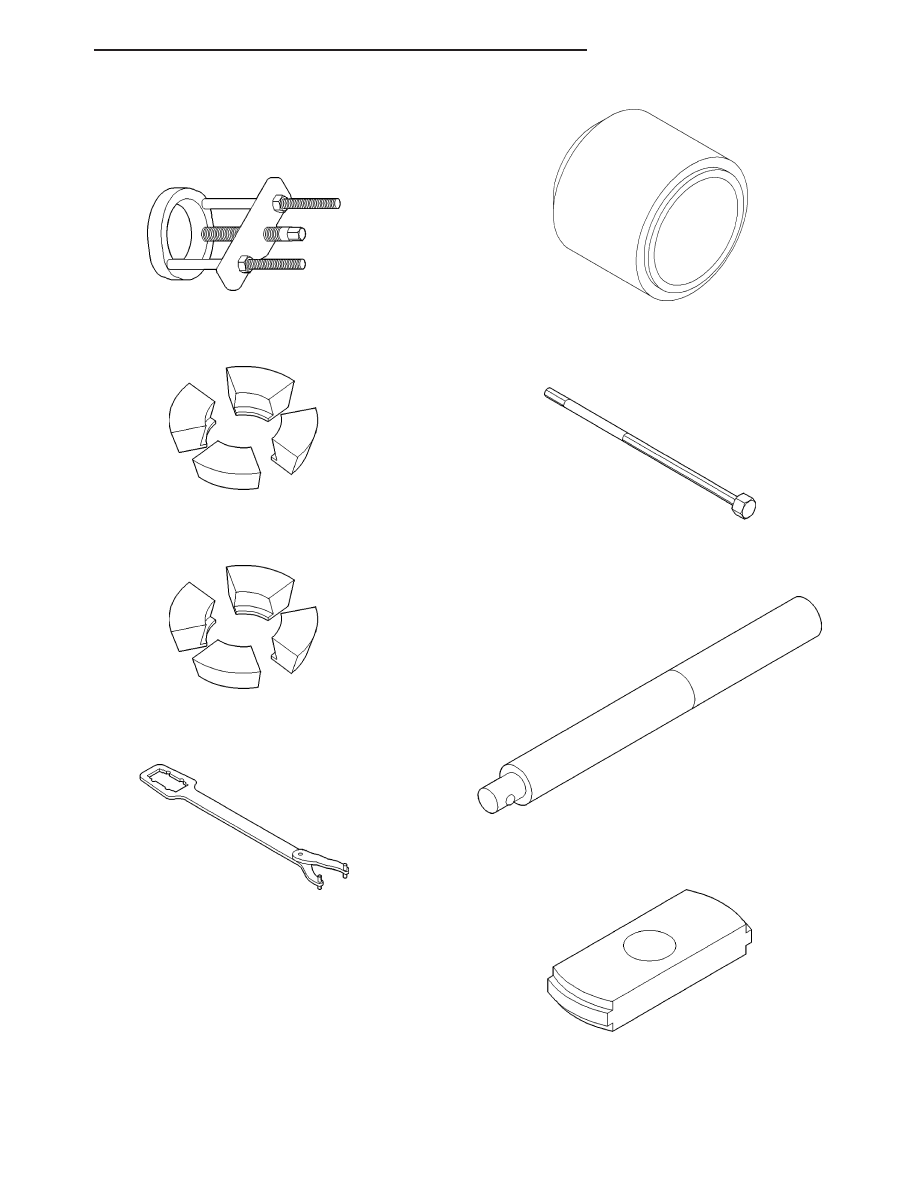

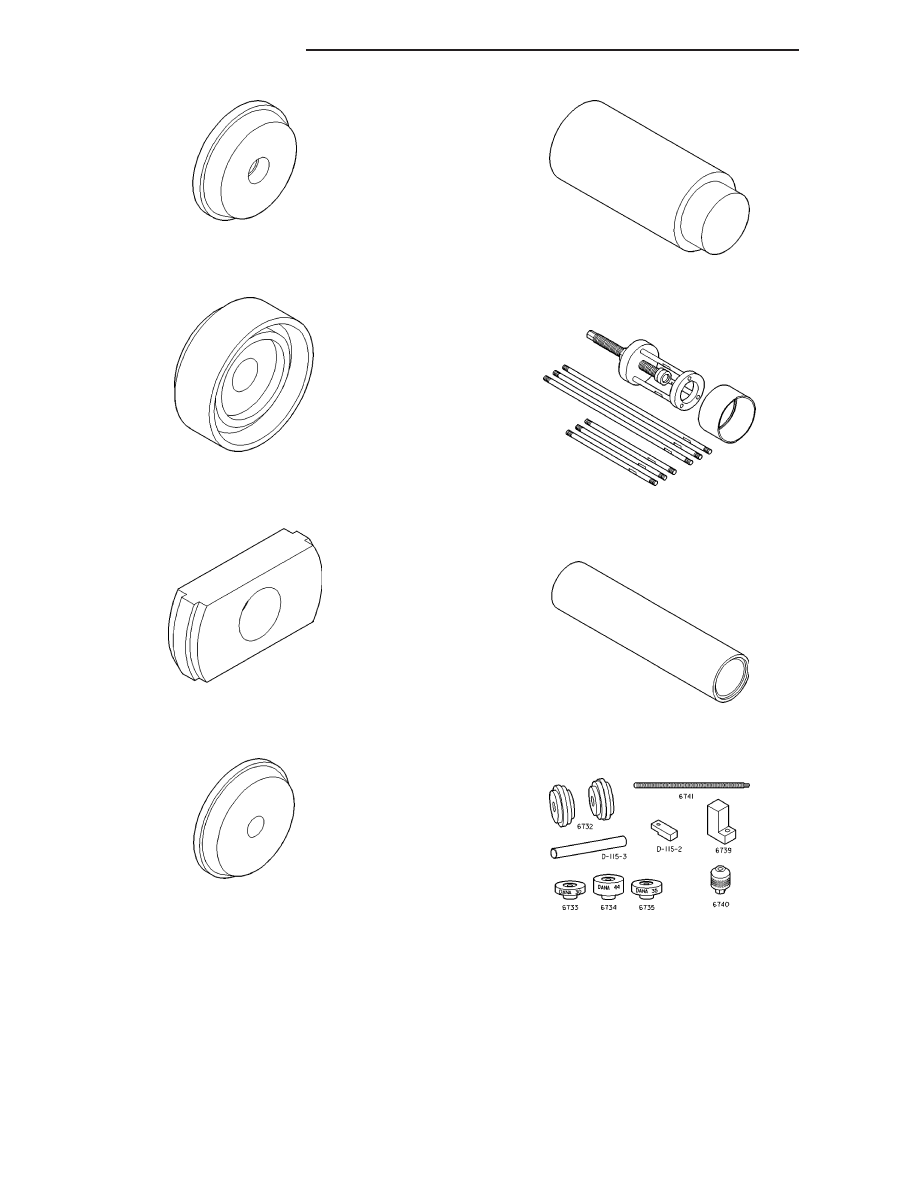

3 - 238
REAR AXLE - C213RE
WK
