Differential bearings usually produce a low pitch noise. The differential bearing noise is constant and varies only
with vehicle speed.

Axle shaft bearing noise generally changes when the bearings are loaded. Turn vehicle sharply to the left and the
right during a road test. This will load and unload the bearings and change the noise level. If axle bearing damage
is slight, the noise is usually not noticeable at speeds above 30 m.p.h.

LOW SPEED KNOCK

Low speed knock is generally caused by:

Worn U-joints/CV joint.

Worn side-gear thrust washers.

Worn pinion shaft bore.

VIBRATION

Vibration at the rear of the vehicle is usually caused by:

Damaged drive shaft.

Missing drive shaft balance weight(s).

Worn or out-of-balance wheels.

Loose wheel lug nuts.

Worn U-joints/CV joint.

Loose/broken springs.

Damaged axle shaft bearing(s).

Loose pinion gear nut.

Excessive pinion yoke run out.

Bent axle shaft(s).

Check for loose or damaged front-end components or engine/transmission mounts. These components can contrib-
ute to what appears to be an axle vibration. Also look at engine accessories, brackets and drive belts.

NOTE: All driveline components should be examined before starting any repair.

DRIVELINE SNAP

A snap or clunk noise when the vehicle is shifted into gear or the clutch engaged, can be caused by:

High engine idle speed.

Transmission shift operation.

Loose engine/transmission/transfer case mounts.

Worn U-joints/CV joint.

Loose spring mounts.

Loose pinion gear nut and yoke.

Excessive ring gear backlash.

Excessive side gear to case clearance.

To determined the source of a snap/clunk noise, raise vehicle on a hoist with the wheels free to rotate. Have a
helper shift the transmission into gear and listen for the noise.

3 - 218

REAR AXLE - C213RE

WK

DIAGNOSTIC CHART

Condition

Possible Causes

Correction

Wheel Noise

1. Wheel loose.

1. Tighten loose nuts.

2. Faulty, brinelled wheel bearing.

2. Replace bearing.

Axle Shaft Noise

1. Misaligned axle tube.

1. Inspect axle tube alignment.
Correct as necessary.

2. Bent or sprung axle shaft.

2. Inspect and correct as necessary.

Axle Shaft Broke

1. Misaligned axle tube.

1. Replace the broken shaft after
correcting tube mis-alignment.

2 Vehicle overloaded.

2. Replace broken shaft and avoid
excessive weight on vehicle.

3. Erratic clutch operation.

3. Replace broken shaft and avoid
or correct erratic clutch operation.

4. Grabbing clutch.

4. Replace broken shaft and inspect
and repair clutch as necessary.

Differential Cracked

1. Improper adjustment of the
differential bearings.

1. Replace case and inspect gears
and bearings for further damage.
Set differential bearing pre-load
properly.

2. Excessive ring gear backlash.

2. Replace case and inspect gears
and bearings for further damage.
Set ring gear backlash properly.

3. Vehicle overloaded.

3. Replace case and inspect gears
and bearings for further damage.
Avoid excessive vehicle weight.

4. Erratic clutch operation.

4. Replace case and inspect gears
and bearings for further damage.
Avoid erratic use of clutch.

Differential Gears Scored

1. Insufficient lubrication.

1. Replace scored gears. Fill
differential with the correct fluid type
and quantity.

2. Improper grade of lubricant.

2. Replace scored gears. Fill
differential with the correct fluid type
and quantity.

3. Excessive spinning of one
wheel/tire.

3. Replace scored gears. Inspect all
gears, pinion bores, and shaft for
damage. Service as necessary.

Loss Of Lubricant

1. Lubricant level too high.

1. Drain lubricant to the correct
level.

2. Worn axle shaft seals.

2. Replace seals.

3. Cracked differential housing.

3. Repair as necessary.

4. Worn pinion seal.

4. Replace seal.

5. Worn/scored companion flange.

5. Replace flange and seal.

6. Axle cover not properly sealed.

6. Remove, clean, and re-seal
cover.

WK

REAR AXLE - C213RE

3 - 219

Condition

Possible Causes

Correction

Axle Overheating

1. Lubricant level low.

1. Fill differential to correct level.

2. Improper grade of lubricant.

2. Fill differential with the correct
fluid type and quantity.

3. Bearing pre-loads too high.

3. Re-adjust bearing pre-loads.

4. Insufficient ring gear backlash.

4. Re-adjust ring gear backlash.

Gear Teeth Broke

1. Overloading.

1. Replace gears. Examine other
gears and bearings for possible
damage.

2. Erratic clutch operation.

2. Replace gears and examine the
remaining parts for damage. Avoid
erratic clutch operation.

3. Ice-spotted pavement.

3. Replace gears and examine
remaining parts for damage.

4. Improper adjustments.

4. Replace gears and examine
remaining parts for damage. Ensure
ring gear backlash is correct.

Axle Noise

1. Insufficient lubricant.

1. Fill differential with the correct
fluid type and quantity.

2. Improper ring gear and pinion
adjustment.

2. Check ring gear and pinion
contact pattern. Adjust backlash or
pinion depth.

3. Unmatched ring gear and pinion.

3. Replace gears with a matched
ring gear and pinion.

4. Worn teeth on ring gear and/or
pinion.

4. Replace ring gear and pinion.

5. Loose pinion bearings.

5. Adjust pinion bearing pre-load.

6. Loose differential bearings.

6. Adjust differential bearing
pre-load.

7. Mis-aligned or sprung ring gear.

7. Measure ring gear run-out.
Replace components as necessary.

8. Loose differential bearing cap
bolts.

8. Inspect differential components
and replace as necessary. Ensure
that the bearing caps are torqued to
the proper specification.

9. Housing not machined properly.

9. Replace housing.

3 - 220

REAR AXLE - C213RE

WK

REMOVAL

1. With vehicle in neutral, position on hoist.

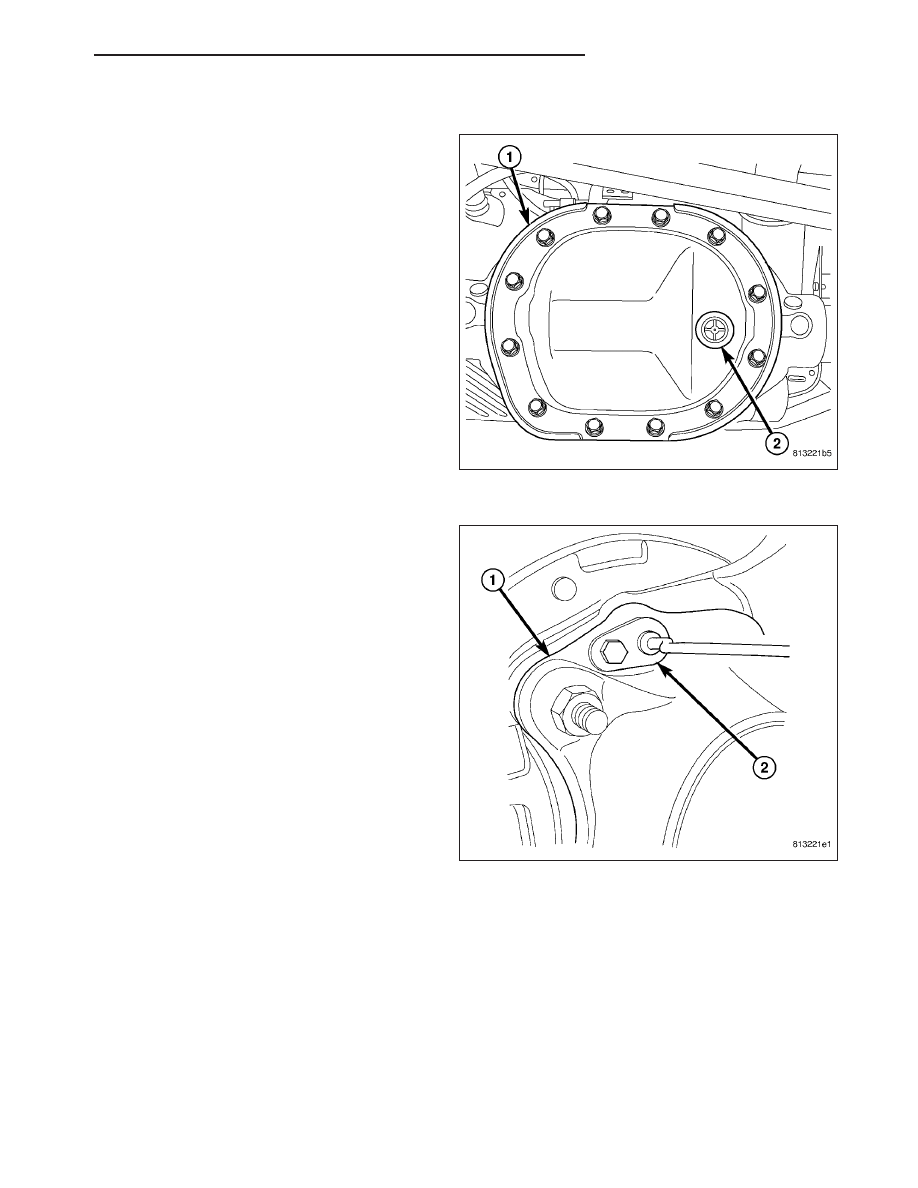

2. Remove differential cover (1) and drain fluid.

3. Remove calipers and rotors.

4. Remove speed sensors (2) from axle tube (1)

flange.
