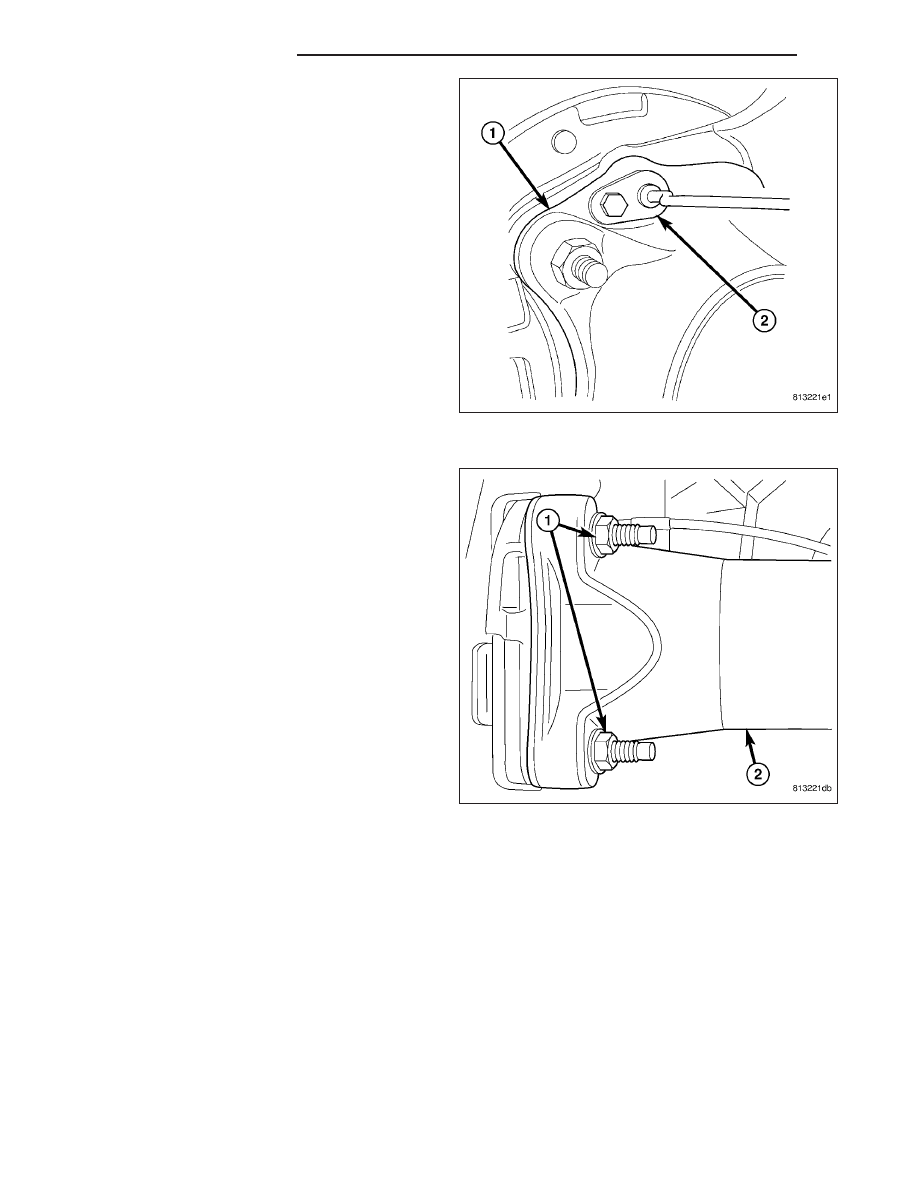

4. Remove speed sensors (2) from axle tube (1)

flange.

5. Remove axle flange nuts (1) from axle (2).

3 - 190

REAR AXLE - C213R

WK

6. Pull axle shaft and backing plate out of axle tube

until axle bearing (1) is exposed.

7. Remove O-ring (2) from the axle bearing.

8. Slide axle shaft (1) from axle tube and backing

plate.

9. Tap axle shaft out of the wheel flange and axle

bearing through the plug hole with a hammer and
brass drift.

10. Remove axle flange bolts.

WK

REAR AXLE - C213R

3 - 191

INSTALLATION

1. Install axle flange bolts into axle flange.

2. Tap axle shaft through axle bearing into wheel

flange.

3. Install axle shaft (1) into axle tube and backing

plate with new o-ring on axle.

4. Slip O-ring (2) through backing plate, then push

axle through backing plate until bearing (1) is
exposed.

5. Install O-ring (2) axle bearing.

3 - 192

REAR AXLE - C213R

WK

6. Push axle into axle tube.

7. Install axle (2) flange nuts (1) and tighten to 119

N·m (88 ft. lbs.).

8. Install speed sensors (2) in axle tube (1) flange.

9. Coat new axle flange plug with Mopar

T

Stud N’

Bearing Mount Adhesive or equivalent and install
plug.

10. Install calipers and rotors.
