Jeep Grand Cherokee WK. Manual - part 64

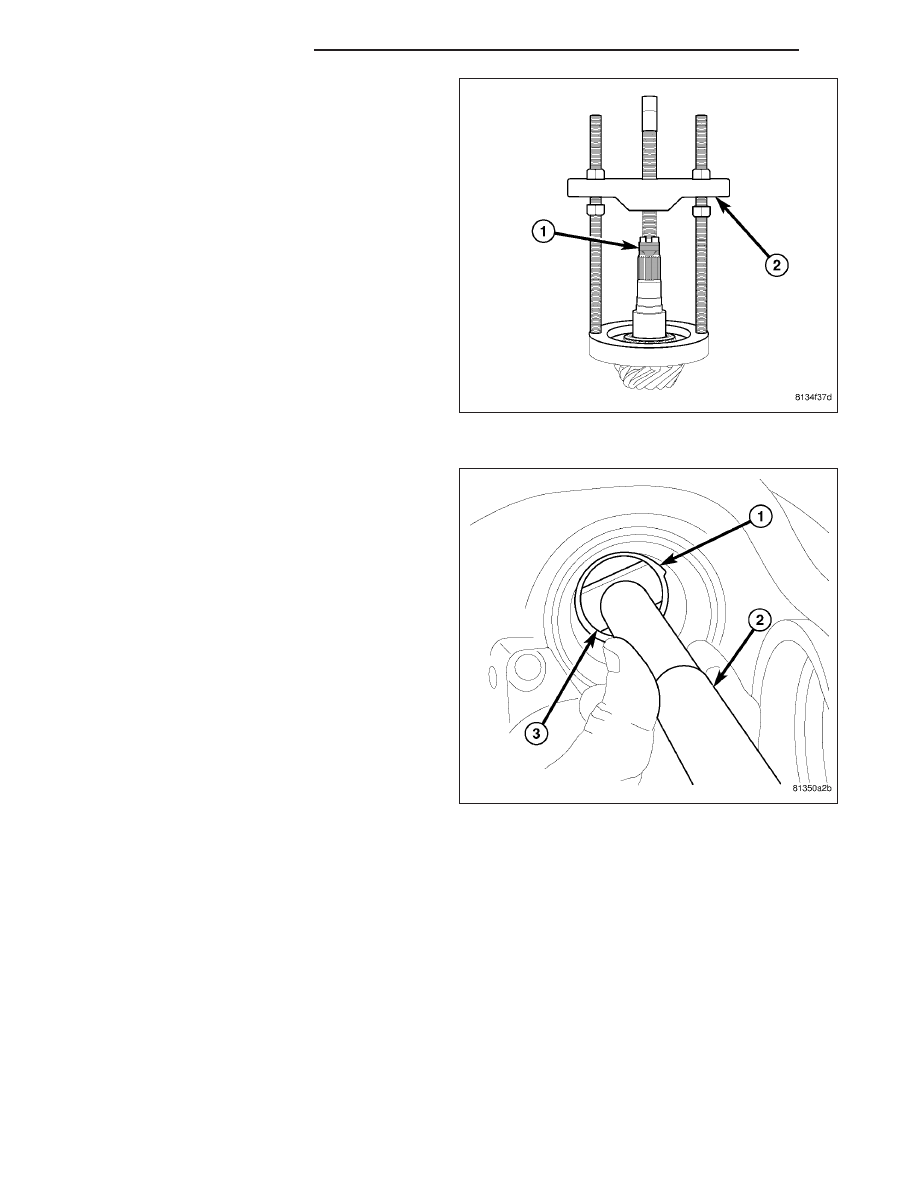

9. Remove rear pinion bearing from pinion shaft (1)

with

Puller

C-293-PA

(2)

and

four

Adapters

C-293-37.

10. Remove front pinion bearing cup (1) with Handle

C-4171 (2) and Remover D-103 (3).

3 - 154

FRONT AXLE - C200FE

WK

11. Remove rear pinion bearing cup (1) with Remover

9884 (2) and Handle C-4171.

12. Remove pinion height select shim (1) from rear

pinion bearing cup bore (2).

WK

FRONT AXLE - C200FE

3 - 155

INSTALLATION

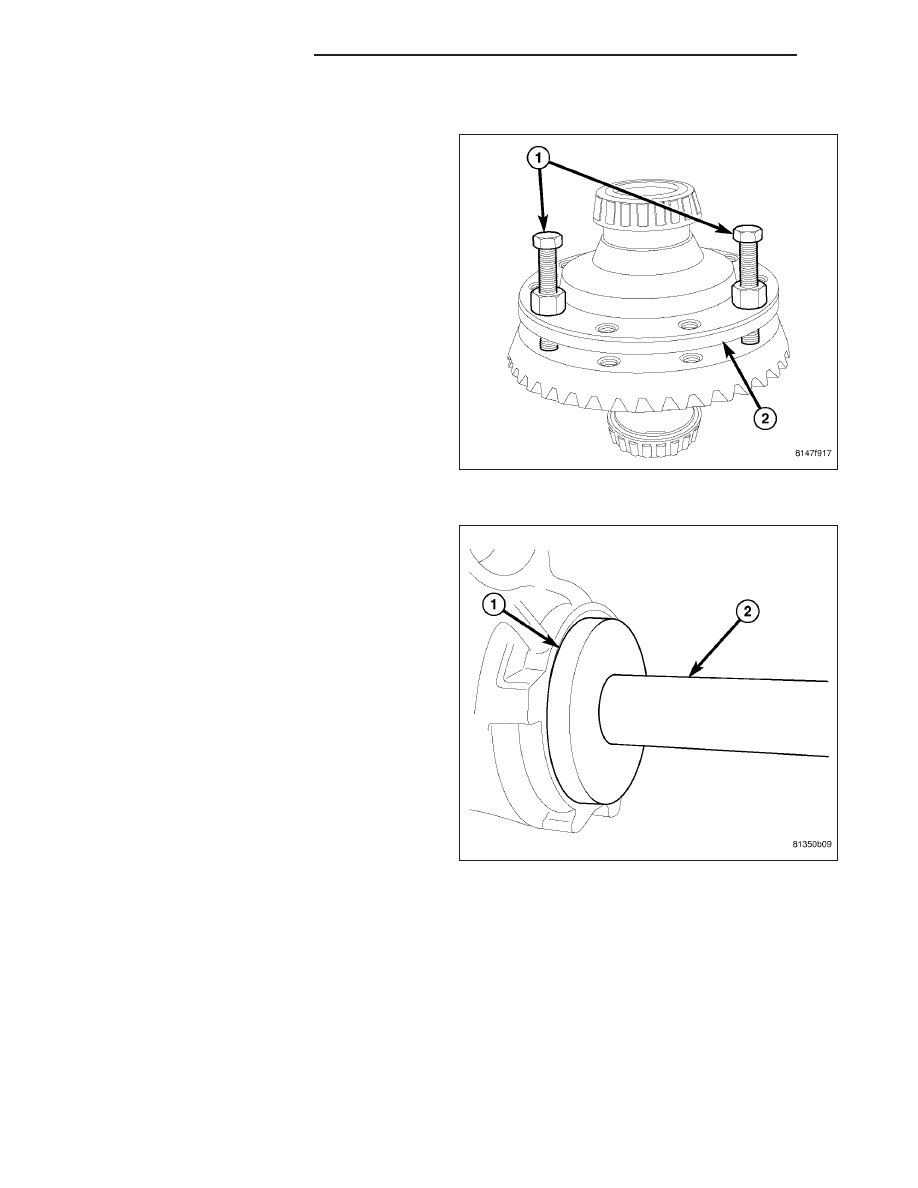

1. Install left hand thread ring gear Installer Bolts

9533 (1) through differential (2) and into ring gear
(3). Tighten nuts on installer bolts evenly and draw
ring gear onto differential case.

2. Remove installer bolts and install new left hand

thread ring gear bolts and tighten to 102 N·m (75
ft. lbs.).

3. Install front pinion bearing cup into housing, with

Installer D-129 (1) and Handle C-4171 (2).

3 - 156

FRONT AXLE - C200FE

WK

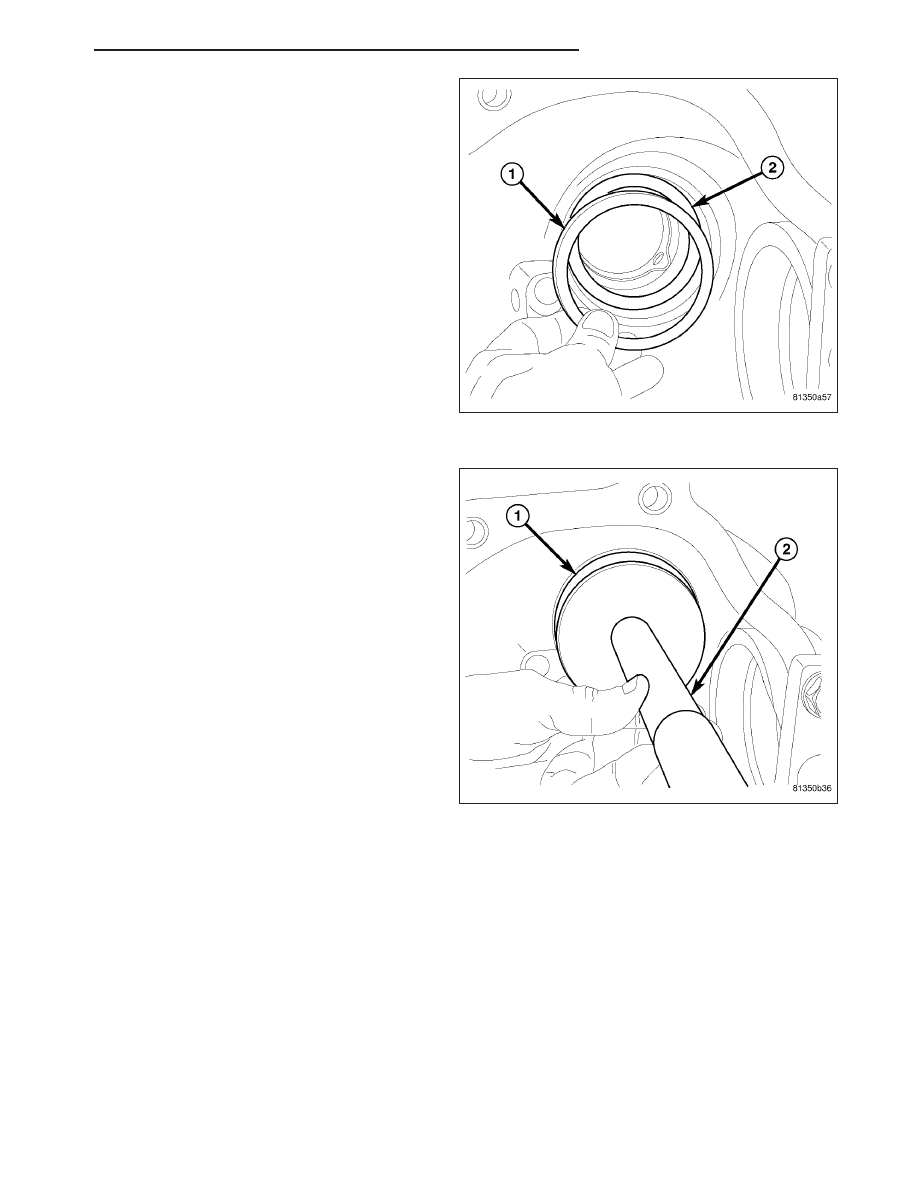

4. Install pinion depth shim (1) in rear pinion bearing

cup bore (2).

5. Install rear pinion bearing cup into housing, with

Installer D-111 (1) and Handle C-4171 (2).

WK

FRONT AXLE - C200FE

3 - 157
