BUSHING REMOVER 9512

DIAL INDICATOR 9524

RING GEAR INSTALLER 9533

PINION BLOCK 9534

BEARING INSTALLER 9535

BUSHING RECEIVER 9536

ARBOR DISC 9538

3 - 78

FRONT AXLE - C200F

WK

AXLE SHAFTS

REMOVAL

1. Remove half shaft from vehicle.

2. Clean axle seal area.

3. Remove snap ring and O-ring from the axle shaft.

4. Remove axle (1) with Remove 8420A (2) (3) (4)

and slid hammer.

INSTALLATION

1. Lubricate bearing bore and seal lip with gear lubricant.

2. Install axle shaft and engage shaft into side gear. Push firmly on axle shaft to engage snap-ring.

3. Check the differential fluid level and add fluid if necessary.

4. Install half shaft.

5. Install skid plate, if necessary.

AXLE SHAFT SEALS

REMOVAL

1. Remove axle shaft.

2. Remove axle shaft tube (1) seal with Remover

7794-A (2) and slid hammer.

WK

FRONT AXLE - C200F

3 - 79

INSTALLATION

1. Install axle (1) seal with Installer 8402 (2) and ham-

mer.

2. Install axle shaft.

AXLE BEARINGS

REMOVAL

1. Remove axle shaft.

2. Remove axle shaft tube (1) seal with Remover

7794-A (2) and slid hammer.

3 - 80

FRONT AXLE - C200F

WK

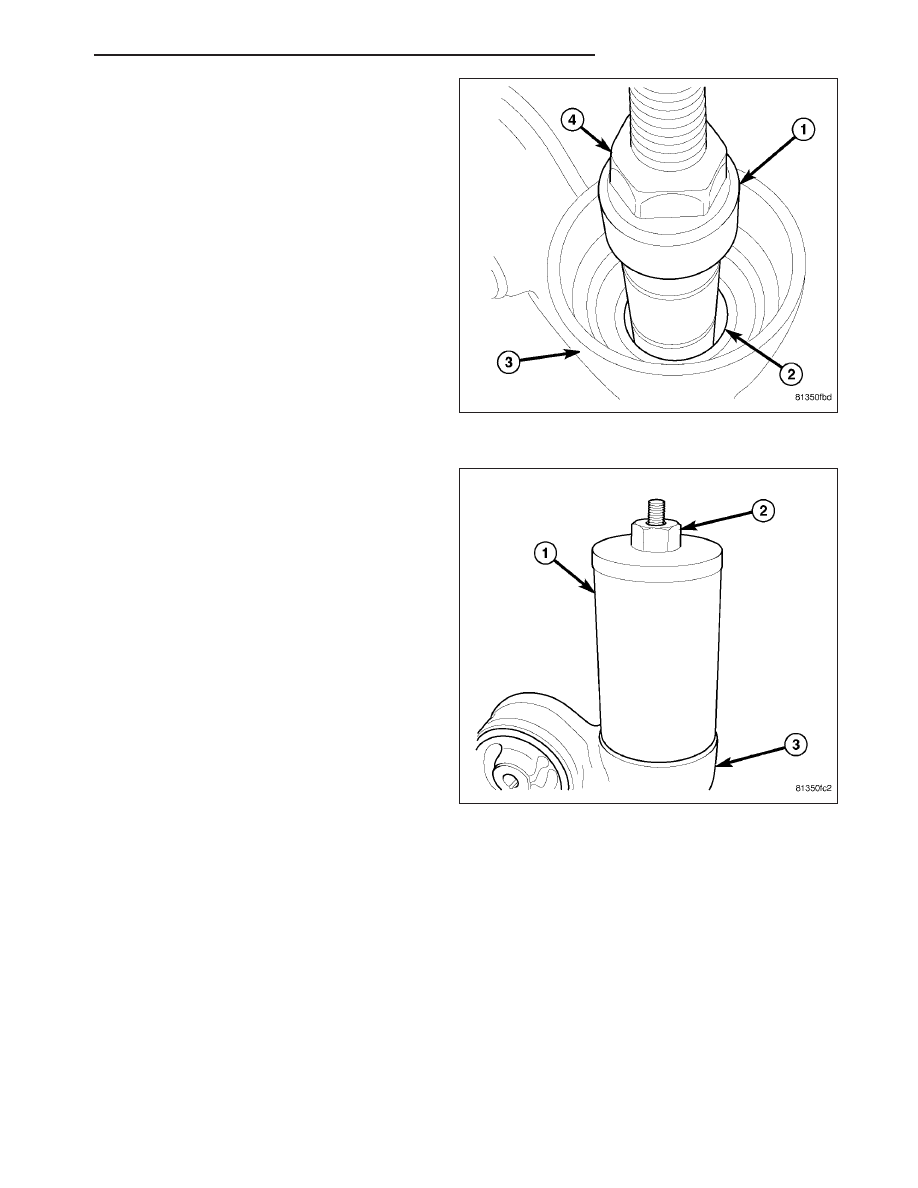

3. Install axle bearing remover C-4660-A (1) into the

axle bearing (2) in the axle tube (3) and tighten
remover nut (4).

4. Install bearing Reciever 9537 (1) and nut (2) on

remover and tube (3). Tighten nut (2) and draw
bearing into reciever (1).

WK

FRONT AXLE - C200F

3 - 81
