C141D–REAR DIFFERENTIAL CONTROL CIRCUIT LOW

3 - 14

DIFFERENTIAL & DRIVELINE - ELECTRICAL DIAGNOSTICS

WK

C141D–REAR DIFFERENTIAL CONTROL CIRCUIT LOW (CONTINUED)

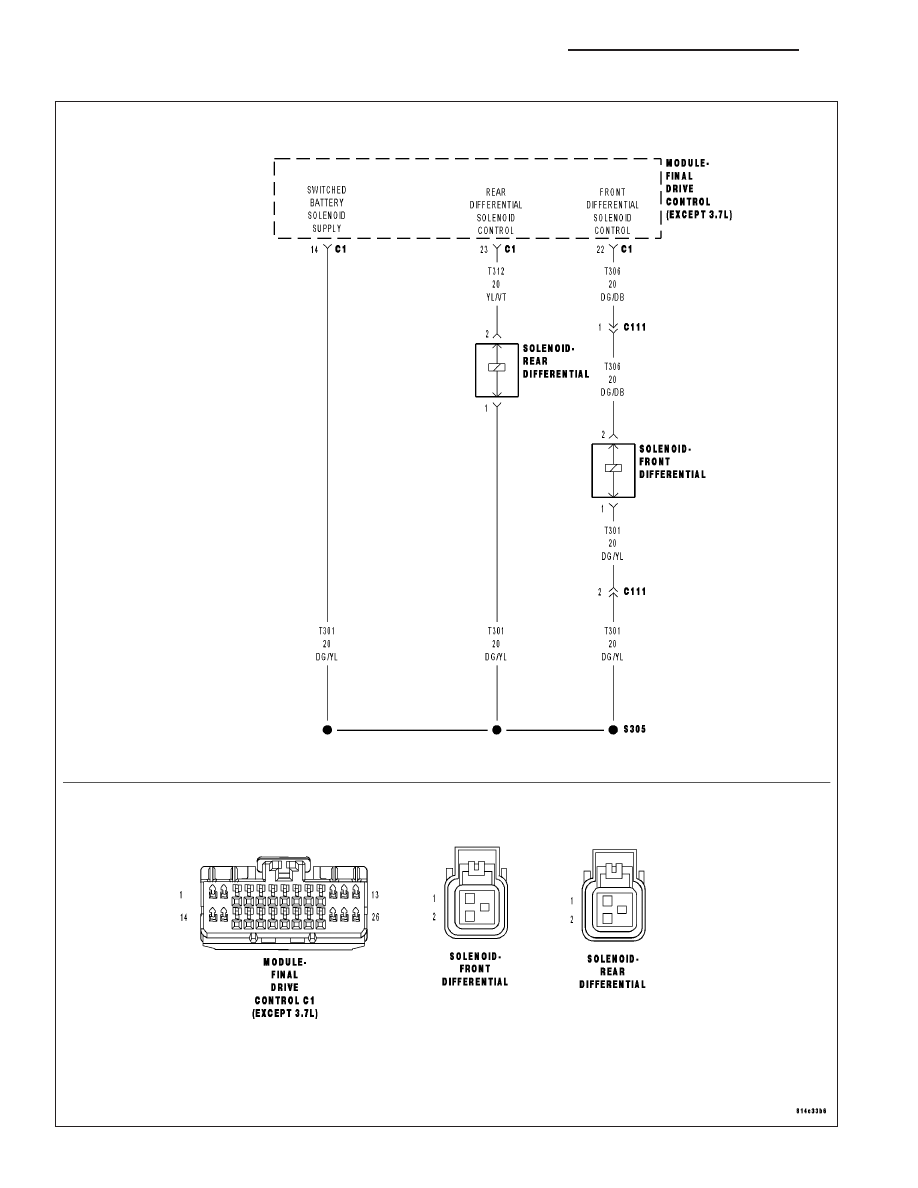

For a complete wiring diagram Refer to Section 8W.

When Monitored:
The Solenoid is active, no solenoid supply circuit DTCs are present and battery voltage is normal.

Set Condition:
The FDCM detects the Rear Differential Solenoid Control is shorted low.

Possible Causes

REAR DIFFERENTIAL SOLENOID

(T312) REAR DIFFERENTIAL SOLENOID CONTROL CIRCUIT SHORTED TO GROUND

(T312) REAR DIFFERENTIAL SOLENOID CONTROL CIRCUIT OPEN

(T301) SWITCHED BATTERY SOLENIOD SUPPLY OPEN/SHORTED TO GROUND

FDCM

Diagnostic Test

1.

ACTIVE DTC

Ignition on, engine not running.

With the DRBIII

T

, read DTCs.

Is the DTC active at this time?

Yes

>> Go To 2

No

>> Go To 8

2.

REAR DIFFERENTIAL SOLENOID OPERATION

Turn the ignition off.

Disconnect the Rear Differential Solenoid harness connector.

Ignition on, engine not running.

Using a 12-volt test light, jump across from the (T301) Switch Battery Solenoid Supply circuit and the (T312) Rear
Differential Solenoid Control circuit in the Rear Differential Solenoid harness connector.

With the DRBIII

T

, actuate the Rear Differential Solenoid.

Does the test light illuminate brightly and flash on and off?

Yes

>> Inspect the Rear Differential Solenoid Jumper harness, repair/replace as necessary. If OK, replace the

Rear Differential Solenoid.

Perform FDCM VERIFICATION TEST.

No

>> Go To 3

WK

DIFFERENTIAL & DRIVELINE - ELECTRICAL DIAGNOSTICS

3 - 15

C141D–REAR DIFFERENTIAL CONTROL CIRCUIT LOW (CONTINUED)

3.

(T312) REAR DIFFERENTIAL SOLENOID CONTROL CIRCUIT SHORTED TO GROUND

Turn the ignition off.

Disconnect the FDCM harness connector.

Measure the resistance of the (T312) Rear Differential Solenoid Control circuit at the FDCM harness connector to
ground.

Is the resistance below 100 ohms?

Yes

>> Repair the short to ground in the Rear Differential Solenoid Control circuit.

Perform FDCM VERIFICATION TEST.

No

>> Go To 4

4.

(T312) REAR DIFFERENTIAL SOLENOID CONTROL CIRCUIT OPEN

Measure the resistance of the (T312) Rear Differential Solenoid Control circuit between the Rear Differential Sole-
noid harness connector and the FDCM harness connector.

Is the resistance below 5.0 ohms?

Yes

>> Go To 5

No

>> Repair the open in the (T312) Rear Differential Solenoid Control circuit.

Perform FDCM VERIFICATION TEST

5.

(T301) SWITCHED BATTERY SOLENOID SUPPLY CIRCUIT SHORTED TO GROUND

Measure the resistance of the (T301) Switched Battery Solenoid Supply circuit at the FDCM harness connector to
ground.

Is the resistance below 100 ohms?

Yes

>> Repair the short to ground in the (T301) Switched Battery Solenoid Supply circuit.

Perform FDCM VERIFICATION TEST.

No

>> Go To 6

6.

(T301) SWITCHED BATTERY SOLENOID SUPPLY CIRCUIT OPEN

Measure the resistance of the (T301) Switched Battery Solenoid Supply circuit between the Rear Differential Sole-
noid harness connector and the FDCM harness connector.

Is the resistance below 5.0 ohms?

Yes

>> Go To 7

No

>> Repair the open in the (T301) Switched Battery Solenoid Supply circuit.

Perform FDCM VERIFICATION TEST

Go To 7

3 - 16

DIFFERENTIAL & DRIVELINE - ELECTRICAL DIAGNOSTICS

WK

C141D–REAR DIFFERENTIAL CONTROL CIRCUIT LOW (CONTINUED)

7.

FDCM

NOTE: Before continuing, check the FDCM harness connector terminals for corrosion, damage, or terminal
push out. Repair as necessary.
Using the schematics as a guide, inspect the wire harness and connectors. Pay particular attention to all Power and
Ground circuits.

Were there any problems found?

Yes

>> Repair as necessary.

Perform FDCM VERIFICATION TEST

No

>> Replace and program the Final Drive Control Module in accordance with Service Information.

Perform FDCM VERIFICATION TEST.

8.

INTERMITTENT WIRING AND CONNECTORS

The conditions necessary to set this DTC are not present at this time.

Using the schematics as a guide, inspect the wiring and connectors specific to this circuit.

Wiggle test the wiring harness and connectors while checking for shorted and open circuits.

Using the DRBIII

T

, monitor the data related to this circuit while performing the wiggle test. Look for the data to

change or for the DTC to reset.

Were there any problems found?

Yes

>> Repair as necessary.

Perform FDCM VERIFICATION TEST.

No

>> Test Complete.

WK

DIFFERENTIAL & DRIVELINE - ELECTRICAL DIAGNOSTICS

3 - 17
