2. Install the upper ball joint (2) into the knuckle (3).

3. Install the upper ball joint retaining nut (4) and

tighten to 75 N·m (55 ft. lbs.).

4. Install the wheel speed sensor wire to the upper

control arm.

5. Install the tire and wheel.

6. Remove the supports and lower the vehicle.

7. Perform a wheel alignment (Refer to 2 - SUSPEN-

SION/WHEEL

ALIGNMENT

-

STANDARD

PROCEDURE).

UPPER CONTROL ARM

DESCRIPTION

The upper suspension arms are forged steel and use rubber bushings at each end of the arm.

OPERATION

The arms mount to the unibody frame rail bracket and the knuckle. The arm and bushings provide location and
react to loads from the road. The bushings provide isolation from the road.

2 - 40

FRONT

WK

REMOVAL

1. Raise vehicle and support the axle.

2. Remove the tire and wheel.

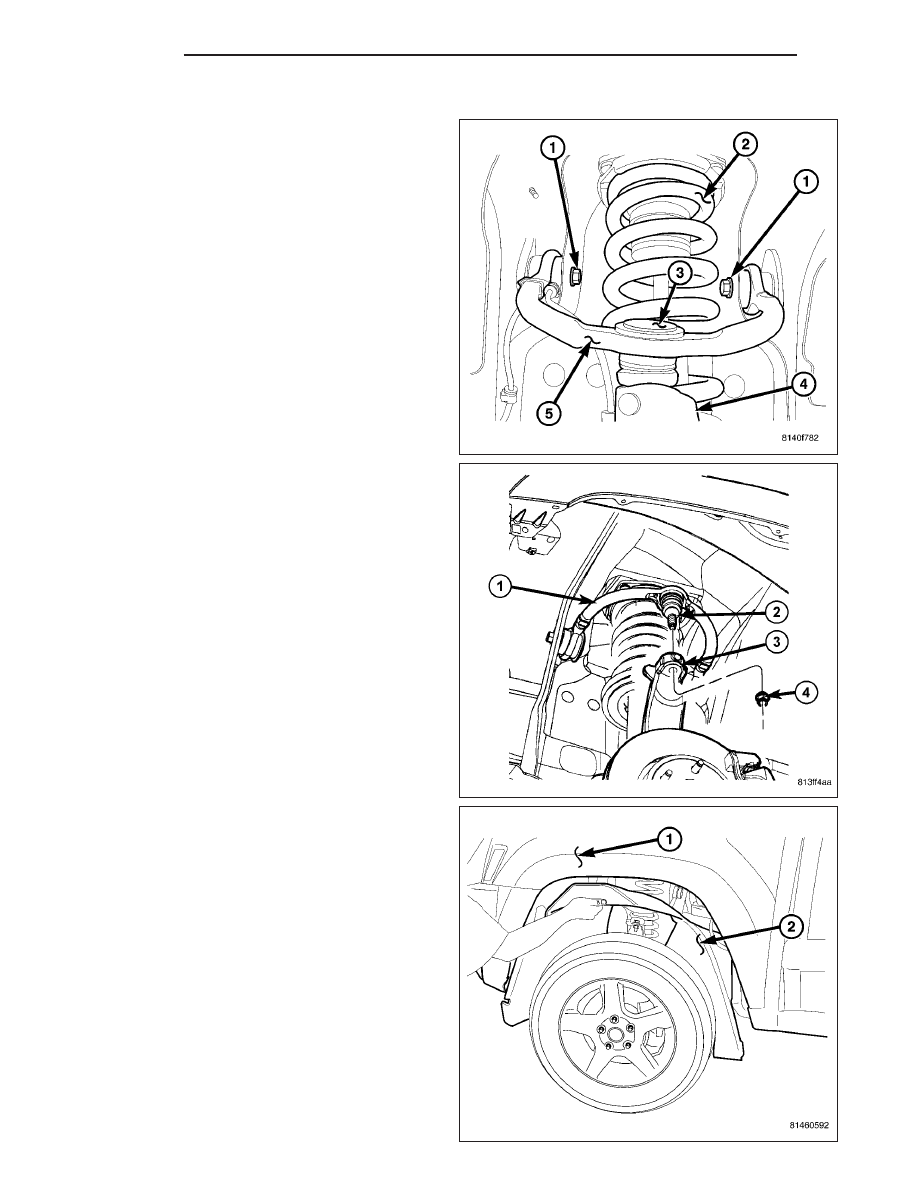

3. Remove the inner fender well (2).

4. Remove the upper ball joint retaining nut.

5. Seperate the upper ball joint (2) from the knuckle

(3) using special tool #8677 (1).

6. Remove the wheel speed sensor wire from the

upper control arm (5).

7. Remove the nut and bolt (1) securing the upper

control arm (5) to the body.

8. Remove the upper control arm (5) from the vehicle.

WK

FRONT

2 - 41

INSTALLATION

1. Install the upper control arm (5) to the vehicle.

2. Install the nut and bolt (1) securing the upper con-

trol arm (5) to the body.

3. Install the wheel speed sensor wire to the upper

control arm (5).

4. Install the upper ball joint (2) into the knuckle (3).

5. Install the upper ball joint retaining nut (4) and

tighten the nut to 81 N·m (60 ft.lbs.).

6. Install the inner fender well (2).

7. Install the tire and wheel.

8. Remove the supports and lower the vehicle.

9. Perform a wheel alignment (Refer to 2 - SUSPEN-

SION/WHEEL

ALIGNMENT

-

STANDARD

PROCEDURE).

2 - 42

FRONT

WK

CLEVIS BRACKET

REMOVAL

1. Raise and support the vehicle.

2. Remove the tire.

3. Remove the two brake caliper adapter bolts (3).

4. Support the brake caliper adaptor and caliper. Do

not allow the caliper to hang by the brake hose.

5. Remove the disc brake rotor.

6. Remove the upper ball joint nut (4).

7. Separate the upper ball joint (2) from the knuckle

(3) using special tool 8677.

WK

FRONT

2 - 43
