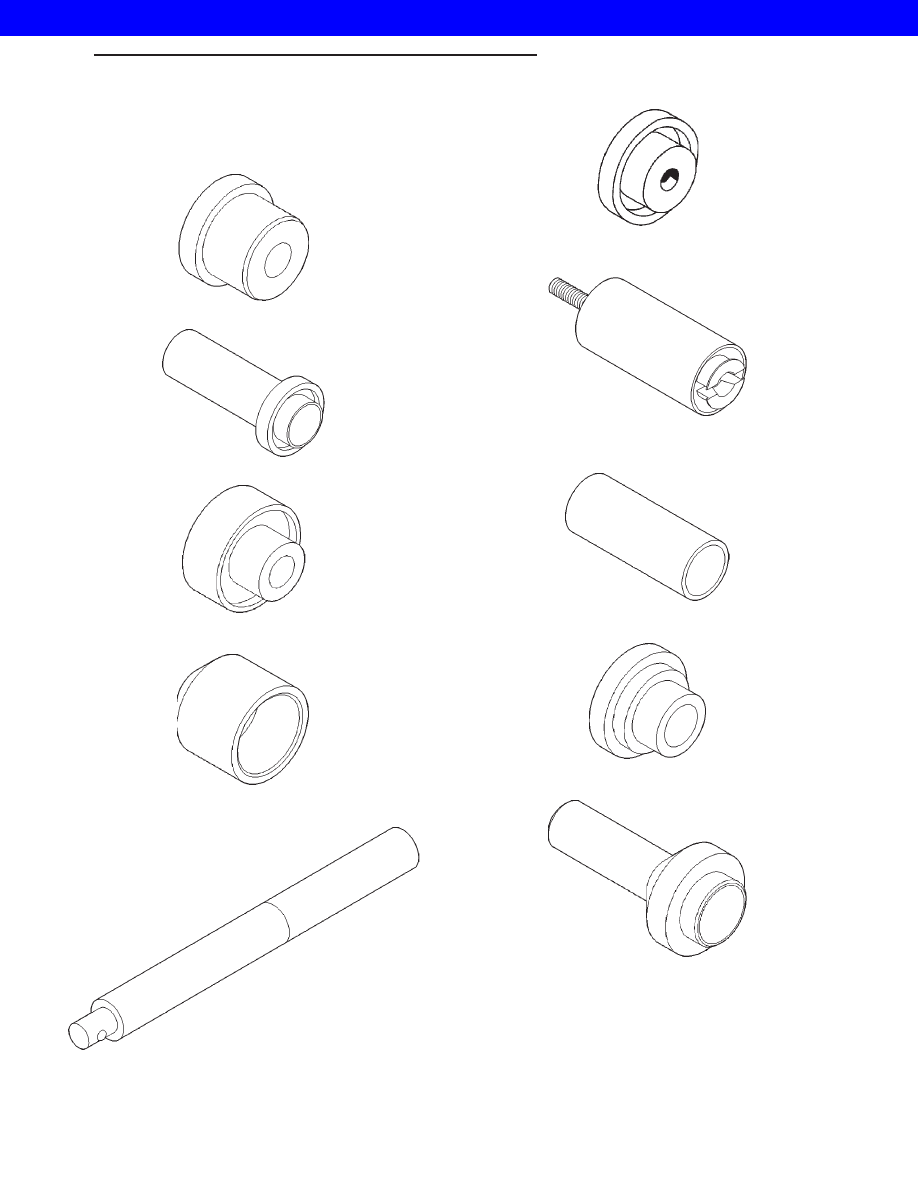

SPECIAL TOOLS

TRANSFER CASE - NV247

Installer, Bearing - 5066

Installer, Seal - 6952-A

Installer, Bearing - 6953

Installer, Seal - C-3995-A

Handle - C-4171

Remover, Bearing - C-4210

Remover, Bearing - L-4454

Cup, Installer - 8148

Installer, Bearing - 8128

Installer, Seal - 7884

TRANSFER CASE - NV247

21s - 279

TRANSFER CASE - NV247 (Continued)

2001 JEEP GRAND CHEROKEE

FLUID

STANDARD PROCEDURE - FLUID DRAIN/
REFILL

The fill and drain plugs are both in the rear case

(Fig. 69).

(1) Raise vehicle.
(2) Position drain pan under transfer case.
(3) Remove drain and fill plugs and drain lubri-

cant completely.

(4) Install drain plug. Tighten plug to 20-34 N·m

(15-25 ft. lbs.).

(5) Remove drain pan.
(6) Fill transfer case to bottom edge of fill plug

opening with Mopar

t Transfer Case Lubricant.

(7) Install and tighten fill plug to 20-34 N·m

(15-25 ft. lbs.).

(8) Lower vehicle.

Fig. 69 Fill/Drain Plug and I.D. Tag Location -

Typical

1 - I.D. TAG
2 - FILL PLUG
3 - DRAIN PLUG

21s - 280

TRANSFER CASE - NV247

2001 JEEP GRAND CHEROKEE
