OIL PUMP

(1) Install new O-ring on flanged end of oil pickup

tube.

(2) Install oil pump (Fig. 57).
(3) Install oil pump retaining snap-ring (Fig. 58).
(4) Insert oil pickup tube in pump (Fig. 59).

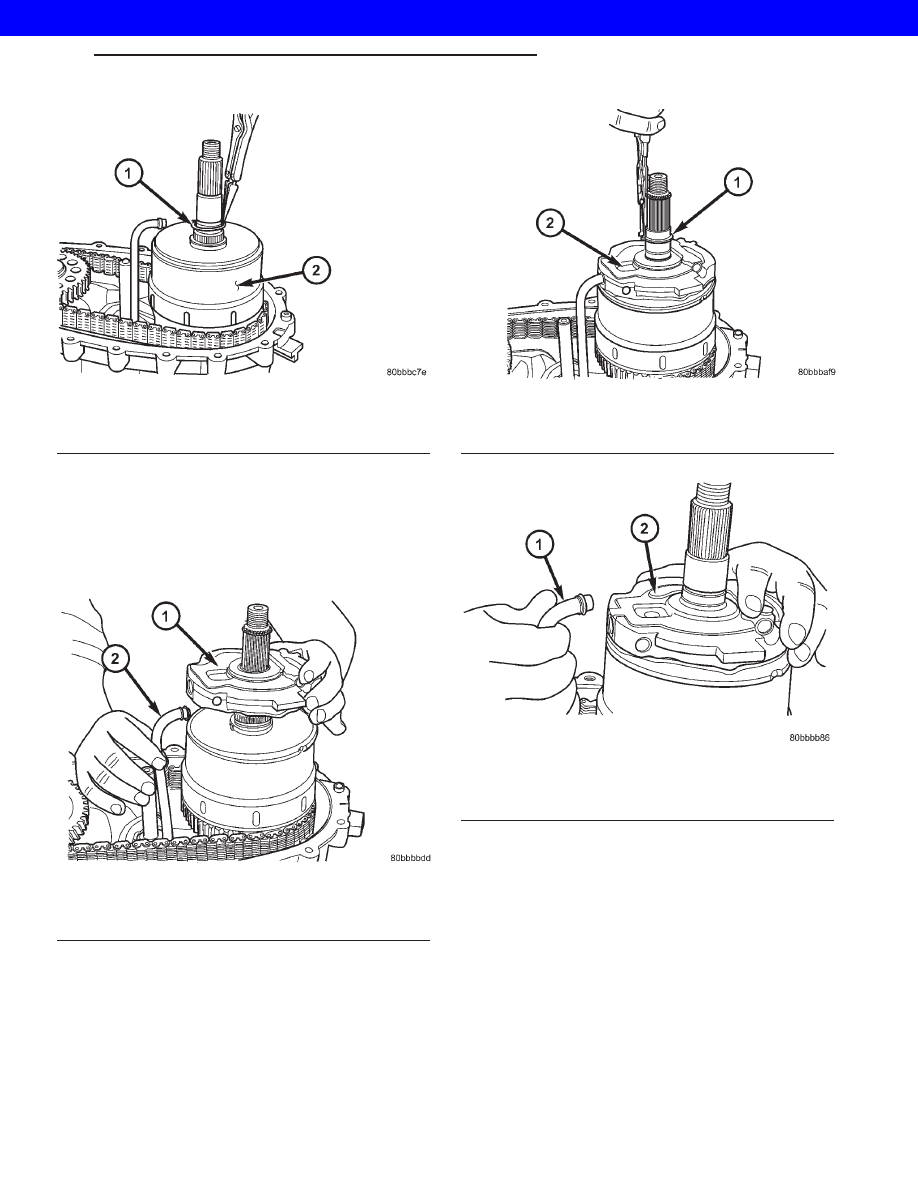

Fig. 56 Install Progressive Coupler Snap-ring

1 - PROGRESSIVE COUPLING SNAP-RING
2 - PROGRESSIVE COUPLING

Fig. 57 Install Oil Pump

1 - OIL PUMP
2 - OIL PUMP PICKUP TUBE

Fig. 58 Install Oil Pump Snap-ring

1 - OIL PUMP SNAP-RING
2 - OIL PUMP

Fig. 59 Engage Oil Pump Tube to Oil Pump

1 - OIL PUMP PICKUP TUBE
2 - OIL PUMP

WG

TRANSFER CASE - NV247

21s - 275

TRANSFER CASE - NV247 (Continued)

2001 JEEP GRAND CHEROKEE

REAR CASE

(1) Install magnet in front case pocket (Fig. 60).

(2) Clean sealing flanges of front case and rear

case with a wax and grease remover.

(3) Apply 3 mm (1/8 in.) wide bead of Mopar

t gas-

ket maker or silicone adhesive sealer to mounting
flange of front case. Work sealer bead around bolt
holes as shown (Fig. 61).

(4) Align and install rear case on front case.
(5) Install case attaching bolts. Alignment bolts at

each end of case are only ones requiring washers
(Fig. 62).

(6) Tighten case bolts to 27-34 N·m (20-25 ft. lbs.)

torque.

COMPANION FLANGE AND RANGE LEVER

(1) Install range lever, washer and locknut on sec-

tor shaft (Fig. 63). Tighten locknut to 27-34 N·m
(20-25 ft. lbs.) torque.

(2) Install new seal washer on front output shaft

(Fig. 64).

(3) Lubricate flange hub with transfer case lubri-

cant and install flange on front shaft.

(4) Install new seal washer on front shaft.
(5) Install companion flange and new nut on front

output shaft.

(6) Tighten flange nut to 122-176 N·m (90-130 ft.

lbs.) torque. Use Tool C-3281 (Fig. 65), or similar tool
to hold flange while tightening flange nut.

(7) Install companion flange and new nut on rear

output shaft.

(8) Tighten flange nut to 122-176 N·m (90-130 ft.

lbs.) torque. Use Tool C-3281, or similar tool to hold
flange while tightening flange nut.

Fig. 60 Installing Case Magnet

1 - MAGNET

Fig. 61 Applying Sealer To Front Case Flange

1 - FRONT CASE FLANGE
2 - SEALER BEAD

Fig. 62 Alignment Bolt

1 - ALIGNMENT BOLT AND WASHER (AT EACH END OF CASE)

Fig. 63 Range Lever Installation - Typical

1 - RANGE LEVER
2 - WASHER
3 - LOCKNUT

21s - 276

TRANSFER CASE - NV247

WG

TRANSFER CASE - NV247 (Continued)

2001 JEEP GRAND CHEROKEE

FINAL ASSEMBLY

(1) Position transfer case damper onto the transfer

case.

(2) Install the damper bolts (Fig. 66). Tighten bolts

to 41-54 N·m (30-40 ft. lbs.) torque.

(3) Install drain plug. Tighten plug to 41-54 N·m

(30-40 ft. lbs.) torque.

(4) Level transfer case and fill it with Mopar

t

Transfer Case Lubricant. Correct fill level is to bot-
tom edge of fill plug hole.

(5) Install and tighten fill plug to 41-54 N·m

(30-40 ft. lbs.) torque.

INSTALLATION

NOTE: If a replacement transfer case is being
installed, be certain the counter weight is installed
on the transfer case housing prior to installation.

(1) Install the transfer case on the transmission.

Torque the transfer case retaining nuts to 75 N·m (55
ft. lbs.).

(2) Install the vent tube on the transfer case.

(3) Connect the transfer case shift cable on the

shifter arm.

(4) Using the jack, raise the transmission assem-

bly into position and install the (8) transmission sup-
port crossmember retaining bolts (Fig. 67). Torque
the bolts to 41 N·m (30 ft. lbs.).

Fig. 64 Flange Seal Washer Installation

1 - YOKE SEAL WASHER

Fig. 65 Hold Companion Flange

1 - HOLDER C-3281
2 - BOLTS
3 - COMPANION FLANGE

Fig. 66 Install Damper Bolts

1 - DAMPER
2 - TRANSFER CASE
3 - BOLTS

Fig. 67 Transmission Support Crossmember

Position and Orientation

1 - TRANSFER CASE
2 - TRANSMISSION MOUNT RETAINING BOLTS (2 OF 4)
3 - EXHAUST SYSTEM SUPPORT BRACKET RETAINING BOLTS
4 - CROSSMEMBER RETAINING BOLTS
5 - TRANSMISSION
6 - CROSSMEMBER RETAINING BOLTS

WG

TRANSFER CASE - NV247

21s - 277

TRANSFER CASE - NV247 (Continued)

2001 JEEP GRAND CHEROKEE

(5) Install the rear driveshaft. Torque the bolts to

32 N·m (24 ft. lbs.). Be certain to install the drive-
shaft in the same position as before removal.

(6) Install the front driveshaft. Torque the bolts to

32 N·m (24 ft. lbs.) (Fig. 68). Be certain to install the
driveshaft in the same position as before removal.

(7) Install the (2) lower fan shroud retaining bolts.

Torque the bolts to 15 N·m (132 in. lbs.).

(8) Lower the vehicle on the hoist.
(9) Install the (2) upper fan shroud retaining bolts.

Torque the bolts to 15 N·m (132 in. lbs.).

(10) Fill the transmission fluid to specification.
(11) Connect the negative battery cable.

SPECIFICATIONS

TRANSFER CASE - NV247

TORQUE SPECIFICATIONS

DESCRIPTION

N·m

Ft. Lbs.

In. Lbs.

Bolt, crossmember

41-47

30.2-34.7

-

Plug, Detent

16-24

11.8-17.7

-

Plugs, drain/fill

41-54

30.2-39.8

-

Bolts, case half

27-34

19.9-25

-

Nut, companion flange

122-176

90-130

-

Lock-nut, shift

27-34

19.9-25

-

Nuts, T-case mount stud

33-41

24.3-30.2

-

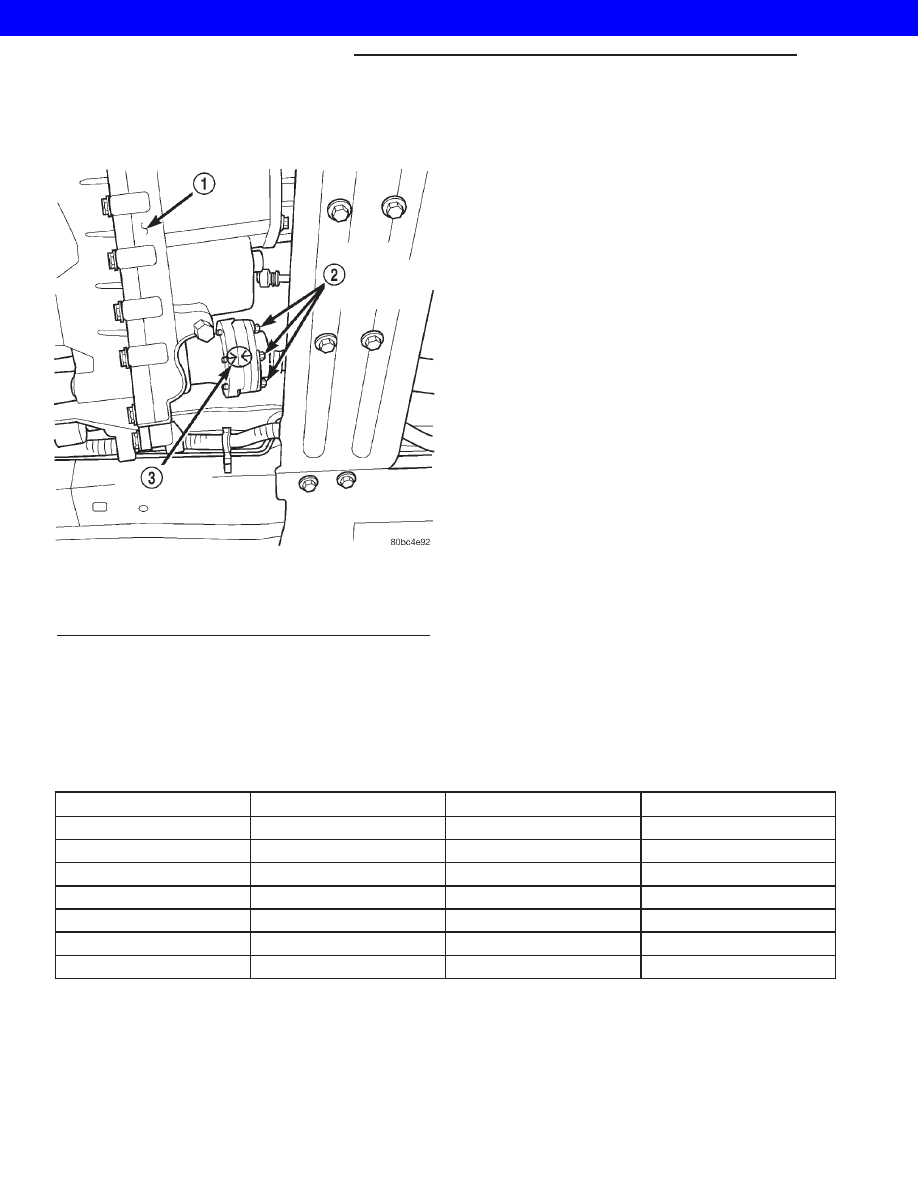

Fig. 68 Front Driveshaft Retaining Bolts

1 - TRANSFER CASE
2 - FRONT DRIVESHAFT RETAINING BOLTS
3 - REFERENCE MARK

21s - 278

TRANSFER CASE - NV247

WG

TRANSFER CASE - NV247 (Continued)

2001 JEEP GRAND CHEROKEE
