(26) Mount a dial indicator to the assembly, push

down on the clutch discs, pull up on the reaction
plate to ensure the plate is properly seated and zero
the indicator against the reverse clutch discs (Fig.
59). Apply 20 psi of air pressure to the reverse clutch
and record the dial indicator reading. Measure and

record Reverse clutch pack measurement in four (4)
places, 90° apart. Take average of four measurements
and compare with Reverse clutch pack clearance
specification. The correct clutch clearance is 0.81-1.24
mm (0.032-0.049 in.). Adjust as necessary. Install the
chosen snap-ring and re-measure to verify selection.

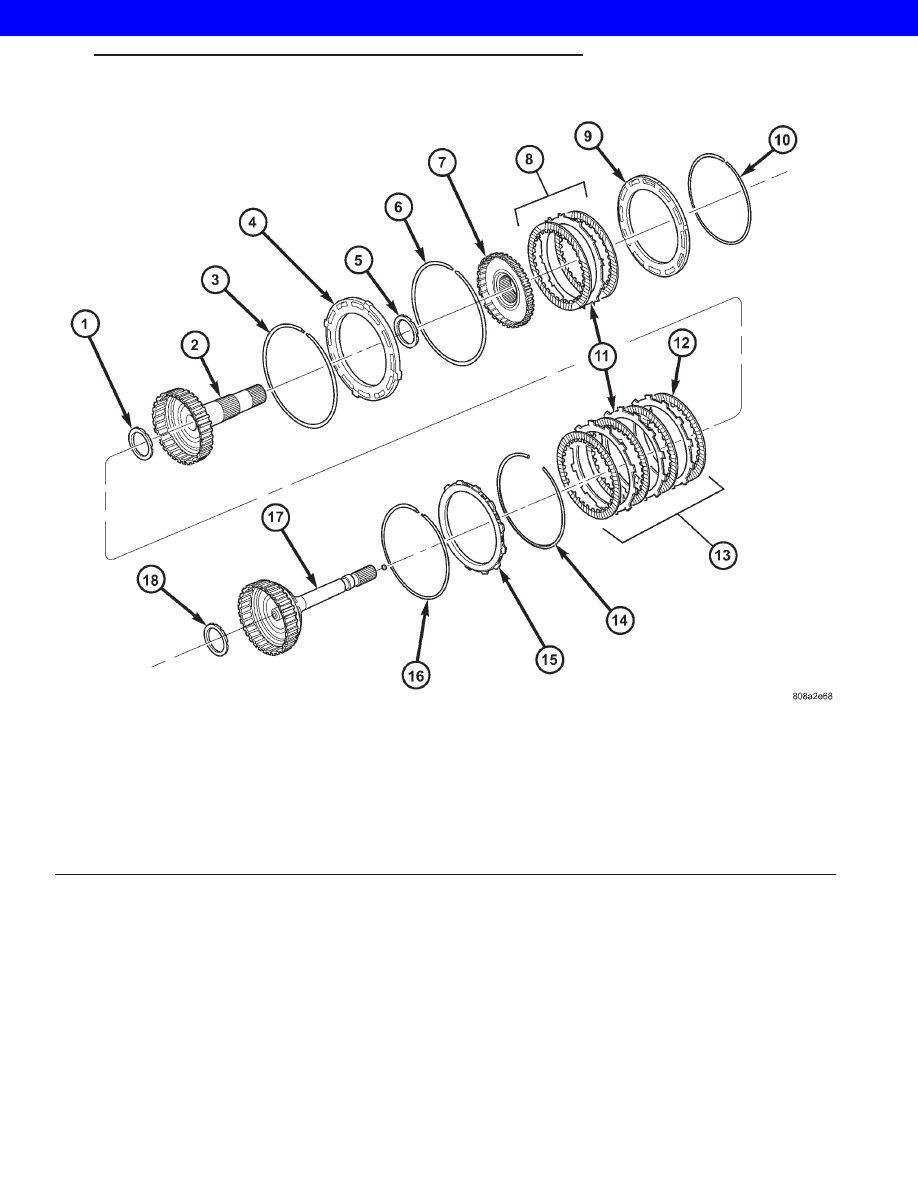

Fig. 55 Input Clutch Assembly - Part I

1 - BEARING NUMBER 3

10 - SNAP-RING (SELECT)

2 - OD HUB/SHAFT

11 - PLATE

3 - SNAP-RING (WAVE)

12 - DISC

4 - REV/OD REACTION PLATE

13 - OD CLUTCH

5 - BEARING NUMBER 4

14 - SNAP-RING (TAPER)

6 - SNAP-RING (FLAT)

15 - UD/OD REACTION PLATE

7 - REV HUB/SHAFT

16 - SNAP-RING (FLAT)

8 - REV CLUTCH

17 - UD HUB/SHAFT

9 - REV REACTION PLATE

18 - BEARING NUMBER 2

WG

AUTOMATIC-545RFE

21s - 255

INPUT CLUTCH ASSEMBLY (Continued)

2001 JEEP GRAND CHEROKEE

(27) Remove the reverse clutch pack from the

input clutch retainer.

(28) Install the number 2 bearing onto the under-

drive hub with flat side up/forward with petroleum
jelly.

(29) Install the underdrive hub into the input

clutch retainer.

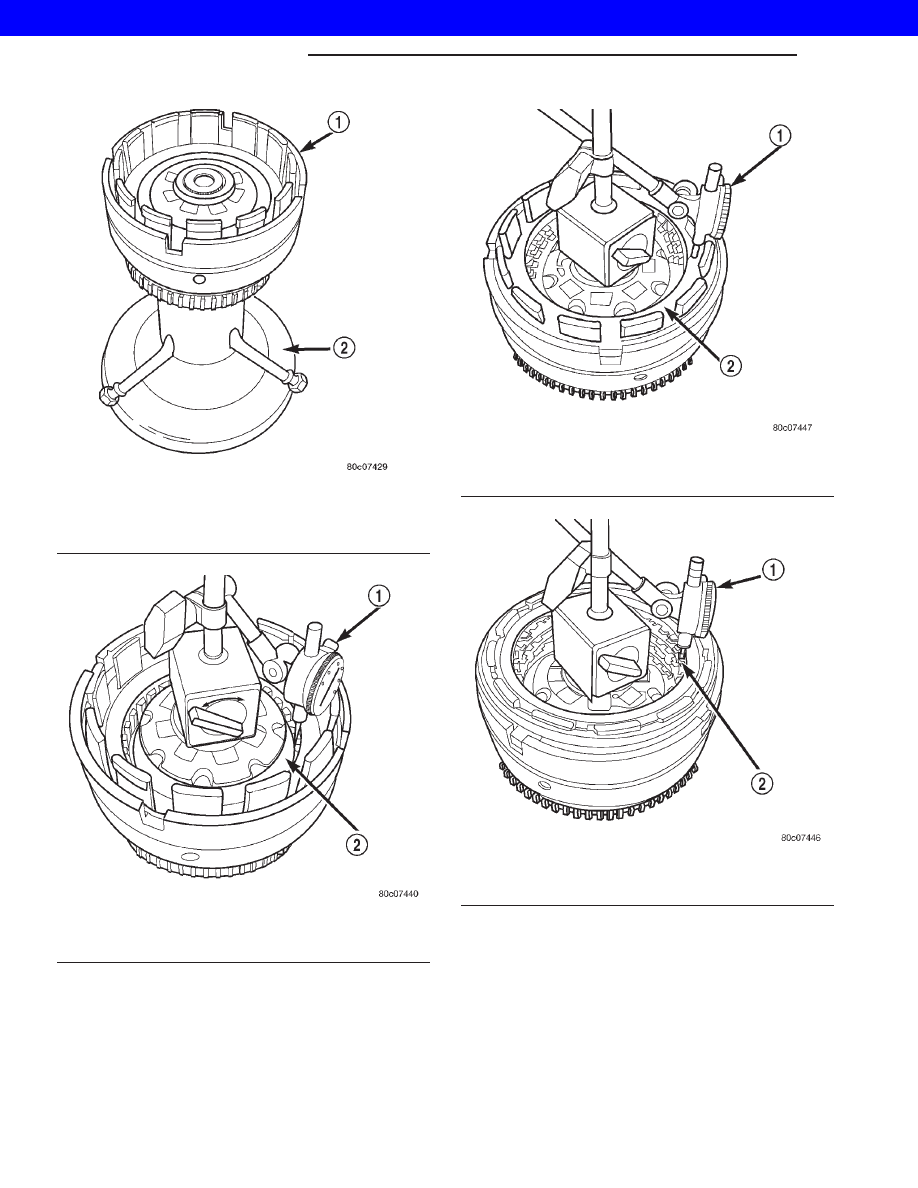

Fig. 56 Input Clutch Assembly

Mounted on Tool 8260

1 - INPUT CLUTCH ASSEMBLY
2 - TOOL 8260

Fig. 57 Measuring UD Clutch Clearance

1 - TOOL C-3339
2 - UNDERDRIVE CLUTCH PACK

Fig. 58 Measuring OD Clutch Clearance

1 - TOOL C-3339
2 - OD/REV REACTION PLATE

Fig. 59 Measuring Reverse Clutch Clearance

1 - TOOL C-3339
2 - REVERSE CLUTCH PACK

21s - 256

AUTOMATIC-545RFE

WG

INPUT CLUTCH ASSEMBLY (Continued)

2001 JEEP GRAND CHEROKEE

(30) Install the number 3 bearing into the over-

drive hub with the flat side up/forward with petro-
leum jelly.

(31) Install the overdrive hub into the input clutch

retainer.

(32) Install the number 4 bearing into the reverse

hub with flat side up/forward with petroleum jelly.

(33) Install the reverse hub into the input clutch

retainer.

(34) Install the complete reverse clutch pack.
(35) Install the reverse reaction plate and snap-

ring.

(36) Push up on reaction plate to allow reverse

clutch to move freely.

OVERDRIVE SWITCH

DESCRIPTION

The overdrive OFF (control) switch is located in

the shifter handle. The switch is a momentary con-

tact device that signals the PCM to toggle current
status of the overdrive function.

OPERATION

At key-on, fourth and fifth gear operation is

allowed. Pressing the switch once causes the over-
drive OFF mode to be entered and the overdrive OFF
switch lamp to be illuminated. Pressing the switch a
second time causes normal overdrive operation to be
restored and the overdrive lamp to be turned off. The
overdrive OFF mode defaults to ON after the ignition
switch is cycled OFF and ON. The normal position
for the control switch is the ON position. The switch
must be in this position to energize the solenoids and
allow upshifts to fourth and fifth gears. The control
switch indicator light illuminates only when the over-
drive switch is turned to the OFF position, or when
illuminated by the transmission control module.

WG

AUTOMATIC-545RFE

21s - 257

INPUT CLUTCH ASSEMBLY (Continued)

2001 JEEP GRAND CHEROKEE

TRANSFER CASE - NV242

TABLE OF CONTENTS

page

page

FLUID

STANDARD PROCEDURE . . . . . . . . . . . . . . . . . 258

FLUID DRAIN/REFILL . . . . . . . . . . . . . . . . . . . 258

FLUID

STANDARD PROCEDURE - FLUID DRAIN/
REFILL

The fill and drain plugs are both in the rear case

(Fig. 1).

(1) Raise vehicle.
(2) Position drain pan under transfer case.
(3) Remove drain and fill plugs and drain lubri-

cant completely.

(4) Install drain plug. Tighten plug to 20-34 N·m

(15-25 ft. lbs.).

(5) Remove drain pan.
(6) Fill transfer case to bottom edge of fill plug

opening with Mopar

t Transfer Case Lubricant.

(7) Install and tighten fill plug to 20-34 N·m

(15-25 ft. lbs.).

(8) Lower vehicle.

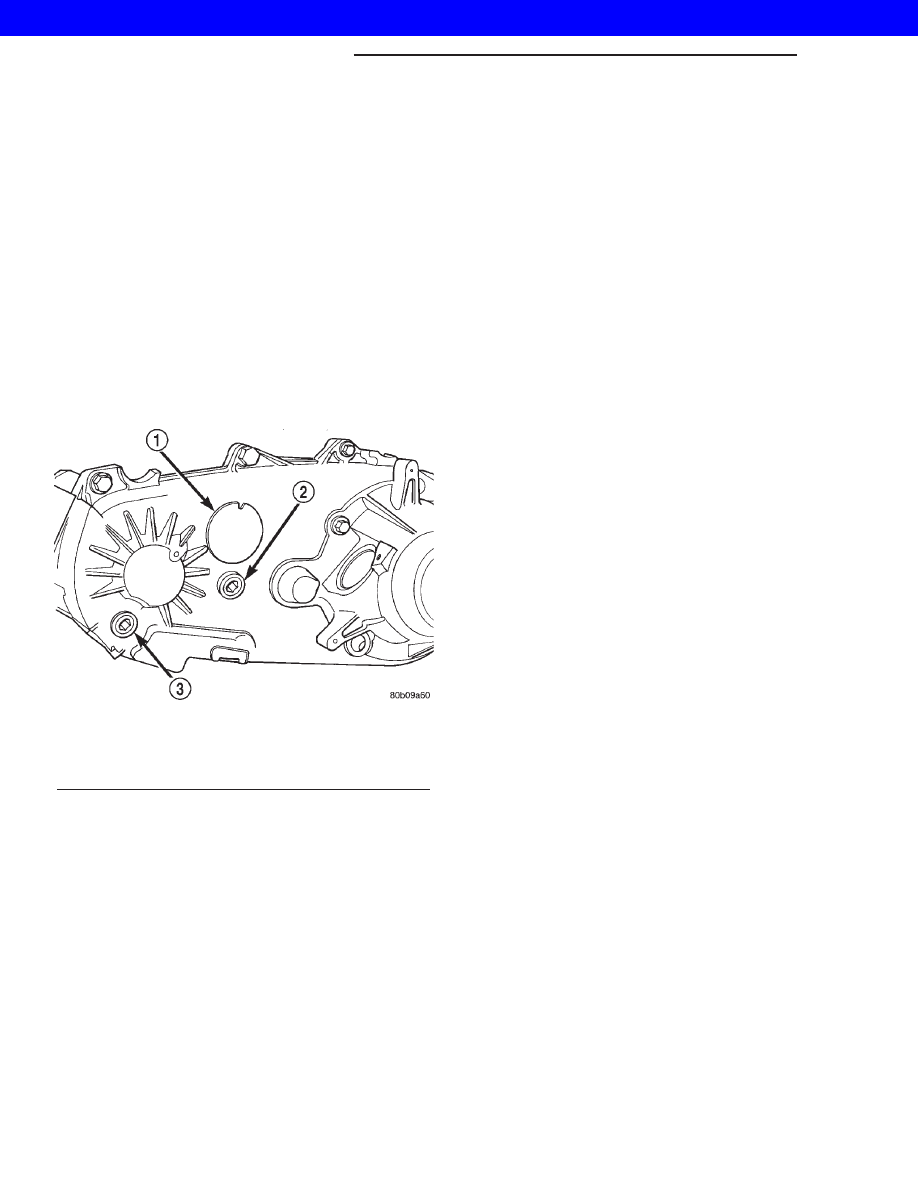

Fig. 1 Fill/Drain Plug and I.D. Tag Location - Typical

1 - I.D. TAG
2 - FILL PLUG
3 - DRAIN PLUG

21s - 258

TRANSFER CASE - NV242

WG

2001 JEEP GRAND CHEROKEE
