(26) Remove

the

4C

clutch

retainer/bulkhead

tapered snap-ring from the transmission case (Fig.
17).

(27) Remove the 4C clutch retainer/bulkhead from

the transmission case (Fig. 17).

(28) Remove the front 2C clutch pack snap-ring

from the transmission case (Fig. 18).

(29) Remove the 2C clutch pack from the transmis-

sion case (Fig. 18).

(30) Remove the rear selective plate and number 6

bearing from the reaction annulus (Fig. 19).

(31) Remove the reaction annulus from the reac-

tion planetary carrier (Fig. 19).

(32) Remove the number 7 bearing (Fig. 19).
(33) Remove the reaction sun gear (Fig. 19).
(34) Remove the number 8 bearing from the reac-

tion planetary carrier (Fig. 19).

(35) Remove the reaction planetary carrier (Fig.

19). Note that this planetary gear set has three pin-
ion gears.

(36) Remove the number 9 bearing from the

reverse planetary gear set (Fig. 19).

Fig. 18 Remove 2C Clutch Pack

1 - SNAP-RING
2 - PLATE
3 - DISC
4 - REACTION PLATE

Fig. 17 Remove 4C Clutch Retainer/Bulkhead

1 - SNAP-RING
2 - 4C CLUTCH RETAINER/BULKHEAD

WG

AUTOMATIC-545RFE

21s - 215

AUTOMATIC-545RFE (Continued)

2001 JEEP GRAND CHEROKEE

Fig. 19 Remove Reaction Annulus and Carrier

1 - BEARING NUMBER 8

5 - BEARING NUMBER 7

2 - BEARING NUMBER 9

6 - THRUST PLATE

3 - REACTION PLANETARY CARRIER

7 - BEARING NUMBER 6

4 - REACTION SUN GEAR

8 - REACTION ANNULUS

21s - 216

AUTOMATIC-545RFE

WG

AUTOMATIC-545RFE (Continued)

2001 JEEP GRAND CHEROKEE

(37) Remove the snap-ring holding the park sprag

gear onto the output shaft (Fig. 20).

(38) Remove the park sprag gear from the output

shaft (Fig. 21).

(39) Remove the input/reverse planetary assembly

(Fig. 22).

(40) Remove the number 12 bearing from the

input/reverse planetary assembly (Fig. 22).

(41) Remove the snap-ring holding the low/reverse

clutch retainer into the transmission case (Fig. 23).

(42) Remove the low/reverse clutch retainer from

the transmission case (Fig. 23).

(43) Remove the park pawl rod and e-clip (Fig. 24).
(44) Remove the park pawl rod guide snap-ring

(Fig. 24).

(45) Remove the park pawl rod guide (Fig. 24).
(46) Remove the park pawl pivot shaft, park pawl,

and spring (Fig. 24).

(47) Remove the manual selector shaft (Fig. 24).
(48) Remove the manual selector shaft seal.
(49) Remove the dipstick tube seal.

Fig. 20 Remove Park Sprag Snap-Ring

1 - SNAP-RING

Fig. 21 Remove Park Sprag Gear

1 - PARK SPRAG GEAR

Fig. 22 Remove Input/Reverse Planetary Assembly

1 - INPUT/REVERSE PLANETARY ASSEMBLY
2 - BEARING NUMBER 9
3 - BEARING NUMBER 12

Fig. 23 Remove Low/Reverse Clutch Retainer

1 - LOW/REVERSE OVERRUNNING CLUTCH ASSEMBLY
2 - SNAP-RING

WG

AUTOMATIC-545RFE

21s - 217

AUTOMATIC-545RFE (Continued)

2001 JEEP GRAND CHEROKEE

ASSEMBLY

(1) Clean and inspect all components. Replace any

components which show evidence of excessive wear
or scoring.

(2) Install the cooler filter bypass valve.
(3) Torque the bypass valve to specification. The

valve uses a tapered pipe thread and excessive
torque can damage the transmission case. Tighten
the cooler filter bypass valve to 4.5 N·m (40 in.lbs.).

(4) Install a new selector shaft seal using Seal

Installer 8253 (Fig. 25).

(5) Install the manual selector shaft and retaining

screw. Tighten the manual selector shaft retaining
screw to 28 N·m (250 in.lbs.).

(6) Install the park pawl, spring, and shaft (Fig.

26).

(7) Install the park rod and e-clip (Fig. 26).
(8) Install the park rod guide and snap-ring (Fig.

26).

(9) Install a new dipstick tube seal using Seal

Installer 8254 (Fig. 27).

NOTE: Before final assembly of transmission cen-
terline, the 2C/4C clutch components should be
installed into position and measured as follows:

(10) Install the 2C reaction plate into the trans-

mission case (Fig. 28). The reaction plate is direc-
tional. The plate must be installed with the flat side
toward the front of the transmission.

(11) Install the 2C clutch pack into the transmis-

sion case (Fig. 28).

(12) Install the flat 2C clutch snap-ring into the

transmission case (Fig. 28).

(13) Install the 4C retainer/bulkhead into the

transmission case. Make sure that the oil feed holes
are pointing toward the valve body area.

(14) Install

the

4C

retainer/bulkhead

tapered

snap-ring into the transmission case. Make sure that
the open ends of the snap-ring are located in the case
opening toward the valve body area.

(15) Using a feeler gauge through the opening in

the rear of the transmission case, measure the 2C
clutch pack clearance between the 2C reaction plate
and the transmission case at four different points.
The average of these measurements is the 2C clutch
pack clearance. The correct clutch clearance is 0.533-
1.27 mm (0.021-0.050 in.). The reaction plate is not
selective. If the clutch pack clearance is not within
specification, the reaction plate, all the friction discs,
and steels must be replaced.

(16) Remove the 4C retainer/bulkhead and all of

the 2C clutch components from the transmission
case.

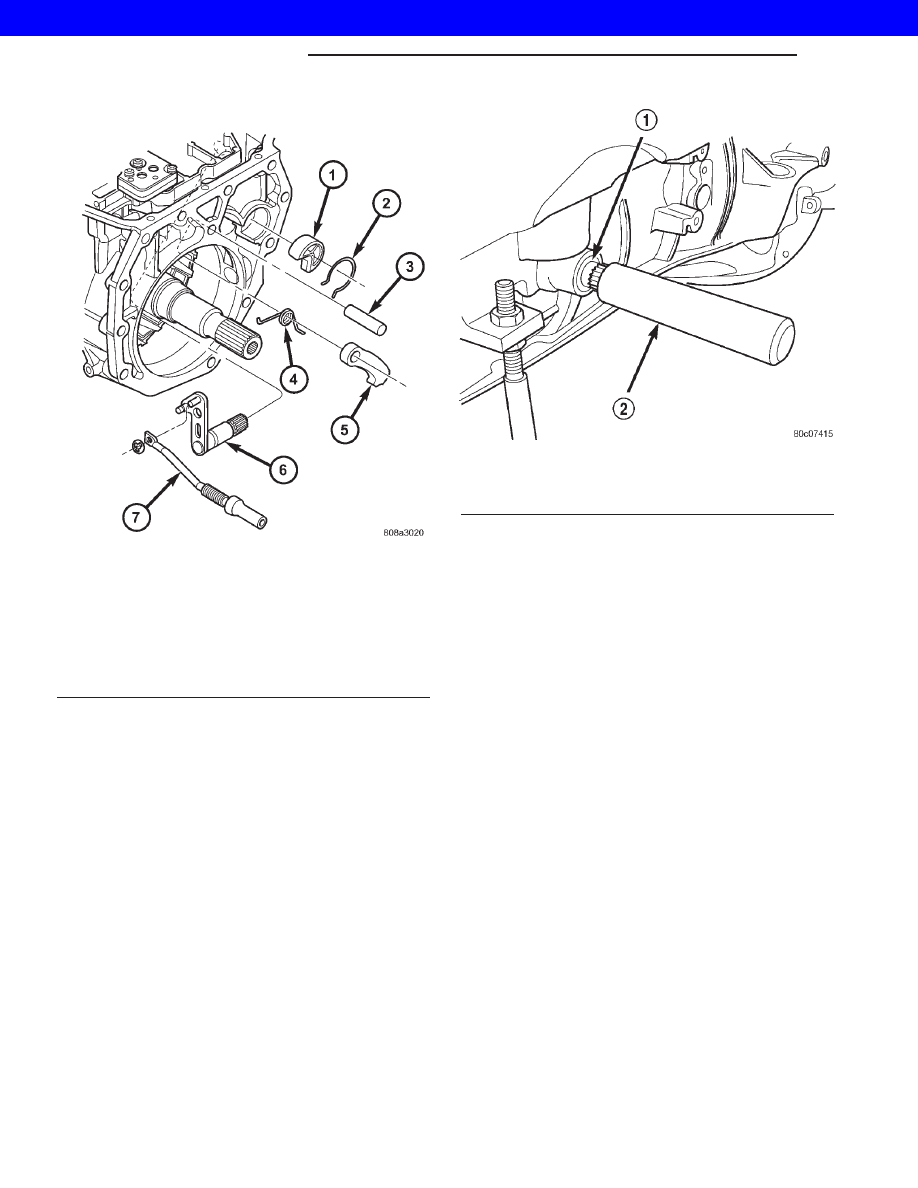

Fig. 24 Manual Shaft/Park Lock Components

1 - GUIDE
2 - SNAP-RING
3 - SHAFT
4 - SPRING
5 - PARK PAWL
6 - MANUAL SHAFT/LEVER
7 - PARK ROD

Fig. 25 Install Selector Shaft

1 - SEAL
2 - TOOL 8253

21s - 218

AUTOMATIC-545RFE

WG

AUTOMATIC-545RFE (Continued)

2001 JEEP GRAND CHEROKEE
