VALVE BODY

DESCRIPTION

The valve body consists of a cast aluminum valve

body, a separator plate, and transfer plate. The valve
body contains valves and check balls that control
fluid delivery to the torque converter clutch, bands,
and frictional clutches. The valve body contains the
following components (Fig. 259), (Fig. 260), (Fig.
261), and (Fig. 262):

• Regulator valve

• Regulator valve throttle pressure plug

• Line pressure plug and sleeve

• Kickdown valve

• Kickdown limit valve

• 1-2 shift valve

• 1-2 control valve

• 2-3 shift valve

• 2-3 governor plug

• 3-4 shift valve

• 3-4 timing valve

• 3-4 quick fill valve

• 3-4 accumulator

• Throttle valve

• Throttle pressure plug

• Switch valve

• Manual valve

• Converter clutch lock-up valve

• Converter clutch lock-up timing Valve

• Shuttle valve

• Shuttle valve throttle plug

• Boost Valve

• 10 check balls
By adjusting the spring pressure acting on the reg-

ulator valve, transmission line pressure can be
adjusted.

Fig. 259 Upper Housing Control Valve Locations

1 - UPPER HOUSING

8 - MANUAL VALVE

2 - REGULATOR VALVE

9 - 1-2 GOVERNOR PLUG

3 - SWITCH VALVE

10 - GOVERNOR PLUG COVER

4 - REGULATOR VALVE SPRING

11 - THROTTLE PLUG

5 - KICKDOWN VALVE

12 - 2-3 GOVERNOR PLUG

6 - KICKDOWN DETENT

13 - SHUTTLE VALVE PRIMARY SPRING

7 - THROTTLE VALVE AND SPRING

WG

AUTOMATIC - 44RE

21s - 175

TORQUE CONVERTER (Continued)

2001 JEEP GRAND CHEROKEE

Fig. 260 Shuttle and Boost Valve Locations

1 - SPRING

8 - SHUTTLE VALVE COVER

2 - RETAINER

9 - SHUTTLE VALVE

3 - BOOST VALVE

10 - SHUTTLE VALVE PRIMARY SPRING

4 - BOOST VALVE PLUG

11 - GOVERNOR PLUG COVER

5 - SPRING GUIDES

12 - THROTTLE PLUG

6 - E-CLIP

13 - UPPER HOUSING

7 - SHUTTLE VALVE SECONDARY SPRING

14 - BOOST VALVE COVER

21s - 176

AUTOMATIC - 44RE

WG

VALVE BODY (Continued)

2001 JEEP GRAND CHEROKEE

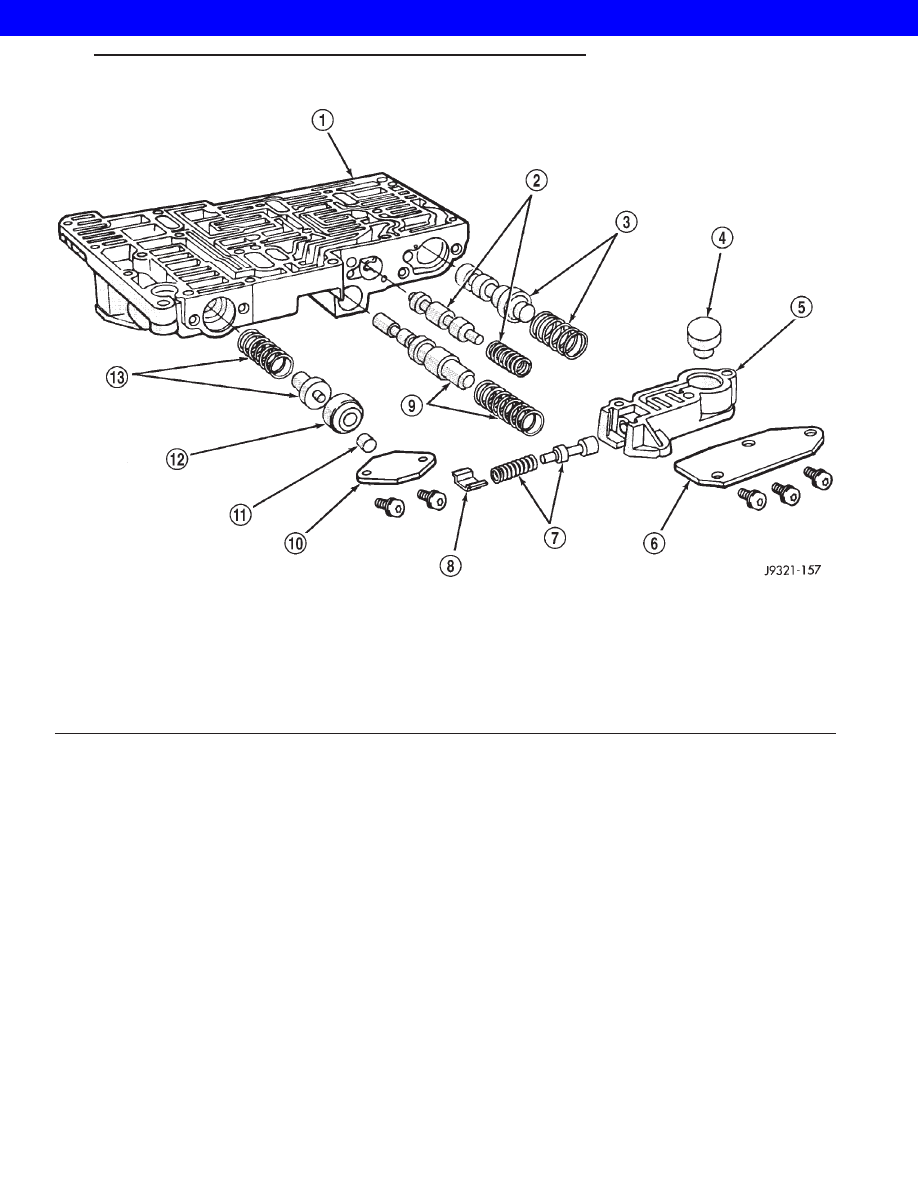

Fig. 261 Upper Housing Shift Valve and Pressure Plug Locations

1 - UPPER HOUSING

8 - RETAINER

2 - 1-2 SHIFT VALVE AND SPRING

9 - 1-2 SHIFT CONTROL VALVE AND SPRING

3 - 2-3 SHIFT VALVE AND SPRING

10 - PRESSURE PLUG COVER

4 - 2-3 THROTTLE PLUG

11 - LINE PRESSURE PLUG

5 - LIMIT VALVE HOUSING

12 - PLUG SLEEVE

6 - LIMIT VALVE COVER

13 - THROTTLE PRESSURE SPRING AND PLUG

7 - LIMIT VALVE AND SPRING

WG

AUTOMATIC - 44RE

21s - 177

VALVE BODY (Continued)

2001 JEEP GRAND CHEROKEE

OPERATION

The application of each driving or holding compo-

nent is controlled by the valve body based upon the
manual lever position, throttle pressure, and gover-
nor pressure. The governor pressure is a variable
pressure input to the valve body and is one of the
signals that a shift is necessary. First through fourth
gear are obtained by selectively applying and releas-
ing the different clutches and bands. Engine power is
thereby routed to the various planetary gear assem-
blies which combine with the overrunning clutch
assemblies to generate the different gear ratios. The
torque converter clutch is hydraulically applied and
is released when fluid is vented from the hydraulic
circuit by the torque converter control (TCC) solenoid
on the valve body. The torque converter clutch is con-
trolled by the Powertrain Control Module (PCM). The

torque converter clutch engages in fourth gear, and
in third gear under various conditions, such as when
the O/D switch is OFF, when the vehicle is cruising
on a level surface after the vehicle has warmed up.
The torque converter clutch will disengage momen-
tarily when an increase in engine load is sensed by
the PCM, such as when the vehicle begins to go
uphill or the throttle pressure is increased. The
torque converter clutch feature increases fuel econ-
omy and reduces the transmission fluid temperature.

Since the overdrive clutch is applied in fourth gear

only and the direct clutch is applied in all ranges
except fourth gear, the transmission operation for
park, neutral, and first through third gear will be
described first. Once these powerflows are described,
the third to fourth shift sequence will be described.

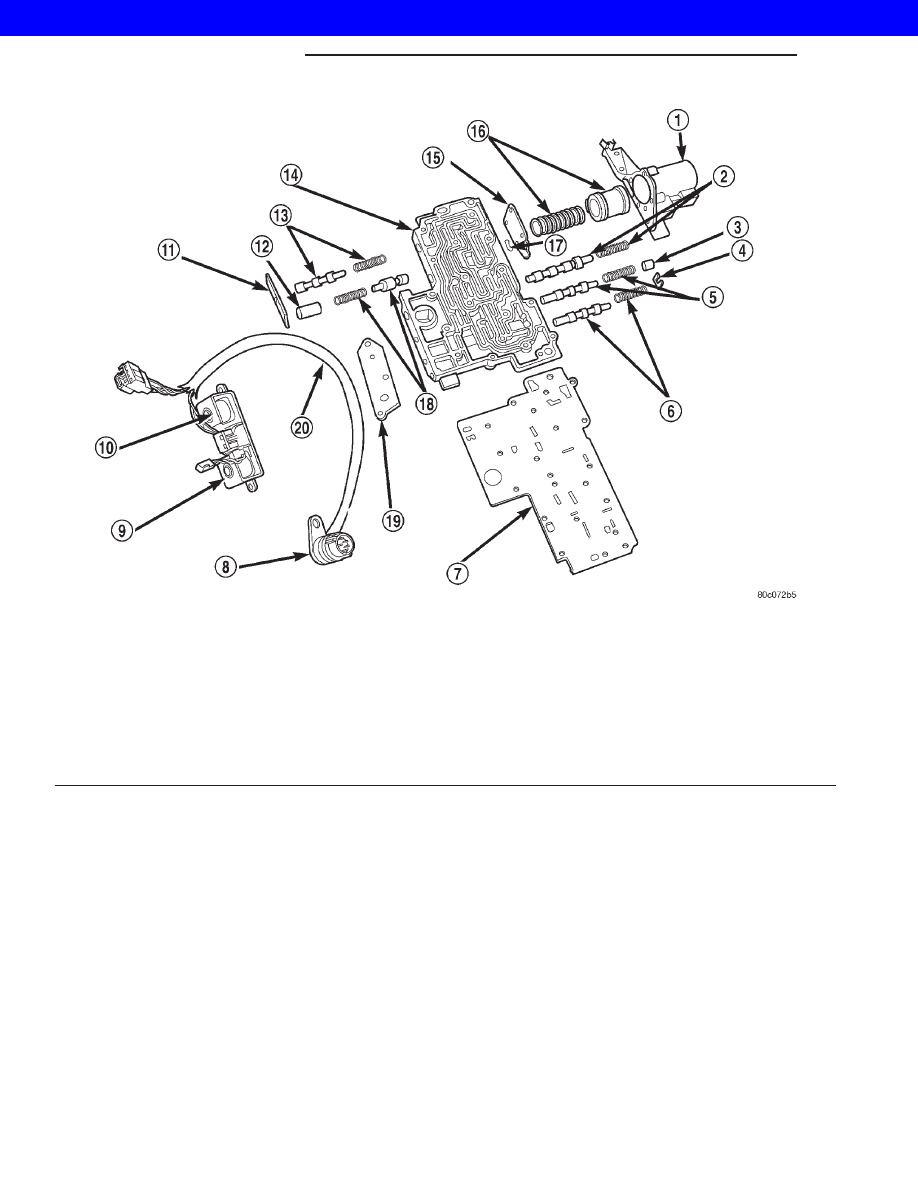

Fig. 262 Lower Housing Shift Valves and Springs

1 - 3-4 ACCUMULATOR HOUSING

11 - TIMING VALVE COVER

2 - 3-4 SHIFT VALVE AND SPRING

12 - PLUG

3 - PLUG

13 - 3-4 TIMING VALVE AND SPRING

4 - SPRING RETAINER

14 - LOWER HOUSING

5 - CONVERTER CLUTCH VALVE AND SPRING

15 - ACCUMULATOR END PLATE

6 - CONVERTER CLUTCH TIMING VALVE AND SPRING

16 - 3-4 ACCUMULATOR PISTON AND SPRING

7 - OVERDRIVE SEPARATOR PLATE

17 - E-CLIP

8 - CASE CONNECTOR

18 - 3-4 QUICK FILL SPRING AND VALVE

9 - CONVERTER CLUTCH SOLENOID

19 - SOLENOID GASKET

10 - OVERDRIVE SOLENOID

20 - HARNESS
