Connector Name/Number
Color
Location
Fig.
Powertrain Control Module - C3
(Gas)
WT
Rear of Engine Compartment
N/S
Radiator Fan Motor
BK
At Radiator
4
Radiator Fan Relay
BK
Right Side of Engine Compartment
4
Radio - C1
GY
Center of Instrument Panel
20, 21
Radio - C2
BK
Center of Instrument Panel
20, 21
Radio - C3
WT
Center of Instrument Panel
20, 21
Radio - C4 (Premium)
BK
Center of Instrument Panel
20, 21
Rear Power Outlet
RD
Right Rear Quarter Panel
38
Rear Washer Pump
BK
Left Front of Engine Compartment
3
Rear Window Defogger
BK
Right Upper Corner of Liftgate
39
Rear Wiper Motor
BK
In Liftgate
39
Recirculation Door Motor/Actuator
(AZC)
BK
Center of Instrument Panel
N/S
Red Brake Warning Indicator
Switch
GY
At Master Cylinder
N/S
Remote Keyless Module (Japan)
BL
In Driver Door
26
Right Courtesy Lamp
BK
At Lamp
22
Right Door Handle Courtesy
Lamp
BK
At Lamp
N/S
Right Fog Lamp
BK
At Right Front Fascia
4
Right Front Door Speaker
WT
In Right Front Door
26, 27
Right Front Park Lamp
WT
At Lamp
N/S
Right Front Park/Turn Signal
Lamp (Except Built-Up-Export)
BK
At Lamp
N/S
Right Front Side Marker Lamp
(Except Built-Up-Export)
WT
At Lamp
N/S
Right Front Turn Signal Lamp
(Built-Up-Export)
WT
At Lamp
N/S
Right Front Wheel Speed Sensor
GY
In Right Front Wheel Opening
N/S
Right Headlamp Leveling Motor
(Built-Up-Export)
BK
At Motor
N/S
Right High Beam Headlamp
BK
At Lamp
N/S
Right Instrument Panel Speaker
WT
At Speaker
20, 21
Right Liftgate Ajar Switch
BK
In Liftgate
39
Right Low Beam Headlamp
GY
At Lamp
N/S
Right Multi-Function Switch
WT
On Steering Column
24
Right Rear Door Lock Motor/Ajar
Switch
BK
In Right Rear Door
30
Right Rear Door Speaker
WT
In Right Rear Door
30
Right Rear Lamp Assembly
BK
At Lamp Assembly
38
Right Rear Wheel Speed Sensor
BK
Near Right Rear Wheel
34, 36
Right Remote Radio Switch
BK
At Switch in Steering Wheel
N/S
WJ

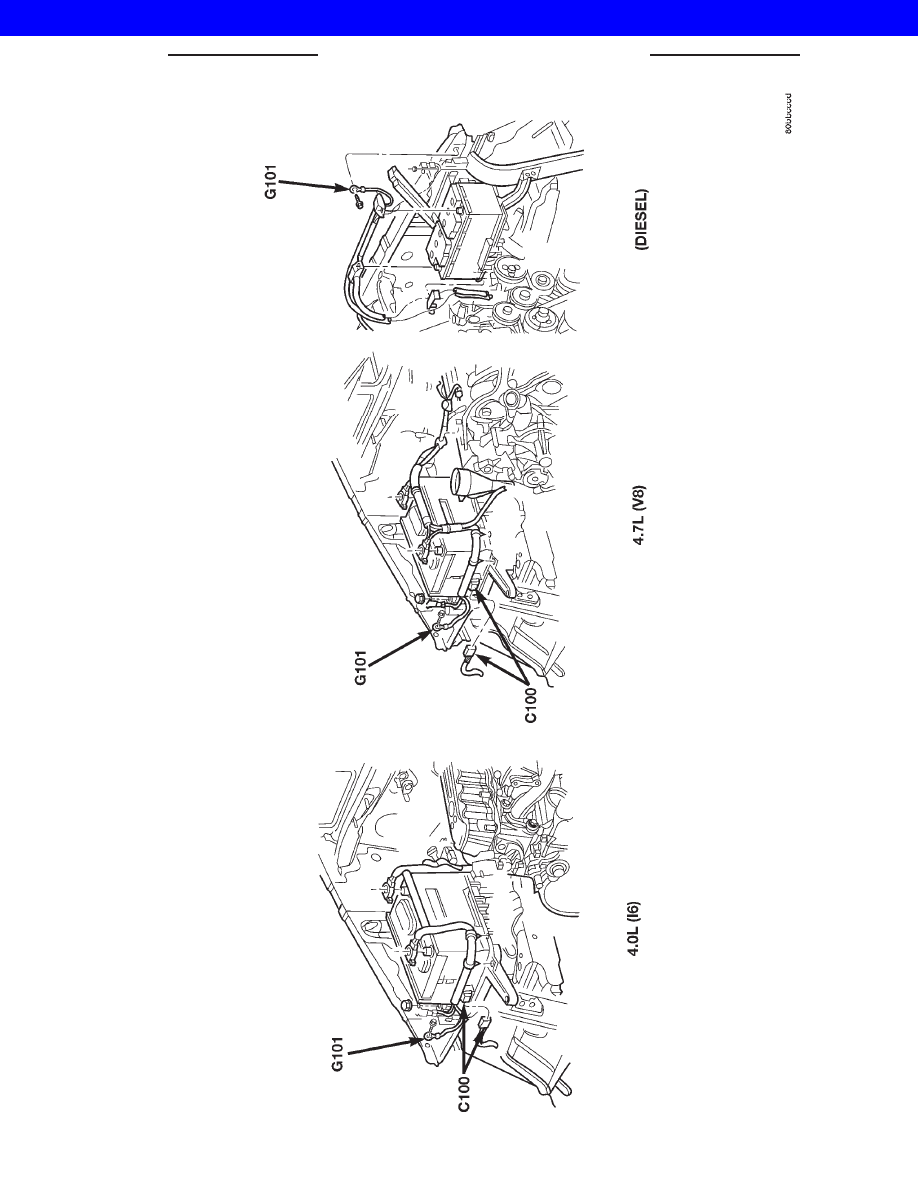

8Wa-90 CONNECTOR/GROUND LOCATIONS
8Wa - 90 - 9
CONNECTOR/GROUND LOCATIONS (Continued)
2001 JEEP GRAND CHEROKEE
