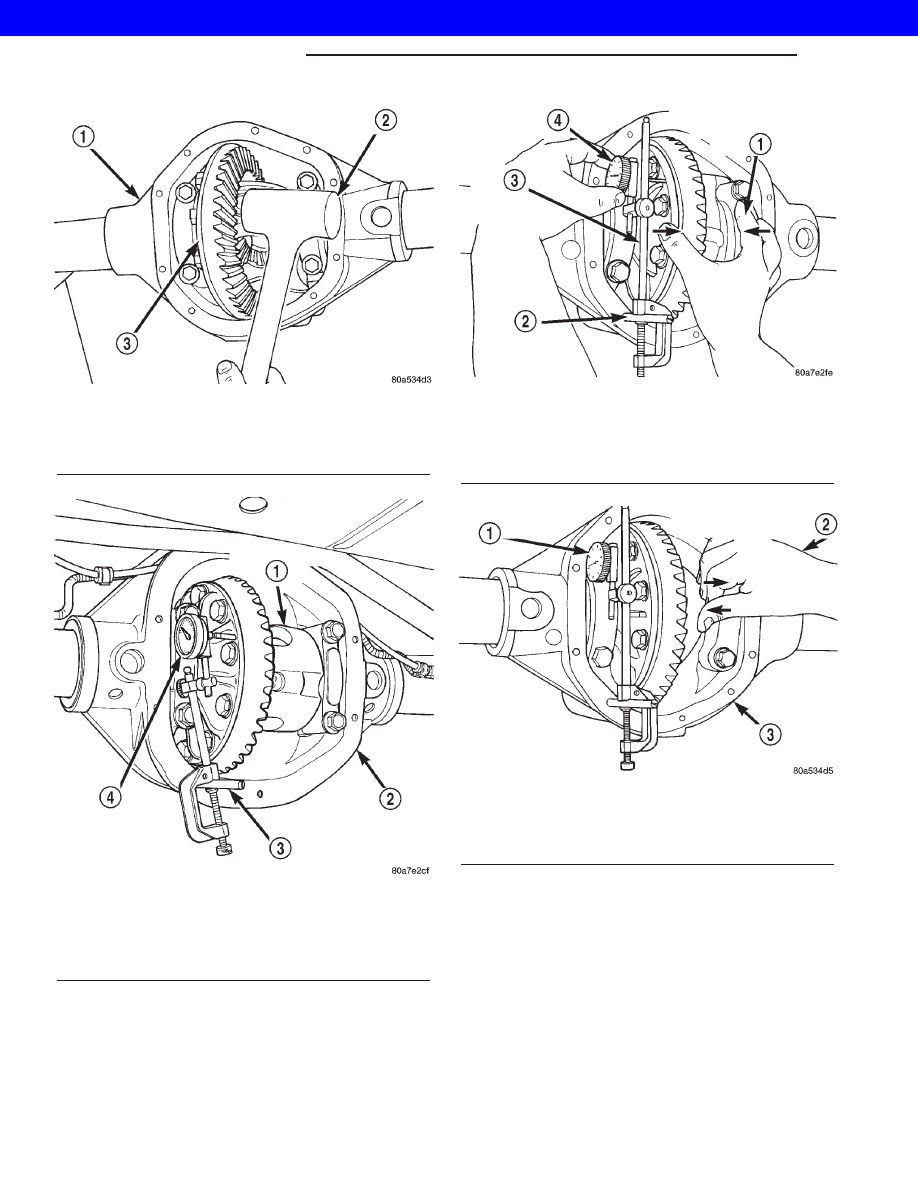

(5) Record the thickness of Dummy Shims 8107, then insert the shims between the dummy bearings (6) Install the bearing caps in the correct positions and snug the bolts (Fig. 9). (7) Using a dead-blow type hammer, seat the dif- ferential dummy bearings to each side of the housing (8) Thread Pilot Stud C-3288-B into rear cover bolt hole below ring gear (Fig. 12). (9) Attach the Dial Indicator C-3339 to pilot stud and position the indicator plunger on the flat surface Fig. 7 Adjustment Shim Locations 1 - PINION GEAR DEPTH SHIM/OIL BAFFLE Fig. 8 Dummy Shim Point 1 - DUMMY SHIM - 8107 Fig. 9 Tighten Bearing Cap Bolts 1 - BEARING CAP Fig. 10 Seat Dummy Bearing 1 - HAMMER WG REAR AXLE - 226RBA 3s - 45 REAR AXLE - 226RBA (Continued) 2001 JEEP GRAND CHEROKEE |
