Jeep Grand Cherokee WJ. Manual - part 709





(13) Remove

front

pinion

bearing

cup

with

Remover C-4345 and Handle C-4171 (Fig. 48).

(14) Remove rear bearing cup from housing (Fig.

49) with Remover D-149 and Handle C-4171.

(15) Remove collapsible preload spacer (Fig. 50).
(16) Remove rear bearing from the pinion with

Puller/Press C-293-PA and Adapters C-293-40 (Fig.
51).

(17) Remove depth shims from the pinion gear

shaft and record shim thickness.

INSTALLATION

NOTE: A pinion depth shim/oil slinger is placed
between the rear pinion bearing cone and the pin-
ion head to achieve proper ring gear and pinion
mesh. If ring gear and pinion are reused, the pinion
depth shim/oil slinger should not require replace-
ment. Refer to Adjustment (Pinion Gear Depth) to
select the proper thickness shim/oil slinger if ring
and pinion gears are replaced.

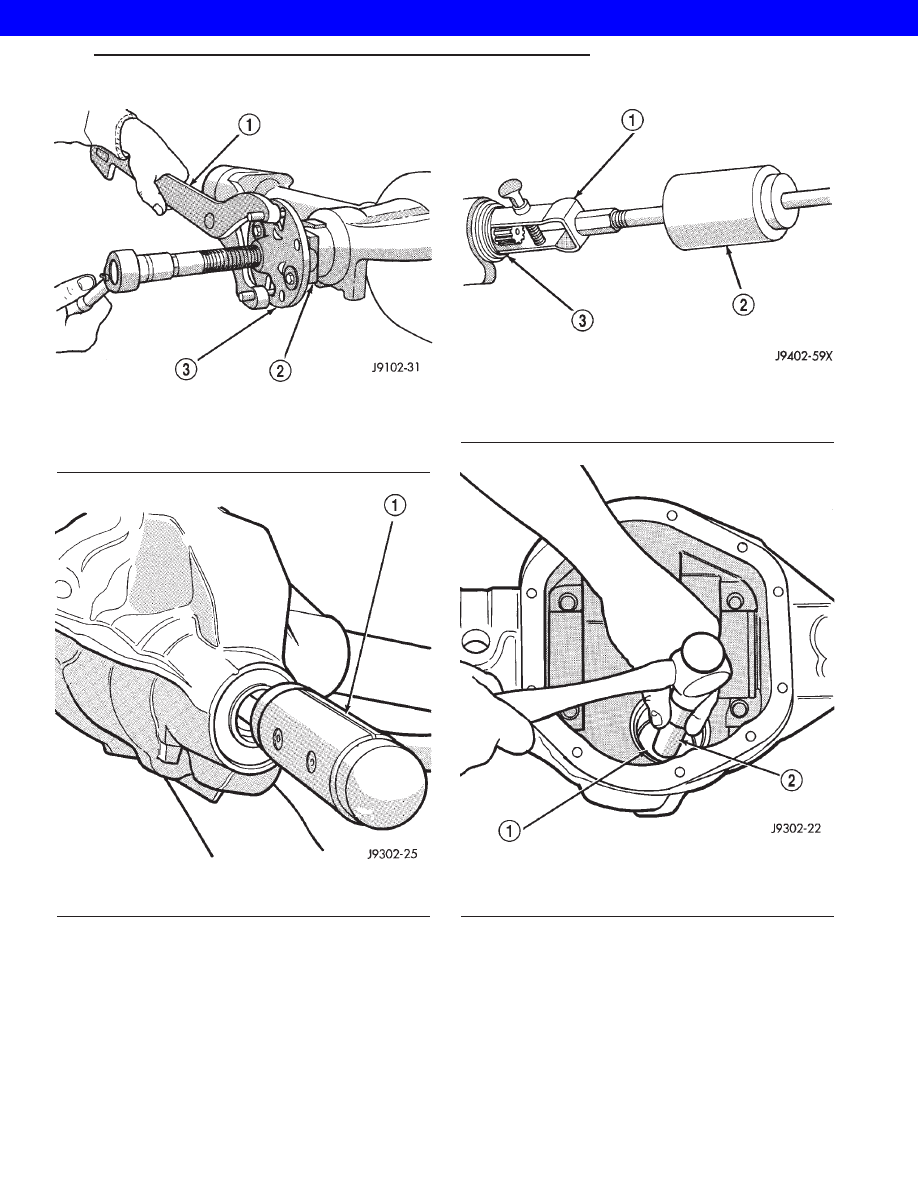

Fig. 45 Pinion Yoke

1 - WRENCH - C-3281
2 - YOKE
3 - REMOVER - C-452

Fig. 46 Pinion Gear

1 - RAWHIDE HAMMER

Fig. 47 Pinion Seal

1 - REMOVER - 7794-A
2 - SLIDE HAMMER
3 - PINION SEAL

Fig. 48 Front Bearing Cup

1 - REMOVER
2 - HANDLE

WG

REAR AXLE - 198RBI

3s - 37

PINION GEAR/RING GEAR (Continued)

2001 JEEP GRAND CHEROKEE

(1) Apply Mopar

t Door Ease or equivalent lubri-

cant to outside surface of bearing cup.

(2) Install pinion rear bearing cup with Installer

D-146 and Driver Handle C-4171 (Fig. 52) and verify
cup is seated.

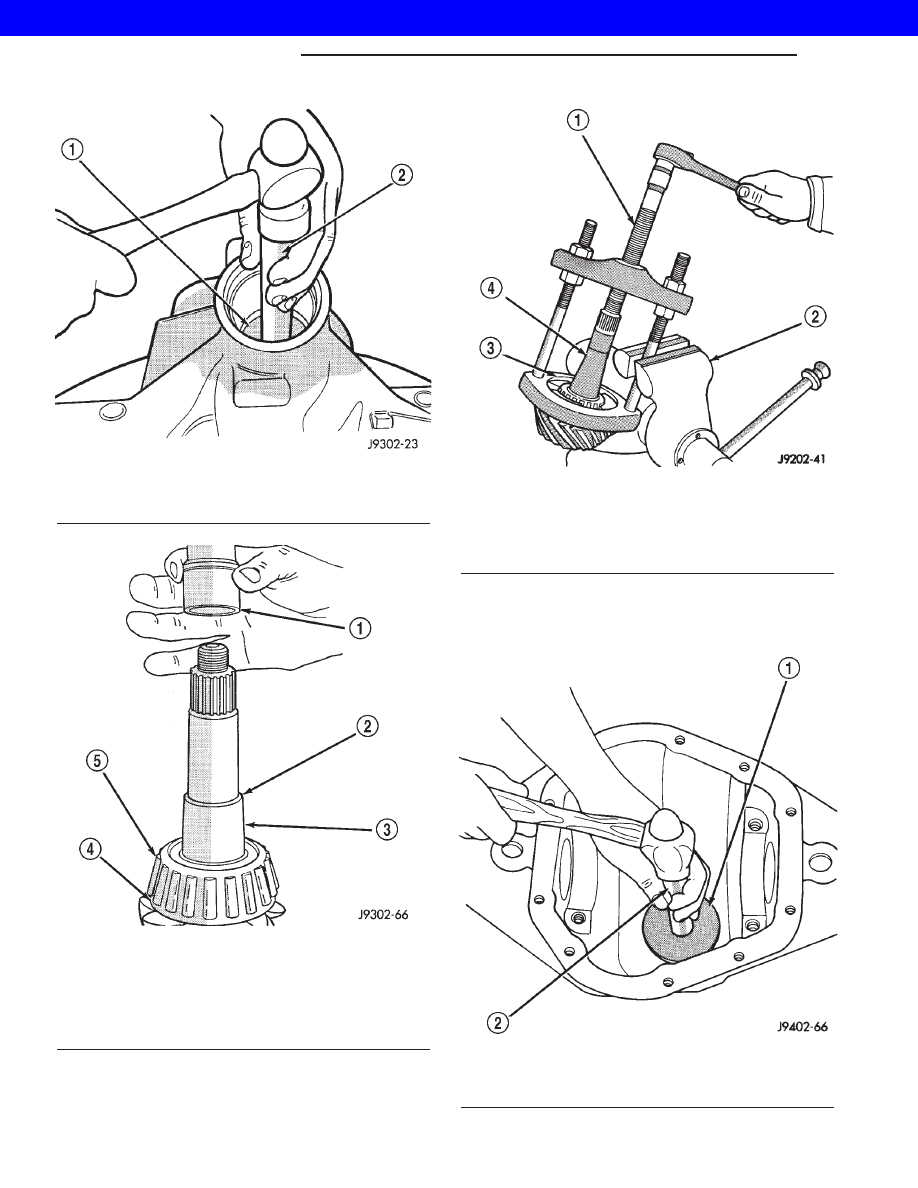

Fig. 49 Rear Bearing Cup

1 - REMOVER
2 - HANDLE

Fig. 50 Collapsible Spacer

1 - COLLAPSIBLE SPACER
2 - SHOULDER
3 - PINION GEAR
4 - OIL SLINGER
5 - REAR BEARING

Fig. 51 Rear Bearing

1 - PULLER
2 - VISE
3 - ADAPTERS
4 - PINION GEAR SHAFT

Fig. 52 Rear Pinion Bearing Cup

1 - INSTALLER
2 - HANDLE

3s - 38

REAR AXLE - 198RBI

WG

PINION GEAR/RING GEAR (Continued)

2001 JEEP GRAND CHEROKEE

(3) Apply Mopar

t Door Ease or equivalent lubri-

cant to outside surface of bearing cup.

(4) Install pinion front bearing cup with Installer

D-130 and Handle C-4171 (Fig. 53) and verify cup is
seated.

(5) Install pinion front bearing and oil slinger, if

equipped.

(6) Apply a light coating of gear lubricant on the

lip of pinion seal. Install seal with Installer C-3972-A
and Handle C-4171 (Fig. 54).

(7) Install depth shim on the pinion gear.
(8) Install rear bearing and slinger if equipped, on

the pinion gear with Installer W-262 and a press
(Fig. 55).

(9) Install a new collapsible preload spacer on pin-

ion shaft and install pinion gear in the housing (Fig.
56).

Fig. 53 Front Pinion Bearing Cup

1 - INSTALLER
2 - HANDLE

Fig. 54 Pinion Seal Installer

1 - HANDLE
2 - INSTALLER

Fig. 55 Rear Pinion Bearing

1 - PRESS
2 - INSTALLATION TOOL
3 - DRIVE PINION GEAR
4 - DRIVE PINION GEAR SHAFT REAR BEARING

Fig. 56 Collapsible Preload Spacer

1 - COLLAPSIBLE SPACER
2 - SHOULDER
3 - PINION GEAR
4 - OIL SLINGER
5 - REAR BEARING

WG

REAR AXLE - 198RBI

3s - 39

PINION GEAR/RING GEAR (Continued)

2001 JEEP GRAND CHEROKEE

(10) Install yoke with Installer C-3718 and Span-

ner Wrench 6958 (Fig. 57).

(11) Install the yoke washer and a new nut on the

pinion gear and tighten the pinion nut until there is
zero bearing end-play.

(12) Tighten the nut to 271 N·m (200 ft. lbs.).

CAUTION: Never loosen pinion gear nut to decrease
pinion gear bearing rotating torque and never
exceed specified preload torque. If preload torque
or rotating torque is exceeded a new collapsible
spacer must be installed.

(13) Using Spanner Wrench 6958 and a torque

wrench set at 474 N·m (350 ft. lbs.), (Fig. 58) slowly
tighten the nut in 6.8 N·m (5 ft. lbs.) increments
until the rotating torque is achieved. Measure the
rotating torque frequently to avoid over crushing the
collapsible spacer (Fig. 59).

NOTE: If more than 474 N·m (350 ft. lbs.) torque is
required to crush the collapsible spacer, the spacer
is defective and must be replaced.

(14) Check bearing rotating torque with a inch

pound torque wrench (Fig. 59). The pinion gear rotat-
ing torque should be:

• Original Bearings: 1 to 2.25 N·m (10 to 20 in.

lbs.).

• New Bearings: 1.7 to 3.4 N·m (15 to 30 in. lbs.).

Fig. 57 Pinion Yoke Installation

1 - PINION YOKE
2 - AXLE HOUSING

Fig. 58 Pinion Nut

1 - SPANNER WRENCH
2 - PIPE
3 - TORQUE WRENCH

Fig. 59 Pinion Gear Rotating Torque

1 - PINION YOKE
2 - TORQUE WRENCH

3s - 40

REAR AXLE - 198RBI

WG

PINION GEAR/RING GEAR (Continued)

2001 JEEP GRAND CHEROKEE
