Jeep Grand Cherokee WJ. Manual - part 575





(2) Remove the cover from the Power Distribution

Center (PDC) (Fig. 35).

(3) Refer to the label on the PDC for compressor

clutch relay identification and location.

(4) Unplug the compressor clutch relay from the

PDC.

(5) Install the compressor clutch relay by aligning

the relay terminals with the cavities in the PDC and
pushing the relay firmly into place.

(6) Install the PDC cover.
(7) Connect the battery negative cable.
(8) Test the relay operation.

CONDENSER

WARNING: REVIEW THE WARNINGS AND CAU-
TIONS IN THE FRONT OF THIS GROUP BEFORE
PERFORMING THE FOLLOWING OPERATION.

CAUTION: Before removing the condenser, note the
location of each of the radiator and condenser air
seals. These seals are used to direct air through the
condenser and radiator. The air seals must be rein-
stalled in their proper locations in order for the air
conditioning and engine cooling systems to per-
form as designed (Fig. 36).

REMOVAL

(1) Disconnect and isolate the battery negative

cable.

(2) Recover the refrigerant from the refrigerant

system. See Refrigerant Recovery in this group for
the procedures.

(3) Remove the screws attaching the grille and

headlamp mounting module to the upper crossmem-
ber of the vehicle. Refer to Group 23 - Body for this
and further steps in the procedure.

(4) Remove the headlamps from their mounts.
(5) Remove the nuts that secure the hood latch

and brace to the upper crossmember.

(6) The

radiator

upper

crossmember

can

be

adjusted left or right through the use of its slotted
mounting holes. Before removal, mark the original
position of the crossmember.

(7) Remove the bolts that secure the radiator to

the upper crossmember and set it aside (Fig. 37).

(8) Remove the engine air filter inlet duct secured

at the headlamp mounting module.

(9) Remove the headlamp mounting module and

front fascia for access to the condenser and fittings.

(10) Disconnect the discharge line and liquid line

refrigerant line fittings from the condenser. See
Refrigerant Line Coupler in this group for the proce-
dures. Install plugs in, or tape over all of the opened
refrigerant line fittings.

(11) Remove the bolts that secure the upper con-

denser and transmission cooler.

(12) Carefully lift the condenser out of the vehicle.

INSTALLATION

For installation, reverse the above procedures.
• Carefully position the condenser in the vehicle.

• Remove the tape or plugs from the refrigerant

line fittings on the discharge line, liquid line and the
condenser. Connect both of the refrigerant line cou-
plers to the condenser. See Refrigerant Line Coupler
in this group for the procedures.

• Evacuate and charge the refrigerant system. See

Refrigerant System Evacuate and Charge procedures
in this group.

NOTE: If the condenser is replaced, add 30 millili-
ters (1 fluid ounce) of refrigerant oil to the refriger-
ant system. Use only refrigerant oil of the type
recommended for the compressor in the vehicle.

DISCHARGE LINE

Any kinks or sharp bends in the refrigerant plumb-

ing will reduce the capacity of the entire air condi-
tioning system. Kinks and sharp bends reduce the
flow of refrigerant in the system. A good rule for the
flexible hose refrigerant lines is to keep the radius of
all bends at least ten times the diameter of the hose.
In addition, the flexible hose refrigerant lines should
be routed so they are at least 80 millimeters (3
inches) from the exhaust manifold.

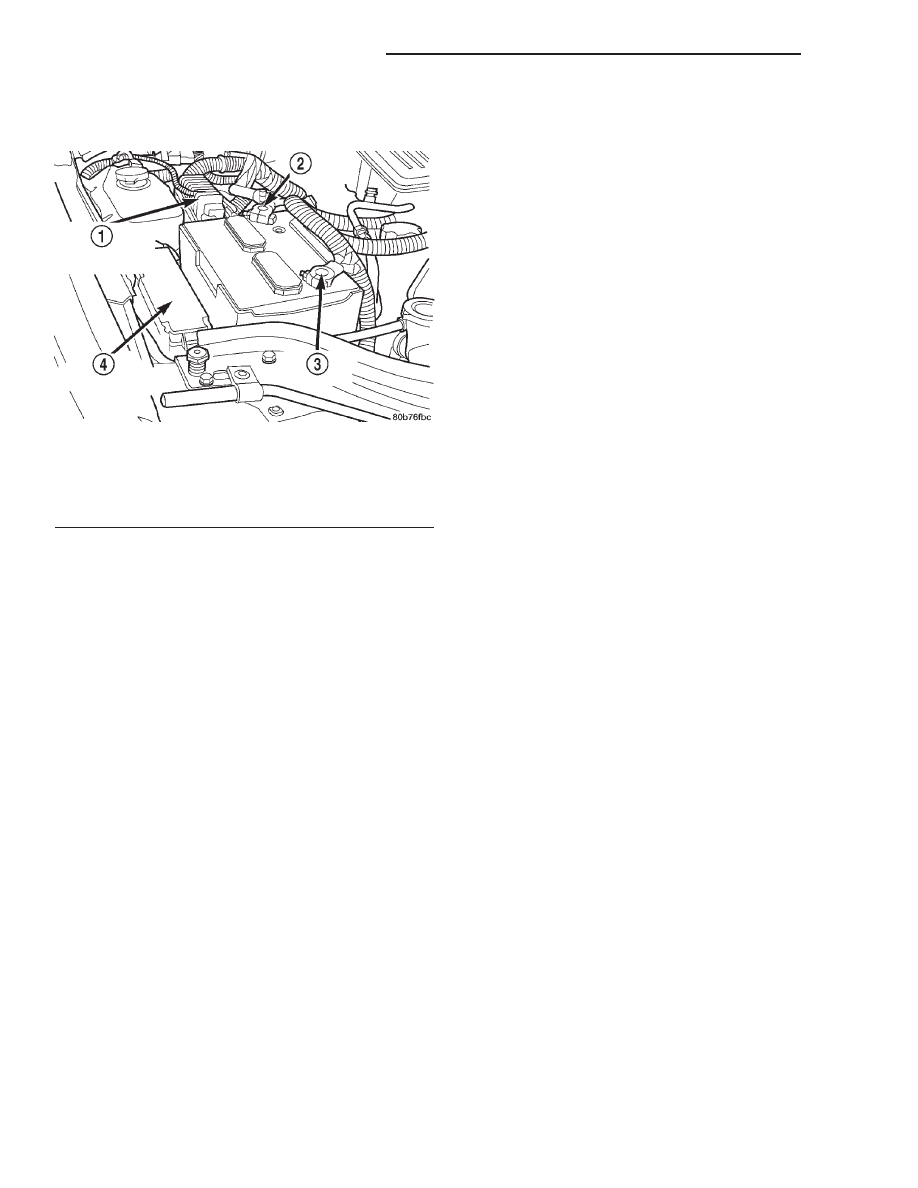

Fig. 35 Power Distribution Center (PDC)

1 – TRANSMISSION CONTROL MODULE (TCM)
2 – NEGATIVE CABLE
3 – POSITIVE CABLE
4 – POWER DISTRIBUTION CENTER (PDC)

24 - 42

HEATING AND AIR CONDITIONING

WJ

REMOVAL AND INSTALLATION (Continued)

High pressures are produced in the refrigerant sys-

tem when the air conditioning compressor is operat-
ing. Extreme care must be exercised to make sure
that each of the refrigerant system connections is
pressure-tight and leak free. It is a good practice to
inspect all flexible hose refrigerant lines at least once
a year to make sure they are in good condition and
properly routed.

WARNING: REVIEW THE WARNINGS AND CAU-
TIONS IN THE FRONT OF THIS GROUP BEFORE
PERFORMING THE FOLLOWING OPERATION.

REMOVAL

(1) Disconnect and isolate the battery negative

cable.

(2) Recover the refrigerant from the refrigerant

system. See Refrigerant Recovery in this group for
the procedures.

(3) Remove the high pressure cut-off switch. See

High Pressure Cut-Off Switch in this group for the
procedures.

(4) Disconnect the discharge line refrigerant line

fitting from the condenser inlet tube. Install plugs in,
or tape over all of the opened refrigerant line fittings.

(5) Remove the screw that secures the discharge

line block fitting to the manifold on the compressor.
Install plugs in, or tape over all of the opened refrig-
erant line fittings.

(6) Remove the discharge line assembly from the

vehicle.

INSTALLATION

(1) Remove the tape or plugs from the discharge

line block fitting and the manifold on the compressor.
Install the discharge line block fitting to the manifold
on the compressor. Tighten the mounting screw to
25.4 N·m (225 in. lbs.).

Fig. 36 Air Seals - Typical

1 – SEALS (BETWEEN A/C CONDENSER AND RADIATOR)
2 – RADIATOR TO BODY SEAL (RIGHT)
3 – UPPER SEALS (BETWEEN RADIATOR AND UPPER

CROSSMEMBER)

4 – RADIATOR

5 – ALIGNMENT DOWELS (2)
6 – RADIATOR TO BODY SEAL (LEFT)
7 – LOWER SEAL
8 – A/C CONDENSER

WJ

HEATING AND AIR CONDITIONING

24 - 43

REMOVAL AND INSTALLATION (Continued)

(2) Remove the tape or plugs from the refrigerant

line fittings on the discharge line and the condenser
inlet tube. Connect the discharge line refrigerant line
coupler to the condenser inlet tube.

(3) Install the high pressure cut-off switch. See

High Pressure Cut-Off Switch in this group for the
procedures.

(4) Connect the battery negative cable.
(5) Evacuate the refrigerant system. See Refriger-

ant System Evacuate in this group for the proce-
dures.

(6) Charge the refrigerant system. See Refrigerant

System Charge in this group for the procedures.

DUCTS AND OUTLETS

DEFROSTER DUCT

(1) Remove the instrument panel assembly from

the vehicle. See Instrument Panel Assembly in Group
8E - Instrument Panel Systems for the procedures.

(2) Remove the three screws that secure the

defroster duct to the HVAC unit housing (Fig. 38).

(3) Remove the defroster duct from the HVAC unit

housing.

(4) Reverse the removal procedures to install.

Tighten the mounting screws to 2.2 N·m (20 in. lbs.).

INSTRUMENT PANEL DUCT EXTENSIONS

(1) Remove the instrument panel top pad from the

vehicle. See Instrument Panel Assembly in Group 8E
- Instrument Panel Systems for the procedure.

(2) Unsnap the duct extension(s) from the instru-

ment panel structural duct assembly (Fig. 39).

(3) Remove the duct extension(s) from the instru-

ment panel (Fig. 40).

(4) Reverse the removal procedures to install.

FLOOR DUCTS

(1) To remove the driver side floor duct from the

vehicle, remove the knee blocker panel for access to
attaching screw. See Instrument Panel Assembly in
Group 8E - Instrument Panel Systems for the proce-
dures.

(2) The passenger side floor duct fastener can be

accessed under the right-center instrument panel.

(3) Remove the screw that secures the floor duct(s)

to the HVAC housing (Fig. 41).

Fig. 37 Condenser Mounting - Typical

1 – CONDENSER-TO-RADIATOR MOUNTING BRACKETS (2)
2 – UPPER CROSSMEMBER
3 – FAN SHROUD
4 – ALIGNMENT TABS
5 – RADIATOR
6 – ALIGNMENT DOWELS (2)
7 – RUBBER ISOLATORS (2)
8 – RUBBER GROMMETS (2)
9 – LOWER CROSSMEMBER
10 – CONDENSER

Fig. 38 HVAC Defroster Duct

1 – HVAC UNIT HOUSING
2 – INSTRUMENT PANEL
3 – SCREWS
4 – DEFROSTER DUCT

24 - 44

HEATING AND AIR CONDITIONING

WJ

REMOVAL AND INSTALLATION (Continued)

(4) Reverse the removal procedures to install.

Tighten the mounting screws to 2.2 N·m (20 in. lbs.).

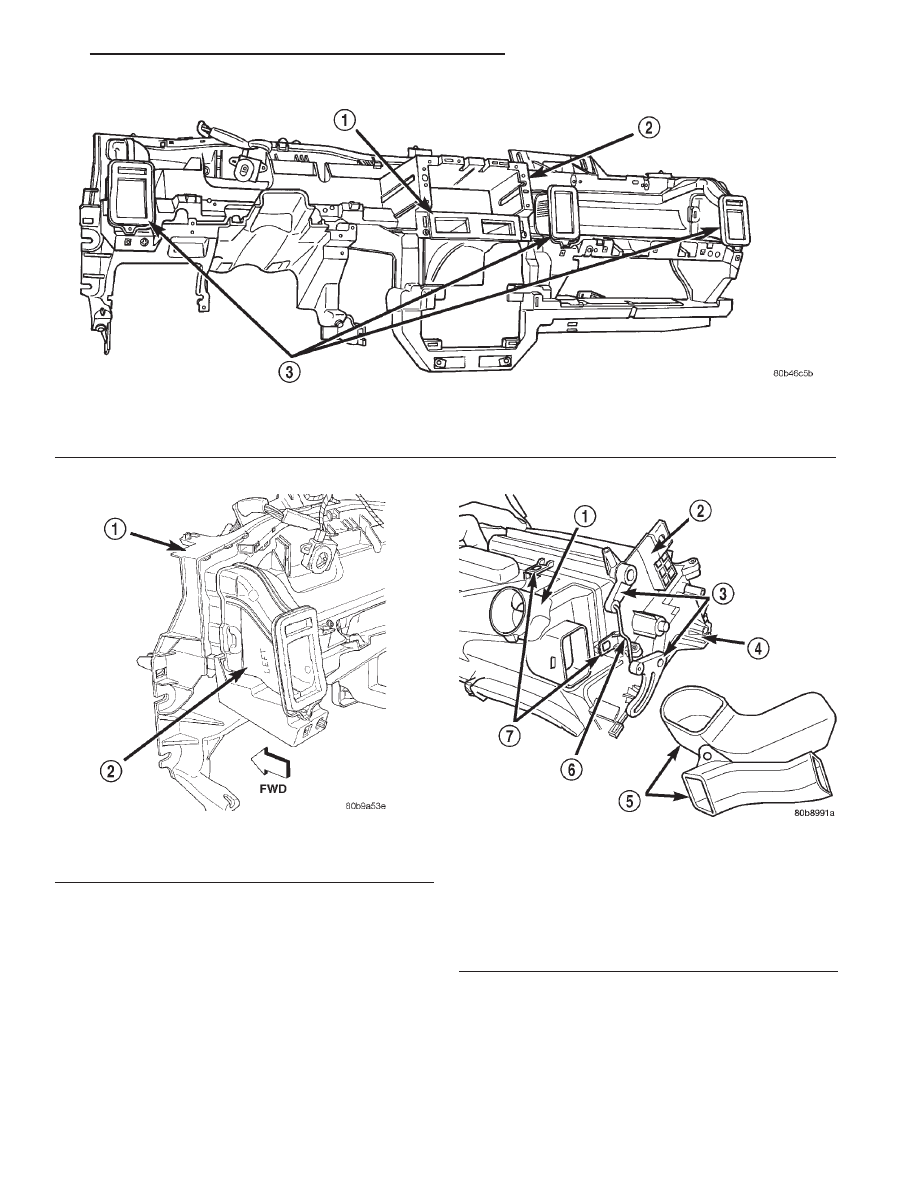

Fig. 39 Instrument Panel Structural Duct Assembly

1 – CENTER DUCT
2 – INSTRUMENT PANEL STRUCTURAL DUCT ASSEMBLY

3 – PANEL DUCT EXTENSIONS

Fig. 40 Instrument Panel Duct Extension

1 – INSTRUMENT PANEL STRUCTURAL DUCT ASSEMBLY
2 – PANEL DUCT EXTENSION

Fig. 41 Floor Ducts (Housing Removed)

1 – FLOOR DUCT ADAPTER
2 – HEAT/DEFROST DOOR SUB-ASSEMBLY
3 – DOOR LEVERS
4 – LOWER HOUSING
5 – FLOOR DUCTS
6 – LINKAGE
7 – RETAINING TABS

WJ

HEATING AND AIR CONDITIONING

24 - 45

REMOVAL AND INSTALLATION (Continued)
