(4) If equipped, disconnect harness connectors for

power accessories.

(5) Disconnect latch rods from inside handle actua-

tor.

(6) Separate trim panel from vehicle.

INSTALLATION

(1) Connect latch rods to inside handle actuator.
(2) If equipped, connect harness connectors to

power accessories.

(3) Position trim panel on door inner panel.
(4) Press trim panel push-in fasteners inward

around perimeter of door.

(5) Install screws attaching trim panel to door.

REAR DOOR WATERDAM

REMOVAL

(1) Remove door trim panel.
(2) Peel the waterdam from door.
(3) Route all harnesses and linkage rods through

waterdam as necessary.

(4) Separate waterdam from door (Fig. 36).

INSTALLATION

(1) Waterdam contact surface must be free of con-

taminants. Clean as necessary.

(2) Route all harnesses and linkage rods through

waterdam as necessary.

(3) Position waterdam on door and align all holes.
(4) Press waterdam on door.
(5) Install door trim panel.

REAR DOOR CHECK

REMOVAL

(1) Remove trim panel.
(2) Remove waterdam.
(3) Remove speaker.
(4) Remove screws attaching door check to B-pillar.
(5) Remove nuts attaching door check to door (Fig.

37).

(6) Remove door check through speaker location

hole.

INSTALLATION

(1) Position door check on door through speaker

location hole.

(2) Install nuts attaching door check to door.
(3) Install screws attaching door check to B-pillar.
(4) Install speaker.
(5) Install waterdam.

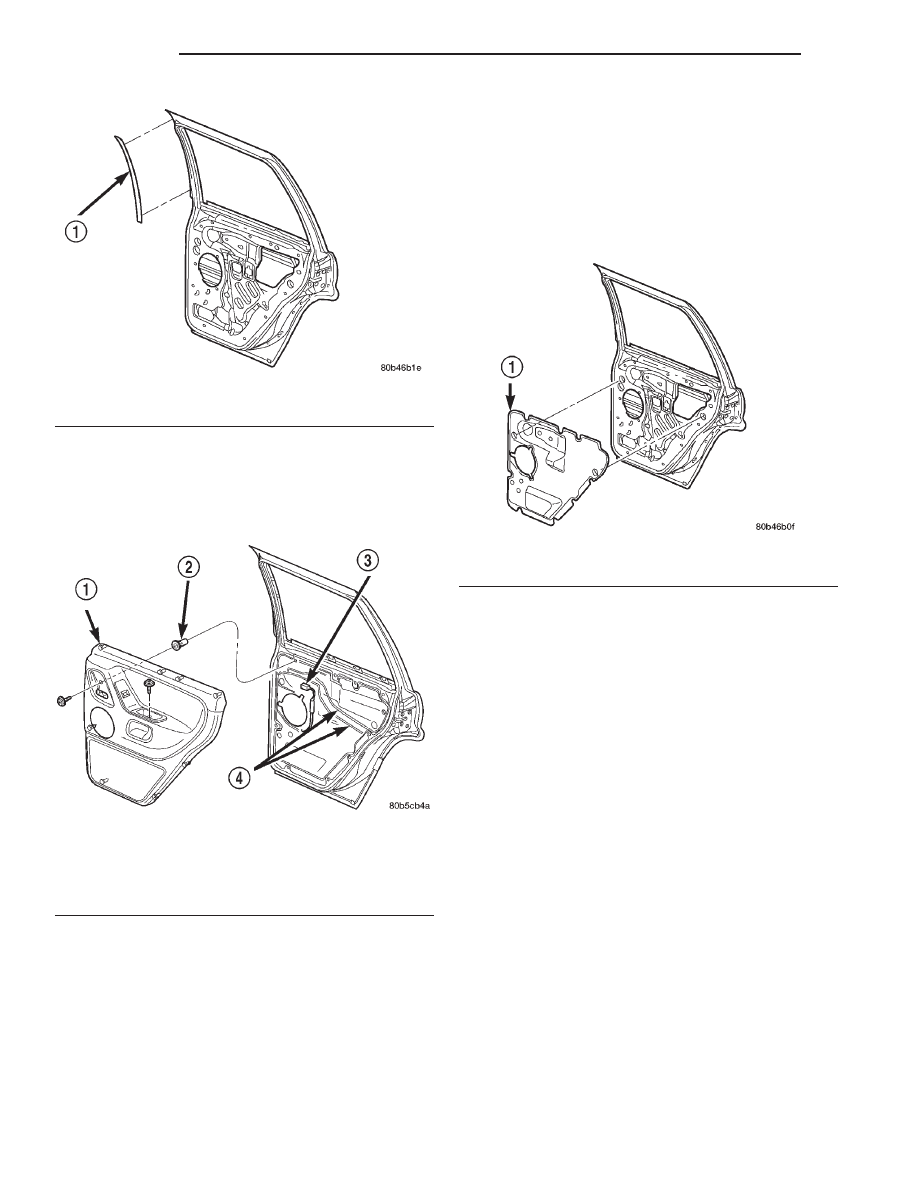

Fig. 34 B-Pillar Seal

1 – B-PILLAR SEAL

Fig. 35 Rear Door Trim Panel

1 – TRIM PANEL
2 – NUTSERT
3 – HARNESS CONNECTOR
4 – LATCH RODS

Fig. 36 Rear Door Waterdam

1 – INSULATOR PAD

23 - 42

BODY

WJ

REMOVAL AND INSTALLATION (Continued)

(6) Install trim panel.

REAR DOOR

REMOVAL

(1) Disconnect rear door harness connector (Fig.

38).

(2) Support door with padded floor jack.
(3) Remove retaining clips from hinge pins.
(4) Tap out hinge pins.
(5) Separate door from vehicle.

INSTALLATION

(1) Position door at vehicle and align hinges.
(2) Install hinge pins.
(3) Install retaining clips for hinge pins.
(4) Connect rear door harness connector.

REAR DOOR HINGE

REMOVAL

(1) Open front door and rear door.
(2) Reference mark hinges for installation (Fig.

39).

(3) Support rear door for removal of hinges.
(4) Remove B pillar trim.
(5) Remove nuts holding door to hinge.
(6) Remove door.
(7) Remove bolts holding hinge to B pillar.

INSTALLATION

(1) Install hinge on B pillar and align reference

marks.

(2) Install bolts holding hinge to B pillar. Tighten

bolts to 35N·m (23 ft. lbs.).

(3) Install door on hinge and align reference

marks. Install bolts and tighten to 35N·m (26 ft.
lbs.).

(4) Check door for fit and ease of operation. Adjust

as necessary. See adjustment section.

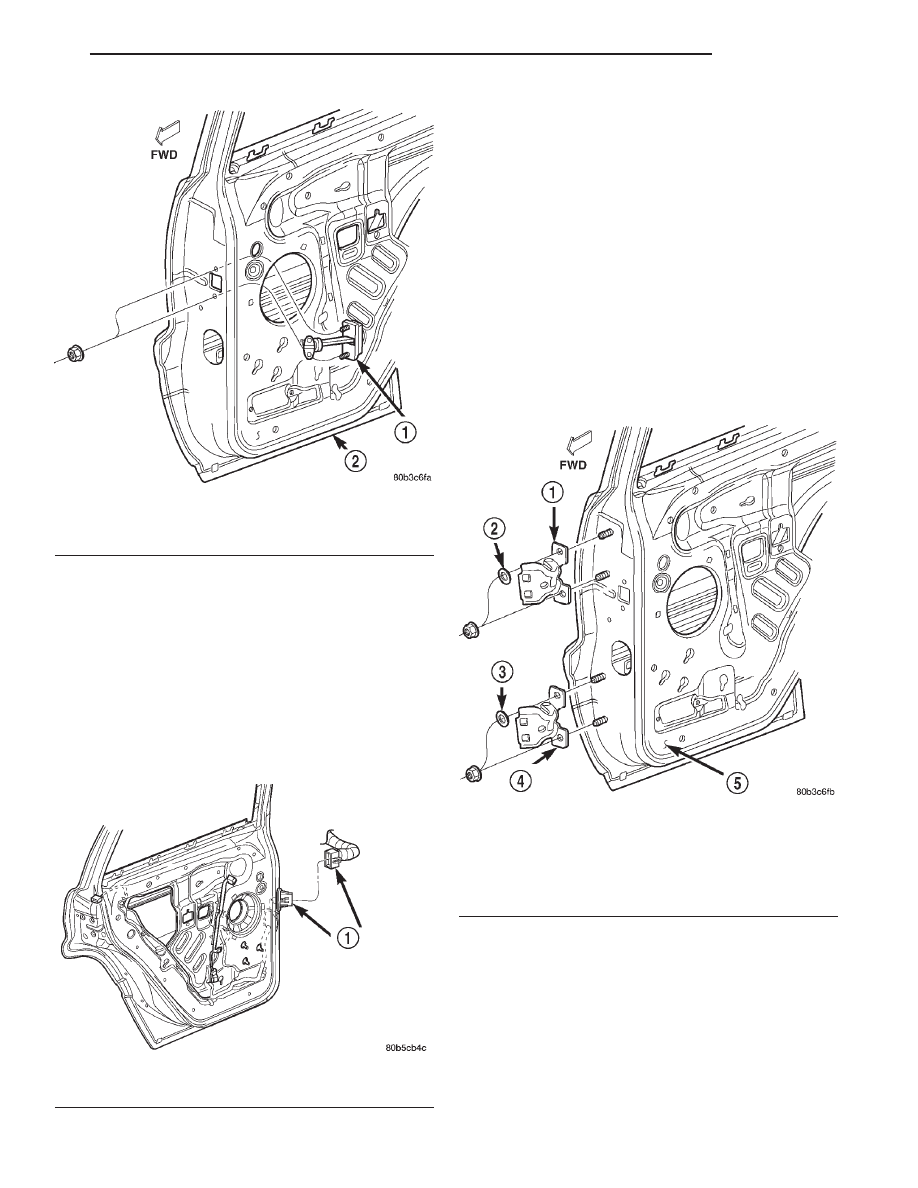

Fig. 37 Door Check

1 – DOOR CHECK
2 – REAR DOOR

Fig. 38 Rear Door Harness Connector

1 – HARNESS CONNECTOR

Fig. 39 Rear Door Hinge

1 – UPPER HINGE
2 – WASHER
3 – WASHER
4 – LOWER HINGE
5 – REAR DOOR

WJ

BODY

23 - 43

REMOVAL AND INSTALLATION (Continued)

(5) Install B pillar trim.

REAR DOOR OUTSIDE HANDLE

REMOVAL

(1) Remove door trim panel and waterdam.
(2) Locate glass to full up position.
(3) Disconnect lock knob to latch rod.
(4) Disconnect outside handle to latch rod.
(5) Remove fasteners attaching outside handle to

door (Fig. 40).

(6) Remove outside handle from door.
(7) Separate outside handle from vehicle.

INSTALLATION

(1) Position outside handle at door.
(2) Position outside handle in door.
(3) Install fasteners attaching outside handle to

door.

(4) Connect outside handle to latch rod.
(5) Connect lock knob to latch rod.
(6) Locate glass to full down position.
(7) Install waterdam and door trim panel.

REAR DOOR LATCH

REMOVAL

(1) Remove door trim panel and waterdam.
(2) Remove screws attaching latch to door (Fig.

41).

(3) Disconnect rods from door latch.

(4) Separate door latch from door.

INSTALLATION

(1) position latch in door.
(2) Connect rods to door latch.
(3) Install screws attaching latch to door. Tighten

screws to 10 N·m (95 in. lbs.) torque.

(4) Install waterdam and door trim panel.

REAR DOOR LATCH STRIKER

REMOVAL

(1) Open door.
(2) Remove screws attaching striker to C-pillar

(Fig. 42).

(3) Separate striker and spacer from vehicle.

INSTALLATION

(1) Position striker and spacer on C-pillar.
(2) Install screws. Tighten to 28 N·m (250 in. lbs.)

torque.

REAR DOOR INSIDE HANDLE ACTUATOR

REMOVAL

(1) Remove door trim panel.
(2) Disconnect latch and lock rods from inside han-

dle actuator.

(3) Remove screws attaching inside handle actua-

tor to trim panel (Fig. 43).

Fig. 40 Front Door Outside Handle

1 – DOOR
2 – OUTSIDE HANDLE

Fig. 41 Rear Door Latch

1 – DOOR
2 – LATCH
3 – OUTSIDE HANDLE

23 - 44

BODY

WJ

REMOVAL AND INSTALLATION (Continued)

(4) Separate inside handle actuator from trim

panel.

INSTALLATION

(1) Position inside handle actuator in trim panel.
(2) Install screws attaching inside handle actuator

to trim panel.

(3) Connect latch and lock rods to inside handle

actuator.

(4) Install door trim panel.

REAR DOOR INNER BELT WEATHERSTRIP

REMOVAL

(1) Remove door trim panel.
(2) Using a trim stick, carefully pry rear inner

edge of inner belt weatherstrip upward.

(3) Grasp weatherstrip and pull upward to sepa-

rate from door flange (Fig. 44).

INSTALLATION

(1) Position weatherstrip on door flange.
(2) Firmly press downward to seat weatherstrip on

flange.

(3) Install trim panel.

REAR DOOR OUTER BELT WEATHERSTRIP

REMOVAL

(1) Remove trim panel.
(2) Using a small flat blade, disengage tangs

attaching outer belt weatherstrip to inner door panel.

(3) Lift weatherstrip upward and separate from

door (Fig. 44).

INSTALLATION

(1) Position the weatherstrip onto the door flange.
(2) Force the weatherstrip onto door flange and

engage tangs. Continue rearward until it is seated on
flange.

(3) Instal trim panel.

REAR DOOR OPENING WEATHERSTRIP

REMOVAL

(1) Remove C-pillar trim.
(2) Remove B-pillar upper trim.

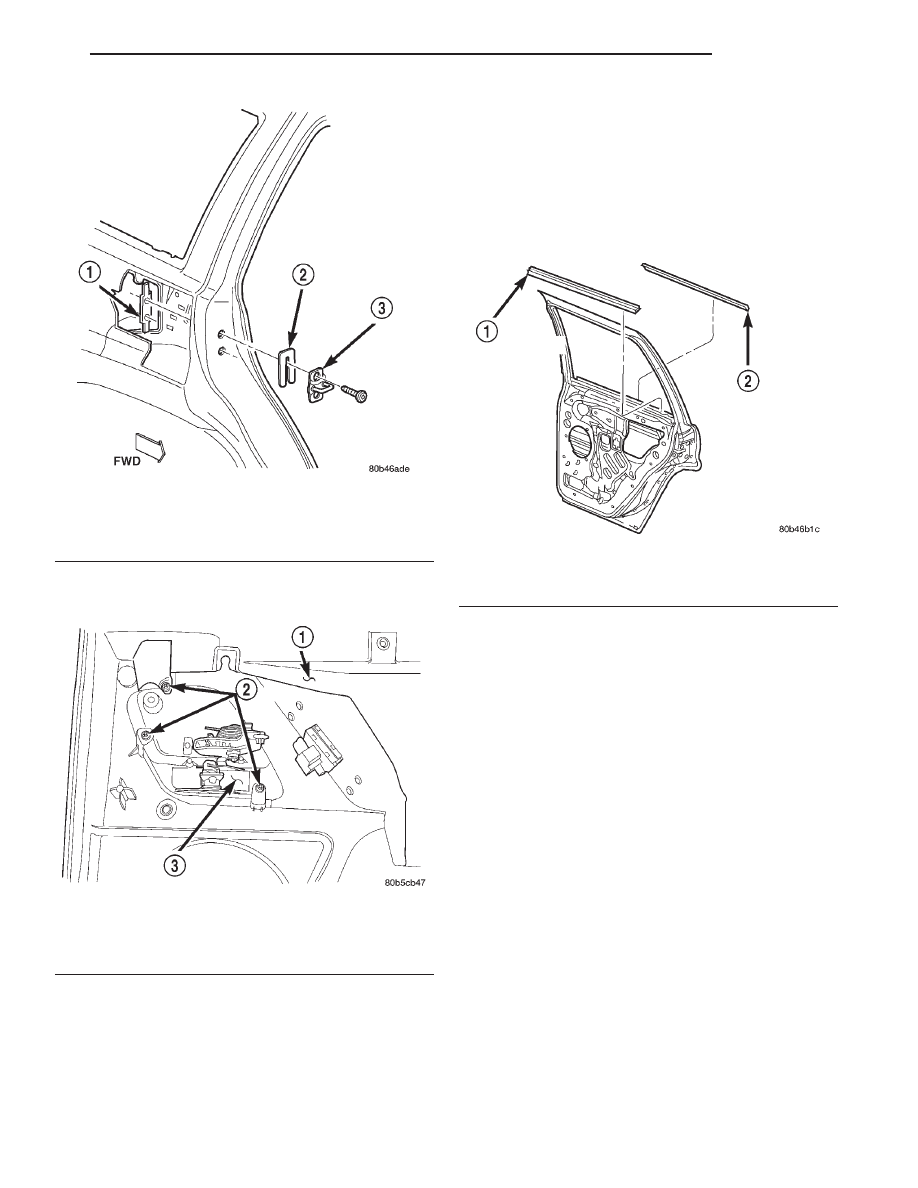

Fig. 42 Rear Door Latch Striker

1 – TAPPING PLATE
2 – SPACER
3 – STRIKER

Fig. 43 Rear Door Inside Handle Actuator

1 – REAR DOOR TRIM PANEL
2 – SCREW
3 – INSIDE HANDLE ACTUATOR

Fig. 44 Rear Door Inner/Outer Belt Weatherstrip

1 – INNER BELT WEATHERSTRIP
2 – OUTER BELT WEATHERSTRIP

WJ

BODY

23 - 45

REMOVAL AND INSTALLATION (Continued)
