Jeep Grand Cherokee WJ. Manual - part 522





Installer—C-3995-A

Universal Handle—C-4171

Seal Installer—C-4193-A

Dial Caliper—C-4962

Bushing Remover/Installer Set—C-3887-J

Nut, Bushing Remover—SP-1191, From kit C-3887-J

Cup, Bushing Remover—SP-3633, From kit C-3887-J

Remover, Bushing—SP-3551

Installer, Bushing—SP-5117

21 - 138

TRANSMISSION AND TRANSFER CASE

WJ

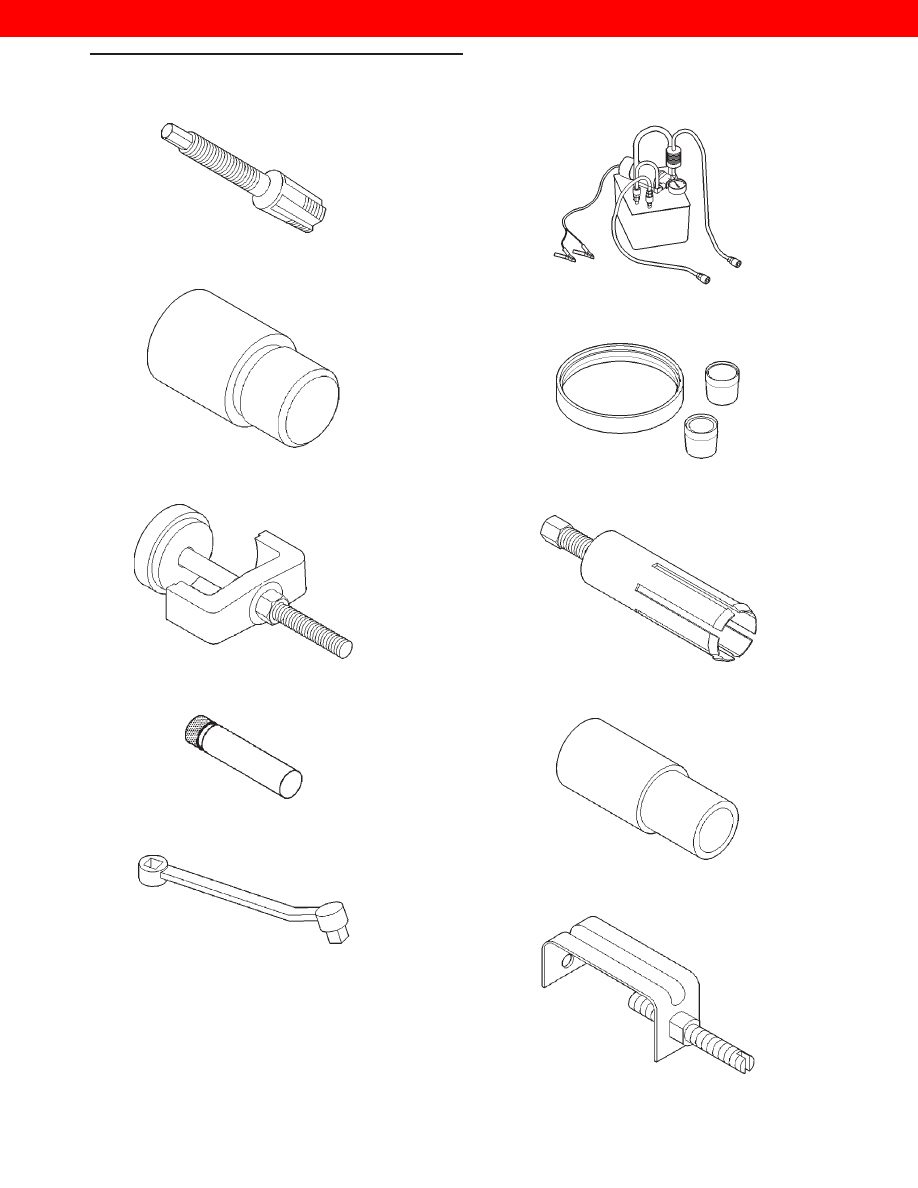

SPECIAL TOOLS (Continued)

2000 JEEP GRAND CHEROKEE

Remover, Bushing—SP-5324

Installer, Bushing—SP-5325

Compressor, Spring—C-3575-A

Gauge—6312

Adapter—C-3705

Flusher—6906

Installer—8114

Remover—6957

Installer—6951

Retainer—6583

WJ

TRANSMISSION AND TRANSFER CASE

21 - 139

SPECIAL TOOLS (Continued)

2000 JEEP GRAND CHEROKEE

NV247 TRANSFER CASE

TABLE OF CONTENTS

page

page

DESCRIPTION AND OPERATION

NV247 TRANSFER CASE. . . . . . . . . . . . . . . . . . 140

REMOVAL AND INSTALLATION

TRANSFER CASE . . . . . . . . . . . . . . . . . . . . . . . 140

DESCRIPTION AND OPERATION

NV247 TRANSFER CASE

The NV247 transfer case is used with the 3.1L

turbo diesel engine. Refer to Group 21, Transmission
/ Transfer Case of the gasoline engine manual for
additional information.

REMOVAL AND INSTALLATION

TRANSFER CASE

REMOVAL

(1) Open the hood and disconnect the negative bat-

tery cable.

(2) Remove the (2) upper fan shroud retaining

bolts.

(3) Raise the vehicle on a hoist.
(4) Remove the (2) lower fan shroud retaining

bolts.

CAUTION: Mark the position of the driveshaft in
relation to its companion flange prior to disassem-
bly. Driveshaft must be reinstalled in the same posi-
tion it was in prior to disassembly.

(5) Remove the front driveshaft retaining bolts

(Fig. 2) and remove the driveshaft from the transfer

case companion flange. Support the driveshaft with
mechanics wire.

(6) Remove the rear driveshaft retaining bolts and

remove the driveshaft from the transfer case compan-
ion flange. Support the driveshaft with mechanics
wire (Fig. 3).

(7) Disconnect the transfer case shift cable from

the shifter arm (Fig. 4).

(8) Disconnect the vent tube from the transfer case

(Fig. 4).

(9) Remove the transmission oil pan and drain the

transmission fluid. Reinstall the transmission oil
pan.

(10) Position a jack under the transmission sup-

port crossmember and support the transmission and
transfer case assembly.

(11) Remove the (8) transmission support cross-

member retaining bolts (Fig. 5).

Fig. 1 NV247 Transfer Case

Fig. 2 Front Driveshaft Retaining Bolts

1 – TRANSFER CASE
2 – FRONT DRIVESHAFT RETAINING BOLTS
3 – REFERENCE MARK

21 - 140

TRANSMISSION AND TRANSFER CASE

WJ

2000 JEEP GRAND CHEROKEE

(12) Position a transmission jack under the trans-

fer case.

(13) Lower the transmission assembly enough to

gain access and remove the transfer case to trans-
mission retaining nuts.

(14) Remove the transfer case from the vehicle.

INSTALLATION

NOTE: If a replacement transfer case is being
installed, be certain the counter weight is installed
on the transfer case housing prior to installation.

(1) Install the transfer case on the transmission.

Torque the transfer case retaining nuts to 75 N·m (55
ft. lbs.) (Fig. 6).

(2) Install the vent tube on the transfer case (Fig.

6).

(3) Connect the transfer case shift cable on the

shifter arm (Fig. 6).

(4) Using the jack, raise the transmission assem-

bly into position and install the (8) transmission sup-
port crossmember retaining bolts (Fig. 7). Torque the
bolts to 41 N·m (30 ft. lbs.).

(5) Install the rear driveshaft. Torque the bolts to

32 N·m (24 ft. lbs.). Be certain to install the drive-
shaft in the same position as before removal.

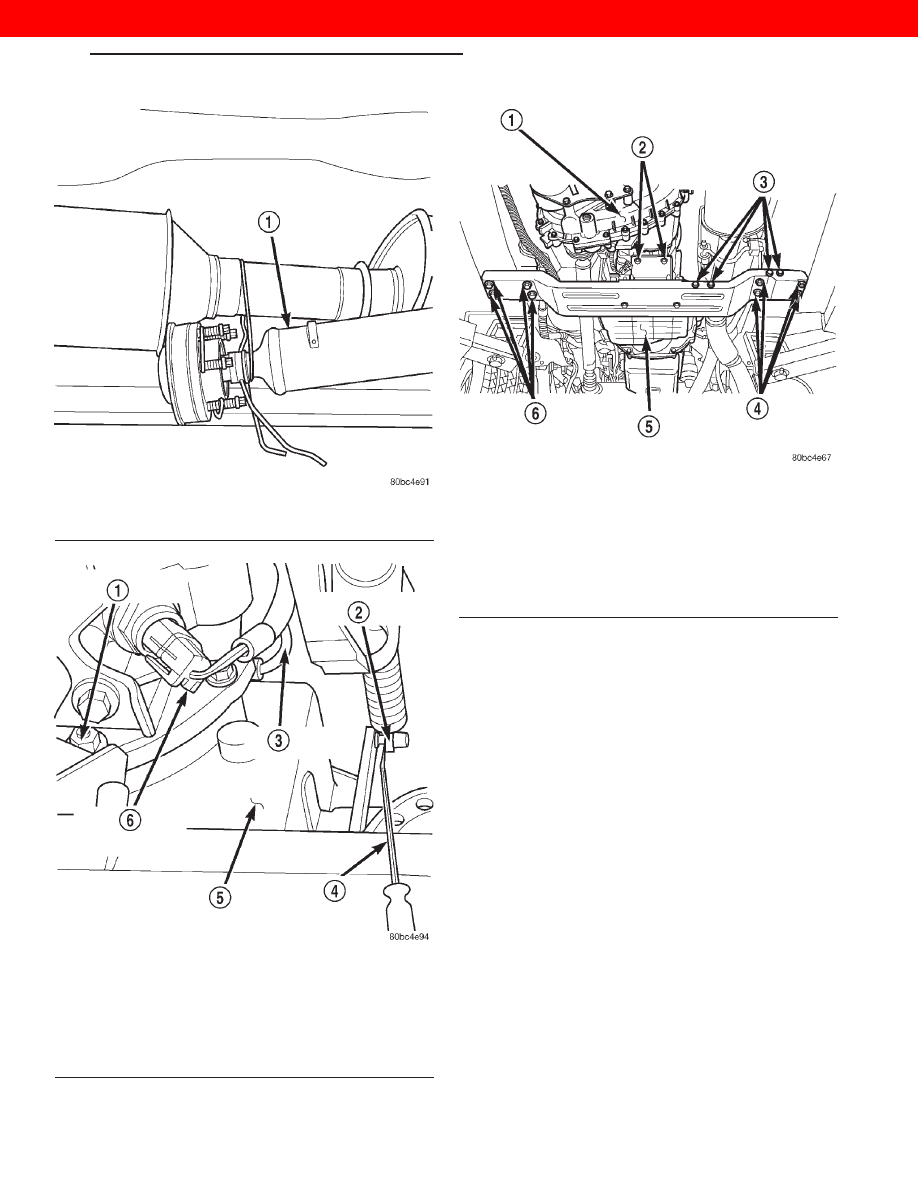

Fig. 3 Rear Driveshaft - Supported

1 – REAR DRIVESHAFT

Fig. 4 Disconnecting Transfer Case Shift Linkage

1 – TRANSFER CASE RETRAINING NUTS
2 – TRANSFER CASE SHIFTER CABLE
3 – TRANSFER CASE VENT HOSE
4 – FLAT BLADED TOOL
5 – TRANSFER CASE
6 – TRANSMISSION ELECTRICAL CONNECTOR

Fig. 5 Transmission Support Crossmember Position

& Orientation

1 – TRANSFER CASE
2 – TRANSMISSION MOUNT RETAINING BOLTS (2 OF 4)
3 – EXHAUST SYSTEM SUPPORT BRACKET RETAINING BOLTS
4 – CROSSMEMBER RETAINING BOLTS
5 – TRANSMISSION
6 – CROSSMEMBER RETAINING BOLTS

WJ

TRANSMISSION AND TRANSFER CASE

21 - 141

REMOVAL AND INSTALLATION (Continued)

2000 JEEP GRAND CHEROKEE
