INSTALLATION

(1) Position the cable in the vehicle and secure in

the original position with appropriate retaining clips.

(2) Install the B. T. S. I. cable on the shifter

bracket and connect at the shifter B. T. S. I. lever
(Fig. 46).

(3) Install the center console in the vehicle. Refer

to Group 23, Body for the procedure.

(4) Push the B. T. S. I. cable straight into the

square mounting hole in the steering column until
cable snaps in place (Fig. 47).

(5) Connect the brake transmission shift interlock

(B. T. S. I.) cable solenoid electrical connector (Fig.
47).

(6) Install the lower steering column shroud in the

vehicle.

(7) Install the steering column opening cover.

Refer to Group 8E, Instrument Panel Systems for the
procedure.

(8) Verify correct B. T. S. I. cable operation.

GOVERNOR SOLENOID AND PRESSURE
SENSOR

REMOVAL

(1) Hoist and support vehicle on safety stands.
(2) Remove transmission fluid pan and filter.
(3) Disengage wire connectors from pressure sen-

sor and solenoid (Fig. 48).

(4) Remove

screws

holding

pressure

solenoid

retainer to governor body.

(5) Separate solenoid retainer from governor (Fig.

49).

(6) Pull solenoid from governor body (Fig. 50).
(7) Remove bolts holding governor body to valve

body.

(8) Separate governor body from valve body (Fig.

51).

(9) Remove governor body gasket.
(10) Remove retainer holding pressure sensor to

governor body.

(11) Pull pressure sensor from governor body (Fig.

52).

Fig. 46 Brake Transmission Shift Interlock

1 – SHIFT MECHANISM
2 – SHIFTER BTSI LEVER
3 – ADJUSTMENT CLIP

4 – STEERING COLUMN ASSEMBLY
5 – INTERLOCK CABLE

21 - 42

TRANSMISSION AND TRANSFER CASE

WJ

REMOVAL AND INSTALLATION (Continued)

2000 JEEP GRAND CHEROKEE

INSTALLATION

Before installing the pressure sensor and solenoid

in the governor body, replace O-ring seals, clean the
gasket surfaces and replace gasket.

(1) Lubricate

O-ring

on

pressure

sensor

with

transmission fluid.

(2) Align pressure sensor to bore in governor body

(Fig. 52).

(3) Push pressure sensor into governor body.
(4) Install retainer to hold pressure sensor to gov-

ernor body.

(5) Place gasket in position on back of governor

body (Fig. 51).

(6) Place governor body in position on valve body.
(7) Install bolts to hold governor body to valve

body.

(8) Lubricate O-ring, on pressure solenoid, with

transmission fluid.

(9) Align pressure solenoid to bore in governor

body (Fig. 50).

(10) Push solenoid into governor body.
(11) Place solenoid retainer in position on governor

(Fig. 49).

(12) Install

screws

to

hold

pressure

solenoid

retainer to governor body.

(13) Engage wire connectors into pressure sensor

and solenoid (Fig. 48).

(14) Install transmission fluid pan and (new) filter.
(15) Lower vehicle and road test to verify repair.

Fig. 47 B. T. S. I. Solenoid Connector Location

1 – LEFT MULTIFUNCTION SWITCH CONNECTOR
2 – LOWER CLOCKSPRING CONNECTORS
3 – RIGHT MULTIFUNCTION SWITCH CONNECTOR
4 – SHIFTER INTERLOCK CABLE CONNECTOR
5 – SHIFTER INTERLOCK SOLENOID CONNECTOR
6 – IGNITION SWITCH CONNECTOR RECEPTACLES
7 – SKIM CONNECTOR

Fig. 48 Governor Solenoid And Pressure Sensor

1 – PRESSURE SENSOR
2 – PRESSURE SOLENOID
3 – GOVERNOR

Fig. 49 Pressure Solenoid Retainer

1 – PRESSURE SOLENOID RETAINER
2 – GOVERNOR

WJ

TRANSMISSION AND TRANSFER CASE

21 - 43

REMOVAL AND INSTALLATION (Continued)

2000 JEEP GRAND CHEROKEE

VALVE BODY

The valve body can be removed for service without

having to remove the transmission assembly.

The valve body can be disassembled for cleaning

and inspection of the individual components. Refer to
Disassembly and Assembly section for proper proce-
dures.

The only replaceable valve body components are:
• Manual lever.

• Manual lever washer, seal, E-clip, and shaft

seal.

• Manual lever detent ball.

• Throttle lever.

• Fluid filter.

• Pressure adjusting screw bracket.

• Governor pressure solenoid.

• Governor pressure sensor.

• Converter clutch/overdrive solenoid assembly

and harness (includes sump temperature thermistor).

• Governor housing gasket.

• Solenoid case connector O-rings.
The remaining valve body components are serviced

only as part of a complete valve body assembly.

REMOVAL

(1) Shift transmission into NEUTRAL.
(2) Raise vehicle.
(3) Remove gearshift and throttle levers from shaft

of valve body manual lever.

(4) Disconnect wires at solenoid case connector

(Fig. 53).

(5) Position drain pan under transmission oil pan.
(6) Remove transmission oil pan and gasket.
(7) Remove fluid filter from valve body.
(8) Remove bolts attaching valve body to transmis-

sion case.

(9) Lower valve body enough to remove accumula-

tor piston and springs.

(10) Work manual lever shaft and electrical con-

nector out of transmission case.

(11) Lower valve body, rotate valve body away

from case, pull park rod out of sprag, and remove
valve body (Fig. 54).

INSTALLATION

(1) Check condition of O-ring seals on valve body

harness connector (Fig. 55). Replace seals on connec-
tor body if cut or worn.

(2) Check condition of manual lever shaft seal in

transmission case. Replace seal if lip is cut or worn.
Install new seal with 15/16 deep well socket (Fig. 56).

Fig. 50 Pressure Solenoid and O-ring

1 – PRESSURE SOLENOID
2 – O-RING
3 – GOVERNOR

Fig. 51 Governor Body and Gasket

1 – GOVERNOR BODY
2 – GASKET

Fig. 52 Pressure Sensor and Retainer

1 – RETAINING CLIP
2 – GOVERNOR BODY
3 – GOVERNOR PRESSURE SENSOR/TRANSMISSION FLUID

TEMPERATURE THERMISTOR

21 - 44

TRANSMISSION AND TRANSFER CASE

WJ

REMOVAL AND INSTALLATION (Continued)

2000 JEEP GRAND CHEROKEE

(3) Check condition of seals on accumulator piston

(Fig. 57). Install new piston seals, if necessary.

(4) Place valve body manual lever in low (1 posi-

tion) so ball on park lock rod will be easier to install
in sprag.

(5) Lubricate shaft of manual lever with petroleum

jelly. This will ease inserting shaft through seal in
case.

(6) Lubricate seal rings on valve body harness con-

nector with petroleum jelly.

(7) Position valve body in case and work end of

park lock rod into and through pawl sprag. Turn pro-
peller shaft to align sprag and park lock teeth if nec-
essary. The rod will click as it enters pawl. Move rod
to check engagement.

CAUTION: It is possible for the park rod to displace
into a cavity just above the pawl sprag during
installation. Make sure the rod is actually engaged
in the pawl and has not displaced into this cavity.

(8) Install accumulator springs and piston into

case. Then swing valve body over piston and outer
spring to hold it in place.

(9) Align accumulator piston and outer spring,

manual lever shaft and electrical connector in case.

(10) Then seat valve body in case and install one

or two bolts to hold valve body in place.

(11) Tighten valve body bolts alternately and

evenly to 11 N·m (100 in. lbs.) torque.

(12) Install new fluid filter on valve body. Tighten

filter screws to 4 N·m (35 in. lbs.) torque.

(13) Install throttle and gearshift levers on valve

body manual lever shaft.

(14) Check and adjust front and rear bands if nec-

essary.

(15) Connect solenoid case connector wires.
(16) Install oil pan and new gasket. Tighten pan

bolts to 17 N·m (13 ft. lbs.) torque.

(17) Lower vehicle and fill transmission with

Mopar

t ATF Plus 3, type 7176 fluid.

(18) Check and adjust gearshift and throttle valve

cables, if necessary.

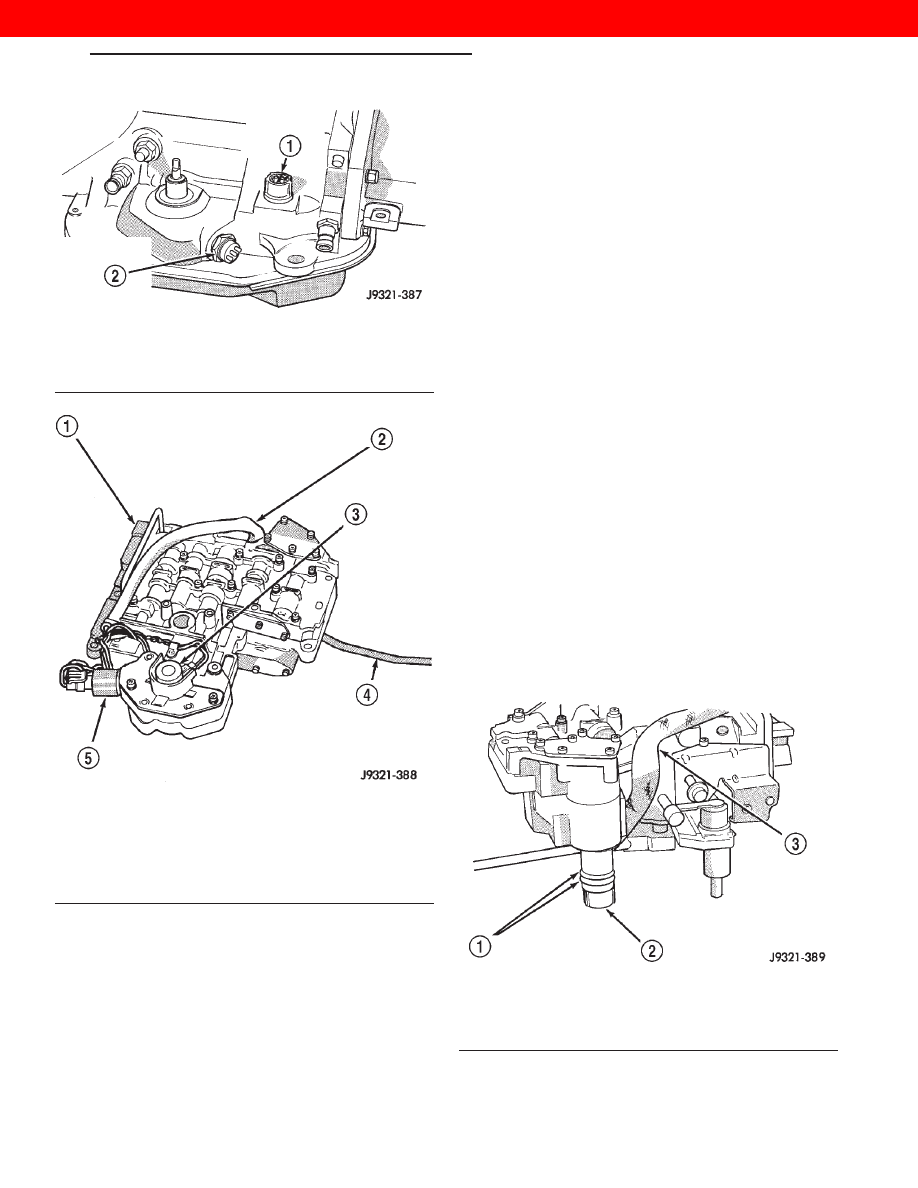

Fig. 53 Transmission Case Connector

1 – SOLENOID CASE CONNECTOR
2 – PARK/NEUTRAL POSITION SWITCH CONNECTOR

TERMINAL

Fig. 54 Valve Body

1 – VALVE BODY
2 – WIRE HARNESS
3 – GOVERNOR PRESSURE SOLENOID
4 – PARK ROD
5 – GOVERNOR PRESSURE SENSOR

Fig. 55 Valve Body Harness Connector O-Ring Seal

1 – CONNECTOR O-RINGS
2 – VALVE BODY HARNESS CONNECTOR
3 – HARNESS

WJ

TRANSMISSION AND TRANSFER CASE

21 - 45

REMOVAL AND INSTALLATION (Continued)

2000 JEEP GRAND CHEROKEE
