Jeep Grand Cherokee WJ. Manual - part 496





(12) Install the transmission fluid cooler lines on

the transmission (Fig. 24). Torque the nuts to 18 N·m
(13 ft. lbs.).

(13) Install the shifter cable bracket and retaining

bolt (Fig. 24).

(14) Connect the shifter cable (Fig. 24).
(15) Install the spring on the shift lever arm (Fig.

24).

(16) Install the throttle valve cable bracket and

retaining fasteners (Fig. 24).

(17) Connect the throttle valve cable (Fig. 24).
(18) Install the transfer case shift cable bracket on

the transmission housing (Fig. 24).

(19) Position the transmission support crossmem-

ber/mount assembly and install the (4) transmission
mount retaining bolts (Fig. 25). Torque the bolts to
75 N·m (55 ft. lbs.).

(20) Install a jack under the transmission support

crossmember and raise slightly.

(21) Install the transfer case on the transmission.

Torque the transfer case retaining nuts to 75 N·m (55
ft. lbs.).

(22) Using the jack, raise the transmission assem-

bly into position and install the (8) transmission sup-
port crossmember retaining bolts (Fig. 25). Torque
the bolts to 41 N·m (30 ft. lbs.).

(23) Unclip the wire harness from the transmis-

sion support crossmember.

(24) Position the exhaust system support brackets

and install the retaining bolts. Torque the bolts to 41
N·m (30 ft. lbs.) (Fig. 25).

(25) Install the vent tube on the transfer case.
(26) Connect the transfer case shift cable on the

shifter arm.

(27) Install the rear driveshaft. Torque the bolts to

32 N·m (24 ft. lbs.). Be certain to install the drive-
shaft in the same position as before removal.

(28) Install the front driveshaft. Torque the bolts

to 32 N·m (24 ft. lbs.) (Fig. 26). Be certain to install
the

driveshaft

in

the

same

position

as

before

removal.

(29) Install the (2) lower fan shroud retaining

bolts. Torque the bolts to 15 N·m (132 in. lbs.).

(30) Lower the vehicle on the hoist.
(31) Install the transmission dipstick tube in the

transmission housing.

(32) Install the transmission dipstick tube support

bracket retaining nut (Fig. 27). Torque the nut to 25
N·m (221 in. lbs.).

(33) Install the (2) upper fan shroud retaining

bolts. Torque the bolts to 15 N·m (132 in. lbs.).

(34) Connect the negative battery cable.

Fig. 25 Transmission Support Crossmember

Position & Orientation

1 – TRANSFER CASE
2 – TRANSMISSION MOUNT RETAINING BOLTS (2 OF 4)
3 – EXHAUST SYSTEM SUPPORT BRACKET RETAINING BOLTS
4 – CROSSMEMBER RETAINING BOLTS
5 – TRANSMISSION
6 – CROSSMEMBER RETAINING BOLTS

Fig. 26 Front Driveshaft Retaining Bolts

1 – TRANSFER CASE
2 – FRONT DRIVESHAFT RETAINING BOLTS
3 – REFERENCE MARK

21 - 34

TRANSMISSION AND TRANSFER CASE

WJ

REMOVAL AND INSTALLATION (Continued)

2000 JEEP GRAND CHEROKEE

TORQUE CONVERTER

REMOVAL

(1) Remove transmission and torque converter

from vehicle.

(2) Place a suitable drain pan under the converter

housing end of the transmission.

CAUTION: Verify that transmission is secure on the
lifting device or work surface, the center of gravity
of the transmission will shift when the torque con-
verter is removed creating an unstable condition.

The torque converter is a heavy unit. Use caution

when separating the torque converter from the
transmission.

(3) Pull the torque converter forward until the cen-

ter hub clears the oil pump seal.

(4) Separate the torque converter from the trans-

mission.

INSTALLATION

Check converter hub and drive notches for sharp

edges, burrs, scratches, or nicks. Polish the hub and
notches with 320/400 grit paper or crocus cloth if nec-
essary. The hub must be smooth to avoid damaging
the pump seal at installation.

(1) Lubricate converter hub and oil pump seal lip

with transmission fluid.

(2) Place torque converter in position on transmis-

sion.

CAUTION: Do not damage oil pump seal or bushing
while inserting torque converter into the front of the
transmission.

(3) Align torque converter to oil pump seal open-

ing.

(4) Insert torque converter hub into oil pump.
(5) While pushing torque converter inward, rotate

converter until converter is fully seated in the oil
pump gears.

(6) Check converter seating with a scale and

straightedge (Fig. 28). Surface of converter lugs
should be 1/2 in. to rear of straightedge when con-
verter is fully seated.

(7) If necessary, temporarily secure converter with

C-clamp attached to the converter housing.

(8) Install the transmission in the vehicle.
(9) Fill the transmission with the recommended

fluid.

Fig. 27 Transmission Dipstick Tube Support Bracket

Position & Orientation

1 – TRANSMISSION DIPSTICK TUBE
2 – TURBOCHARGER EXHAUST MANIFOLD HEATSHIELD
3 – TRANSMISSION DIPSTICK TUBE SUPPORT BRACKET

RETAINING NUT

Fig. 28 Checking Torque Converter Seating

1 – SCALE
2 – STRAIGHTEDGE

WJ

TRANSMISSION AND TRANSFER CASE

21 - 35

REMOVAL AND INSTALLATION (Continued)

2000 JEEP GRAND CHEROKEE

YOKE SEAL REPLACEMENT

REMOVAL

(1) Raise vehicle.
(2) Mark propeller shaft and axle yoke for align-

ment reference.

(3) Disconnect and remove propeller shaft.
(4) Remove old seal with Seal Remover C-3985-B

(Fig. 29) from overdrive housing.

INSTALLATION

(1) Place seal in position on overdrive housing.
(2) Drive seal into overdrive housing with Seal

Installer C-3995-A (Fig. 30).

(3) Carefully guide propeller shaft slip yoke into

housing and onto output shaft splines. Align marks
made at removal and connect propeller shaft to rear
axle pinion yoke.

PARK/NEUTRAL POSITION SWITCH

REMOVAL

(1) Raise vehicle and position drain pan under

switch.

(2) Disconnect switch wires.
(3) Remove switch from case.

INSTALLATION

(1) Move shift lever to Park and Neutral positions.

Verify that switch operating lever fingers are cen-
tered in switch opening in case (Fig. 31).

(2) Install new seal on switch and install switch in

case. Tighten switch to 34 N·m (25 ft. lbs.) torque.

(3) Test continuity of new switch with 12V test

lamp.

(4) Connect switch wires and lower vehicle.
(5) Top off transmission fluid level.

GEARSHIFT CABLE

REMOVAL

(1) Place the transmission gear selector in the

“PARK” position.

(2) Raise the vehicle on a hoist.
(3) Disconnect the shift cable eyelet from the

transmission shift lever (Fig. 32).

Fig. 29 Removing Overdrive Housing Yoke Seal

1 – SPECIAL TOOL C-3985–B
2 – SEAL

Fig. 30 Installing Overdrive Housing Yoke Seal

1 – SPECIAL TOOL C-3995–A OR C-3972–A
2 – SPECIAL TOOL C-4471

Fig. 31 Park/Neutral Position Switch

1 – NEUTRAL CONTACT
2 – MANUAL LEVER AND SWITCH PLUNGER IN REVERSE

POSITION

3 – PARK CONTACT
4 – SWITCH

21 - 36

TRANSMISSION AND TRANSFER CASE

WJ

REMOVAL AND INSTALLATION (Continued)

2000 JEEP GRAND CHEROKEE

(4) Remove the shift cable from the shift cable sup-

port bracket.

(5) Lower the vehicle from the hoist.
(6) Remove shift lever bezel and necessary console

parts for access to shifter and cable assembly.

(7) Disconnect the shift cable from the shifter

assembly (Fig. 33).

(8) Remove the shift cable seal plate retaining

nuts from the floor pan studs (Fig. 34).

(9) Remove the shifter cable through the floor pan

opening.

INSTALLATION

(1) Route the shift cable through hole in floor pan.
(2) Install the shift cable seal plate retaining nuts

on the floor pan studs. (Fig. 35). Torque the nuts to 7
N·m (65 in. lbs.).

(3) Install the shift cable in the shifter bracket

assembly.

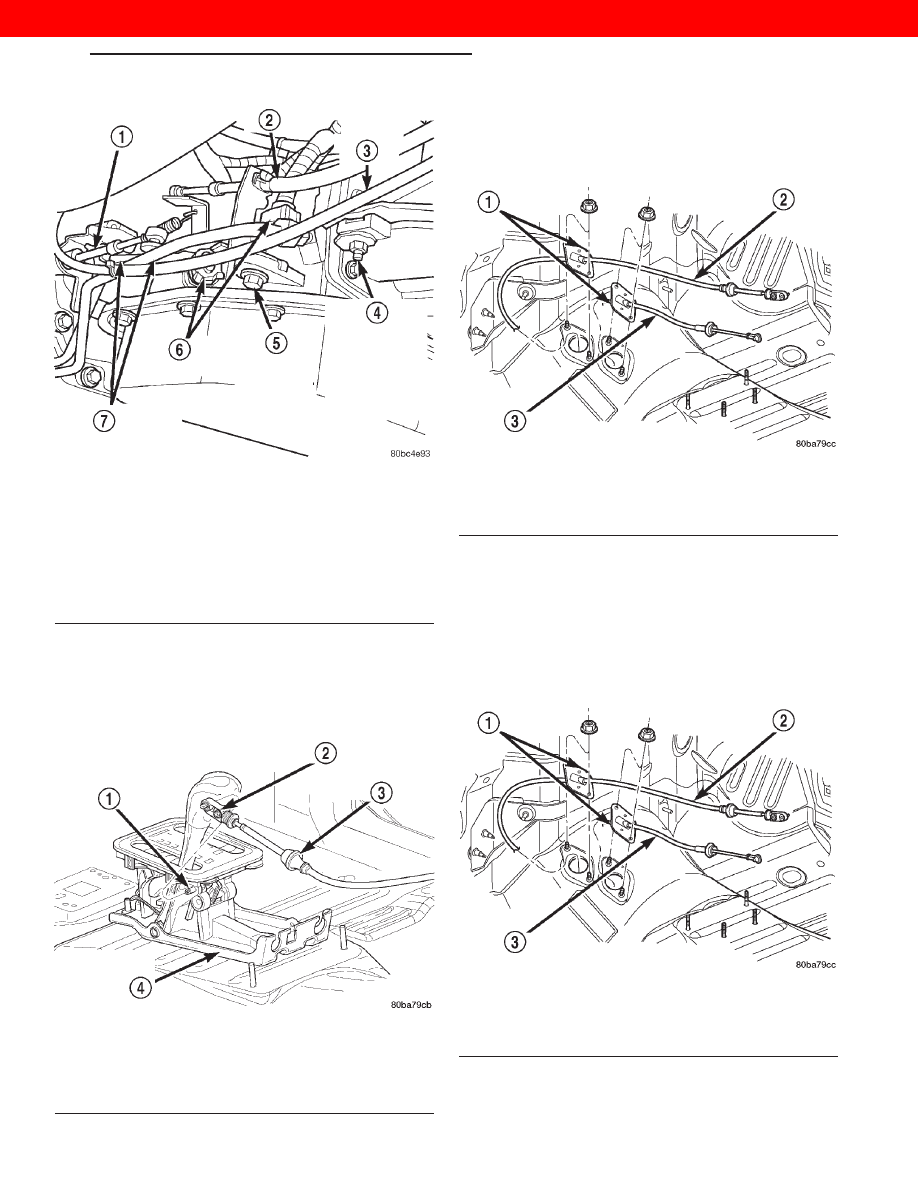

Fig. 32 Shift Cable at Transmission

1 – TRANSMISSION SHIFTER CABLE
2 – THROTTLE VALVE CABLE
3 – TRANSFER CASE SHIFTER CABLE
4 – TRANSFER CASE SHIFTER CABLE BRACKET RETAINING

BOLT (1 OF 2)

5 – THROTTLE VALVE CABLE BRACKET RETAINING BOLT
6 – ELECTRICAL CONNECTORS
7 – TRANSMISSION FLUID LINES

Fig. 33 Transmission Shift Cable at Shifter

1 – SHIFT LEVER PIN
2 – ADJUSTMENT SCREW
3 – SHIFT CABLE
4 – SHIFTER ASSEMBLY BRACKET

Fig. 34 Shift Cables at Floor Pan

1 – SEAL PLATES
2 – TRANSMISSION SHIFT CABLE
3 – TRANSFER CASE SHIFT CABLE

Fig. 35 Shift Cables at Floor Pan

1 – SEAL PLATES
2 – TRANSMISSION SHIFT CABLE
3 – TRANSFER CASE SHIFT CABLE

WJ

TRANSMISSION AND TRANSFER CASE

21 - 37

REMOVAL AND INSTALLATION (Continued)

2000 JEEP GRAND CHEROKEE
