CAUTION: Mark the position of the driveshaft in
relation to its companion flange prior to disassem-
bly. Driveshaft must be reinstalled in the same posi-
tion it was in prior to disassembly.

(8) Remove the front driveshaft retaining bolts

(Fig. 15) and remove the driveshaft from the transfer
case companion flange. Support the driveshaft with
mechanics wire.

(9) Remove the rear driveshaft retaining bolts and

remove the driveshaft from the transfer case compan-
ion flange. Support the driveshaft with mechanics
wire (Fig. 16).

(10) Disconnect the transfer case shift cable from

the shifter arm (Fig. 17).

(11) Disconnect the vent tube from the transfer

case (Fig. 17).

(12) Remove the transmission oil pan and drain

the transmission fluid. Reinstall the transmission oil
pan.

(13) Remove the drainpan.
(14) Remove

the

(4)

exhaust

system

support

bracket retaining bolts from the transmission sup-
port crossmember (Fig. 18).

(15) Unclip the wire harness from the transmis-

sion support crossmember.

(16) Position a jack under the transmission sup-

port crossmember.

(17) Remove the (8) transmission support cross-

member retaining bolts (Fig. 18).

Fig. 15 Front Driveshaft Retaining Bolts

1 – TRANSFER CASE
2 – FRONT DRIVESHAFT RETAINING BOLTS
3 – REFERENCE MARK

Fig. 16 Rear Driveshaft - Supported

1 – REAR DRIVESHAFT

Fig. 17 Disconnecting Transfer Case Shift Linkage

1 – TRANSFER CASE RETAINING NUTS
2 – TRANSFER CASE SHIFTER CABLE
3 – TRANSFER CASE VENT HOSE
4 – FLAT BLADED TOOL
5 – TRANSFER CASE
6 – TRANSMISSION ELECTRICAL CONNECTOR

21 - 30

TRANSMISSION AND TRANSFER CASE

WJ

REMOVAL AND INSTALLATION (Continued)

2000 JEEP GRAND CHEROKEE

(18) Position a transmission jack under the trans-

fer case.

(19) Lower the transmission assembly enough to

gain access and remove the transfer case to trans-
mission retaining nuts.

(20) Remove the transfer case from the vehicle.
(21) Remove the jack from the transmission sup-

port crossmember.

(22) Remove the (4) transmission mount retaining

bolts (Fig. 18) and remove the transmission support
crossmember and mount from the vehicle.

(23) Remove the transfer case shift cable bracket

from the transmission housing (Fig. 19).

(24) Disconnect the throttle valve cable at the ball

and socket connection by gently pulling straight
apart (Fig. 19).

(25) Remove

the

throttle

valve

cable

bracket

retaining fasteners and position the cable assembly
out of the way (Fig. 19).

(26) Remove the spring from the shift lever arm

(Fig. 19).

(27) Disconnect the shifter cable at the ball and

socket connection by gently pulling straight apart
(Fig. 19).

(28) Remove the shifter cable bracket retaining

bolt from the transmission housing (Fig. 19).

(29) Remove the transmission fluid cooler lines

from the transmission (Fig. 19).

(30) Disconnect all the transmission electrical con-

nectors and unclip the wire harness from the trans-
mission housing (Fig. 19).

(31) Remove the exhaust system inlet pipe retain-

ing bolts from the turbocharger down pipe (Fig. 20).
Support the front portion of the exhaust system with
mechanics wire. Be certain to position the pipe out of
the way of the torque converter bolt access hole.
Located in the transmission bellhousing.

(32) Disconnect the engine speed sensor. Located

on the upper right side of the transmission bellhous-
ing.

(33) Remove the starter motor from the vehicle.

Refer to Group 8B, Starting Systems for the proce-
dure.

NOTE: Mark the position of the torque convertor in
relation to the driveplate so they can be reassem-
bled in there original position.

(34) Working through the torque convertor bolt

access hole (Fig. 21), remove the (4) torque convertor
to driveplate retaining bolts. Rotate the engine in a
clockwise direction to access the converter bolts.

(35) Place a jack under the transmission.

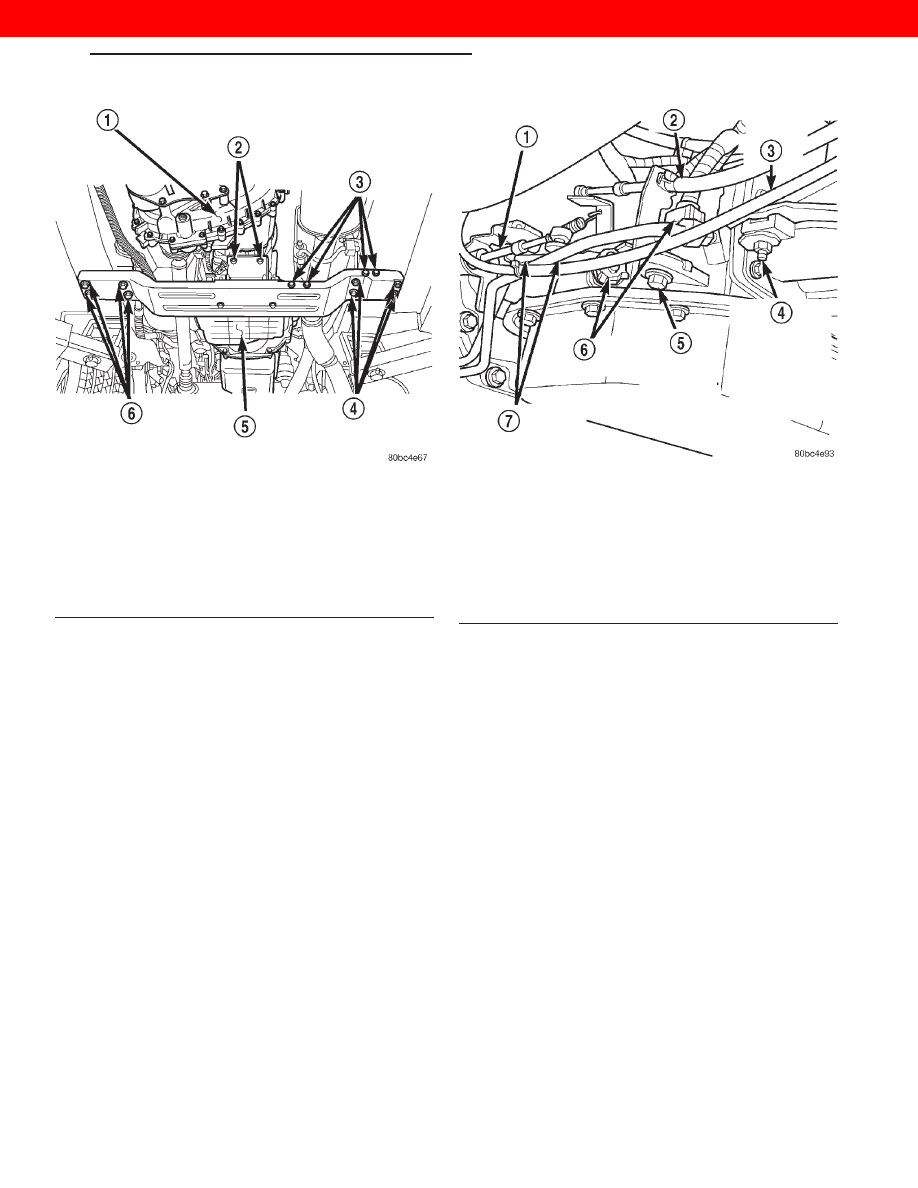

Fig. 18 Transmission Support Crossmember

Position & Orientation

1 – TRANSFER CASE
2 – TRANSMISSION MOUNT RETAINING BOLTS (2 OF 4)
3 – EXHAUST SYSTEM SUPPORT BRACKET RETAINING BOLTS
4 – CROSSMEMBER RETAINING BOLTS
5 – TRANSMISSION
6 – CROSSMEMBER RETAINING BOLTS

Fig. 19 Transmission Control Cables & Fluid Lines

1 – TRANSMISSION SHIFTER CABLE
2 – THROTTLE VALVE CABLE
3 – TRANSFER CASE SHIFTER CABLE
4 – TRANSFER CASE SHIFTER CABLE BRACKET RETAINING

BOLT (1 OF 2)

5 – THROTTLE VALVE CABLE BRACKET RETAINING BOLT
6 – ELECTRICAL CONNECTORS
7 – TRANSMISSION FLUID LINES

WJ

TRANSMISSION AND TRANSFER CASE

21 - 31

REMOVAL AND INSTALLATION (Continued)

2000 JEEP GRAND CHEROKEE

CAUTION: Be certain the engine speed sensor has
been disconnected before proceeding.

(36) Remove the (10) engine to transmission bell-

housing retaining bolts.

(37) Remove the transmission and torque con-

verter from the vehicle.

INSTALLATION

CAUTION: This engine is equipped with a engine
speed sensor. Located in the top of the bellhousing.
Care must be taken not to damage the sensor or
corresponding wires during transmission removal
and installation.

CAUTION: Check the torque converter hub and hub
drive notches for sharp edges, burrs, scratches or
nicks. Polish the hub and notches with 320 / 400
grit sandpaper, if necessary. The hub must be
smooth to avoid damaging the pump seal at torque
converter installation.

CAUTION: Lubricate the front pump seal and install
at least one quart of the approved transmission
fluid directly into the torque converter prior to its
installation.

(1) Install the torque converter in the transmis-

sion. Refer to the procedure in this group for detailed
instructions.

(2) Lubricate the rear of the crankshaft or the con-

verter pilot hub with lithium grease.

(3) Position the transmission / converter assembly

on a transmission jack and secure with chains.

NOTE: Be sure the engine block mounted dowel
pins are installed and protrude far enough to hold
the transmission in alignment.

(4) Using the transmission jack, position the trans-

mission assembly so the engine block mounted dowel
pins are perfectly aligned with the corresponding
holes in the transmission bellhousing.

CAUTION: Be certain the torque convertor is prop-
erly installed in the transmission. If the torque con-
vertor is not installed correctly the engine will not
rotate upon installation. Refer to the Torque Con-
verter removal and installation procedure in this
group for the procedure.

(5) Install the (10) engine to transmission bell-

housing retaining bolts. Torque the bolts to 102 N·m
(75 ft. lbs.).

(6) Connect the engine speed sensor. Located on

the upper right side of the transmission bellhousing.

Fig. 20 Exhaust System Inlet Pipe Retaining Bolts

1 – EXHAUST SYSTEM INLET PIPE RETAINING BOLTS
2 – ENGINE OIL PAN

Fig. 21 Torque Converter Bolt Access Hole

1 – TORQUE CONVERTER BOLT ACCESS HOLE
2 – ENGINE OIL PAN
3 – TOP DEAD CENTER ALIGNMENT TOOL ACCESS HOLE

21 - 32

TRANSMISSION AND TRANSFER CASE

WJ

REMOVAL AND INSTALLATION (Continued)

2000 JEEP GRAND CHEROKEE

NOTE: When installing the torque convertor to
driveplate retaining bolts, the torque convertor can
be rotated into position with a flat-bladed screw-
driver through the starter motor access hole. Then
working through the torque convertor bolt access
hole, thread a longer than original bolt into the con-
vertor and pull the convertor up against the drive-
plate by hand. Remove the longer bolt and install
the original bolts one by one until all bolts are
installed. Then go back and torque all bolts to spec-
ification.

(7) Rotate the converter so the previously scribed

alignment mark is aligned with the mark on the
driveplate.

(8) Working through the torque convertor bolt

access hole (Fig. 22), install the (4) torque convertor
to driveplate retaining bolts. Torque the bolts to 32
N·m (24 ft. lbs.) after all bolts are installed.

(9) Install the starter motor in the vehicle. Refer

to Group 8B, Starting Systems for the procedure.

(10) Install the exhaust system inlet pipe and

retaining bolts (Fig. 23). Torque the bolts to 41 N·m
(30 ft. lbs.).

(11) Connect the transmission electrical connectors

and clip the wire harness on the transmission hous-
ing.

Fig. 22 Torque Converter Bolt Access Hole

1 – TORQUE CONVERTER BOLT ACCESS HOLE
2 – ENGINE OIL PAN
3 – TOP DEAD CENTER ALIGNMENT TOOL ACCESS HOLE

Fig. 23 Exhaust System Inlet Pipe Retaining Bolts

1 – EXHAUST SYSTEM INLET PIPE RETAINING BOLTS
2 – ENGINE OIL PAN

Fig. 24 Transmission Control Cables & Fluid Lines

1 – TRANSMISSION SHIFTER CABLE
2 – THROTTLE VALVE CABLE
3 – TRANSFER CASE SHIFTER CABLE
4 – TRANSFER CASE SHIFTER CABLE BRACKET RETAINING

BOLT (1 OR 2)

5 – THROTTLE VALVE CABLE BRACKET RETAINING BOLT
6 – ELECTRICAL CONNECTORS
7 – TRANSMISSION FLUID LINES

WJ

TRANSMISSION AND TRANSFER CASE

21 - 33

REMOVAL AND INSTALLATION (Continued)

2000 JEEP GRAND CHEROKEE
